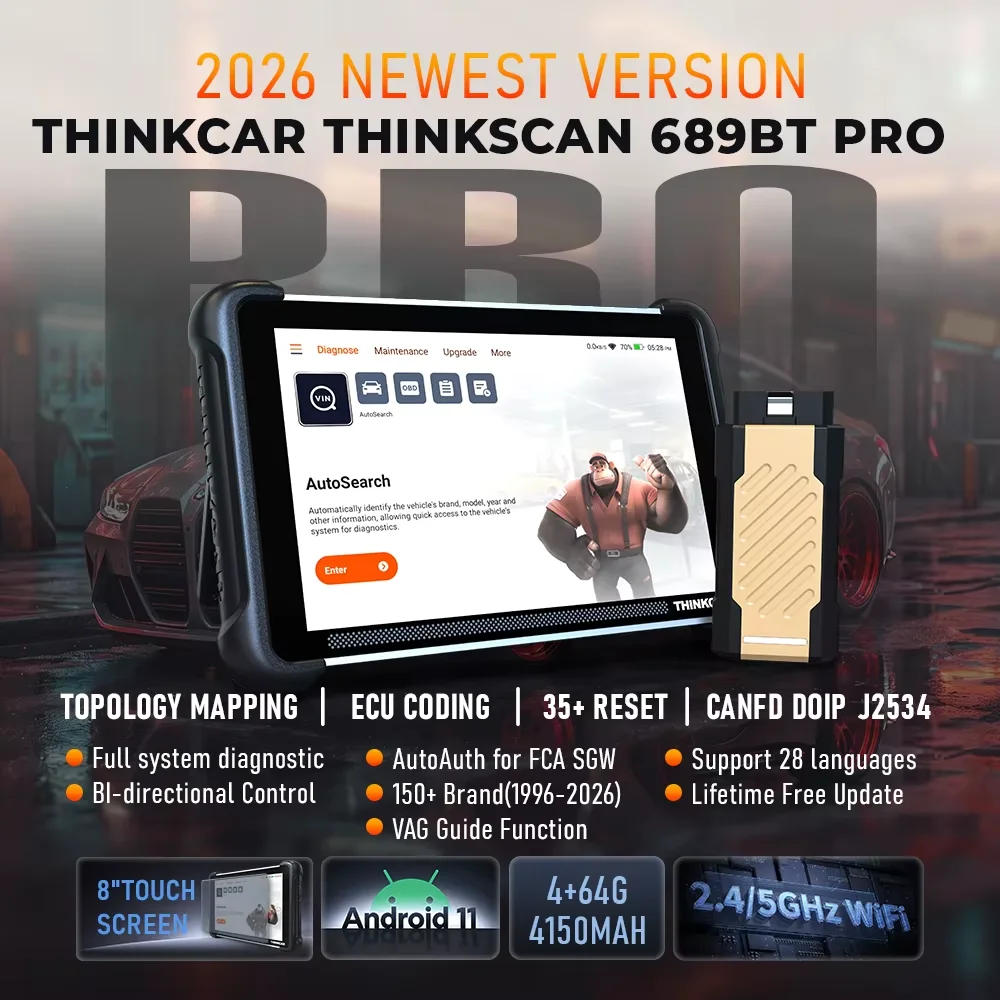

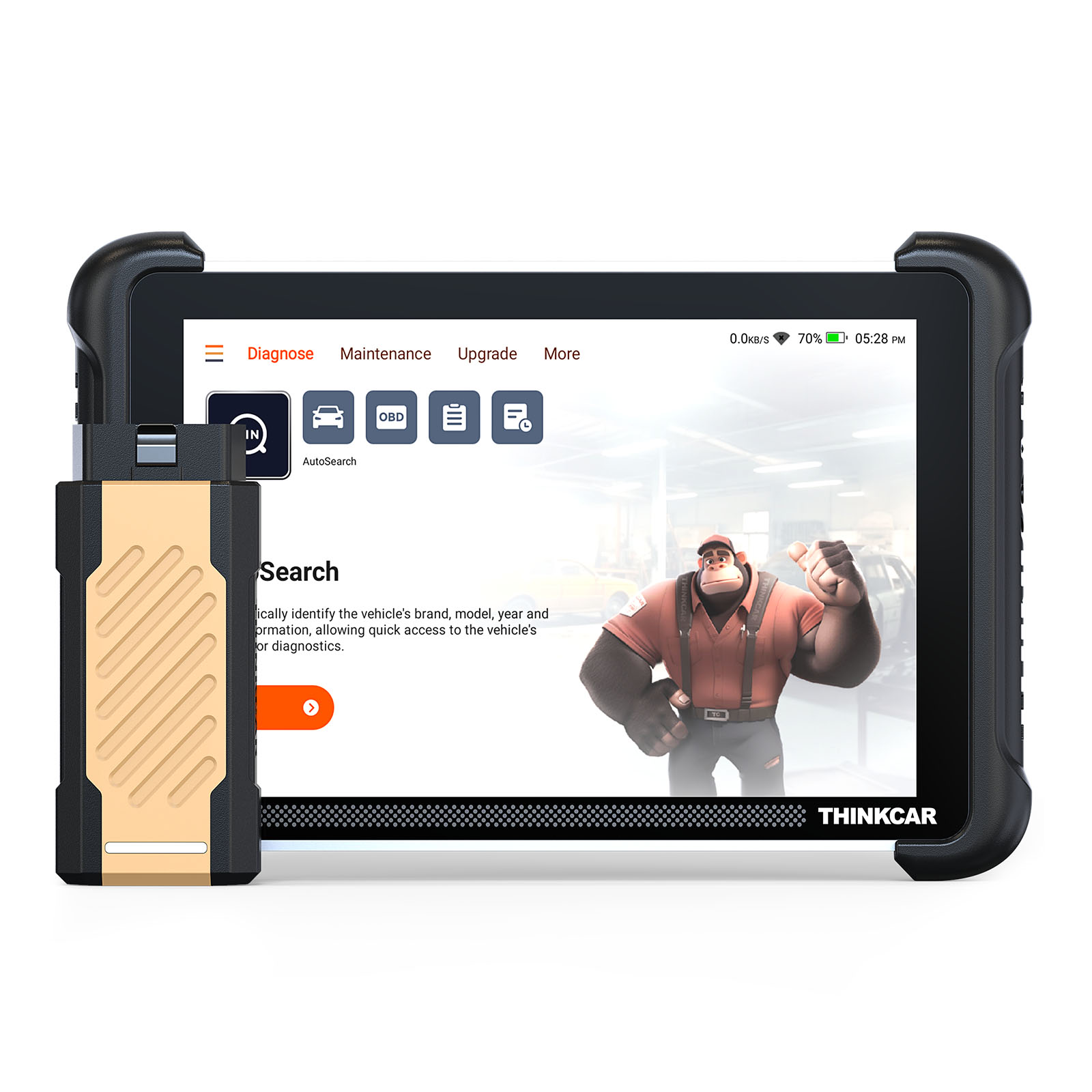

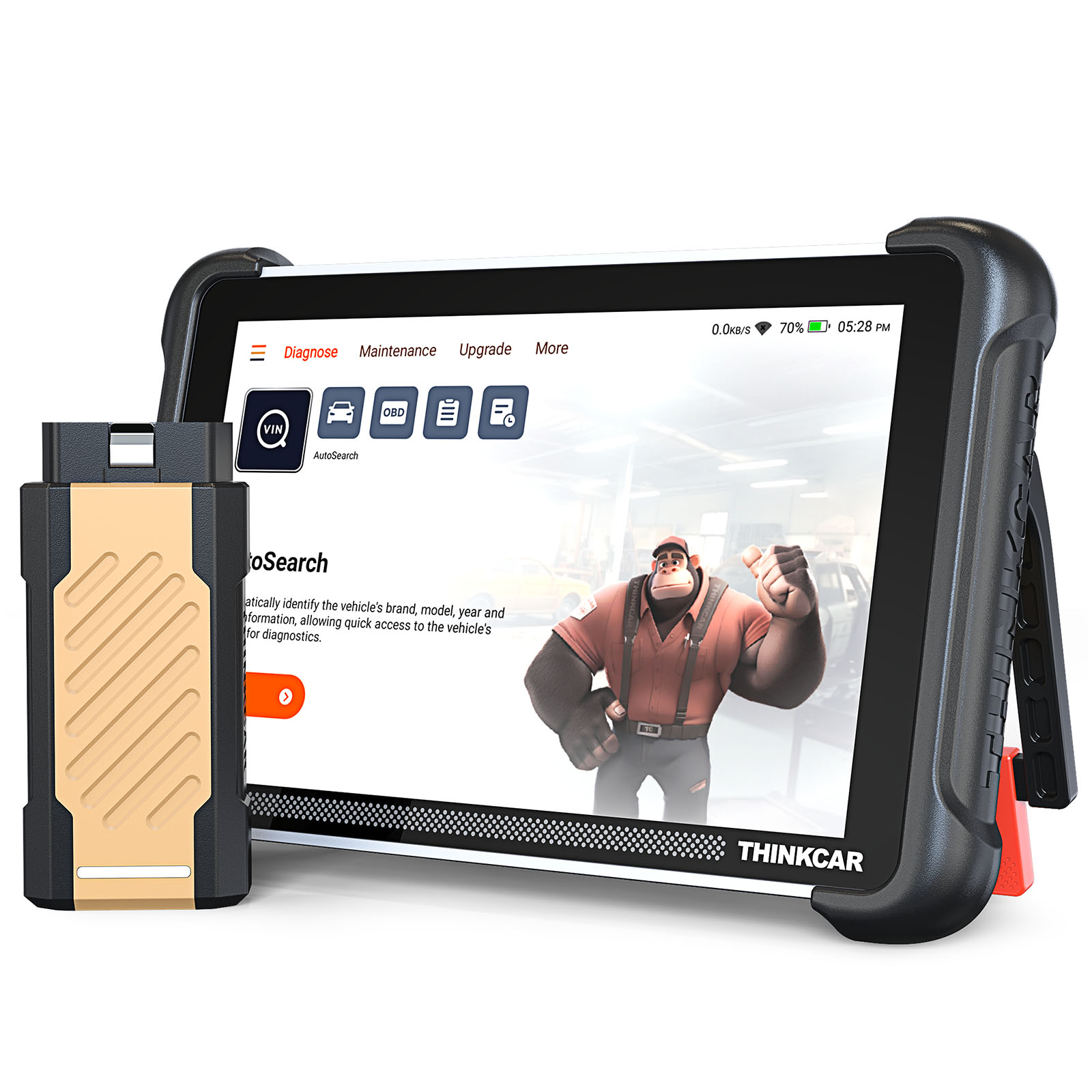

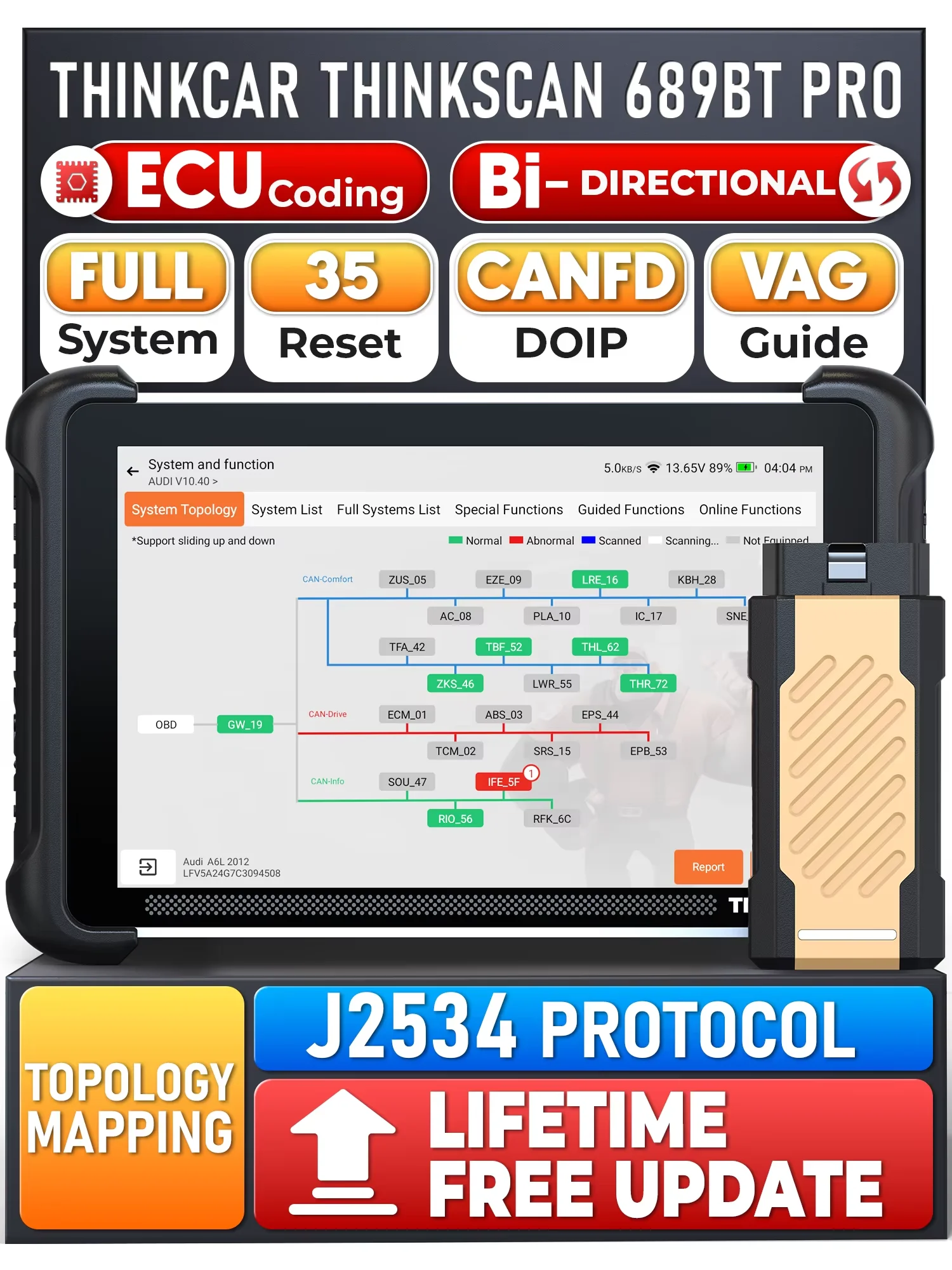

THINKCAR THINKSCAN 689BT Pro OBD2 Diagnostic Tool OE Level Automotive Scanner with Topology Map 35 Resets J2534/CAN FD/DoIP Protocal FCA Access Full System Diagnostic Tool V.A.G Guide Lifetime Free Update Global Version

All Functions Below Lifetime Update, No Subscriptions👍🔥

✅1. Support Topology Mapping
✅2. SupportJ2534+ CANFD + DOIP Protocal
✅3. AI-Assisted Professional Tool
✅4.OE-Level All System Diagnosis + 35 More Reset Functions
✅5. ECU Coding + Active Test (Bidirectional control) + Guide Function
✅6. Support FCA AutoAuth Access
✅7. Auto VIN Scan + Remote Diagnosis + Diagnostic Feedback
✅8. Wide coverage. 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
✅9.Support 28 Languages
✅10.Support Module Expansion

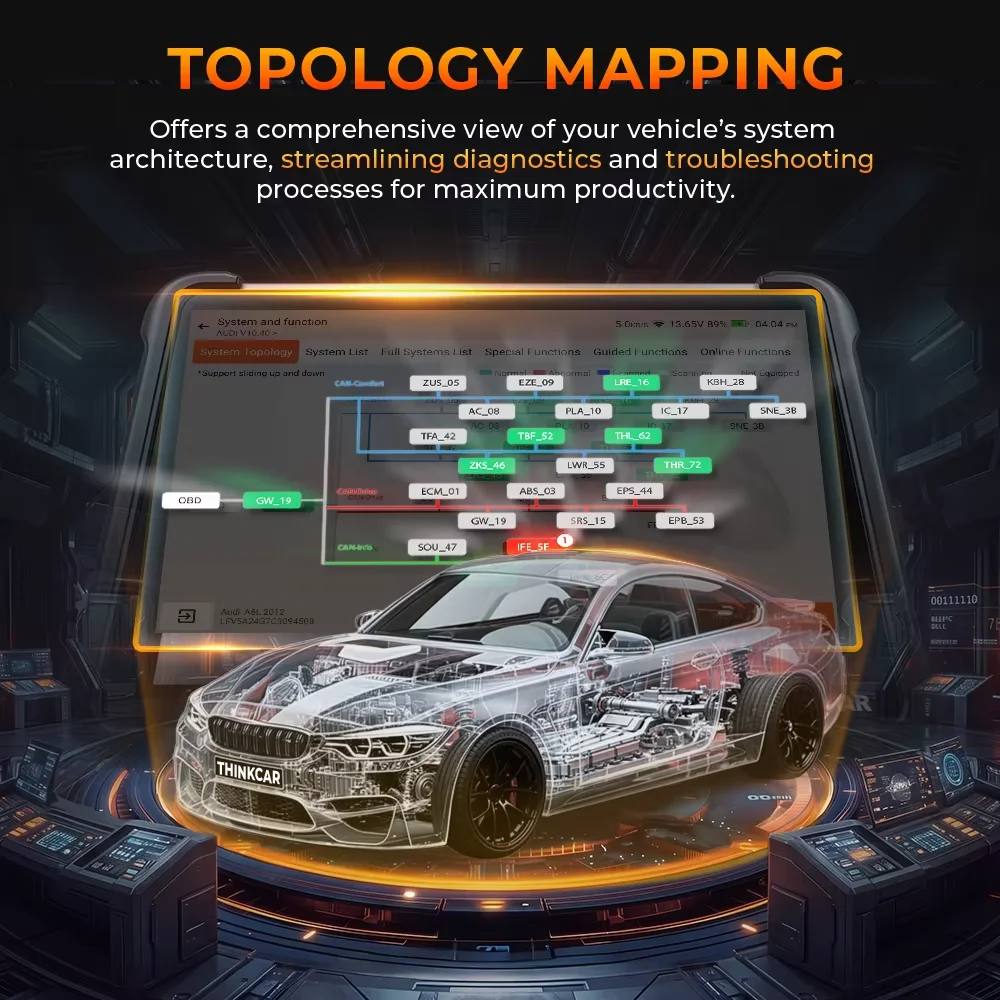

✅ Support topology map function

With the topology map function equipped in MUCAR 892BT Pro Automotive Scan Tool, all the structural topologies between vehicle modules will be displayed in front of you in an intuitive color coded manner. The status of all vehicle modules will be clear at a glance, helping you quickly identify the problem. The printout of the Pre & Post Health Scan Reports will show the vehicle's repair results. Of course, that also goes a long way to calculate the diagnostic charge.

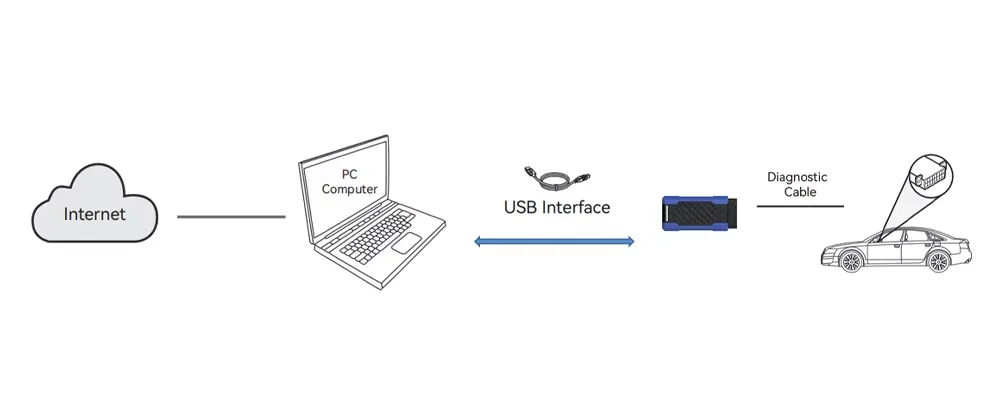

✅J2534 new protocol,What is J2534 Protocal?

The J2534 protocol is a standardized communication interface specification developed by the Society of Automotive Engineers (SAE). Its core objective is to enable a universal hardware device to communicate and program with the electronic control units (ECUs) of all car brands, and the GVCI box included with this device meets this communication standard.

How to use the J2534?

1. Ensure your GVCI box has the latest firmware version. If not, you need to upgrade.

2. First, install the J2534 Plus driver on your PC. Running it will retrieve the version and other information.

3. Install the corresponding original software for your car brand onto your PC. The software varies depending on the car model.

4. Open the original software and locate our corresponding [ThinkCar J2534 VCI].

5. Follow the menu instructions in the original software to identify your car model and access the diagnostic function menu. Flashing requires downloading the program from the original manufacturer's server.

Notes:

1. When connecting the GVCI box to the PC, some systems require checking the "Hardware Management" settings to see if the USB driver is recognized. Otherwise, the original software may not recognize our ThinkCar-J2534.

2. Please adjust the PC's time zone and time to the region you used when you applied for the service. Otherwise, some login errors may occur.

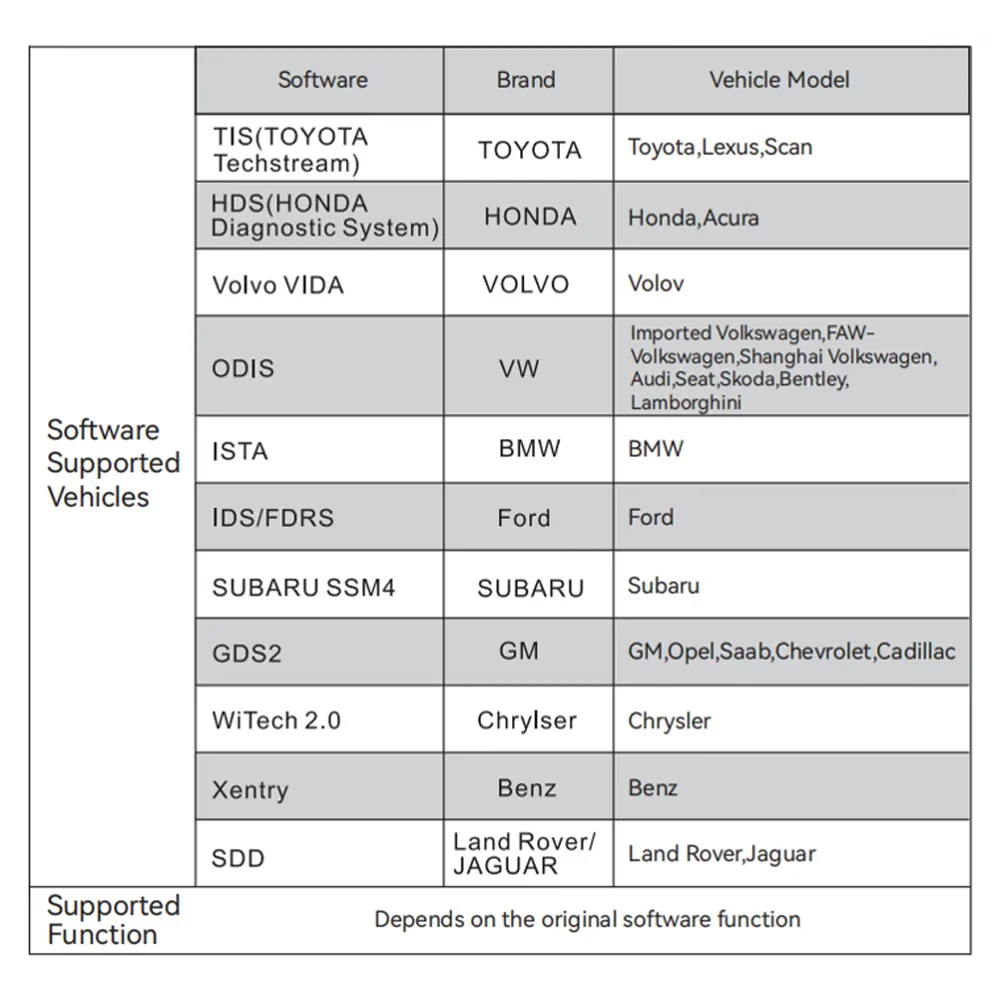

Applicable car models: As shown in the image below.

Applying Ford's J2534 software involves three main steps:

1) Registering and purchasing Ford software
2) Downloading and installing Ford software
3) Linking and using Ford software for diagnostics.

Applying GM's J2534 software: GM software, originally for MDI and MDI2 devices, cannot be used through the original manufacturer's software. Instead, users must purchase and log in through ACDelco's website.

Applying Chrysler's J534 software: Using Chrysler's online Witech software requires prior application and email verification before purchasing software access.

Support DOIP, The 689BT Pro can connect to a diagnostic connector via Bluetooth or a USB cable to perform DOIP diagnostics. The USB cable connection is shown in the image below. When performing DOIP protocol diagnostics, if the data volume is large, it is recommended to use a USB cable for more reliable data.

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes MUCAR 892BT Pro save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

Support CANFD vehicles

GM:

[2021][Chevrolet][Onix] CANFD6&14

[2021][Chevrolet][Tracker] CANFD6&14

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021[GMC][YUKON XL] CCMA

[2021[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] CANFD6&14

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)


[2021][Chevrolet][Onix] all system

[2021][Chevrolet][Tracker] all system

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021[GMC][YUKON XL] CCMA

[2021[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] all system

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

Support FCA, note free , need FCA account

✔️All Cars Lifetime Free Full System Diagnostic

THINKSCAN 689BT Pro professional diagnostic tool supports full system scans of the vehicle including ABS, SRS (airbag), Engine, AT, PCM, ECM, EPS , PDM, TPM, BCM and more. It can read and clear codes, view real-time data streams of various sensors, record and play back data to help locate faults quickly. Allows you to analyse data and carry out repairs, helping you to save money on your maintenance budget.

It supports the detailed Function :
--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.

For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

✔️Actuation Test & Bi-directional Control Lifetime Free

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators.You can test whether the execution components work normally by bi-directionally monitoring the operation actuator.

Active testing is one of the most useful features in automotive maintenance and greatly improves mechanic efficiency. 689BT Pro bidirectional scanner can send action commends to vehicle sub-systems or components for active test without using vehicle controls. It can perform various tests such as: EVAP Test, Fuel Trim Reset, Injector Buzz Test, Window/ Mirror/ Door Lock Test, Pump and Value Tests, etc. Get functions from "Diagnose>Car Model>System>Active Test".

✔ Bi-Directional Control is a feature that allows for two-way communication and control between scanner and car systems. It enables drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls. By utilizing Bi-Directional Control, technicians, mechanicians, car dealer, auto repair shop, DIYer or individual owner can actively monitor and control the behavior of a system, let you quickly understand whether a specific system, component, or subsystem is operating normally. It provides a more comprehensive and interactive approach to testing and troubleshooting, allowing for efficient identification and resolution of issues, pinpoint issues and greatly improve diagnostic efficiency.


✔ Frequently-used Active Tests including: Evap Tests/ Purge Solenoid/ Fuel Injector Test/ Cycling A/C Clutch Relay/ Cycling Abs Motor Pump/ Cooling Fan Test/ Headlamp Test/ Sunroof/ Operate Mirrors/ Turn On The Sound Horn/ Turn On The Radiator Fan/ Open/Close Windows/ Turn On/Off The Lights/ Test Door Lock Actuators/ A/C Compressor Activation/ Modulate The Throttle/ Compression Test/ Turn On/Off Front And Rear Side Acm Solenoid/ Turn The Fuel Pump On And Off/ Cycling The A/C/ Clutch On And Off/ Left Clutch Electromagnetic Coil Test/ Acceleration Device Test/ Oil Pressure Control Test/ Dynamic Camera Aiming/ Vehicle Level Position Calibration/ Brake Vacuum Pump/ Inlet And Outlet Valve Tests/ Open Brakes Tests/ Parking Brake Botors/ Wheel Speed Sensor Supply/...

✔️ ECU-coding Lifetime Free

✔[ECU Coding]:
ECU Coding functions directly connect to OEM server, quickly obtain the OEM online data from the server when the code data is lost, but Only Compatible with VW/ Audi/ Skoda/ Seat. Such as 1.Acoustical confirmation 2.Active Rear Spoiler 3.SiriusXM coding 4. Digital speedometer coding 5.Start & Stop button coding 6. Remote window control unlocking 7.Acoustic pedestrian protection 8.Active Cruise Control 9. Air conditioning setting memory 10.Automatic Air Recirculation 11.Ambient lighting brightness, And More .....


✔[Component Matching]:
After replacing faulty actuators or specific parts, it is necessary to utilize this function to generate a new code and detect the new actuators, such as Matching, relearning, calibration, or initialization adaptive data for certain components. Simply adhere to the on-screen instructions to erase the original memories saved in the ECU, and input the adaptive data into designated components. 689BT Pro bidirectional scanner is a professional-grade diagnostic tool that will assist you in establishing stable communication between the new ECU modules with accuracy.


✔[Personalization]:
Unlock hidden features,deactivate annoying features. Modify the code to 1) personalize vehicle settings, 2) unlock vehicle potential, 3) activate advanced functions, and 4) disable certain features. Compatible with vehicles such as Mercedes-Benz, BMW, Porsche, etc. Such as 1. Deactivating the Start/Stop function, 2. Beeping when unlocking and locking, 3. Disable seatbelt warning sounds, 4. Mirrors automatically folding and unfolding, and more.


✔[Variant Coding(Offline Programming)]:
Variant coding involves programming ECUs to accommodate different vehicle variants, such as left-hand drive or right-hand drive. In some states/countries, automatic headlight activation while driving is mandatory, resulting in yet another vehicle variant. Variant coding encompasses the activation and deactivation of software-driven functions. Compatible with Nissan, Nissan-GTR, Infiniti, Hyundai, etc.


✔[Customize OE-Settings(Retrofit/Modification)]:
Designed to enhance vehicle performance and increase business profits, revise the default settings to modify the vehicle's original behavior. Additionally, incorporate adaptive cruise control, tire pressure monitoring system, and reversing radar through modification.

👍35 Maintenance Function Lifetim free, send car VIN to check compatibility

*Not all vehicles support all reset functions. Please send vehicle model and year to seller to check the compatibility.

[Oil Light Reset]:It is enabled with an oil service and lamp reset mechanism, a function that ensures that the vehicle engine is maintained in its rightful healthy self.

Compatible withAcura(2007-2014),Compatible with Audi(1994-2018),Bentley(Up to 2014),BMW(1996-2015),Borgward(Up to 2016),Bugatti(Up to 2014), Citroen(1997-2017),Compatible with Chrysler/Jeep/Dodge(2007-2017),Daewoo(Up to 2011),Ferrari(Up to 2014),Fiat(Up to 2015),GM(1996-2016),Honda(2004-2014),Hyundai(2014-2015),Jaguar(2006-2017),KIA(2013-2015),Lamborghini(Up to 2014),Lancia(2001-2014),Landrover(Up to 2016),Maserati(Up to 2014),Mazda(2003-2016),Maybach(Up to 2013),Mercedes Benz(1995-2016),MINI(2000-2015),Mitsubishi(2006-2015),Opel(2002-2017),Peugeot(1997-2016),Proton(Up to 2014),Porsche(2003-2015),Renault(2003-2015),Rolls-Royce(Up to 2010),Romeo(1997-2014),SAAB(2005-2012),SEAT(1993-2016),Skoda(1996-2018),Smart(Up to 2013),Subaru(2008-2012),Suzuki(2007-2016),Vauxhall(2002-2014),Volvo(1992-2017),VW(1989-2017)

[Electronic Parking Brake Service]:Reset the brake pad after the repairs in the electronic parking brake system is done. By using this system, the braking process is, therefore, made much simpler and easier.

Compatible withAcura(2007-2014),Compatible with Audi(1994-2018),Bentley(up to 2014),BMW(2002-2015),Borgward(up to 2016),Bugatti(up to 2014),Compatible with Chrysler/Jeep/Dodge(2014-2018), Citroen(2006-2016),Daewoo(Up to 2011),Ferrari(Up to 2014),Fiat(1999-2014),Ford(2002-2016),GM(2009-2017),Honda(2004-2014),Hyundai(2012-2015),Jaguar(2002-2014),KIA(2011-2015),Lancia(2003-2014),Landrover(2005-2016),Lexus(2007-2015), Maserati(Up to 2014),Maybach(Up to 2014),Mercedes Benz(Up to 2014),MINI(2004-2015),Opel(2012-2017),Peugeot(Up to 2012),Porsche(2009-2015),Renault(2001-2015),Rolls-Royce(Up to 2010),Romeo(2001-2014),SAAB(2010-2012),Scion(Up to 2015),SEAT(1993-2016),Skoda(1993-2018),Vauxhall(2012-2015),Volvo(2007-2017),VW(1996-2017)

[Steering Angel Sensor Reset]:It helps clear the faulty steering angle sensor memories and plays an important role in the steering angle sensor calibration.

Compatible withAcura(1996-2014),Compatible with Audi(1994-2018),BMW(1995-2015),Compatible with Chrysler/Jeep/Dodge(2005-2018),Citroen(1999-2017),Dacia(2004-2008),Deawoo(Up to 2011),Daihatsu(2000-2010),Ferrari(Up to 2014),Fiat(1999-2014),Ford(2006-2014),GM(2007-2017),Honda(2007-2014),Hyundai(2005-2015),Infiniti(2008-2017),Jaguar(Up to 2017),KIA(2006-2015),Lancia(1999-2014),Landrover(Up to 2016),Lexus(Up to 2015),Maserati(Up to 2014),Maybach(Up to 2013),Mazda(2006-2013),Mercedes Benz(1997-2014),MINI(2000-2015),Mitsubishi(2006-2015),Nissan(2002-2018),Opel(2004-2014),Peugeot(1995-2016),Porsche(2005-2015),Renault(2002-2015),Romeo(1997-2014),Scion(2008-2015),SEAT(1993-2016),Suzuki(Up to 2016),Skoda(1993-2018),Smart(Up to 2013),Subaru(2008-2012),Toyota(2004- to 2015),Vauxhall(2004-2014),Volvo(1999-2017),VW(1997-2017)

More Resets Service Check below, send Car brand, model and year to seller check compatibility.
BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

BAT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift.

Language Change
This function is used to change the system language of the vehicle central control panel.

Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

ODO Reset
a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.

Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

AFS Headlamp Reset: Initialize the adaptive headlamp system.

ODO Check reset

✔️Global Version!!! Support 99% Vehicle, 1000+ Vehicles, 28 languages

120+ Car Brands,1000+ Car Models Supported!

√ CANFD Protocol Supported- Compatible with GM models (2020 and later). (No need to buy adapters.)

√ DOIP Protocol Supported- Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).(No need to buy adapters.)

√ FCA AUTOAUTH- For 2017 and later FCA Vehicles with Secure Gateway Module (SGW): You can Register with AutoAuth to communicate with the FCA SGW Authentication System and by pass the SGM, so as to perform diagnostics and bi-directionals without using a bypass cable.

Amarica Car Models:
For FORD, For LINCOIN, For GM, For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For JEEP, For HM, For MERCURY, For PONTIAC, For SATURN, For TESLA;

Europe Car Models:
For BENZ, For SMART, For SPRINTER, For BMW, For VW, For SKODA, For AUDI, For OPEL, For LAMBORGHINI, For PORSCHE, For MAYBACH, For EURO FORD, For LANDROVER, For DR, For BENTLEY, For ROVER, For MINI, For VAUXHALL, For FERRARI, For FIAT, For LANCIA, For ALFA, For ROMEO, For MASERATI, For BUGATTI, For PEUGEOTCITROEN, For RENAULT, For SAAB, For VOLVO, For OPEL, For DACIA,For SEAT, For ABARTH, For RENAULT, For ROLLS-ROYCE, For SAAB, For SKODA, For SMART, For VOLVO;

Asia Car Models:
For Acura, For DAEWOO, For HOLDEN, For HONDA, For HYUNDAI, For INFINIT, For ISUZU, For KIA, For LEXUS, For MAZDA, For MITSUBISHI, For NISSAN, For SCION, For SSANGYONG, For SUBARU, For SUZUKI, For TOYOTA, For BYD, For CHERY;

Malaysia Car Models:
For PERODUA (PERODUA), For PROTON ;

IRAN Car Models:
For IKCO, For MVM, For SAIPA;

Australian Car Models:
For AUSFORD, For HOLDEN ;

India Car Models:
For TATA, For MARUTI, For MAHINDRA, For INDIA HM

More car models, please contact us for details.

Support 28 languages
English, German, Spanish, French, Italian, Portuguese, Japanese, Russian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Korean, Greek, Slovak, Romanian, Arabic, Croatian, Finnish, Czech, Swedish, Danish, Persian, Serbian, Vietnamese, Bulgarian

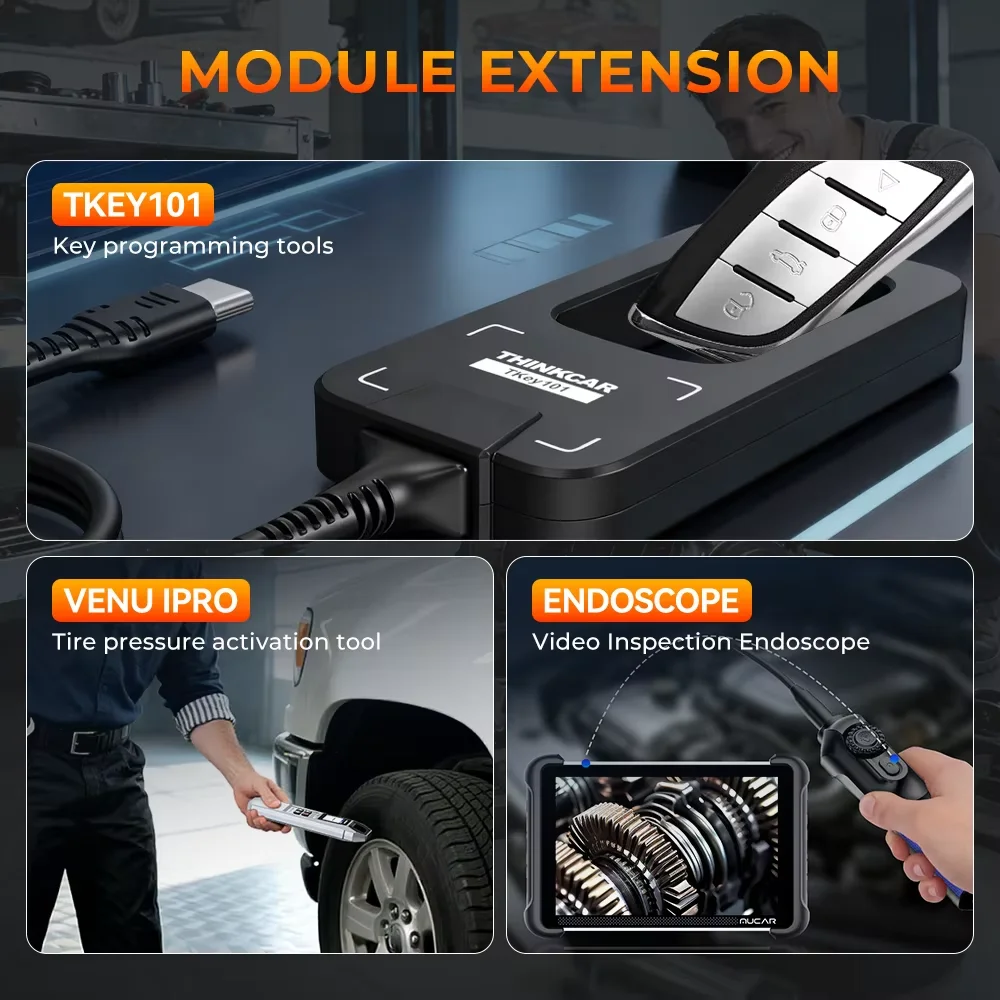

✔️Support Moduel Expansion: Key Programmer, TPMS, VideoScpe, Oscilloscope, Printer, battery tester

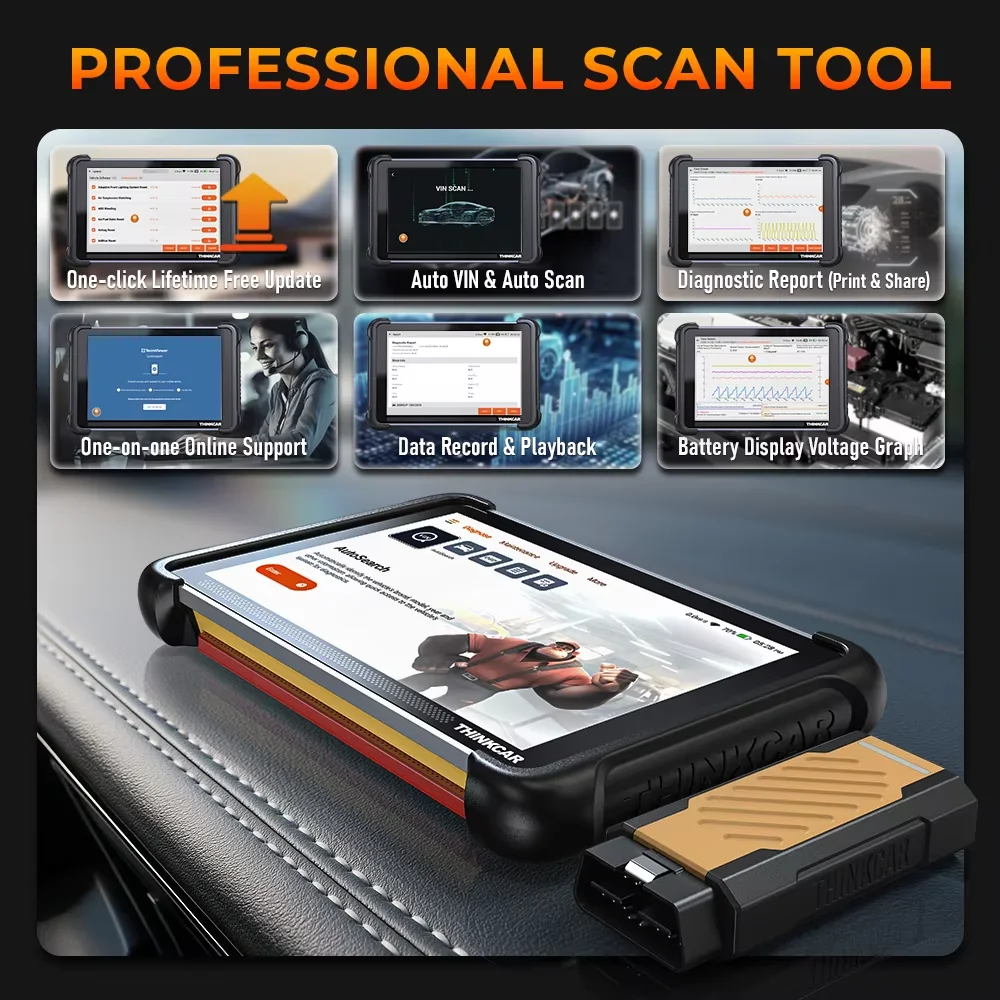

✔️More Features

1.Full 10 OBD Modes:
Working as an OBD2 code reader, 689BT Pro provides complete OBD2 functions including Read/Clear, O2 Sensor Test, etc. as well as DTC lookup, which enables you to know what’s wrong and find available solutions accurately.

2.Auto VIN Scan:
Embracing cutting-edge innovation, the 689BT Pro auto diagnostic scan tool introduces the revolutionary Auto VIN Scan Technology. this feature empowers technicians and home mechanics to swiftly extract vital details, encompassing brand, year, make, model, and more.

It's essential to note that the AutoVIN function's effectiveness is contingent on the presence of a VIN in the ECU. While older might not be equipped with this auto VIN capability, newer models bask in its convenience. However, navigating details is a breeze with the "Diagnose>Manually Search" option, ensuring your diagnostics and services remain unhindered.

3.Support 4-in-1 Live Data Stream Graphing:
Latest Update!This dynamic automotive diagnostic scanner introduces an ingenious 4-in-1 Live Data Stream Graphing feature, granting you unparalleled focus on symptom-specific or suspicious data parameters. Seamlessly merging up to eight live data streams into a single comprehensive graph, you can effortlessly discern trends, correlations, and anomalies. Harness the power of comprehensive analysis by reviewing Freeze Frame Data and Historical Records.

4. Battery Voltage Monitor:
Keep a vigilant eye on your battery's voltage in real-time graphics. Ensure the ectrical system operates optimally, and take prompt action if voltage deviates from the norm.

5. Camera Function:
Capture snapshots of status anytime, anywhere. This invaluable feature provides a visual record for future reference and analysis.

6.Remote Assistance:
Seamlessly connect with your technician using TeamViewer, facilitating remote assistance for swift issue resolution.

7.Diagnostic Report Sharing & Printing
Transparency is at the forefront of the THINKSCAN 689BT Pro experience. Elevating the essence of diagnostics, this remarkable tool seamlessly generates a comprehensive diagnostic report upon scan completion. This meticulously compiled report encapsulates intricate inspection results, ensuring both mechanics and customers are equipped with a holistic understanding.

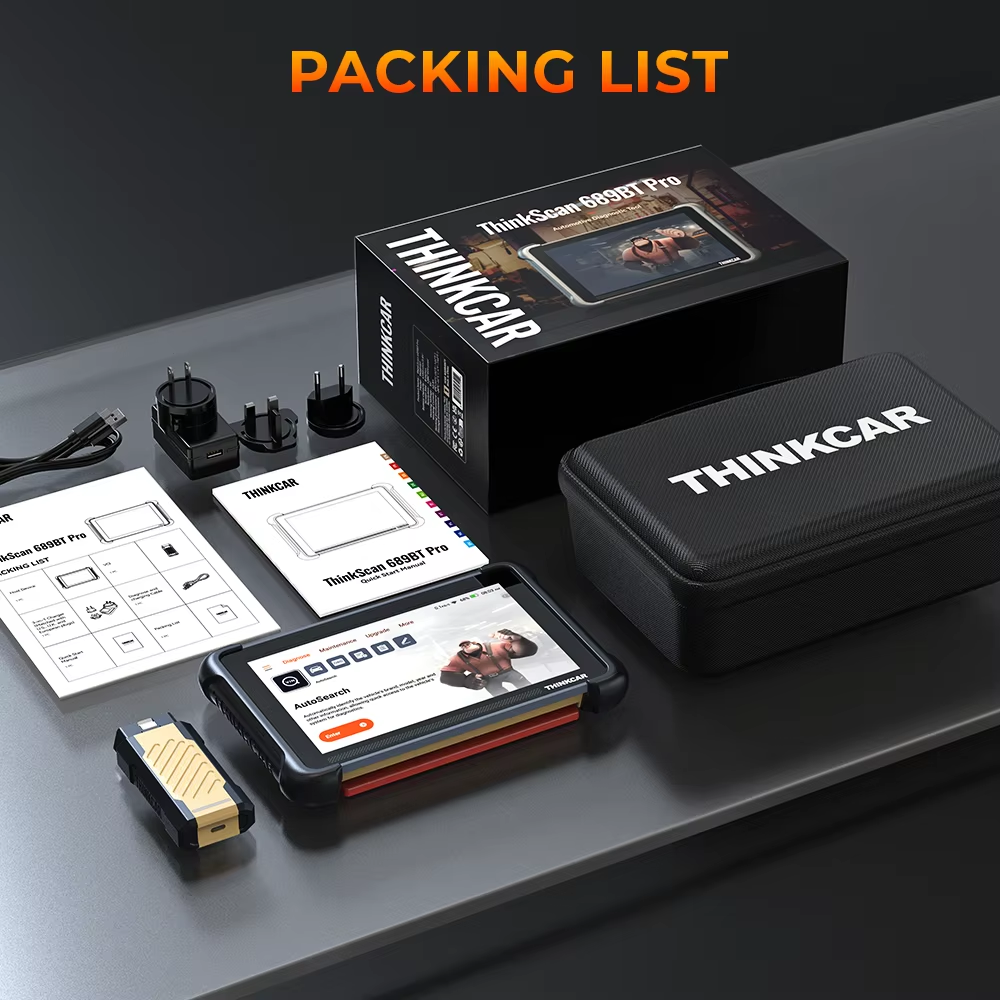

✔️What's in the Box?

•689BT Pro Main unit * 1
• GVCI diagnostic connector * 1
• Type-C cable * 1
• 3-in-1 power adapter* 1
• User manual* 1
