THINKCAR THINKTOOL WIFI Full System OBD2 Scanner ECU Coding Oil EPB DPF SAS Oil Reset Actuation Test Obd2 Car Diagnostic Tool

ThinkTool is a modular car auto diagnostic tool from Thinkcar Tech's. it consisting of the host device with a 7" screen and a variety of functional extension modules, such as a printer, worklight, videoscope, thermal imager, battery tester, scope box, projector, and TPMS sensor. Along with these modules, ThinkTool can accomplish a comprehensive car full system scan diagnosis, coding , Bi-directional activate test and all service reset special functions.

Products feature:

【PROFESSIONAL BI-DIRECTIONAL Diagnostic TOOL】: Thinktool diagnostic tool gives you what snap-on scanner offers. It features Bi-Directional Control (Active Test) to request information or command a actuator to perform specific tests, such as turning the fuel pump on and off, cycling the a/c clutch on and off, performing an evaporative emissions leak test, fast troubleshooting your car, not simply by reading codes, reading live data.

【FREE UPGRADE + MULTI-LANGUAGE MENU】: connect with WIFI, you can free update multi-language car software with just one-click, and use this frequently-upgraded scanner to diagnose the newest vehicles on the market. We provides 5 YEARS warranty after sale date on Thinktool scan tool. If you have any problem, please feel free to contact us via Amazon buyer-seller message.

【ALL RESET + INITIATION + ADAPTATION + MATCHING + CODING】: THINKTOOL supports Auto VIN Detect, ECU Coding, Gear Reset, SAS Reset, TPMS Reset, DPF REG., Key Coding, BMS Reset, Throttle Matching, Oil Reset, ABS Bleeding, Brake Reset, Injector coding etc all of special functions, helping you safely and effectively access to the vehicle systems to reset partial parameters status after repair and maintenance work.

【ALL SYSTEMS DIAGNOSTICS For OVER 160 CAR MAKES】: THINKTOL diagnostic scanner works on over 160 car makes(free 38 softwares, other software purchase from official online mall ) and 10000 models (refer to Technical Details from official page) to read/erase codes, view live data, do bi-direction active test and service functions in all vehicle systems, including ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System, etc, gives your car a full detection.

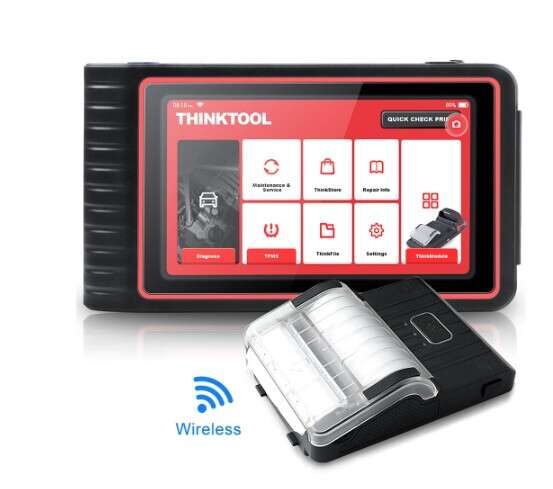

【BEST HAREWARE + MODULAR DIAGNOSIS】: This scan tool can equips with some extend functional modules, include printer and printing paper(standard configuration), Optional configuration include the moudel base, LED working light, Oscilloscope, thermal imager, battery tester, ThinkDiag box, TPMS, scope box, sensor detection, and projector( some expansion accessories need to be purchased separately from the ThinkStore, more details need contact with seller please)

【STAR SERVICE USE EXPERIENCE】 THINKTOOL offers you Remote Tech Diagnostic, 1to1 diagnostic feedback and respond, Data Stream record and playback, Vehicle Health Report, Maintenance Help etc customer star care.

Thinktool Support Languages

English,German,Spanish,French,Japanese,Portuguese,Russian,Italian

Car ALL Systems' Diagnosis

Besides classical 4 systems, you are able to use this diagnostic tool to diagnose your car in complete systems, such as Fuel system, Emission system, Body, Powertrain and more electronic systems. You are capable of reading DTCs when there are some issues with your vehicle's systems, clearing the trouble codes after handling malfunctions. To make sure all the systems performs well, you can view live data stream before driving out.

Service Reset Special Functions:

ThinkTool can program and code the electronic control system of prevailing vehicle models, also perform special functions, including:

1. Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Elec.Throttle Adaption

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.

3.Steering Angle Reset

To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor,replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

4. Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done. Battery matching must be performed in the following cases

5. ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6.Break-pad Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.

7.DPF Regeneration

DPF regeneration is used to clear PM(Particulate Matter) from the

DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance. DPF regeneration may be performed in the following cases:a) The exhaust back pressure sensor is replaced.

8.Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires. If gear learning is not performed for a car equipped with engine, the MIL turns on after the engine is started. The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECu, crankshaft position sensor,or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed.

9. IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. When the ignition switch key, ignition switch, combined instrument panel,Ecu,BCM, or remote control battery is replaced, anti-theft key matching must be performed.

10. Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

11.TPMS Reset

Note:Cooperate with wireless tire pressure diagnosis tool to realize TPMS activation, programming and learning functions

12. Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the air sus pension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13 AFS Reset

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

14.A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

15.Sunroof Initialization

This function can set the sunroof lock off, closed when it rains,sliding /tilting sunroof memory function,temperature threshold outside the car etc.

16. EGR Adaption

This function is used to learn the EGR valve after it is cleaned or replaced.

17. ODO Reset

a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.

b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODO reset after maintenance.

18. Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

19. Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

20. A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

21. Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

22. NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

23. AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

24.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

25.Coolant Bleeding Use

this function to activate the electronic water pump before venting the cooling system.

26.Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.

27.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

28. Language Change

This function is used to change the system language of the vehicle central control panel. .......

ECU Coding:

The ECU Coding of this diagnostic tool can work on most vehicle makes. It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

Active Test:

The Active Test function is used to access vehicle-specific subsystem and component tests. Available test vary by manufacturer, year, and model, and only the available tests display in the menu.

OBDII Functions:

THINKDRIVER supports OBD II (on-board diagnostics) protocols. It works with any vehicles after 1996.

Mode 01---Request current powertrain diagnostic data.

Mode 02-Request freeze frame information.

Mode 03-Request emissions-related diagnostic code

Mode 04-Clear/reset emissions-related diagnostic information.

Mode 05-Request oxygen sensor monitoring test results.

Mode 06-Request on-board monitoring test results for specific monitored systems.

Mode 07-Request emission-related diagnostic trouble codes detected during current or last completed driving cycle

Mode 08-Request control of on-board system, test or component.

Mode 09-Request vehicle information.

Mode 0A-Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Function Display:

Advanced Hardware:

Operating system: Android 7.0

Memory: 2G

Storage capacity: 32G

Screen: 7 inches, high-definition touch screen with a resolution of 1280*720

Camera: rear 800 megapixel camera

Network connection: Wi-Fi, WLAN 802.11b/g/n

Bluetooth: Bluetooth 4.0

Working temperature: 0ºC-50ºC Storage environment: -20ºC-70ºC

Support more than 115 Car Brands:

For ASTONMARTIN

For AUDI

For BENZ

For BMW

For CHRYSLER

For CITROEN

For DAEWOO

For FERRARI

For FIAT

For GM

For HONDA

For HYUNDAI

For JPISUZU

For KIA

For LANDROVER

For MASERATI

For MAZDA

For MITSUBISHI

For NISSAN

For OPEL

For PEUGEOT

For PORSCHE

For RENAULT

For ROVER

For SAAB

For SEAT

For SGM

For SKODA

For SMART

For SPRINTER

For SSANGYONG

For SUBARU

For SUZUKI

For TOYOTA

For USA FORD

For VOLVO

For VW

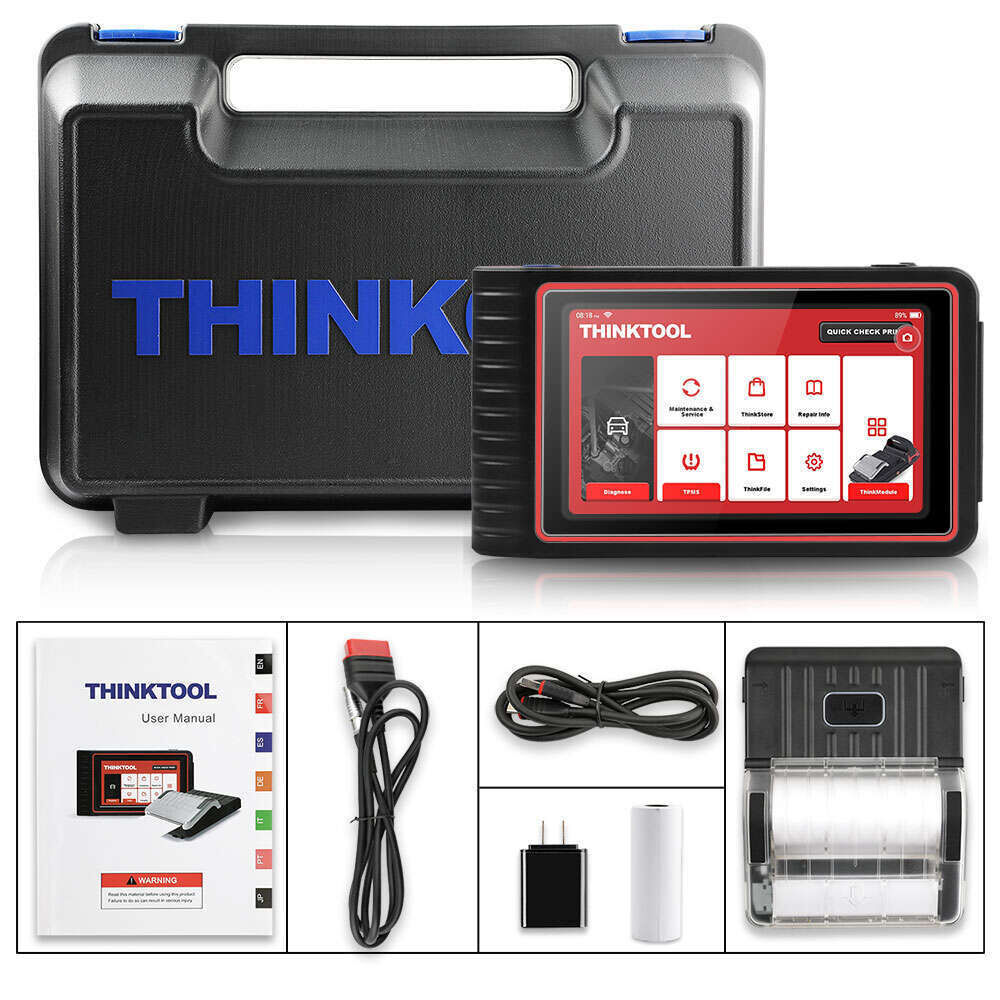

Package List:
