THINKTPMS S1-R Screw-in Rubber Stem Tire Pressure Sensor for All Cars for THINKTPMS G1,THINKTOOL Mini, PD8, PRO

THINKTPMS S1 can work with THINKTPMS G1,Covers 98% of the car models, can replace the original tire pressure sensor

NOTE: THINKTPMS-S1 is only available to be programmed with THINKCAR TPMS tool like THINKTPMS G1,THINKTPMS T100.

Why you need THINKTPMS S1 sensor?

THINKTPMS S1 433/315 MHz 2 in1 sensor covers more than 98% of vehicles

High-speed Accident Mostly Due To A Blow Out

THINKTPMS S1 sensor helps to monitors tire pressure and temperature. It helps you know the situation of four tires and prompts you to take in-time actions to prevent puncture and damage to car parts caused by flat tires. It also helps prevent flat tires, forecast leakage, reduce tire wire, prolong tire life, improve fuel efficiency and increase traffic safety.

Unlimited programming

THINKTPMS S1 Sensors are manufactured using the highest quality materials and advanced TPMS technology to meet SAE industry standard J1205/J1206 testing.Provides excellent battery life and reliability (battery life 4-6 years), withstands harsh weather conditions and prevents air leakage, ensuring superior stability and performance of this sensor.THINKCAR guarantees that S1 will be free of manufacturing defects for 24 months or 24,000 miles.

Using Frescale chipset

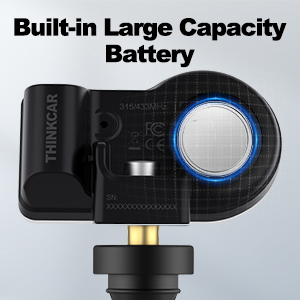

Built-in Large Capacity Battery

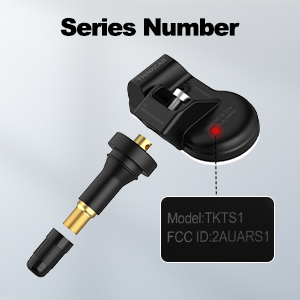

Series Number

THINKTPMS S1 Sensor is 100% clone-able

No relearn is required when the S1-Sensor is cloned with the original sensor ID and put in the same position.It offers real-time monitoring of tire pressure and temperature to avoid puncture, reduce tire wear, and prevent car steering deviation.THINKCAR S1-sensors is compatible with Aston Martin, Tesla Maserati, Porsche, VW, Audi, BMW, Chrysler, Dodge, Ford, etc.

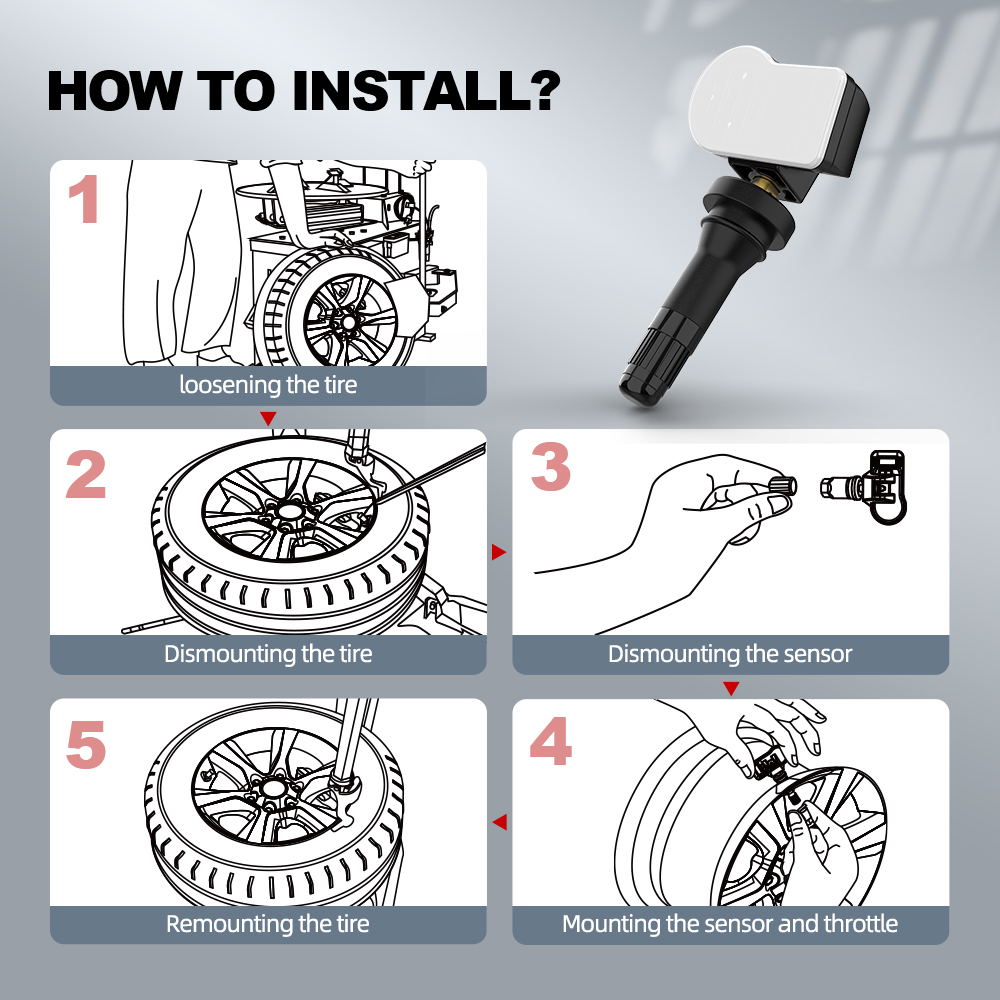

How to Trigger theTHINKTPMS S1 Sensor

1.Remove tire cap
2.Install tire sensor
3.Pump up the tire
4.Put calve cap
5.Test balancing
6.Adjust balance

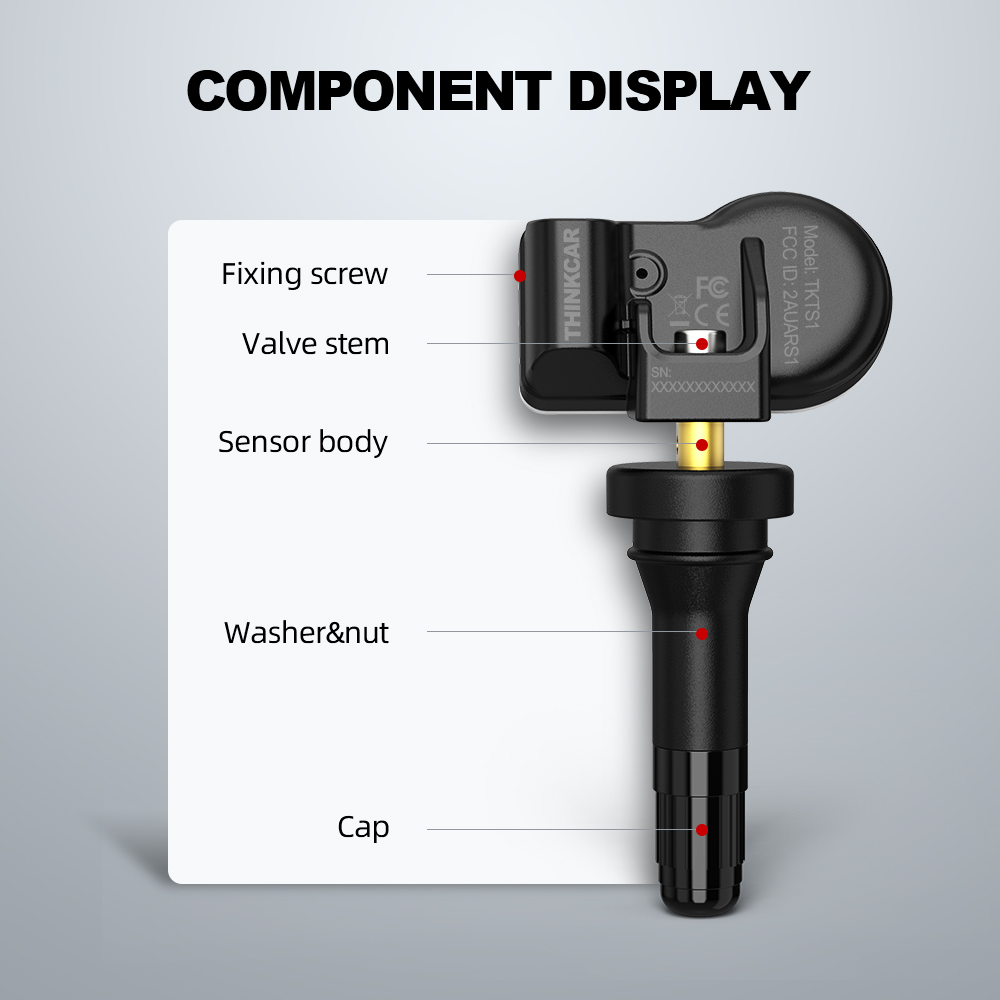

Component Display

Specifications of THINKTPMS S1:

Battery life:4-6 years / 100,000 km

Working temperature:-40 ℃ to + 125 ℃

Storage temperature:-40 ℃ to + 125 ℃

Working humidity:<=90%

Working frequency:433MHz/315MHz

Pressure monitoring range:0-800kpa

Pressure reading accuracy:±10kPa

Temperature reading accuracy:± 5℃

Acceleration (G) Sensor reading accuracy:± 15%

Transmission power:5-8 dBm

battery:3.0V

Waterproof level:IP67

Size:71.5*40*15mm

Packing List:
