ThinkScan OBD2 Automotive Scanner Professional Code Reader Full System Oil DPF EPB Obd 2 Car Diagnostic Tool for BENZ BMW

ThinkScan is a Professional and Powerful vehicle fault diagnosis tool developed by LAUNCH Technology Inc. With a large TFT LCD and unique diagnostic software, it features car all system ECU diagnosis and multi reset service of single vehicle brand and test modes mainly include: CANBUS, ISO9141 , KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems. It is the cost-effective Do-It-Yourself tool for customers looking for quick and easy diagnostic functions of all systems.

ThinkScan OBD2 Features and Benefits:

1.Supports the most commonly required maintenance services, like EPB/SAS/DPF/ETS/Oil Lamp reset.

2. Quick Test function to test vehicle most of electronic systems,like powertrain, chassis and body etc electronic systems.

3. Reads and clears diagnostic trouble codes and resets MIL

4. Requests and records live sensor data

5. Provides live data graphing

6. Merges graphs for easy and intuitive diagnosis

7. Displays freeze frame data

8. Retrieves ECU information

9. Runs component/system bi-directional tests

10. Supports the most multi language menu software

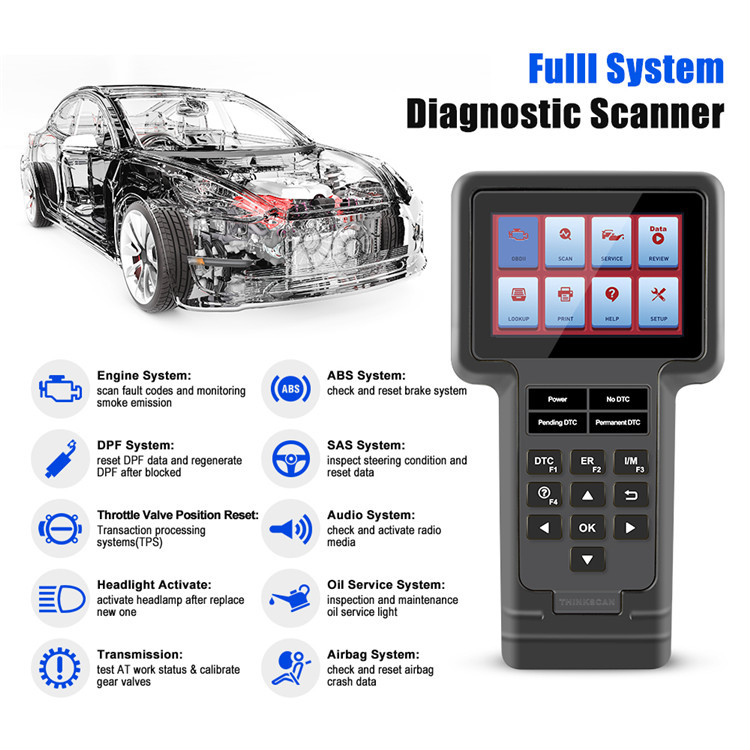

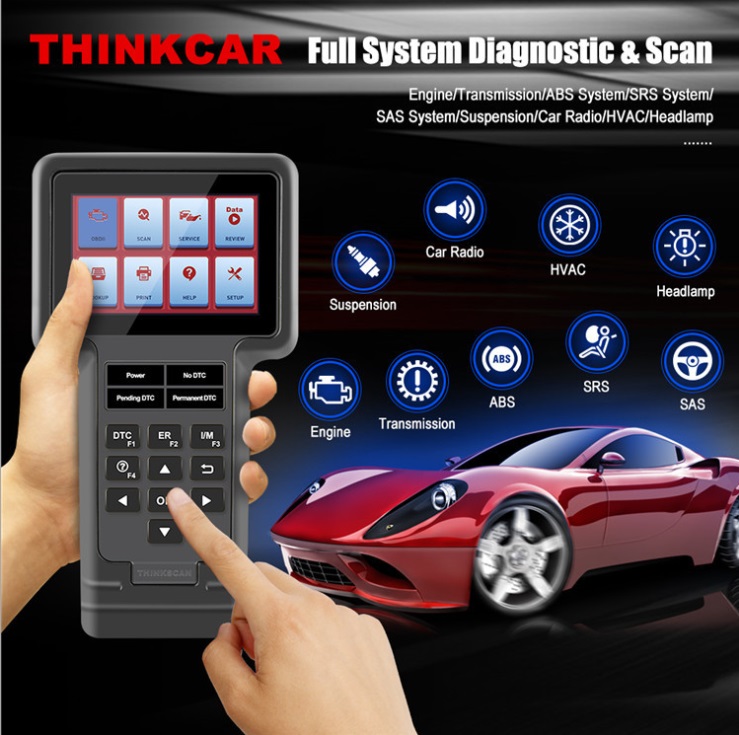

ALL SYSTEMS DIAGNOSES

With superior systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include Engine, transmission

ABS, SRS, SAS, TPMS, EPB and Fuel systems etc.

1. Read DTCs from the vehicle’s control systems to locate problem areas, and offer solutions;

2. Erase the codes easily after DTCs retrieving and certain repairs have been carried out;

3. Live data shows each parameter item displayed in analog, text, waveform graph modes etc.;

4. The active test used to access vehicle-specific subsystem and component tests.

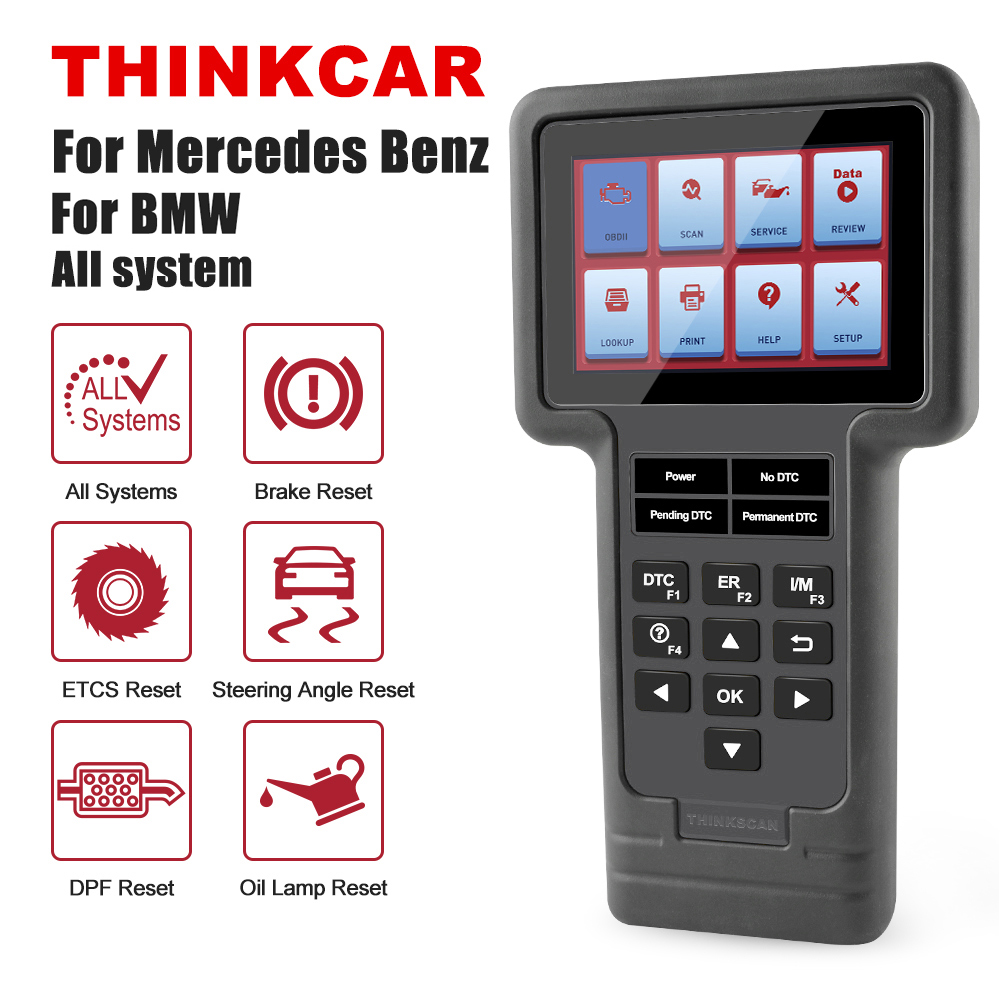

RESET SERVICES:

This OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:

Oil Lamp Reset –Perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.

EPB Reset --Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

ETS Reset --Evaluate the Electronic Throttle Body System, monitor the close-circuit current and voltage, and activate reset after disassembly, replacement or cleaning throttle body.

SAS Reset –perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the sensor EEPROM.

DPF Regeneration –Manage DPF regeneration,DPF component replacement teach-in and DPF teach-in after replacing the engine control unit

For the BMW software version "supported cars" coverage list:

For BMWs between 1997 and 2017:

1 series: E81 / E82 / E87 / E88 / F20 / F21

2th series: F22 / F23 / F45 / F46

3 series: E30 / E36 / E46 / E90 / E91 / E92 / E93 / F30 / F31 / F34 / F35 / F80

4 series: F32 / F33 / F36 / F82 / F83

5 series: E28 / E34 / E39 / E60 / E61 / F07 / F10 / F11 / F18

6 series: E24 / E63 / E64 / F06 / F12 / F13

7 series: E23 / E32 / E38 / E65 / E66 / E68 / F01 / F02 / F03 / F04

8 series: E31

X series: E48 / E53 / E70 / E71 / E72 / E83 / E84 / F15 / F16 / F25 / F26 / F48 / F85 / F86

Z series: E30 / E36 / E52 / E85 / E86 / E89i series: I01 / I12

I series: I01 / I12

For MINI: F55 / F56 / R50 / R52 / R53 / R55 / R56 / R57 / R58 / R59 / R60 / R61

For Mercedes Benz software version Support Car coverage list:

For Mercedes Benz
A Class: W 168 , W 169 , W 176
B Class: 245 , 246
C Class: 203 , 204, 205
CL Class: 215 , 216
CLK Class: 209
CLS Class: 218 , 219 C257
E Class: 207 , 211 , 212, 213
G Class: 461 , 463
GL Class: X 164 , X 168 , X 166
GLC Class : W253
GLK Class: X 204
M Class: W 163 , W 164 , W 166
R Class: 251
S Class: W220 , W221 , W222
SL Class: R 230 , R 231
SLK Class: R 170 , R 171 , R 172
SLC Class: R172
SLS: C 197
SLR: Series 199

For SMART
Smart Fortwo (A/C 450)
Smart Fortwo (C/A 451)
Smart Roadster (R/C 452)
Smart Roadster (W454)

For SPRINTER
Sprinter – 901.6, 902.6, 903.6, 904.6, 905.6, 690, 906
Vaneo – (16 pin)
Vito/V-Class – Model Designation 638
Vito/Viano – Model Designation 639 (OBDII)
