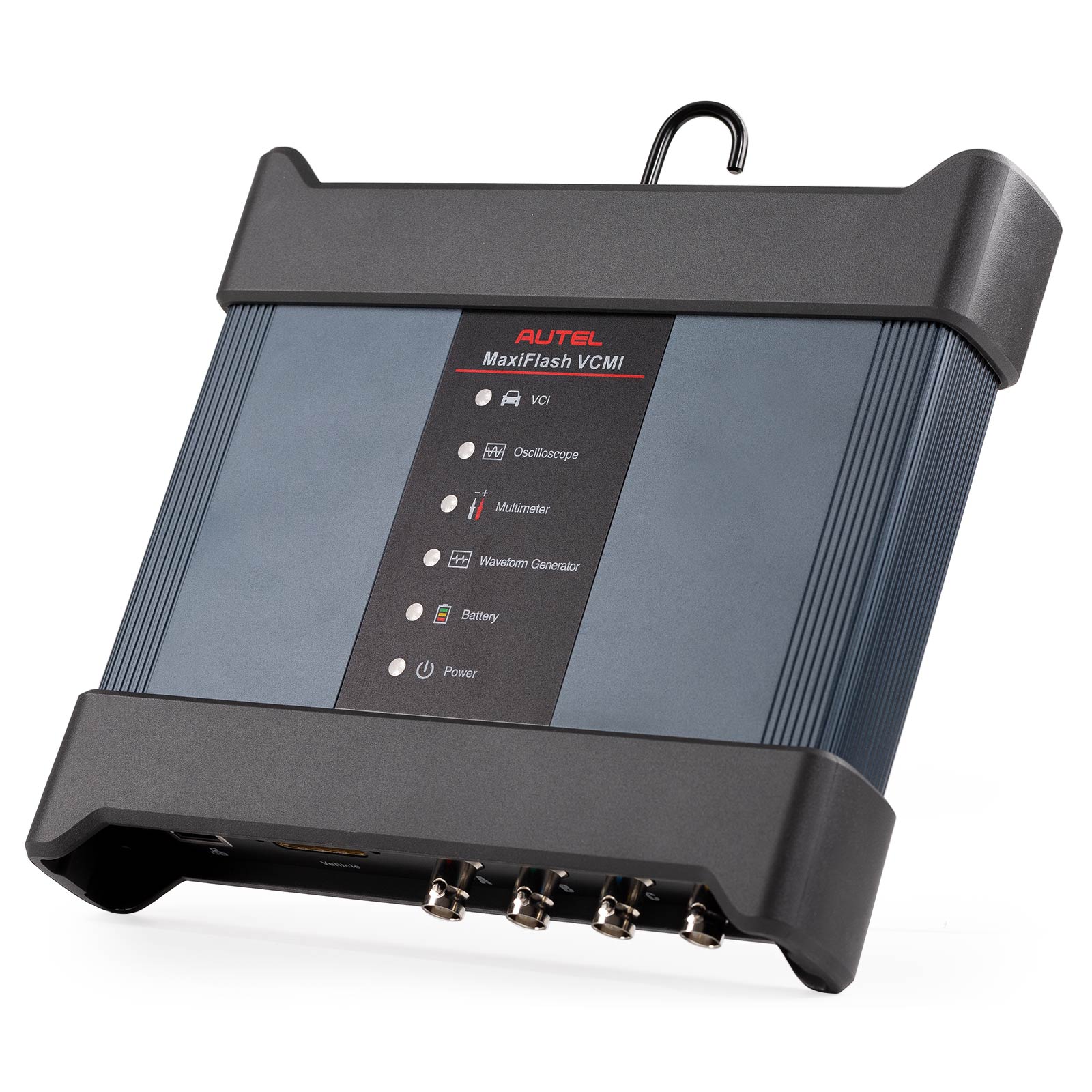

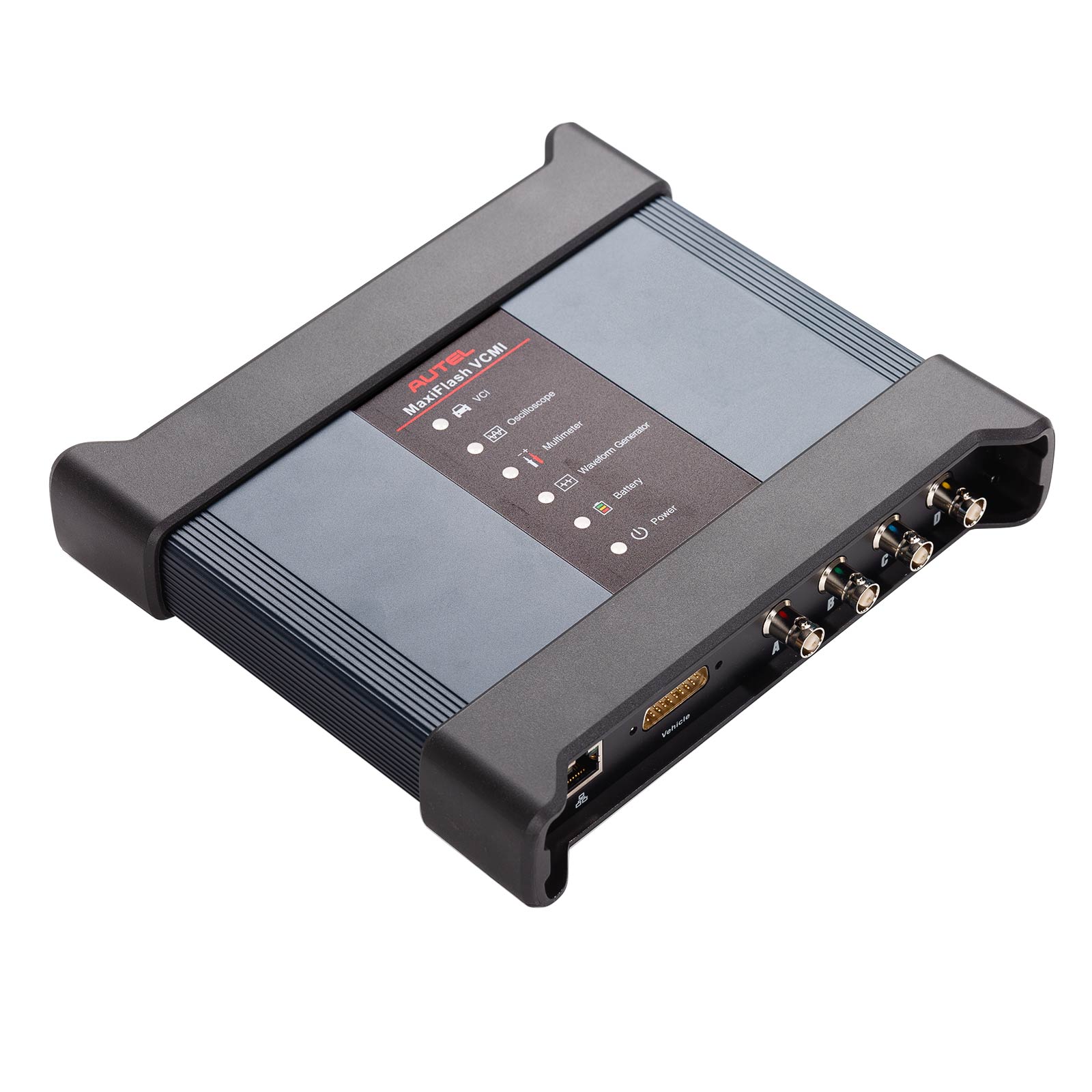

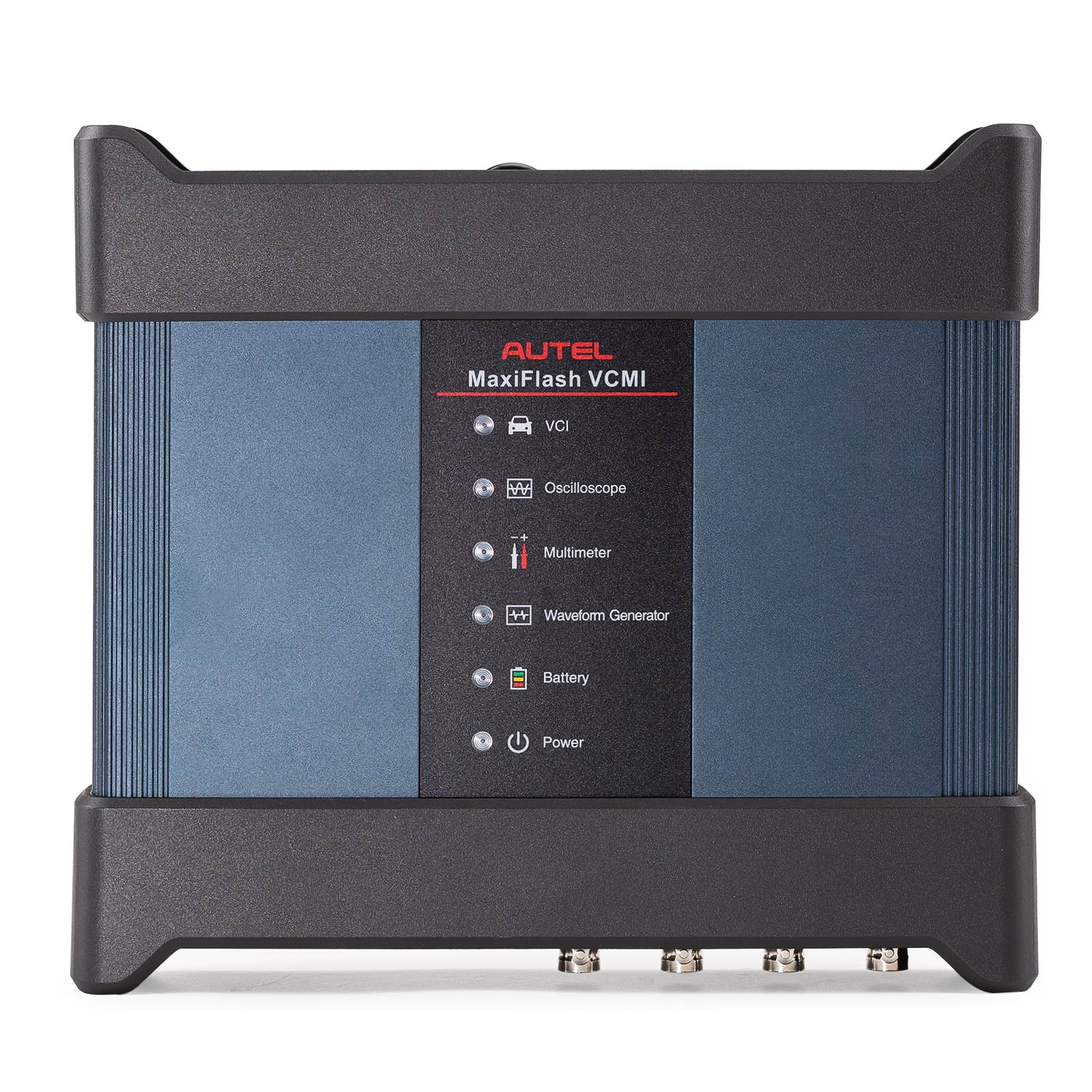

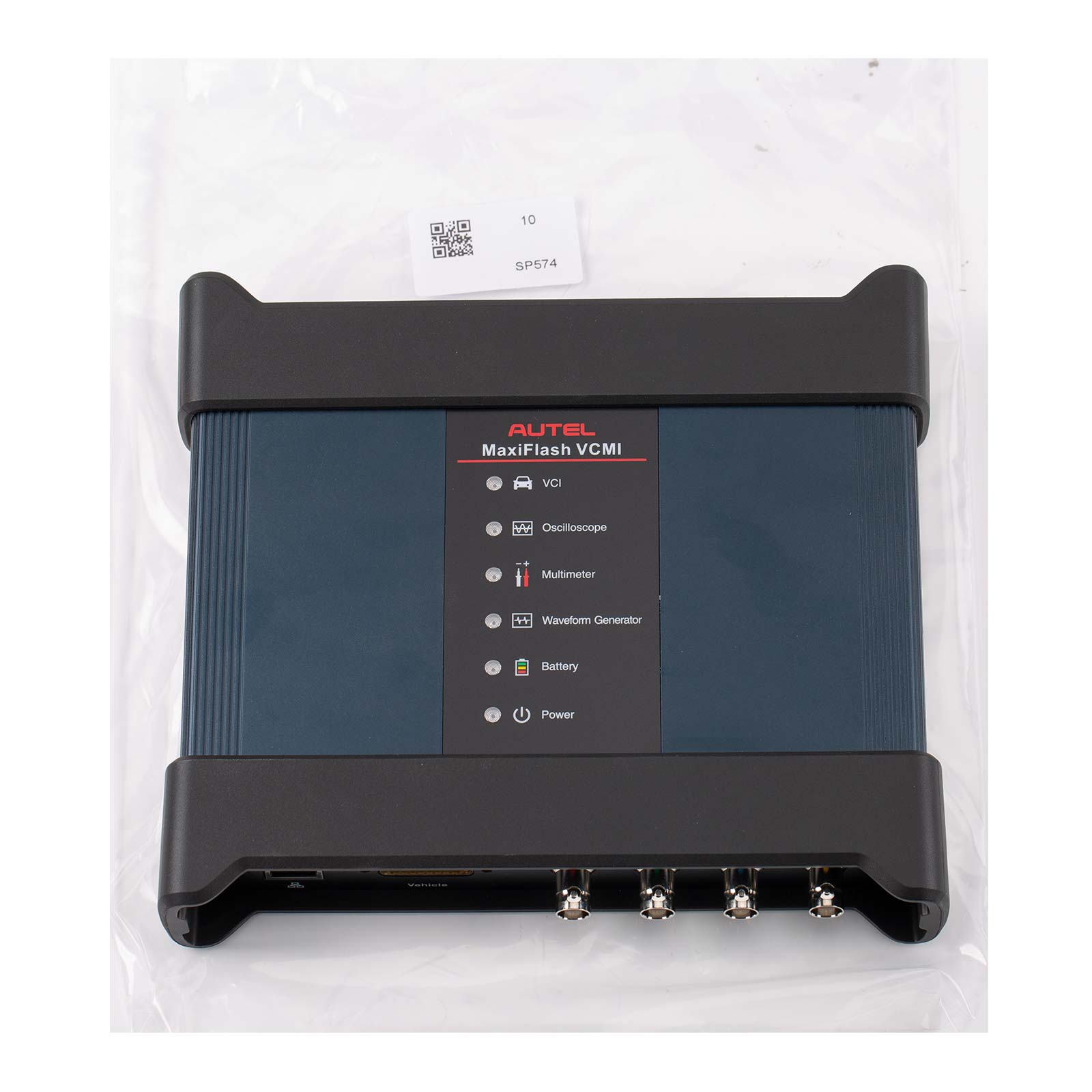

AUTEL MaxiFlash VCMI 5-in-1 Used with AUTEL MaxiSys Ultra EV, AUTEL MaxiSYS MS919, AUTEL MaxiSYS MS919 EV

The MaxiFlash VCMI J2534 interface is a Bluetooth-enabled vehicle communication Measurement Interface (VCMI) J2534-1 and J2534-2 compliant pass-thru programming device, includes Built-in 4-Channel Oscilloscope & Digital Volt Ohm Meter and Built-in Waveform Generator & CAN bus tester.

The MaxiFlash VCMI supports CAN FD, 4 CAN Channel, D-PDU, IS O22900-1 & ISO 22900-2 protocols; and is RP1210 compliant. The MaxiFlash VCI can be used with a Windows computer with an applicable OE subscription for vehicle module programming and Compatible, GM, TOYOTA, BMW, and Mercedes vehicle module programming.


AUTEL MaxiFlash VCMI works with MaxiSYS Ultra / Ultra EV, MaxiSYS MS919 / MS919EV

Highlights:

Built-in 4-Channel Oscilloscope & Digital Volt Ohm Meter
Built-in Waveform Generator & CAN bus tester.
Use with windows PC for vehicle module programming, J2534-1 & J2534-2 compliant
Bluetooth-enabled communication interface
Support CAN FD, 4 CAN Channels, and DoIP
Supports D-PDU, IS O22900-1 & ISO 22900-2

Notice:
This is VCI Bluetooth Adapter only for Autel Series Products.
If the VCI Bluetooth Adapter of your device is broken or missed, you can buy a new one to replace it.

CAN FD / DoIP PROTOCOLS

J2534 BRING CAN FD / DoIP/ SAE J2534/ D-PDU/ RP1210 PROTOCOLS

- CAN FD: For MY2020+ FM Models, No Need CAN FD Adapters

- DoIP: For BMW E/ F/ G Chassis, Jaguar, and Land Rover vehicle make.

Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.

More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.

1. New Combination Vehicle Communication and Measurement Interface

D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types
DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models
NEW Oscilloscope - Faster Bandwidth 20MHz / Sample Rate 80MS/s
Higher 12-Bit Resolution / Larger Memory 32Mil Samples

2. Affordable Test Component Combination for Repair Confirmation

Combined Signal Detection and Signal Stimulation
OBDII Channel Detection / DLC Pin Location and Direct Measurement
Protocol CAN Testing / Advanced Triggering / Auto-Scale Zooming

3. Easier Operation of Built-In Preset Guided Tests for Faster Operation

Custom Probe Specification & Reference Waveform Libraries
Saved Test Configurations / Component Tests / Data Graphs

AUTEL VCMI Built-In 4-channel Oscilloscope

AUTEL VCMI 4-channel oscilloscope as one of its components. It is designed specifically for use in automotive diagnostics and repair, and is capable of capturing and analyzing complex signals in real-time.

The VCMI 4-channel oscilloscope component of the system offers a range of features and capabilities that are tailored to automotive diagnostics. It has a high sampling rate and bandwidth, allowing it to accurately capture fast-changing signals and waveform shapes. It also comes with a range of preset automotive waveform templates, making it easy to diagnose specific vehicle issues such as misfires, fuel delivery problems, and ignition faults.

The AUTEL VCMI 4-channel oscilloscope also has a user-friendly interface and is compatible with a range of mobile devices and operating systems. This allows technicians to easily capture and analyze data, and to share their findings with other members of their team or with customers.

AUTEL VCMI CAN BUS Check

The AUTEL VCMI CAN BUS Check is a diagnostic tool that is designed to help automotive technicians diagnose and repair issues with a vehicle's CAN (Controller Area Network) bus. The CAN bus is a critical component of modern vehicles that allows various electronic systems to communicate with each other.

The VCMI CAN BUS Check component of the AUTEL VCMI system allows technicians to quickly and accurately diagnose issues with the CAN bus. It can read and analyze data from the bus in real-time, and can identify any faults or issues that may be causing communication problems between different systems.

The AUTEL VCMI CAN BUS Check also includes a range of diagnostic tools and features, such as CAN bus decoding and graphing, which can help technicians gain deeper insights into the data being transmitted on the bus. It also has a user-friendly interface that makes it easy to use and understand.

The VCMI CAN BUS Check is compatible with a range of different CAN bus protocols and can be used with various types of vehicles. This makes it a versatile tool that can be used by technicians in a range of different automotive settings.

AUTEL VCMI Multimeter

The AUTEL VCMI Multimeter is a diagnostic tool that is designed to measure a range of electrical parameters in automotive systems. It is a component of the AUTEL VCMI system, which includes a range of diagnostic tools that are specifically designed for use in the automotive industry.

The VCMI Multimeter can measure a range of electrical parameters, including voltage, current, resistance, capacitance, and frequency. It is designed to be used in conjunction with the VCMI 4-channel oscilloscope and other diagnostic tools, allowing technicians to quickly and accurately diagnose issues with a vehicle's electrical systems.

One of the key features of the AUTEL VCMI Multimeter is its ability to synchronize with the VCMI 4-channel oscilloscope. This allows technicians to measure electrical parameters and immediately capture and analyze them on the oscilloscope. This can be particularly useful for diagnosing issues with specific components or systems, such as alternators, batteries, or sensors.

The AUTEL VCMI Multimeter also has a range of diagnostic functions and features, such as diode and continuity testing, which can help technicians quickly identify issues with electrical components. It also has a user-friendly interface that makes it easy to use and understand.
