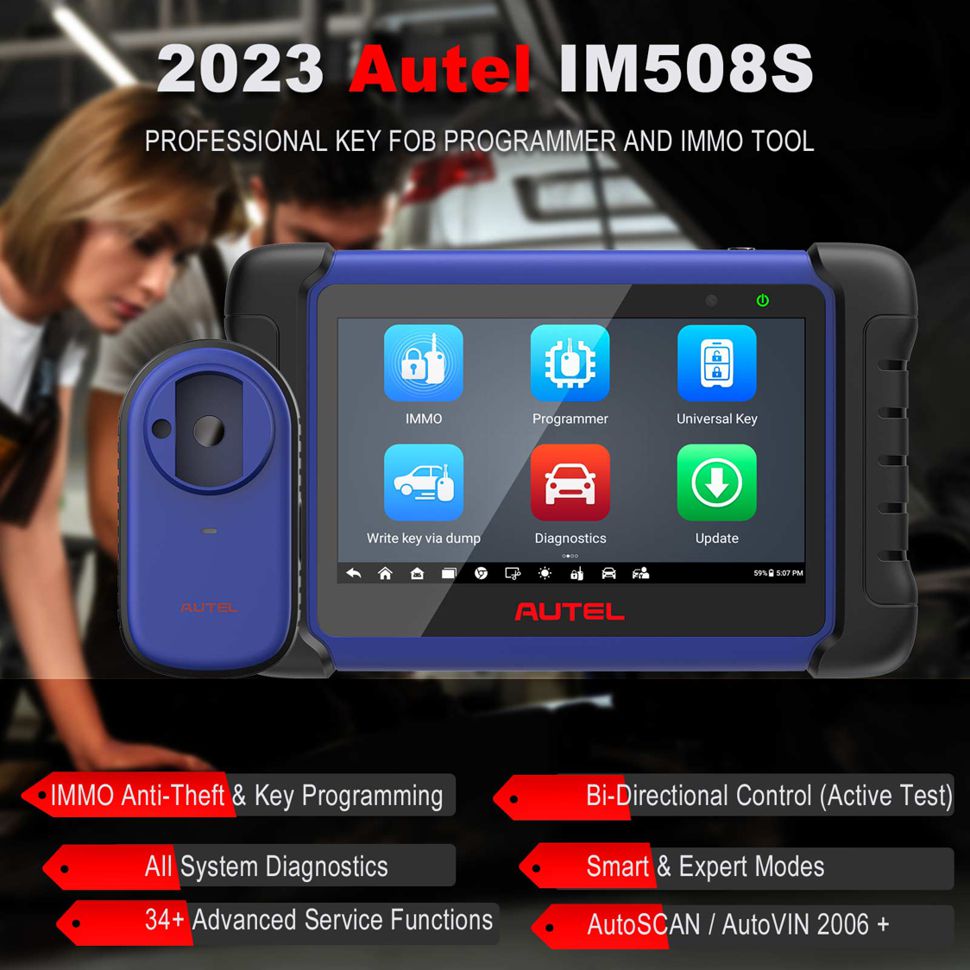

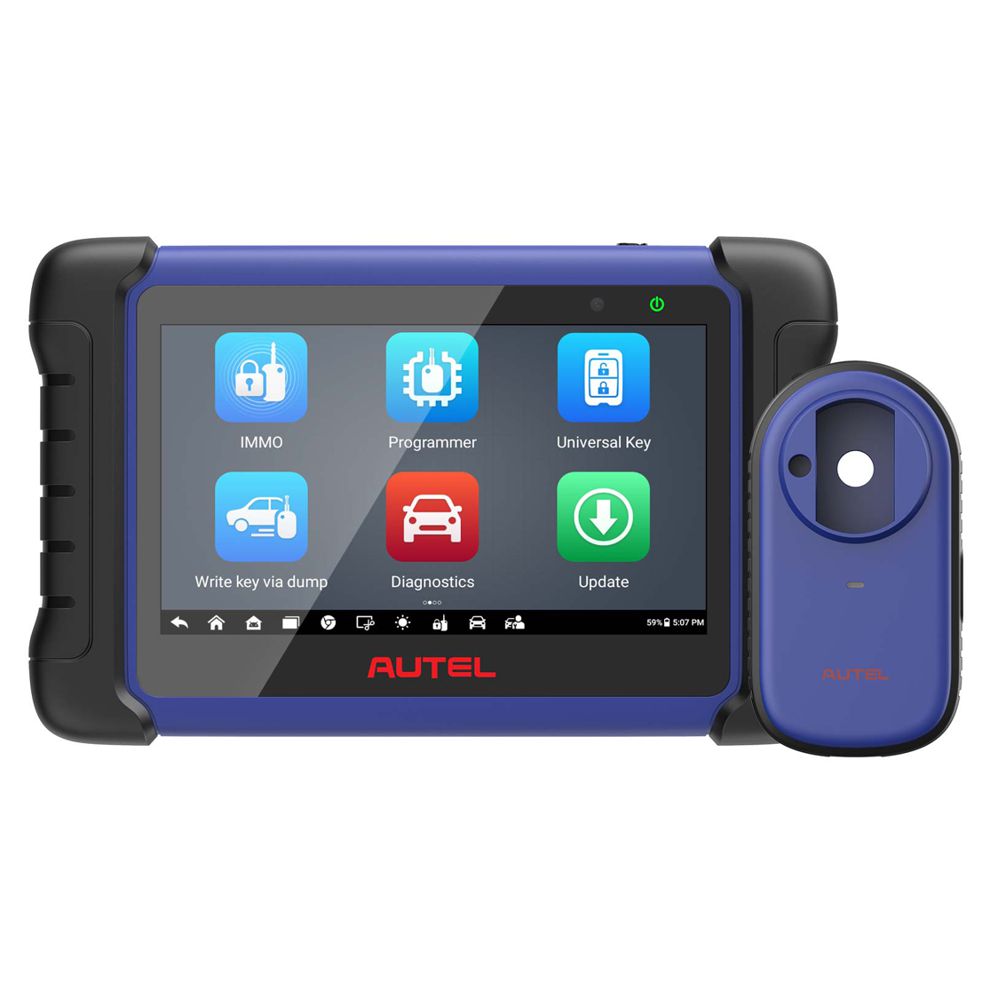

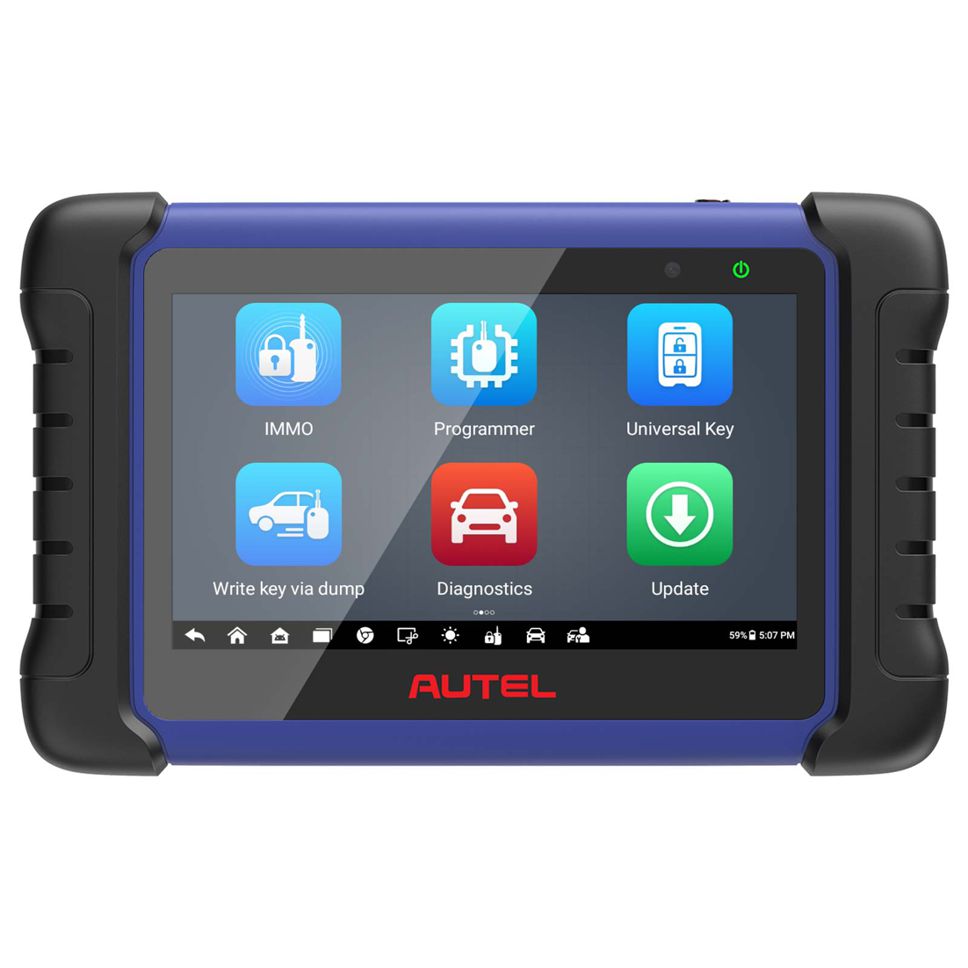

Autel MaxiIM IM508S (Autel IM508 II) Key Programming Tool

Autel MaxiIM IM508S automotive key programmning tool comes with the XP200 key programmer, which is capable of providing extraordinary service functions for the immobilizer system. Autel IM508S scan tool is also with the ability to quickly read & clear DTCs for all available modules of the majority of the makes and models on the market. Its diagnostic level is same as MX808 / MK808BT. Besides, IM508S is a diagnostic tool provides with you superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), IMMO.

Autel MaxiIM IM508S Main Features:

Advanced Key Programming
PIN / CS Reading (Full Lost)
Key Generation
Key Programming
Command Introduction
Backup / Repair IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Regeneration / Coding
BMW FEM / BDC Key
Programming and ECU Adaptation
VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Copy, Full Lost, A6 Full Lost and More
1 Year Free Update Online
2023 Latest version

Newly Added Features on Autel IM508S

* For Fiat:
1. Adds Key Learning (Bypass PIN)Function for Argo (2017-2020), Cronos (2017-2020),Toro (2016-2020),Mobi (2016-2019) and New Fiorino (2008-2019)[Globallnitial Launch]
2. Adds Key Learning for Blade Key Function for Awventura (2014-2018). [GlobalInitial Launch]
3. Adds Key Learning for Blade Key Function for 500x (2018-2020), Eaea (2018-2020) and Tipo(2018-2020)

* For BMW:
1. Supports New Software Version (swfl_00002419_085_010_080) for KeyLearning Function for FEM/BDC Immobilizer System.[Global Initial Launch]
2. Adds 196 Software Versions,Supporting Read ISN (OBD Mode) Function forB48/B58 Engine.[Global Initial Launch]

Supported Automotive Protocols

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

EEPROM Read/Write Supported Types

ATMEL
For AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256, AT24C512, AT24C1024, AT24C128_1.8 AT24C256_1.8, AT24C512_1.8, AT24C01A, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256 AT25512, AT25010_1.8, AT25020_1.8, AT25080_1.8, AT25320_1.8, AT25640_1.8, AT25128_1.8, AT25256_1.8, AT59C11, AT59C22 AT93C46A, AT59C13, AT93C46, AT93C46R, AT93C56, AT93C57, AT93C66, AT93C76, AT93C86

For CATALYST
CAT25C01, CAT25C02, CAT25C04, CAT25C08, CAT25C16, CAT25C32, CAT25C64, CAT25C128, CAT25C256

For FAIRCHILD
NM24C16U, NM24C16UT, NM24C17U, NM24C17UT, FM93CS46T

For MICROCHIP
85C72, 85C82, 85C92, 25xx080, 25xx160, 25xx320, 25xx640, 25xx040_TSSOP, 25xx320_TSSOP, 25xx640_TSSOP, 93C06, 25xx040 93C46X, 93C46A, 93C46, 93C46AX, 93C46BX_93C46CX, 93C56A, 93C56, 93C66A, 93C66, 93C76A, 93C76, 93C86A, 93C86

For NXP
PCF8582C, PCF8594C, PCF8598C

For NATIONAL
NM93C13, NM93C14, NM93CS06, NM93C14TM8, NM93CS46, NM93CS56, NM93CS66

For OKI
MSM16911

For SONY
CXK1011, CXK1012, CXK1013

For Seiko
S_24S45, S_24H30, S_24H30_SOP8, S_24H45, S_24H45_SOP8, S_24S30

For ST
M24C01, M24C02, M24C04, M24C08, M24C16, M24C32, M24C64, ST24x01/ ST25x01, ST24x02/ST25x02, ST24x04/ST25x04, ST24x08/ST25x08, ST24x16, ST25x16, AT25040_1.8, AT25160_1.8, M95010, M95020, M95160, M95040, M95080, M35080, M95320, M95640, M95256, M95128, M95512, M93C46, M93C56, M93C66, M93C76, M93C86, M93S46, M93S56, M93S66

TOSHIBA
TC89101, TC89102, TC89121, TC89122

For TMC
TMC93LC46, TMC93LC56, TMC93LC57, TMC93LC66, TMC93LC86

For XICOR
X5043, X5045, X25043, X25045, X24C44

For 9S12 Read/Write Supported Types
FREESCALE
MC9S12DG128

Autel MaxiIM IM508S Function List:

All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record, Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
Key Read / Write
EEPROM / MCU Read / Write
Read PIN / CS (All Key Lost)
Key Generation
Key Learning
Remote Learning
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost, and More

Product Functions:

IMMO & Key Fob Programming for DIYers and Locksmiths

If you want to do something for IMMO systems or car keys, Autel IM508S scanner with XP200 key programmer can help you with the following: read & write to Immobilizer/Engine/EEPROM/MCU; reset/code/backup IMMO ECU; read PIN (Add Key/All Key L~st); key generation/key learning/remote learning, etc. Smart Mode will provide you with guided and automated key learning functions, step by step, save you much trouble! Note: Functions above vary by cars.

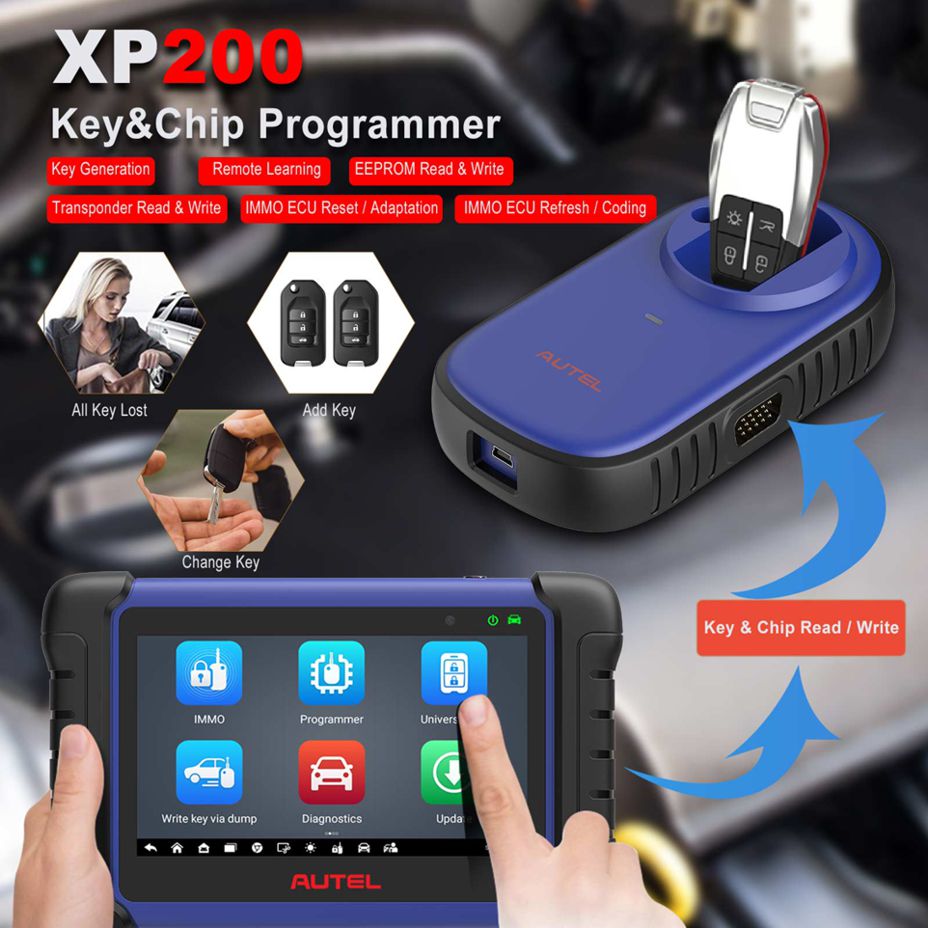

The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.

IMMO:

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.
The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

IMMO & Key Programming :

1.Read PIN/CS (AII key Lost)
2.Key Generation
3.Key Learning/Remote Learning
4.Backup/Restore IMMO Data
5.IMMO ECU Reset/Adaptation,Refresh/Coding
6.BMW FEM/BDC Key Learning and ECU Adaptation
7.VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More

1. Advanced Key Programming:

Autel MaxiIM IM508s Car Key Programming Tool comes with comprehensive IMMO functions, including: Read PIN/CS(All Key Lost), key generation, key learning, remote learning on various makes like, Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/Adaptation/Refresh/Coding, IMMO Data Backup/Restore.
* When connected to XP400Pro key programmer, IM508s will be able to support Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning.
* When it's connected to Autel XP400, IM508s Key Programming Scan Tool can further extend its programming capability to the top level Autel has yet to offer to cover IMMO ECU Read & Write, MC9S12 Encryption Chip Read & Write, IC Card Read & Write, Mercedes Infrared Key Read & Write, Remote Frequency Detect and it will support PC connection.

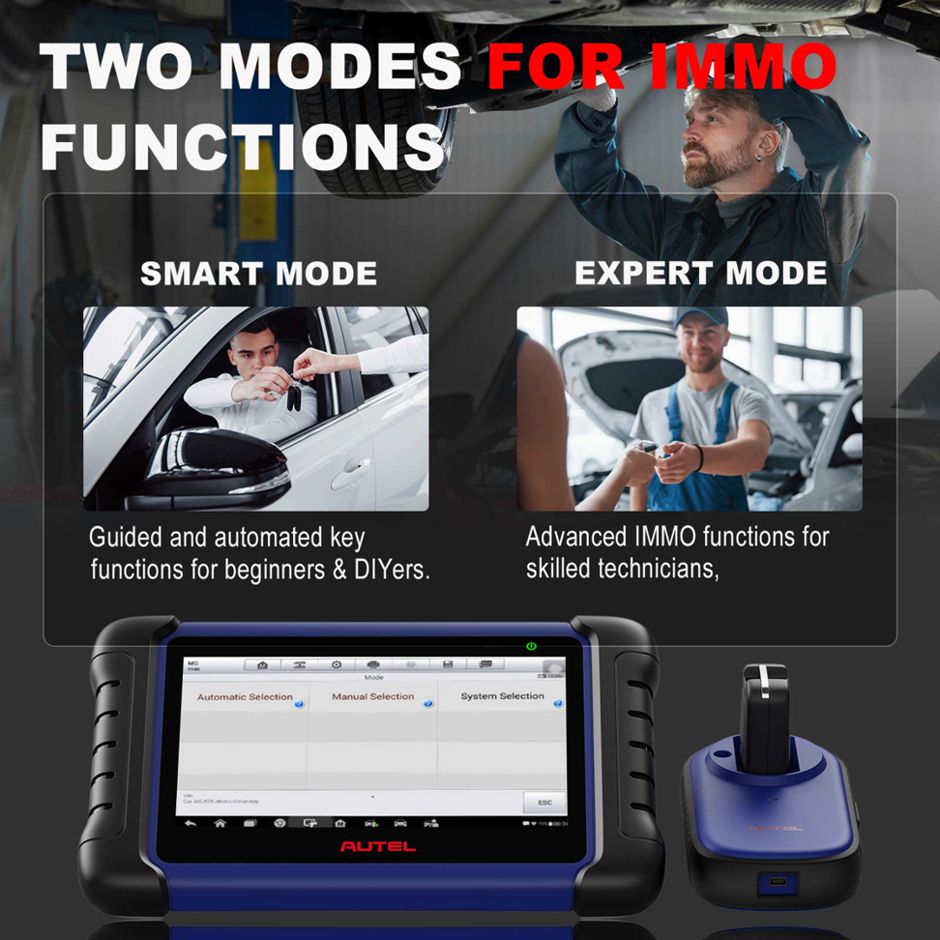

Smart Mode & Expert Mode

IM508s comes with comprehensive IMMO functions that provides Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.

* Smart Mode:
Guided and automated key learning for home mechanics.(accesses to a function menu where each function is configured as a smart guide system)

* Expert Mode:
Advanced key learning for professionals (accesses to a function menu where each function is separated from each other)

2. EEPROM/MCU Read & Write:

EEPROM and MCU are the anti-theft chips that store the anti-theft data of the vehicles. Autel IM508 key programming tool can read EEPROM/MCU data or write the anti-theft data to the EEPROM/MCU. EEPROM/MCU Read & EEPROM/ MCU Write are only available for the high-end key programming tools.

1) VW/Audi—Pioneering Smart Mode & Advanced Mode
* Pioneering Smart Mode & Super Mode—Auto detect IMMO types & read IMMO data, auto select Key Learning process.
* VAG 4th Gen. CAN IMMO via OBD—Convenient and fast to get the data in 3 minutes.
* Add MQB Blade & All Key Lost via OBD—Convenient and fast to get the data in 3 minutes.

2) BMW—Pioneering Smart Mode
* FEM/BDC IMMO system--Pioneering smart mode automatically saves data and prevents car being locked.
* FEM/BDC IMMO system-- ECU programming and fixing.
* New B48/B58 Engine – Read ISN via OBD (Chassis F)
* Supports Read/Write ISN for most engines when used with G-BOX.

3) Volvo – Semi-Smart Key All Key Lost via OBD
* OBD Connection
* Prevent car being locked, and resume learning after the learning process is interrupted

4) Ford/Mazda – All-Model Key Learning (Bypass PIN code)
* Add Key/All Key Lost via OBD
* Bypass PIN code

5) Chrysler – Key Learning (Bypass PIN code)
* Add Key/ All Key Lost via OBD
* Bypass PIN code

Bi-Directional Control/ Active Test

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Key Programming tool IM508S can perform real active tests that can send commands to the vehicle's ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal. Please check compatibility.

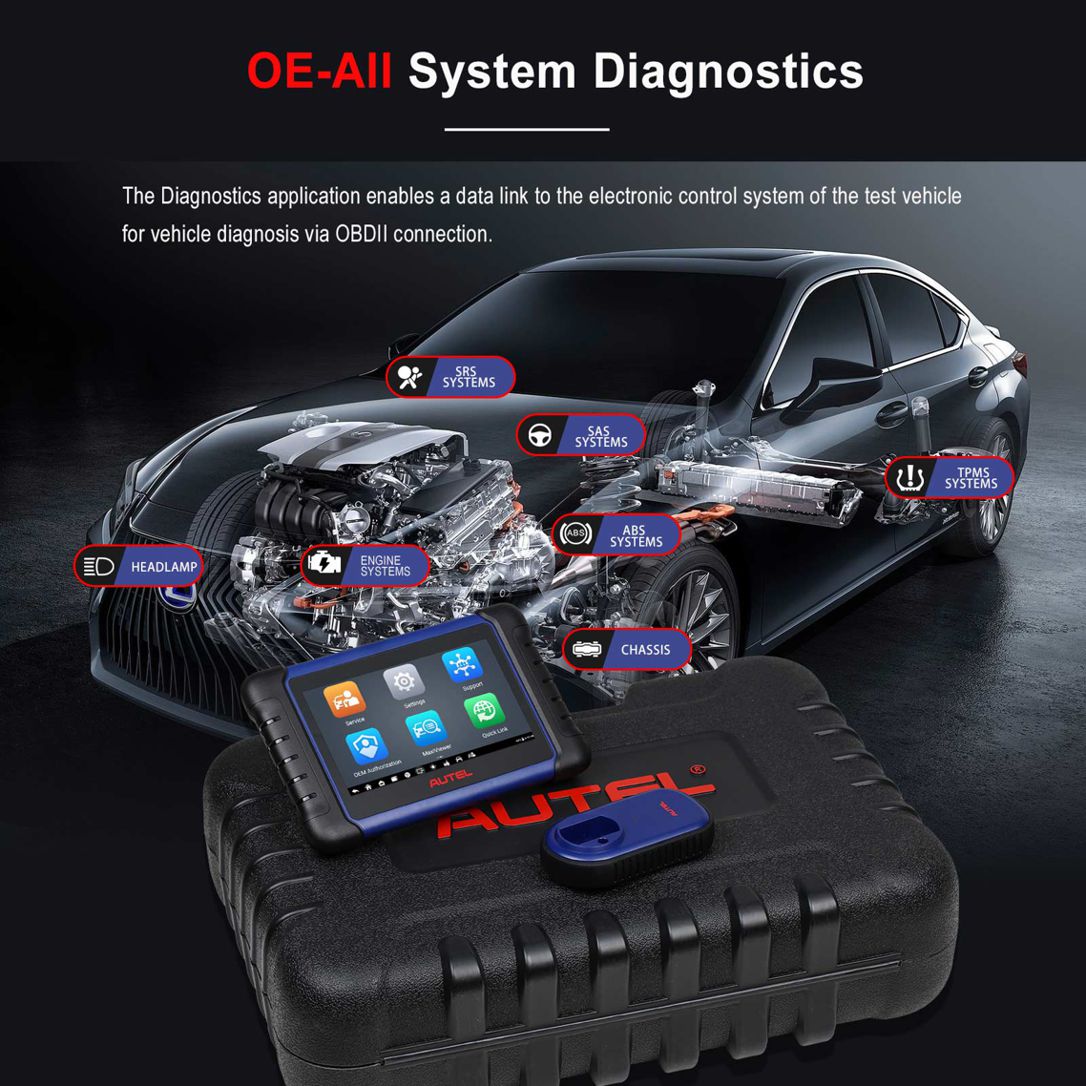

OE-level Diagnostic Capability, Same as MK808

Busy for a long time but can't find what's wrong with the car? Take it easy! Autel IM508S scanner, equipped with the same diagnostic capability as MK808, can scan all available car systems on 80+ US, EU and Asian car makes to read & clear DTCs, view live data, freeze frame data, and ECU info, perform active tests and compatible with MV108(not included). With just a few simple clicks, you can quickly locate the issues to win more time and money.

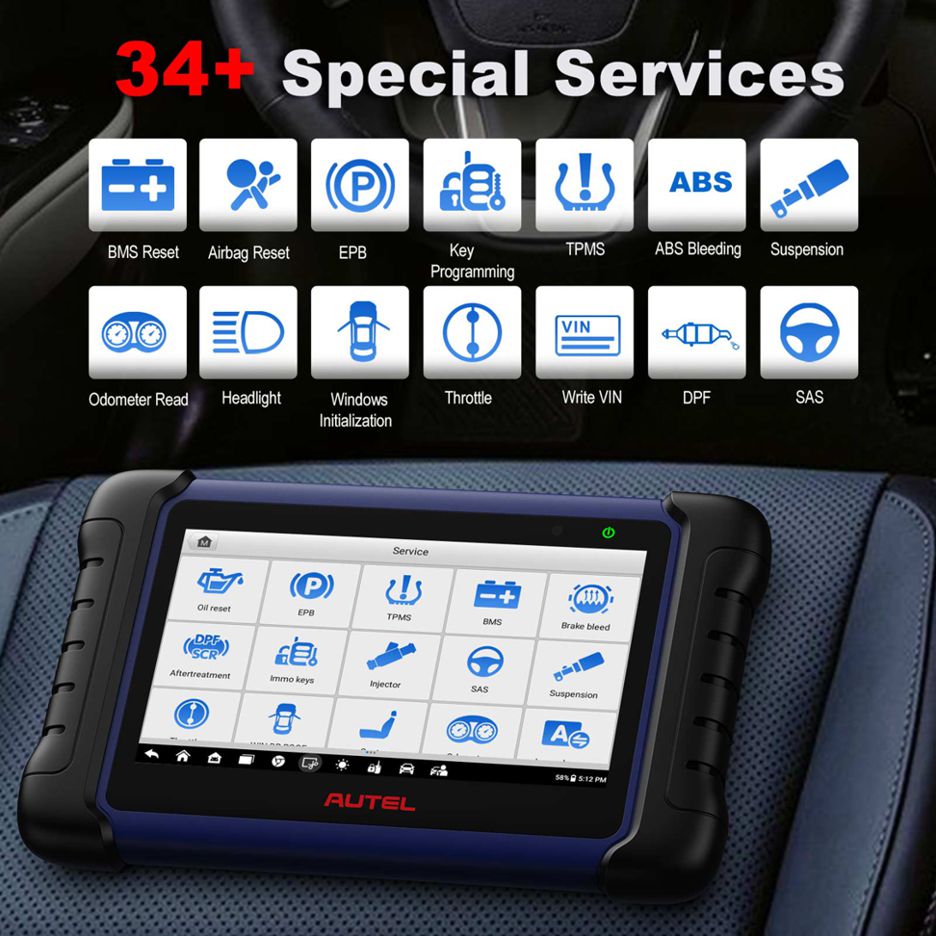

34 Kinds of Maintenance Services, Everything for you.

Oil reset, EPB, TPMS, BMS, brake bleed, aftertreatment, injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Language Change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, A/F setting, Automatic Start/Stop, electronic water pump start, EGR, FRM reset, transport mode, HV battery, ACC, A/C, rain/light sensor.

How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel IM508S scanner are actively reducing the unnecessary expense by integrating 28+ services, meeting many daily service needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc. Note: Functions vary by vehicle, please send VIN to us to check compatibility before order.

Autel IM508S vs IM508

Item	Autel MaxiIM IM508S	Autel MaxiIM IM508
Hardware	Touch screen tablet & programmer	Touch screen tablet & programmer
Connection	Wired	Wired
Automatic Scan	√	√
Guided Function	√	√
IMMO Scan	√	√
IMMO Function	Comprehensive	Comprehensive
Diagnostic Function	Basic	Basic
Processor	Rockchip RK3566 Quad Core, 4x 1.8GHz(A55)	Rockchip RK3188 Quad core, 4x 1.6GHz(A9)
System	Android 11	Android 4.4.4
RAM	4GB	1GB
ROM	64GB	32/64GB
Screen/ Resolution	7 inches, 1024*600	7 inches, 1024*600
Wi-Fi	√	√
USB	USB 2.0: (1 USB HOST Type A, 1 USB mini device)	USB 2.0: (1 USB HOST Type A, 1 USB mini device)
SD Card	Up to 64GB	Up to 32GB
DB16 DLC	√	x
Buttons	1 power button	1 power button
Battery	5000mAh	5000mAh
VCI	All-in-one	All-in-one
Programmer	XP200	XP200
Read & Write EEPROM	√	√
Read & Write MCU	√	√
Read & Write ECU	√	√
Read & Write IMMO Box	√	√
Read & Write Instrument/Airbag Module	√	√
Identify Key to Generate	√	√
Write Key via Dump	√	√
Unlock Key	√	√ (need XP400 Pro)
Detect Frequency	√	√ (need XP400 Pro)
Generate Key	√	√
Simulate Key	√ (need APB112)	√ (need APB112)
Auto VIN	√	√
Read/Clear DTCs	√	√
Read Data Stream	√	√
Freeze Frame	√	√
Read ECU Info	√	√
Action Test	√ (soon in Aug.)	√
Service	√	√
Special Function	√ (soon in Aug.)	√
Report Manager	√	√
Remote Desk	√	√
CANFD	√ (need adapter)	√ (need adapter)
Endoscope	√ (optional Autel MV108/ MV105)	√ (optional Autel MV108/ MV105)

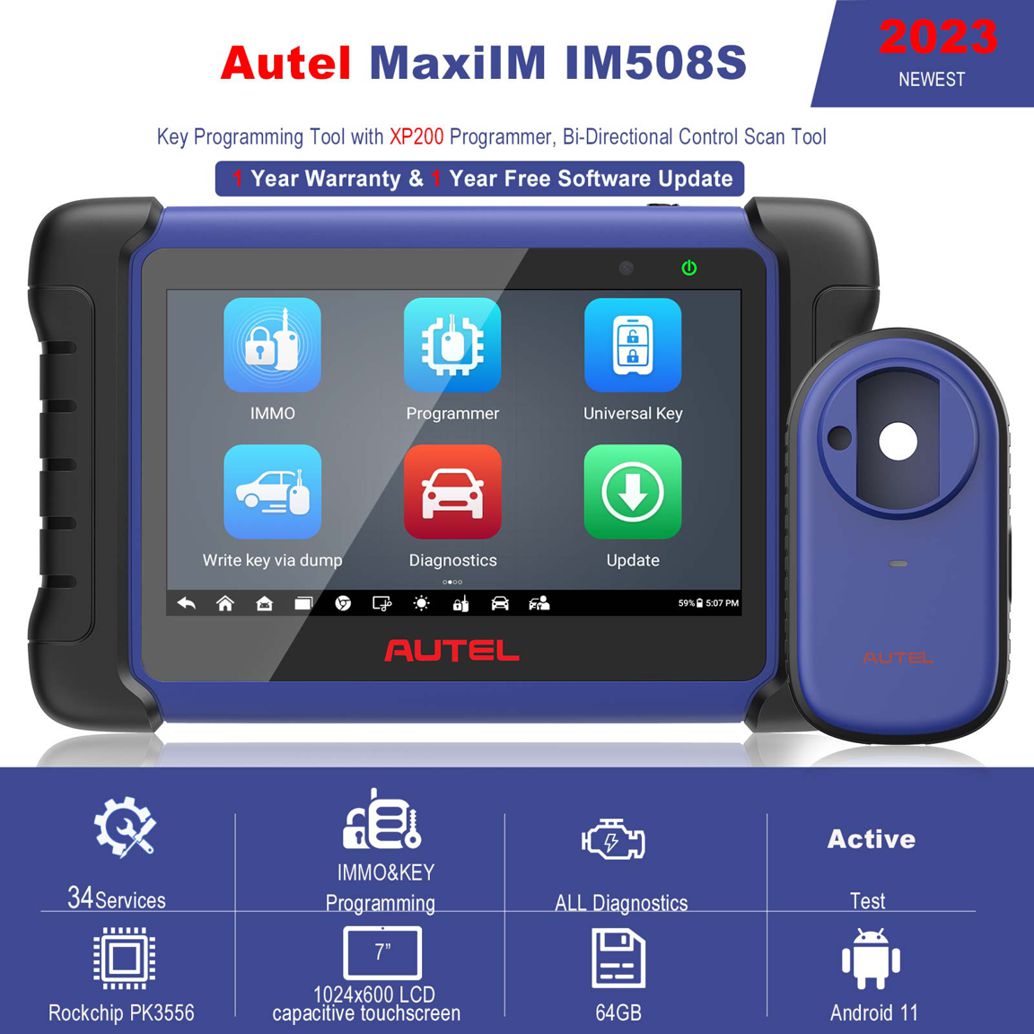

Product Specifications:

Operating System	Android 11
Processor	Rockchip RK3566 Quad core Processor:4x 1.8GHz(A55)
Memory	64GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 64GB)
Sensors	Ambient light sensor for brightness auto changing
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5V/1.5A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Operating Humidity	5%-95% non-condensing
Net Weight	885g(2.31\|b.)
Supported Automotive Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

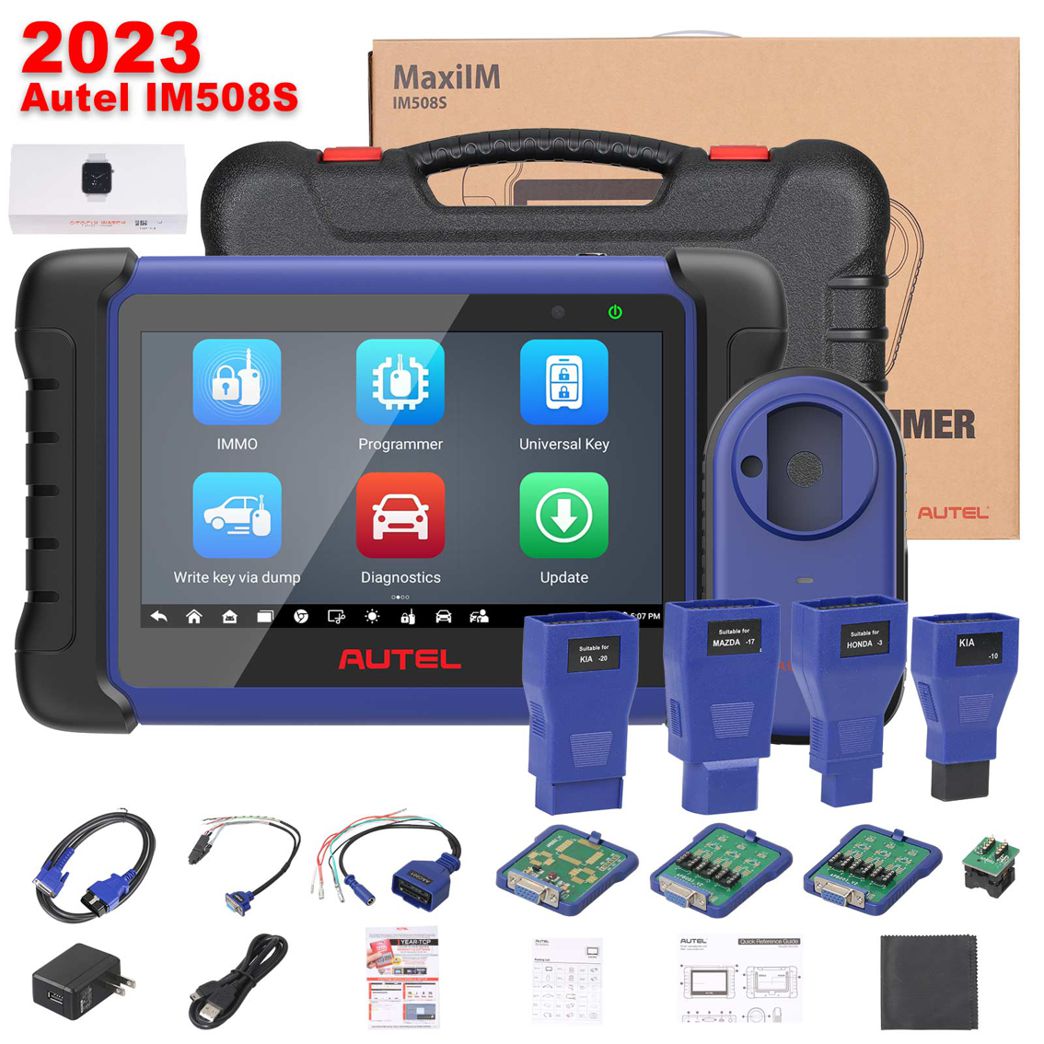

Package Includes:

1PC x MaxiIM IM508S Tablet

1PC x XP200 Key Programmer

1PC x Main Cable

1PC x Mini USB Cable

1PC x USB External Power Adapter

1PC x APB001 (EEPROM Adapter)

1PC x APB002 (68HC908 Adapter)

1PC x APA002 (EEPROM Socket)

1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)

1PC x AAC001 – MED17 Cable

1PC x KIA-10 Adaptor

1PC x KIA-20 Adaptor

1PC x Mazda-17 Adaptor

1PC x Honda-3 Adaptor

1PC x Carrying Case

1PC x Quick reference guide
1PC x OTOFIX Smart Key Watch
