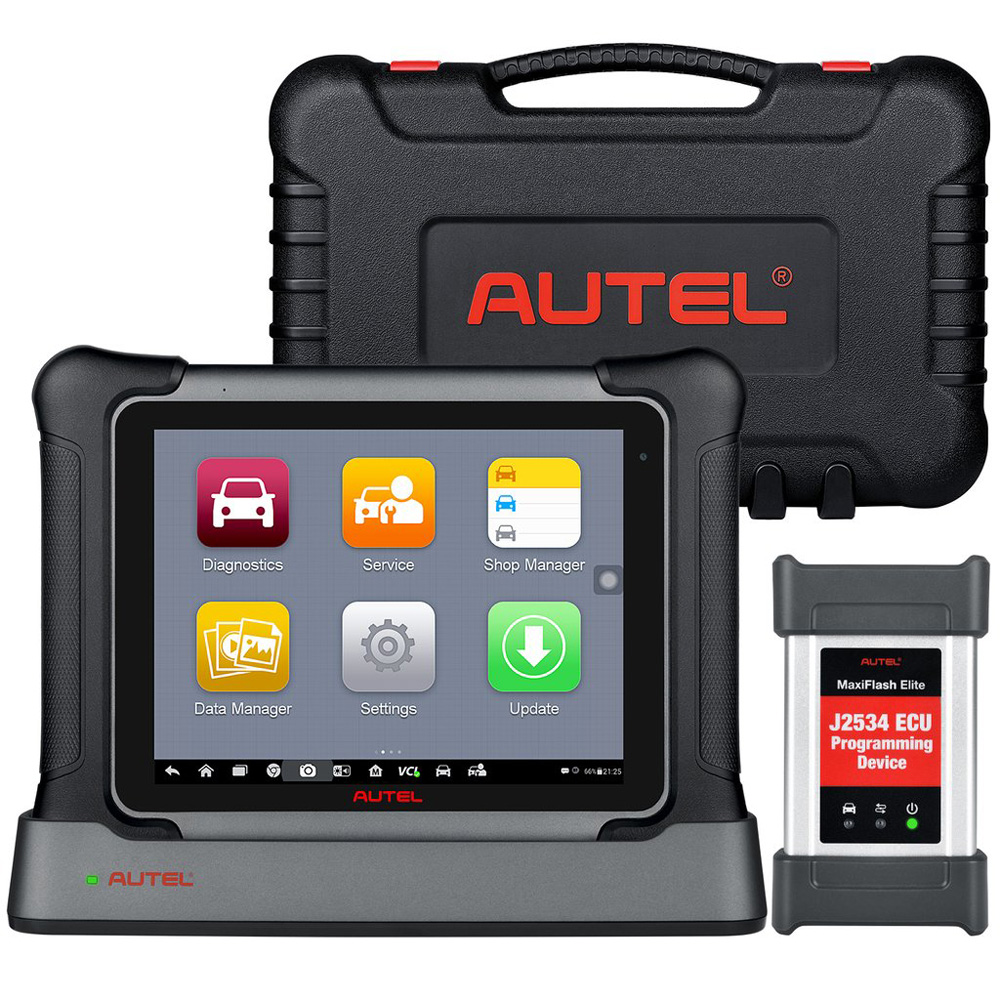

2023 Autel Maxisys Elite II OBD2 Diagnostic Scanner Tool with MaxiFlash J2534 Same Hardware as MS909 Upgraded Version of Maxisys Elite

Autel Maxisys Elite II is a latest version of the Maxisys Elite series, that upgraded from Autel Maxisys Elite. It improves hardware and software, same hardware as MS909, Adds more expansion functions, replacing the exsiting software/ firmware in the ECUs, programming new ECUs for BMW and Benz, ADAS, oscilloscope, GPS, Support MaxiFix cloud service, etc .

Autel MaxiSys Elite II:

Based on MK908P/MS908S automotive scanner, the Elite car diagnostic tool shares the same diagnostic functions and advanced maintenance functions with MS908S PRO scanner. The upgrade version scanner Autel Elite II features with advanced CPU that rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving.

Support full system diagnosis, automatic reading of VIN code, automatic scanning system, reading code, clearing code, data stream with graphics and record/playback function, action test, support pre-scan/post-scan report.

Main Features:

[ECU Programming]: Used to load control functions instructions into specific control modules, renew the ECU modules, reprogram new ECU and update on-board software.

[ECU Coding]: Flash the hidden functions, match the component control modules, enhance the vehicle performance, and customize the OE-settings.

[36+ Maintenance Functions]: Integrate multiple functions in one, solve 98% of auto repair problems, and include Oil Reset, EPB Reset, SAS Calibration, DPF Regeneration, Throttle Matching, Suspension Calibration, ABS Bleeding, BMS Reset, TPMS Reset, Gear Learning, Seat, IMMO Service, Odometer, Cylinder, Lang Change, Airbag, Trans Adaption, Win DR Roof, Headlamp Calibration, CHG Tire Size, Injector Coding, Clutch, Turbo Charging, etc.

[OE-level Full Systems Diagnostics]: Empower you to root out problems hidden underneath the systems such as Engine, Transmission, ABS, SRS, HAVC, Radio, TPMS, ECT, IMMO, etc. Enable you to read & clear DTCs, read data stream, access ECU info, and freeze frame.

[Bi-directional Control(Active Test)]: Conduct mutual communication with the vehicle sub-systems and components. Active Test can be employed on headlamps, windscreen wipers, windows & doors, and sunroof.

[Auto VIN Scan]: Identify vehicles instantly. Skip the manual selections to identify car make / model / year, and lead you towards the proper diagnostics on the system selected. Compatible with 2006+ car models.

[Worldwide Vehicle Brands]: Cover 80+ vehicle makes, 150+ vehicle brands, and 10000+ American, Asian and European vehicle models. More car models and functions will be added later by updating.

WiFi Connection, Remote Desk Support, Diagnostic Report Printing

ECU Programming:

1.Replace the existing software/firmware and program the new ECU.
2.Load control functions instructions into a specific control module.
3.Updating data and operating instructions previously installed in a control module.

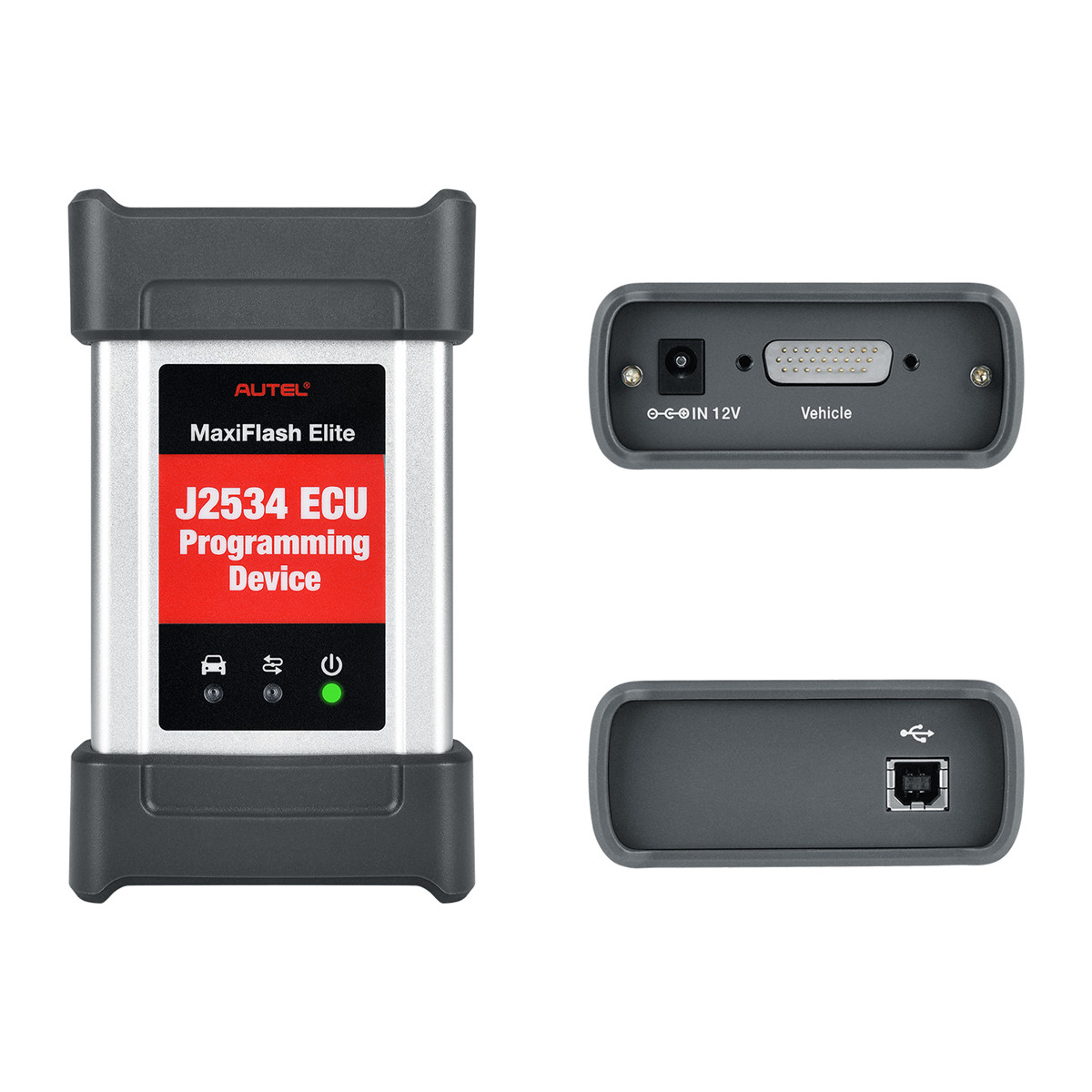

4.Allow you to perform J2534 programming for Benz / BMW.
5.J2534 ECU Programming

J2534 ECU programming of car scanner is designed for BMW and Benz to handle software-controlled drivability issues and emission issues such as fuel efficiency, power loss, fault codes, and durability of mechanical parts, etc.

ECU Coding:

ECU coding implies software modifications to a vehicle to allow the use of functions not available in the car. Coding does not imply changing the software but changes preprogrammed options already existent in the software. ECU coding can help you match vehicle parts and on-board systems to strengthen the vehicle performance. MaxiSys Elite II equips with more high-end ECU functions than other types of diagnostic tools.

ECU Coding: Compatible with Mercedes-Benz, BMW, Volkswagen, Audi, China General Motors, Nissan, Land Rover/Jaguar, Haval, etc.

1.Refresh the hidden features (auto start-stop, reverse tilt mirrors, foldable mirrors, and customizing interior lights, etc).
2.Customize the OE settings (setting alarms, door locking, signal, etc).
3.Enhance the vehicle performance (offering the solutions for fuel efficiency, and reduce power loss).

Bi-Directional Control/Active Test:

Autel MaxiSys Elite II can get access to the vehicle-specific subsystem and component parts, and output commands to the related ECU, thus driving the actuators to perform a specific function for determining the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

The Active Test function is used to conduct mutual communication with the vehicle sub-systems and components. You don’t need to disassemble the car into parts for detecting the problem, minimizing your trouble, and saving your time. Active Test can be employed on headlamps, windscreen wipers, windows & doors, sunroof, etc.

36+ Maintenance Functions:

MaxiSys Elite II scan tool allocates 36+ service functions to meet various diagnostic needs and provide more help to vehicles. The Elite diagnostic scanner can perform Oil Reset, EPB Reset, SAS Calibration, DPF Regeneration, Throttle Matching, Suspension Calibration, ABS Bleeding, BMS Reset, TPMS Reset, Gear Learning, Seat, IMMO Service, Odometer, Cylinder, Lang Change, Airbag, Trans Adaption, Win DR Roof, Headlamp Calibration, CHG Tire Size, Injector Coding, Clutch, Turbo Charging, etc.

Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.

EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.

DPF Regeneration: Perform the regeneration procedure as know as the DPF cleaning operation to clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.

Suspension: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.

ABS Bleeding: Bleed the air of a brake system to restore ABS brake sensitivity.

BMS Service: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.

TPMS Reset: Quickly look up the tire sensor IDs from the vehicle’s ECU, and perform TPMS replacement and sensor test.

Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.

Throttle Matching: Cycle the motorized throttle body through various states (idle, part throttle, WOT) to relearn their positions.

Worldwide Coverage:

Elite II scan tool has been upgraded to the newest 2021 version with more functions and models. And also, the Autel Elite II scanner vehicle database supports full systems diagnostics on 140+ car brands and 10000+ vehicles worldwide to solve thousands of vehicle problems common car models like Ford, GM, Chrysler, Toyota, Nissan, Honda, Hyundai, Mazda, Holden, Lexus, VW, Audi, Volvo, Fiat, Porsche, Renault, Benz, BMW, Acura, Alfa, Infiniti, Kia, Land Rover, Mini, Peugeot, etc.

Auto VIN:

MaxiSys Elite II diagnostic scanner can skip the manual input and automatically receive vehicle make, model, year, and other information. This Auto VIN technology eliminates some tedious steps like manually inputting identification numbers and greatly improves diagnostic efficiency and saves time to serve more vehicles.

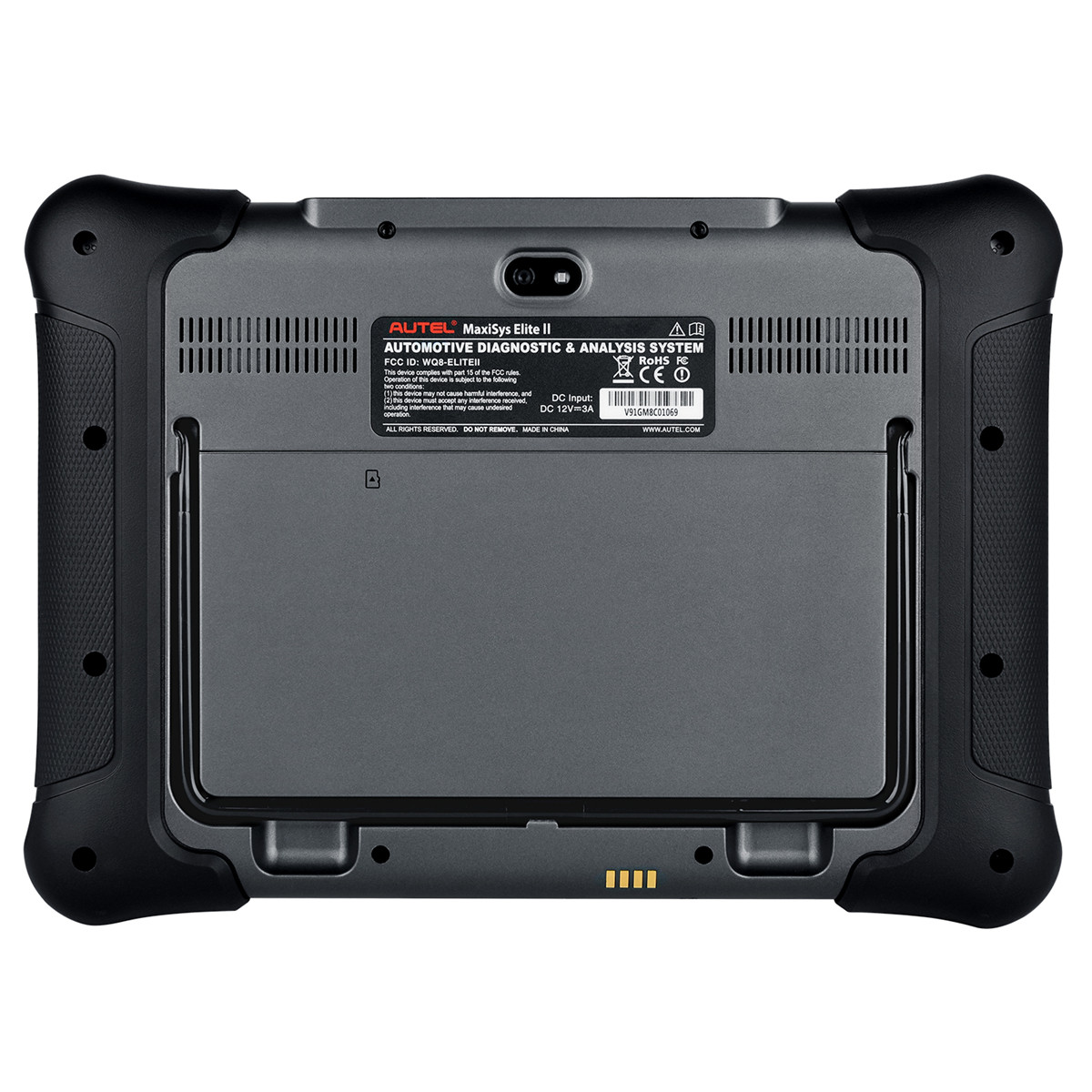

Hardware Configuration:

This Autel Elite II not only incorporates excellent reset functions but upgrades the hardware configurations. The Elite diagnostic tool comes with 15400mAh Battery Capacity, Android 7.0 operating system, Samsung Exynos8895 8-core Processor, 5MP Front Camera & 16MP Rear Camera, 9.7’’ Touchscreen, 2048x1536 Resolution, which can smooth the diagnostic process and save more time.

Extended Function:

Elite II scanner can use with Autel BT506, enables technicians to view the health status of vehicle's battery and electrical system.

Elite II scanner can use with Autel MV108/MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.

Maxisys EliteII Specifications:

Model: Autel MaxiSys Elite II
Operating System: Android 7.0
Processor: Samsung Exynos 8895V octa-core Processor
Memory: 4GB RAM & 128GB On-board Memory
Display: 9.7-inch TFT-LCD
Resolution: 1536 x 2048
Camera: Rear: 16 Megapixel,Front: 5.0 Megapixel
Battery: 15000mAH 3.8V lithium-polymer battery
Input Voltage: 12V/3A Adapter
Weight: 1.66kg (3.66 lb.)
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Custom Bundle: Yes
Bundle Description: MV105 digital inspection camera
UPC: Does not apply
Manufacturer Part Number: MS908SP Elite MS919 MS Ultra MS909CV MK906BT
Type: Intelligent Bi-Directional Diagnostic Scanner Tablet
OBD Interface: CAN, EOBD, OBD, OBDII
Connectivity: WiFi/Bluetooth
Supported System: ABS, DPF, EPB, SAS, SRS, TPMS, Engine, Transmission, IMMO
Vehicle Type: Passenger Vehicle
Features: TSB, Repair Assist, DTC Analysis, Relevant Cases, System Topology
Functions 1: J2534 ECU programming ECU Coding
Functions 2: Intelligent Diagnostics
Functions 3: VAG Guided Function
Functions 4: Bi-direction control /Active Test
Warranty: 1 Year
Update: 1 Year Free Update
