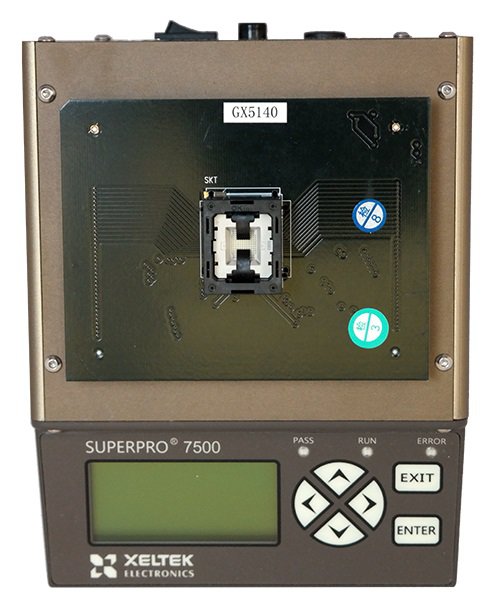

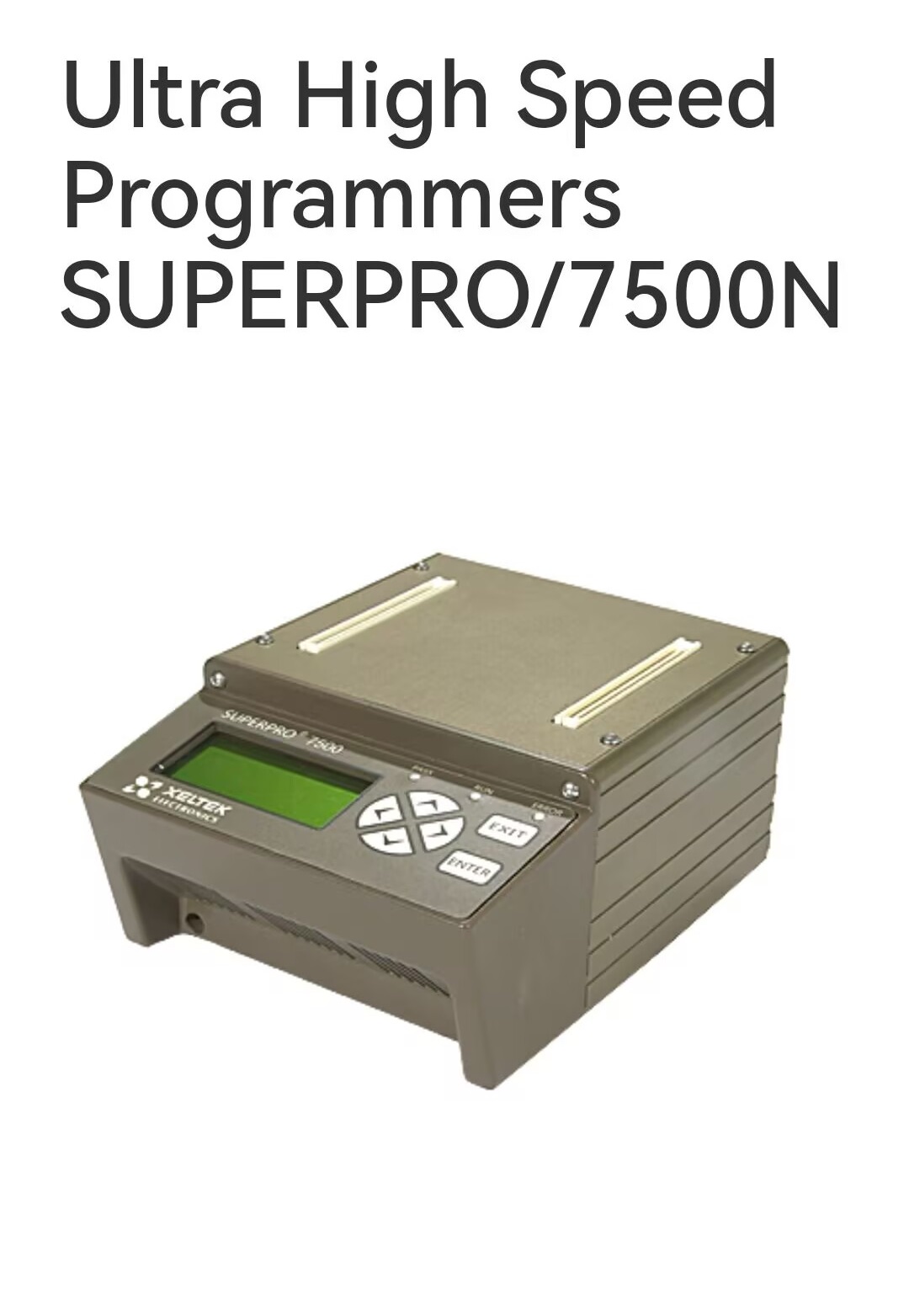

SuperPro 7500 7500N High Speed 4 Gang Eeprom Programmer

Meet the NEW STANDARD in the universal programming industry. The ultra powerful system engine allows to program either single or 4 chips simultaneously with equal ease. Convert the universal programmer into a 4 gang programmer just by inserting a 4-socket adapter. No need to buy an expensive gang programmer anymore and save thousands.

Advantages of SuperPro 7500N

Ultra Fast Programming Speed

SuperPro 7500N programmers employ a very high speed MCU chip producing not only reliable programming algorithms, but also increasing programming speed. Utilization of ARM11 32bit MCU combined with an internal Linux operating system makes them the most advanced and versatile programmers in the industry. Superpro 7500N offers 30% higher programming speed and 8-10 times faster programming speed for eMMC devices as compared to Superpro 6100.

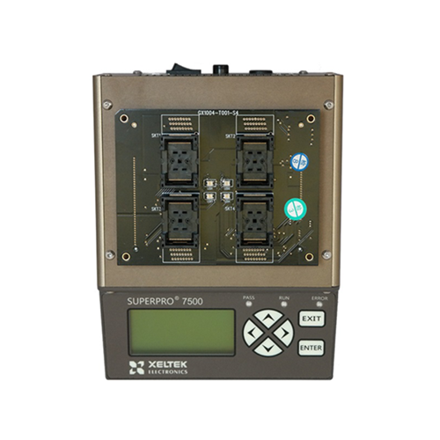

Customized 4 Gang Adapters

SuperPro 7500N can be used to program up to 4 chips at a time. Many EEPROM / Flash / MCU / eMMC chips are also supported in 2-Gang or 4-Gang mode to increase throughput by nearly four times!

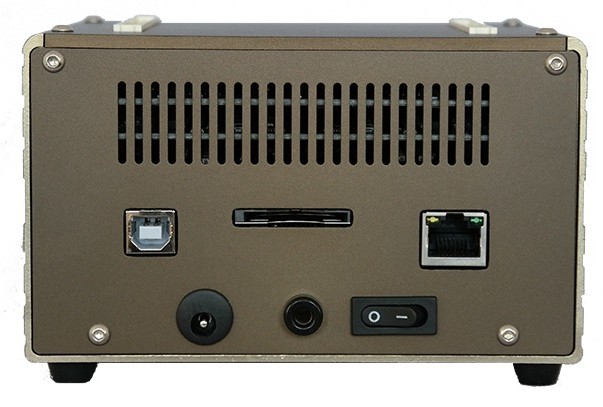

LAN Mode

Most production programming applications need the programmer to be operated remotely. On SuperPro 7500N, remote controlling can be achieved using the LAN port. Using the LAN port, programmers can be connected to a local network and can be remotely controlled via any computer on the network. In this case, the PC which controls the SuperPro 7500N acts as a server and SuperPro 7500N acts as a client.

Project Files

The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.

Auto Function

The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.

Production Mode

Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency.

Production Statistics

A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.

Factory Mode

This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in the Auto function mode.The administrator can set a password to prevent unauthorized access to the system.

Auto Recognition of File Types

We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.

Auto Increment of Serial Numbers

Auto-generation of electronic serial numbers is available on Superpro 7500N. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode.

Intellectual Property Protection

Password settings available in both PC and stand-alone mode.

Software Display:

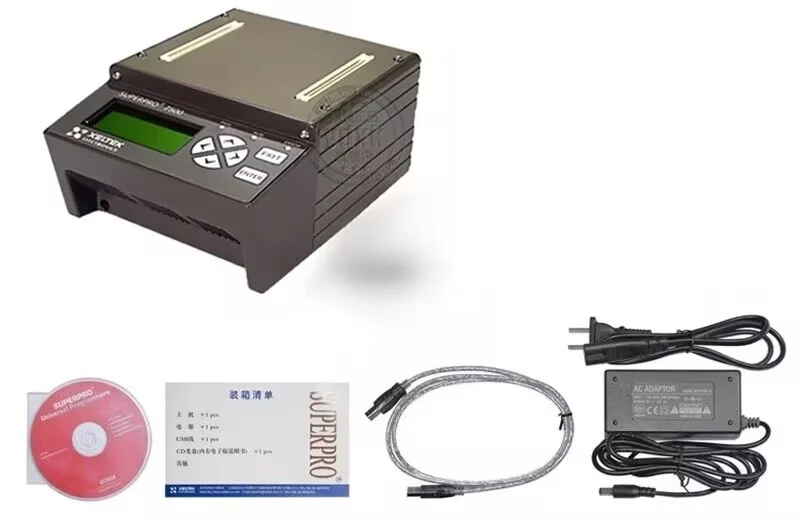

SuperPro 7500N comes with

AC Adapter
USB Cable
SD Card
Quick Start Guide
