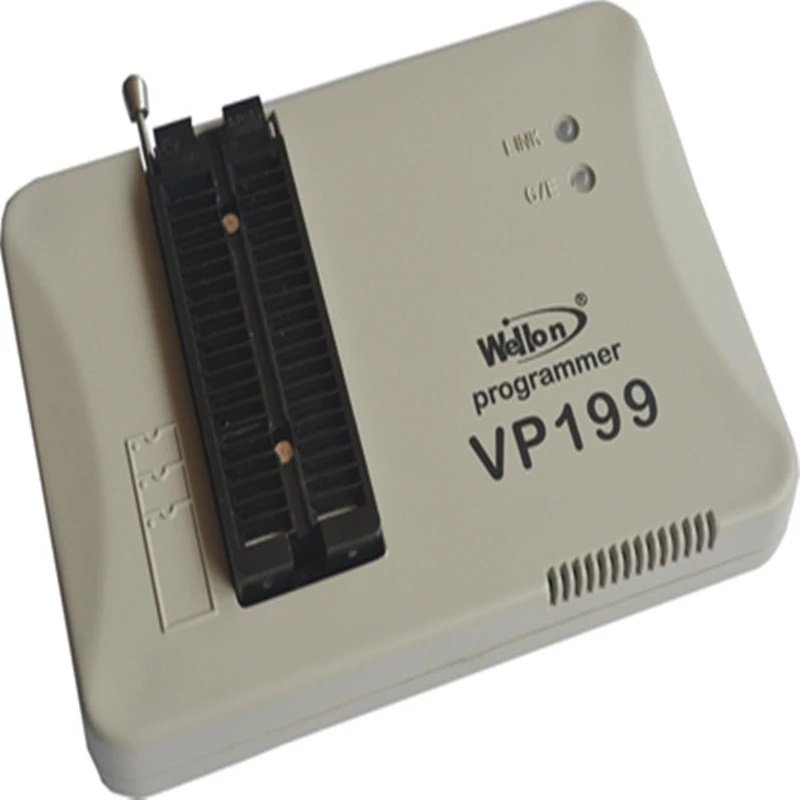

original Wellon VP199 VP-199 universal programmer VP190 burning device

VP199 is a high level universal programmer with high reliability, fast speed and high performance price ratio. The integrated menu interface supports 10 languages. Support WindowsXP/Vista/ Windows 7 (32bit and 64bit) / Windows 8 (32bit and 64bit) operating system. Loading, editing and saving files is extremely convenient. It supports thousands of PLD, E (E) PROM, FLASH, MCU and other thousands of programmable devices produced by dozens of manufacturers. It can test TTL & CMOS standard logic device and memory. This programmer is suitable for electronic product development, batch burning chips and so on.


Hardware features of programmer

External size: 115 * 79 * 18mm; net weight: 130g.

Power supply specifications: input AC 110-240V 50/60Hz output DC 9V/0.6A

It adopts lead-free soldering, and the shell uses ABS material with flame retardant function which meets the environmental protection standard.

The programming module can program or test 4 core to 40 pin DIP devices.

Through the adapter option, we can support 4 core to more than 44 core packages.

40 needle locking socket.

Device arithmetic is completely realized by software. USB interface has the function of automatic online upgrade, which effectively protects users'investment interests.

There is a perfect overcurrent protection circuit which will not damage the programmer due to short circuit of the chip.

When connecting USB port communication, most chips can be read or written without external power supply.

The built-in high-speed single-chip microcomputer automatically checks data to ensure system reliability.


Software features of programmer

Support Simplified Chinese, Traditional Chinese, English, Italian, Dutch, Korean, Polish, Portuguese (Brazil), Turkish, Hungarian 10 languages.

The chip data are very detailed, including package diagram, chip type naming and adapter data.

The factory logo is provided in chip selection, which helps users to find chips faster and faster.

Chinese and English online help system is convenient for users.

The maximum capacity of the chip can be 8Mbit.

Automatic file format recognition.

It can automatically detect chip inserting, inserting faults, poor contact between pins and internal short circuit breakers.

It has automatic programming function after setting chip contact reliability, and is convenient for mass production.

The programming parameters can be modified, and the programming parameters can be determined according to the specific conditions of the chip.

The chip serial number is automatically added.

Choose the manufacturer's two-way selection according to the manufacturer or the manufacturer's model, and automatically search and select the device.

Fast buffer editing and modification, block copy, block filling, high and low byte exchange, string search and other functions.

It provides flexible file and cache management functions. It can realize automatic file loading and memory cleaning, multi file splicing and loading.

Support file formats: JEDEC, BINARY, MOTOROLAS, TEKTRONIX, INTEL, HOLTEK, EMC (. CDS), INTEL HEX16 formats.

It supports automatic separation of byte (BYTE), word (WORD), and double word (DOUBLE WORD) format data files.

It can test TTL & CMOS standard logic devices. It can automatically determine the type of standard logic device.

The built-in test vector editor provides a test library structure that is open to users, and users can add test devices themselves.

Perfect self checking function to ensure the hardware is in good condition. The function of the programmer can be detected.
