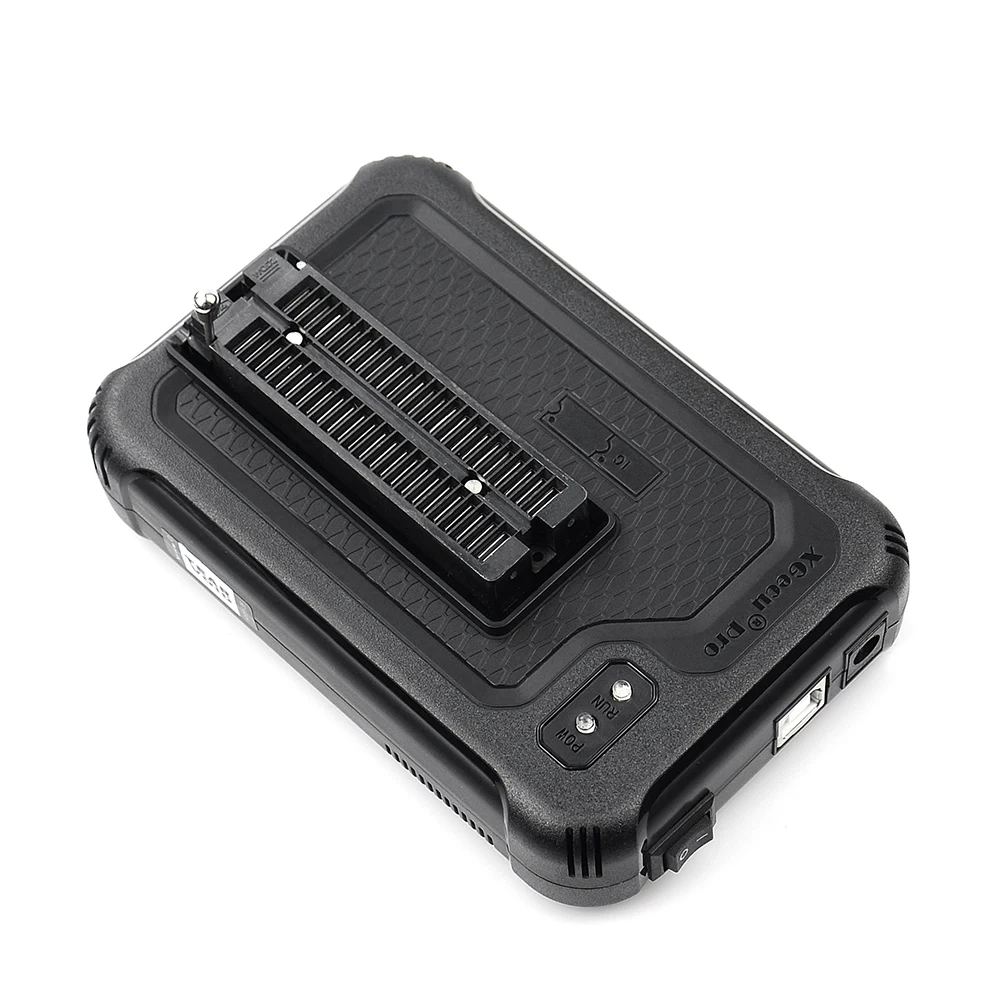

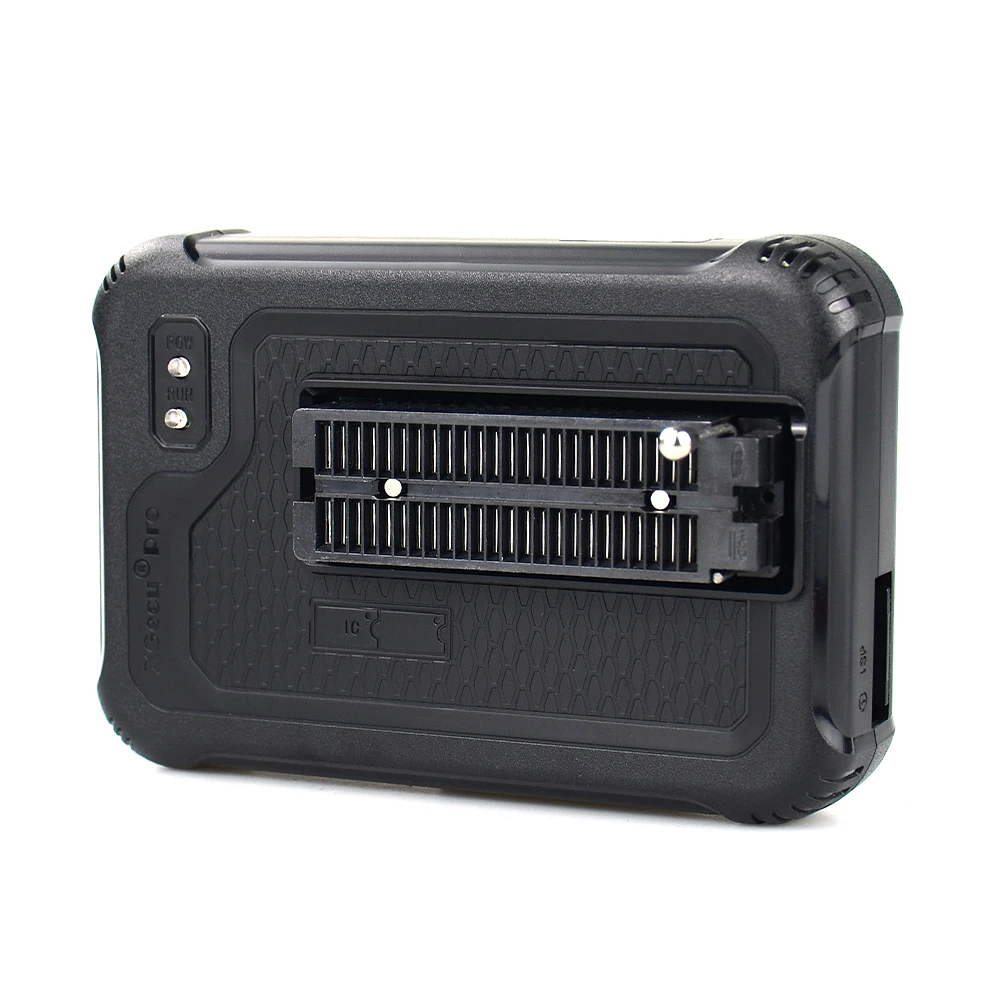

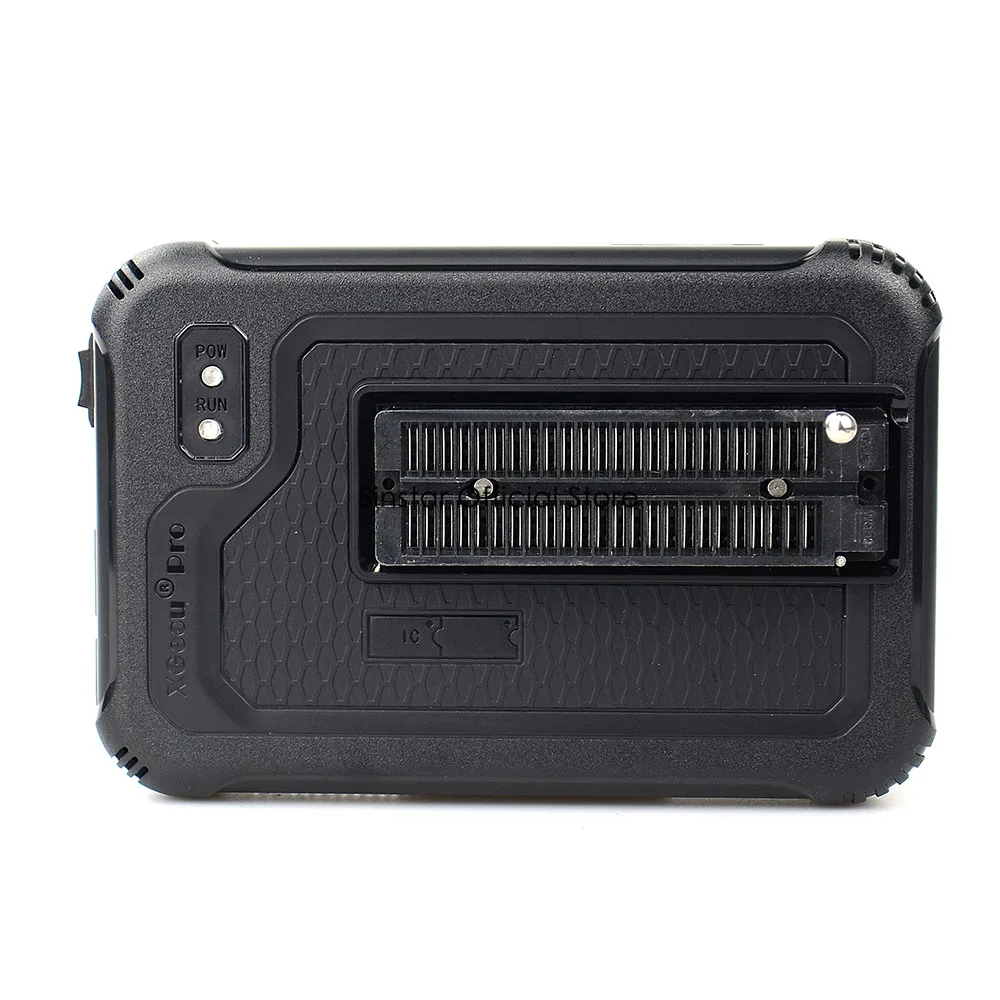

XGecu T56 Programmer 56 Pin Drivers ISP Support 37300+ ICs for PIC/NAND Flash/EMMC TSOP48 / TSOP56/ BGA 48/63/64/153/169

Description:

XGecu T56 Universal Programmer 56 Pin DriversSupport 20000+ ICs for Nor Flash / NAND Flash / EMMC
TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221

Ultra speed universal 56-pins powerful pindrivers programmer, no adapter required for any DIL devices. Fully open source programming adapter and competitive price. Design focused on high-capacity memories programming. Remarkable performance, ultra fast programming speed, very small and portable. Cool appearance, low power consumption, excellent work stability.

1. Support wider chip range, larger capacity, faster speed:

Base the TL866II Plus
add Support for Nor Flash / NAND Flash / EMMC

• User-friendly Software Interface, easy to use, more functions, easy to upgrade software

• Ultra-high cost performance, suitable for small batch programming below 5000 , also suitable for developers and professional maintenance personnel.

• Support chip model:
  24/25/26/93 serial EEPROM, 27/28/29/36/37/39/49/50 EPROM, Paged EPROM,
  FLASH memory (NOR, NAND, SPI NAND, EMMC, NVRAM, SRAM, CPLD (GAL), etc.
  Support package: add DIP42/PLCC44/SOP44/QFP44/TSOP48/TSOP56/BGA48/BGA63/BGA64 /BGA100/BGA153/BGA162/BGA169/BGA221 on the basis of TL866II.

• NAND EMMC supports maximum capacity up to 256G

XGecu T56 Support Device List:
xgecu.com/MiniPro/T56_List.txt

(please note: before buying, make sure the chip models you want to program are in the support list!)

2.Programmer parameters

(1). 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure, USB2.0 HS 480MHZ transmission

(2). 56-pins powerful pindrivers IO design. All pins have a maximum operating frequency of 50MHZ and high reliability.

(3). Stable and reliable 8-Pins in-circuit programming ISP interface, the wire Length is more than 30CM, and it can communicate reliably at 25MHZ. 25 series / EMMC in-circuit programming with a maximum clock frequency of 40MHZ-50MHZ

(4). VCC voltage 1.2-6.5V 64 levels adjustable
VPP voltage 6.5-25V 64 levels adjustable
IO communication signal voltage continuously adjustable 1.2V-3.6V
VCC 120MA-320MA overcurrent protection continuously adjustable
VPP 120MA overcurrent protection.

(5). Power consumption: 5V < 500MA. All chips do not need external power supply.
It can be connected to an external power supply 5V-5.5V 500MA for multipile programming.
The external power can be powered by a cell phone charger or charge pal can be seen everywhere.
The programmer has multiple protections for the external power supply:
Overvoltage protection / reverse connection protection / overcurrent protection / low voltage prompt.

(6).  Write EMMC Speed: 12MB/s-25MB/s
Reading EMMC speed: 14MB/s-45MB/s is 2-5 times faster than similar programmers.
(This is important for large-capacity chips, 64GB EMMC chips,
If 10MB/s (the average programmer cannot reach 10MB/s) reading takes 6400 seconds,
T56 can usually reach more than 20MB/s, as long as about 3000 seconds)
Ability to handle extremely high speeds, meaning that programmer hardware has greater stability at lower speeds

(7). Open self-test function, self-check each VPP/VCC /GND/ IO

• Compared with the general 48-pin universal programmer, the 56-pin full drive has 8 more universal IO ports. The advantage of the 56 universal drives is that the all chips below 56 pins only need one adapter in the same package.

• Example: A general TSOP56 adapter, which can program all  of TSOP56, TSOP48, TSOP40, TSOP32 on the T56 programmer. One TSOP56 adapter is equivalent to the function of five adapters of the ordinary 48-pin universal programmer.



4. High-performance with Optimal design of software and hardware

5. Support high voltage, the highest voltage reaches 25.0V

• The T56 programmer solves the contradiction between high voltage and high frequency pins.
  It supports high speed and high voltage programming.

• you can directly program many 27C series and MCU series that require high voltage VCC (6.5V) and VPP (12V-25V)



6. High-speed programming of a  SPI NAND FLASH

    SPI NAND Flash has a wide range of applications in mobile devices, set-top boxes, data cards, TVs, etc. It is compatible with flash pins of different capacities and uses a smaller package (WSON8 is typical)



• The function of SPI NAND:

    1. Support OTP programming
2. Support internal ECC on/off function
3. Support UID (unique signature) reading
4. Support multiple file operations
5. Support NAND parameter custom function, (new chips can be added by custom parameters)
6. Reserved custom interface to provide free technical support for bad block management and ECC algorithm. we can customize according to user requirements.
7. The programming clock speed is adjustable.
8. Support QUAD X4 or SPI X1 mode.
9. Support ISP  programming in X1 mode (ISP reaches 4M bytes/second).

• SPI NAND is generally a chip of 1Gb-4Gb capacity. To read and write full data of 1Gb chip, T56 only needs 12s+13s=25 seconds.



  more than 10 times the speed of some similar products.
  (High-speed programming without using a special adapter)



• Waiting is very uncomfortable, T56 can greatly reduce your waiting time

     Programming MT29F2G01ABAFD  with full datas. only 27S + 31S











7. High-speed programming of a  Parallel NAND FLASH

• Functions of Parallel NAND for Parallel:

    1. Support OTP programming
2. Automatic Indentification supported by ONFI standard
3. Support UID (unique signature) reading
4. Support multiple file operations
5. Support NAND parameter custom function, (new chips can be added by custom parameters)
6. Reserved custom interface to provide free technical support for bad block management and ECC algorithm. we can customize            according to user requirements.
7. The programming clock is adjustable.

• Parallel NAND capacity can reach more than 256Gb, and the highest speed of T56 can reach 2-5 times the speed of some similar products.

• Waiting is very uncomfortable, T56 can greatly reduce your waiting time



8. EMMC programming function special introduction

(1). The most functions EMMC programmer, which can perform one-key mass production operation on EMMC
(also can be programmed with  4 machines in one computer)
Load project files, load all parameter settings at once, and directly program.
Read and write speeds up to 12MB / s-45MB / s

(2). EMMC function introduction

2.1: Analysis function : analyze the content of the original chip, and display the following results:

Display chip manufacturing information
Visual display of chip usage up to 8 partitions
Each partition shows whether it is write protected, can be read, can be rewritten or deleted
Shows whether the entire chip is temporarily or permanently write protected
Show whether the chip is password protected
Show whether the chip uses a 32-bit security authentication code to write to the RPMB.
Show other important parameters of ECSD/CSD/CID

You can also read the ECSD / CSD / CID file into this programmer to enter the load analysis
Can also perform some general analysis on ECSD files read by other programs

2.2: Read/write functions (all functions can be completed with one-key)

Read CID / CSD / ECSD.
Clear full-chip temporary write protection before programming
Clear temporary write protection groups before programming
Delete chip before programming
Blank Check the chip before programming



Programming 32-bit  authentication key

Perform chip password verification
Partiton Config
Read and Programming to BOOT1
Read and Programming to BOOT2
Read and Programming to RPMB
Read and Programming to GP1
Read and Programming to GP2
Read and Programming to GP3
Read and Programming to GP4
Read and Programming user data (User Area)
Setting  temporary write protection groups
Setting  permanent write protection groups
Setting password (or reset password)
Programming ECSD
Programming CSD


Automatically verify all the above operations after Programming

(3) .ISP in-circuit programming function

3.1 Ultra-high stability ISP in-circuit programming, wire length can be up to 25CM, working frequency 25MHZ, reliable work,
If the length is within 10CM, it can be operated at 40-50MHZ.
3.2 ISP can also use 4-bit mode, the operation speed is increased to 4 times

(4) .EMMC other functions

1. The working frequency and working voltage of EMMC can be adjusted manually.
2. The user area data can be read and written in multiple files.
3. If there is a password when Erase, will do Force Erase
4. Password can use ordinary password or SHA1 encrypted password
5. The value of ECSD / CSD can be loaded from the ECSD_CSD file or manually set by the user
6. Ignore data CRC error during read operation
7. Optional automatic verification after reading operation is completed.



8. The device information includes high-definition pin map and ISP wiring

9. EMMC has real-time speed display during read and write operations, and the final average speed display

(5).EMMC Adapter and ISP connection

BGA153/169

EMMC ISP Connection (4bit or 1bit)

9. High-speed programming of Parallel NOR Flash 28/29 series

•    T56 can support up to 2Gb capacity of Parallel NOR Flash 28/29. and use one TSOP56 adapter.

•    Ordinary 48-pin programmer only support up to 256Mb. and need 4 diffrent adapters.

  EXAMPLE: S29GL128P11TFI01

waiting to be upgrade

There is no best, only better. This programmer has been developed and tested for a long time,
and its functions have been quite good.
BUT Due to the huge workload, it will takes longer time to improve

Any suggestions you can provide on T56 will help us to improve future versions of the product. Thanks.

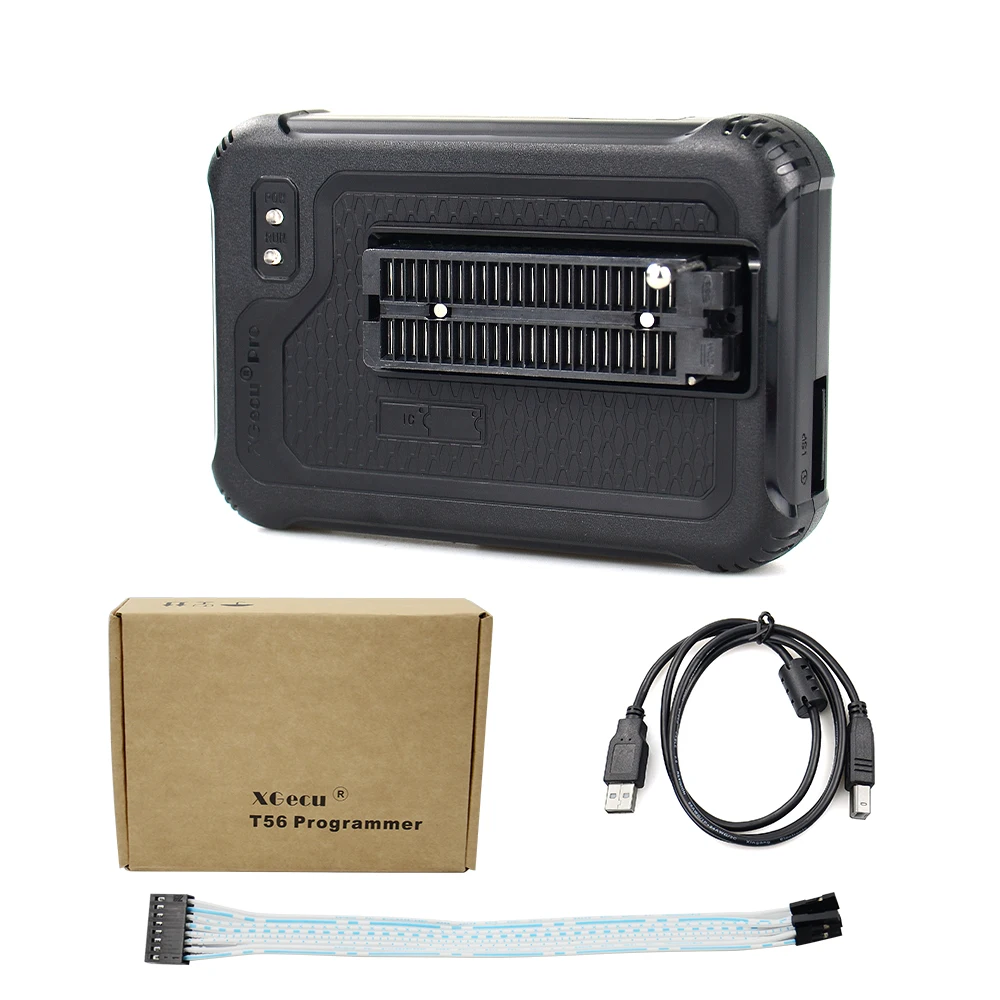

Package include:

One pcs XGecu T56 Programmer

One pcs USB cable

One pcs ICSP cable

Please note: the package don't include CD, you can download documents on official website: www.xgecu.com
