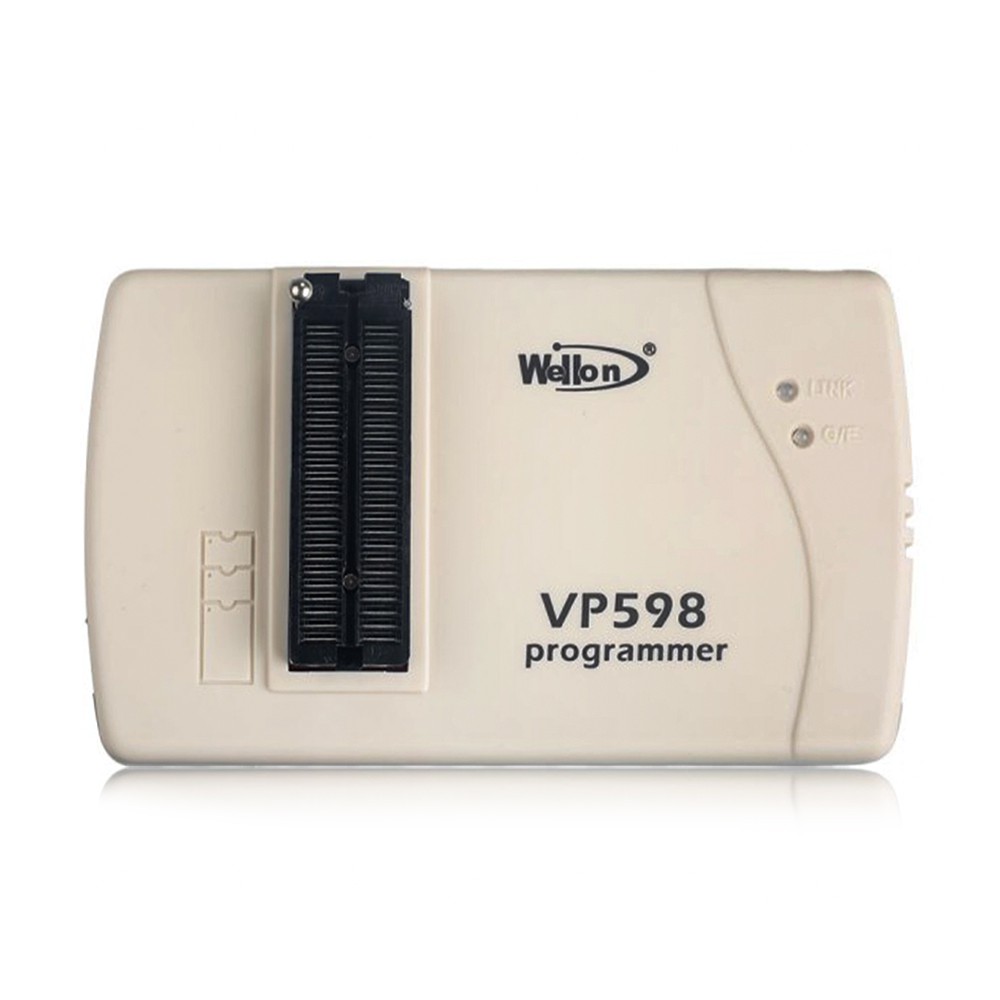

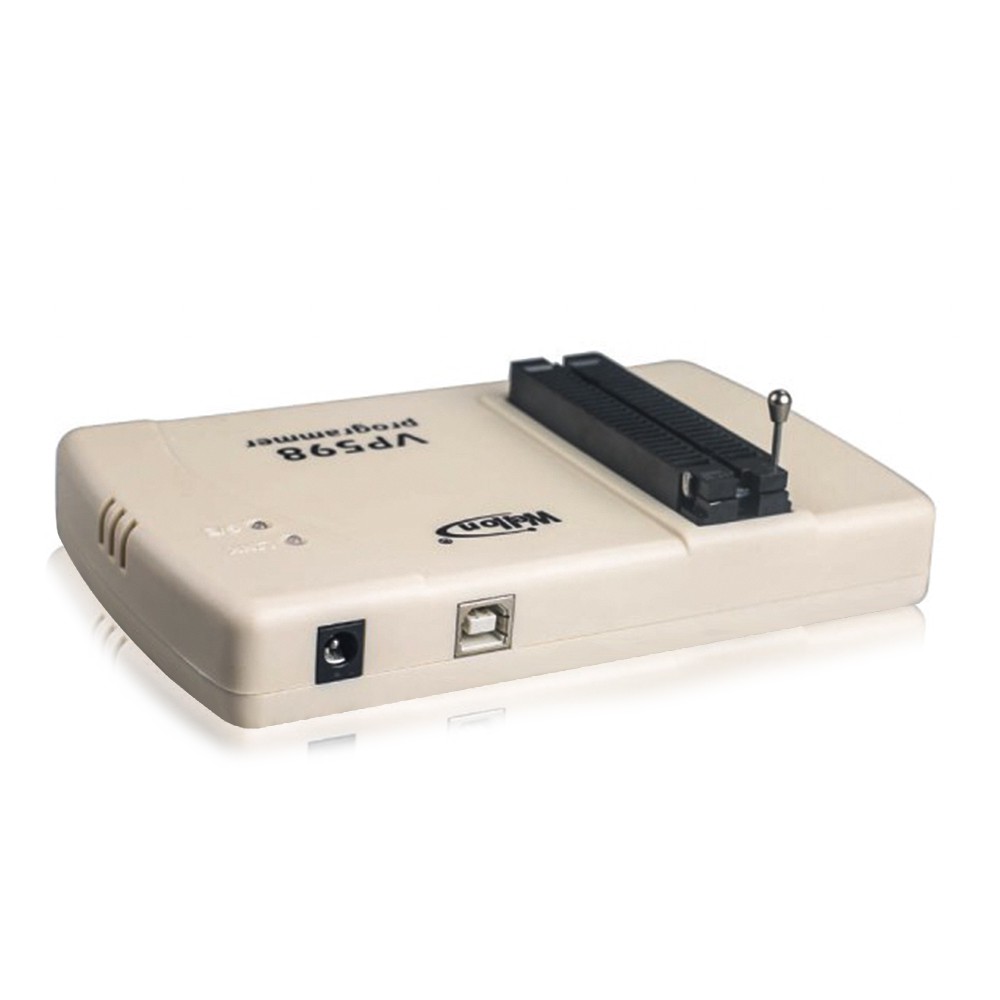

Original Wellon VP598 Universal Programmer (upgrade version of VP390/VP-390)

VP598 is an advanced general-purpose programmer with high reliability, high speed and high performance and price ratio. The integrated menu-style interface supports 10 languages. Support WindowsXP/Vista/ Windows 7/8/10 (32bit and 64bit) operating system. It is extremely convenient to load, edit and save files. Support more than ten thousand kinds of programmable devices such as PLD, E(E)PROM, FLASH, MCU, etc. produced by dozens of manufacturers. Can test TTL & CMOS standard logic devices and memories. This programmer is suitable for electronic product development, batch programming of chips, mobile phones, computers, car maintenance, etc.

Programmer hardware characteristics:
Dimensions: 168*98*23mm; 　Net weight: 265g
Power specification: input AC 100-240V 50/60Hz output DC 9V/0.5A
Standby current: <200mA; working current: 250-350mA.
Using lead-free soldering, the shell uses ABS material with flame retardant function that meets environmental protection standards
The programming module can program or test DIP devices with 4 to 48 pins.
Support various packaged devices through adapter options.
48-pin locking socket.
The device algorithm is completely realized by software, and the USB interface has an automatic online upgrade function, which effectively protects the user's investment interests.
There is a complete over-current protection circuit.
Built-in high-speed single-chip microcomputer, automatically verify data, ensure system reliability


Programmer software features:
Support Simplified Chinese, Traditional Chinese, English, Italian, Dutch, Korean, Polish, Portuguese (Brazil), Turkish, and Hungarian 10 languages.
The chip information is extremely detailed, including package drawings and chip model nomenclature.
The manufacturer's logo is provided in the chip selection, which can help users find the chip more clearly and quickly.
Chinese and English online help system, convenient for users.
The file format is automatically recognized.
Automatically detect the functions of reverse chip insertion, wrong insertion, poor pin contact and internal short circuit of the chip.
Automatic programming function after setting the chip contact reliability, which is convenient for mass production.
The programming parameters can be modified, and the programming parameters can be determined according to the specific conditions of the chip.
Automatically identify the manufacturer and model of the memory.
Automatically increase the chip serial number.
Select the model according to the manufacturer or the two-way selection method of the manufacturer according to the model and can automatically search and select the device.
Quick buffer editing, block copy, block filling, high and low byte exchange, string search and other functions.
Provide flexible file and cache management functions. It can realize automatic clearing of files loaded into memory, multi-file splicing loading, etc.
Support file format: JEDEC, BINARY, MOTOROLAS, TEKTRONIX, INTEL, HOLTEK, EMC(.CDS), INTEL HEX16 format.
Support automatic separation of data files in byte (BYTE), word (WORD), and double word (DOUBLE WORD) format.
Can test TTL & CMOS standard logic devices and memories. And can automatically determine the model of the standard logic device.
The included test vector editor provides a test library structure open to users, and users can add test devices by themselves.
Perfect self-check function to ensure the hardware is in good condition. Function testing of the programmer can be performed.

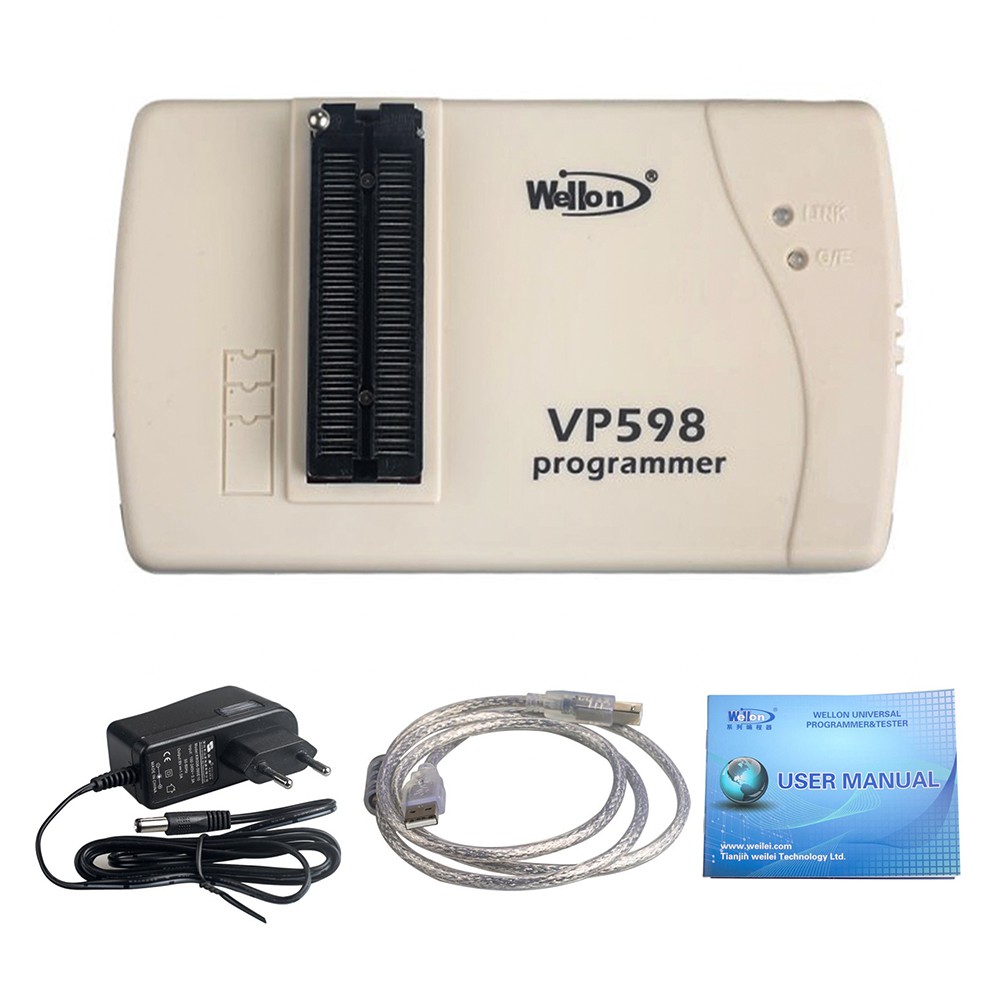

Package Including:

1pc x Wellon Programmer VP-598

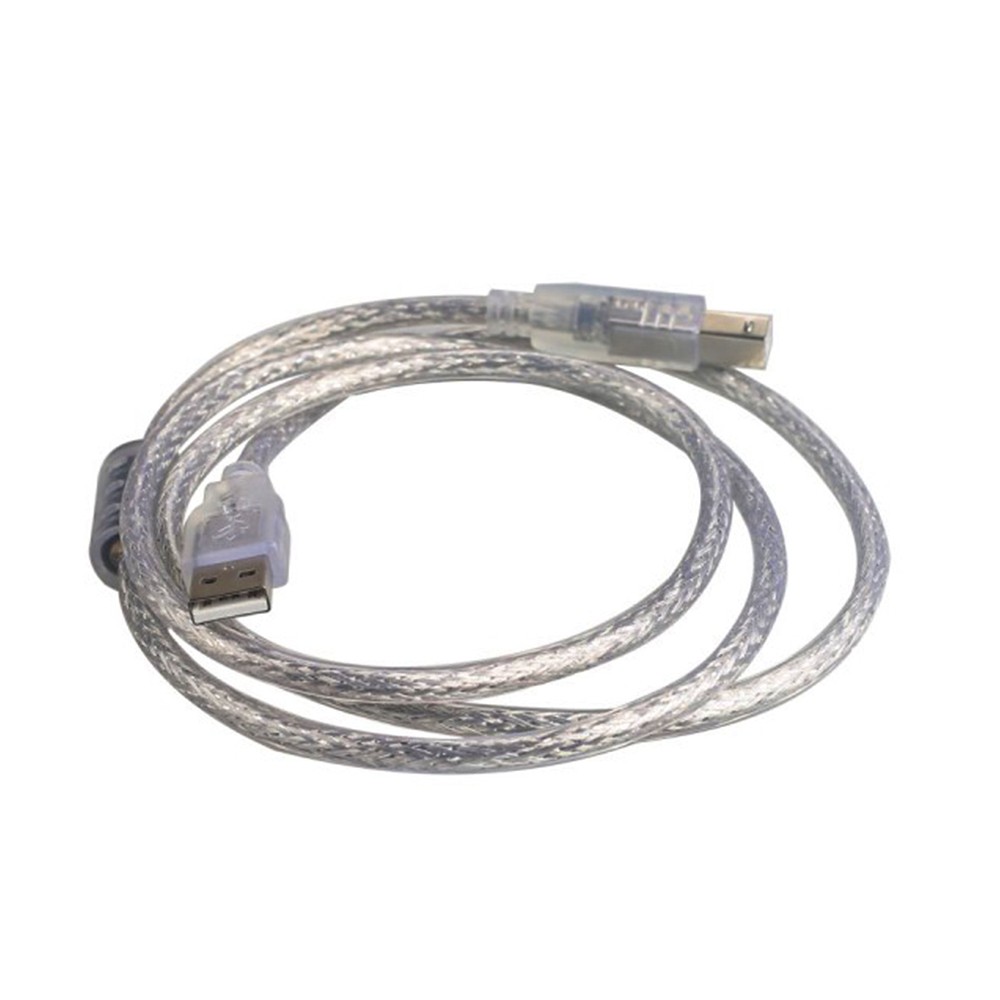

1pc x USB cable
1pc x VP-598 Manual

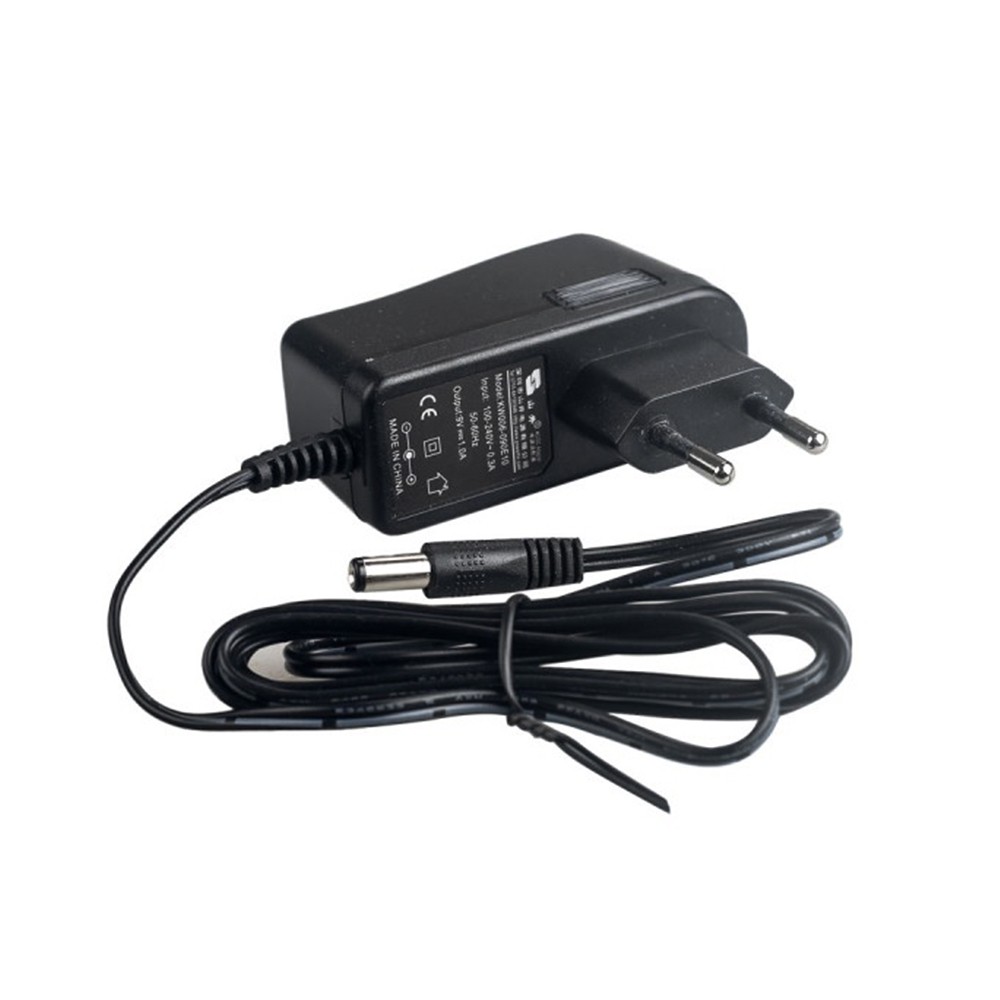

1pc x power adapter
