QL-2006 PIC MCU Programmer

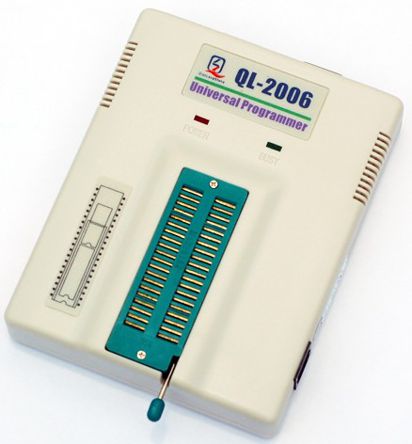

1.1 QL-2006 programmer Introduction
QL-2006 programmer is the high-speed programmer designed specially for development and production programming of PIC single chip microcomputer(SCM) by QLS Electronic Technology Co.Ltd.The product is featured with small volume,low power consumption,high reliability as well as easy and convenient operation.
QL-2006 is applicable for almost all PIC10/12/16/18 series SCMs except 16C5X.It also supports memories in 24XX series and 93XX series.

1.2 Features of QL-2006 Programmer:
High performance-price ratio,designed with the updated PIC programming algorithm,higher speed than other similar products,stable performance,support more devices.Support online upgrade of programmer hardware,easy and convenient upgrade.Two communication modes of USB and serial port,convenient for application on lap-top computer which doesn’t have serial port (convenient connection of one USB cable with computer).Automatic programming function and automatic programming process enable mass production for customer’s great convenience (programming available on chip installation without pressing any other key).
Overall message indication,audio plus word will enable customer well informed about operating status.
Through built-in ICSP interface(completely compatible with ICD interface of MICROCHIP),support ICSP(in-circuit serial programming) directly without any additional device.User may program after circuit board is welded.For FLASH SCM,online upgrade is available.
Equipped with 40pin DIP socket,available for direct programming of 8pin-40pin DIP chip.Programming of other surface mount device(SMD) is available based on universal adaptor.
Compatible with operating systems(OS) including Windows98,Windows2000/NT and Windows XP.
Function of programming counting,can preset and count the programming number.
Function of serial number auto-increment,available to set auto-increment area as program area or EEPROM data area,set auto-increment system,set auto-increment start address/end address and auto-increment step,set to ignore high byte in auto-increment to avoid effect to RETLW instruction in auto-increment part of program
Program supports load of *.HEX or *.BIN files, available to converse *.BIN files to *.HEX format.
With programming data monitoring.Through check summing,available to find immediately if programming data is changed or not.Verification and formula are subject to definition of Microchip.
Programmer hardware auto-search when start of software,no need for software setup before use,easier and more convenient operation.
High programming success rate,enough programming depth.Programmable voltage,electrical parameter of programming and programming algorithm satisfy the technical specifications of manufacturers.

1.3 Hardware
There is no special requirement for installation of this programmer.Connect programmer to PC through serial port cable or USB cable and power up,then the programmer works.(This programmer supports direct USB power supply.If USB cable is connected,you may not connect external power.However,if current through USB interface is very low–less than 200MA and insufficient to drive programmer,connection to external power is required to enable the programmer to work regularly.)

1.4 Software
Find file QL-PROGvXXen.EXE under root directory of CD,double click this file to access installation interface of application software,and operate according to prompts to finish the installation.Its shortcut will appear on desktop automatically after installation.After proper installation,shortcut of this software will appear on desktop.We can double click it to run the software.(Note:Run the software after proper connection of hardware so as to identify the hardware easily.)

1.5 Support device:
10series: PIC10F200 PIC10F202 PIC10F204 PIC10F206 PIC10F220 PIC10F222
12Cseries: PIC12C508 PIC12C508A PIC12C509 PIC12C509A PIC12C671 PIC12C672 PIC12CE518 PIC12CE519 PIC12CE673 PIC12CE674
12Fseries: PIC12F508 PIC12F509 PIC12F629 PIC12F635 PIC12F675 PIC12F683 PIC12F615 PIC12HV615 PIC12F510
MCVseries: MCV08A MCV14A MCV18A MCV28A
HAseries： HA2089 HA2099 HA3089 HA3099
16Cseries: PIC16C505 PIC16C554 PIC16C558 16C61 16C62 16C62A 16C62B PIC16C63 PIC16C63A 16C64 PIC16C64A PIC16C65
16C65A PIC16C65B PIC16C66 PIC16C66A PIC16C67 PIC16C620 PIC16C620A PIC16C621 PIC16C621A PIC16C622 PIC16C622A PIC16C71 PIC16C71A PIC16C72 PIC16C72A 16C73 PIC16C73A PIC16C73B PIC16C74 PIC16C74A PIC16C74B PIC16C76 PIC16C77 PIC16C710 PIC16C711 PIC16C712 PIC16C716 PIC16C745 PIC16C765 PIC16C773 PIC16C774 PIC16C83 PIC16C84
16Fseries: PIC16F505 PIC16F506 PIC16F54 PIC16F57* PIC16F59* PIC16F627 PIC16F616 PIC16HV616 PIC16LF627A PIC16F627A PIC16F628 PIC16LF628A PIC16F628A PIC16F630 PIC16F631 PIC16F636 PIC16F639 PIC16F648A PIC16F677 PIC16F676 PIC16F683 PIC16F684 PIC16F685 PIC16F687 PIC16F688 PIC16F689 PIC16F690 PIC16F716 PIC16F72 PIC16F73 PIC16F74 PIC16F76 PIC16F77 PIC16F737 PIC16F747 PIC16F767 PIC16F777 PIC16F785 PIC16F83 PIC16F84 PIC16F84A PIC16F87 PIC16F88 PIC16F818 PIC16F819 PIC16F870 PIC16F871 PIC16F872 PIC16F873 PIC16F873A PIC16F874 PIC16F874A PIC16F876 PIC16F876A PIC16F877 PIC16F877A PIC16F913 PIC16F914 PIC16F916 PIC16F917 PIC16F882 PIC16F883 PIC16F884 PIC16F886 PIC16F887
18series: PIC18F242 PIC18F248 PIC18F252 PIC18F258 PIC18F442 PIC18F448 PIC18F452 PIC18F458 PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2221 PIC18F2320 PIC18F2321 PIC18F2331 PIC18F2410 PIC18F2420 PIC18F2431 PIC18F2450 PIC18F2455 PIC18F2480 PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2525 PIC18F2550 PIC18F2580 PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220 PIC18F4221 PIC18F4320 PIC18F4321 PIC18F4331 PIC18F4410 PIC18F4420 PIC18F4431 PIC18F4450 PIC18F4455 PIC18F4480 PIC18F4510 PIC18F4515 PIC18F4520 PIC18F4525 PIC18F4550 PIC18F4580 PIC18F4585 PIC18F4610 PIC18F4620 PIC18F4680 PIC18F6520 PIC18F6525 PIC18F6585 PIC18F6620 PIC18F6621 PIC18F6680 PIC18F6720 PIC18F8520 PIC18F8525 PIC18F8585 PIC18F8620 PIC18F8621 PIC18F8680 PIC18F8720
ATMEL serial EEPROM series 24C01 24C01A 24C01B 24C02 24C02A 24C02B 24C02C 24C04 24C04A 24C04B 24C08 24C08B 24C16 24C16B 24C32 24C32A 24C64 24C128 24C256 24C512 93C46 93C56 93C66 93C76 93C86
MICROCHIP serial EEPROM 24C01A 24LC01 24C02A 24LC02 24C04A 24LC04 24C16 24LC16 24C32 24C64 24C128 24C256 24C512 93LC46A/B 93LC56A/B 93LC66A/B 93LC76A/B 93LC86A/B
NS serial EEPROM NM24C01 NM24C02 NM24C03 NM24C04 NM24C08 NM24C16 NM24C32 NM24C64 NM24C128
EXEL serial EEPROM 24C01 24C02 24C04 24C08 24C16 24C64 24C128
THOMSON serial EEPROM ST24C01 ST24C02 ST24C04 ST24C08 ST24C16 ST24C64 ST24C128
XICON serial EEPROM X24C01 X24C01A X24C02 X24C02A X24C04 X24C04A X24C08 X24C08A X24C16 X93C46A/8bit/16bit X93C56A/8bit/16bit X93C66A/8bit/16bit X93C86A/8bit/16bit
ST serial EEPROM 24C01/A 24C02/A 24C04 24C08 24C16 24C32 24C64 24C128 93C46A/8bit/16bit 93C56A/8bit/16bit 93C66A/8bit/16bit
Holtek serial EEPROM HT24C01 HT24C02/A HT24C04 HT24C08 HT24C16 HT24C32 HT24C64 HT24C128 93C46A/8bit/16bit 93C56A/8bit/16bit 93C66A/8bit/16bit

1.6 Package includes the following item:
QL-2006 programmer
USB Cable
ICSP Cable
CD ROM(QL-PROG soft;USB Driver;MPLAB IDE;English versions of user manuals..)
