Original 110V CNC-602A Injector Cleaner & Tester

Warranty: 3 years Warranty

Why have to clean injector

When we turned off the engine suddenly, the gasoline which have been spray out can not be recycled. It would attached on the injector and combustion chamber walls.

Gasoline is easy to volatile, but wax and varnish were stayed.

Heat these wax and varnish day after day,they will be changed into hard coke.

The hard coke will be produced more quickly and more thickly when engine work with poor quality fuel.

The hard coke lead 4 problems on injector

1. Leak

2. Blockage

3. Poor atomization

4. Uneven fuel injection

So we have to clean injector and engine system

Tips:

Do not get any cleaning solvent on the outside of the vehicle, as this will damage the paint.

A heavily clogged fuel injector may not allow enough cleaner to pass through during a routine cleaning to be adequately cleaned. Additional cleanings may be needed to clear heavy deposits.

Pls note:

1.Input voltage is 220V. CNC602A only have 220Volt , if you need use for 110V , we will add a voltage converter adaptor(from 220V to 110V) .

US warehouse products contain voltage converter adapter (from 220V to 110V)

2. Launch CNC602A is 6-cylinder fuel injector cleaning machine (with 6 tubes),and it can clean and test six injectors as same time.

a.) If 4-cylinder engine,when use the CNC602A to clean and test 4 injector(there are 2 connector in machine should be stoppered).

b.) Eight-cylinder engine, when you use CNC602 do clean the test, you should do clean the test twice per four injector.

3. Item fit for two kinds of injectors. Top feed injector accessories were standard configure. Side feed injector accessories for option. Please contact us if you want to side feed accessories

4. Support no dismantle clean car fuel system. (Need additional connector kits, not include in the item. Add 80USD to get it)

5. The machine work on petrol injector, not for diesel injector

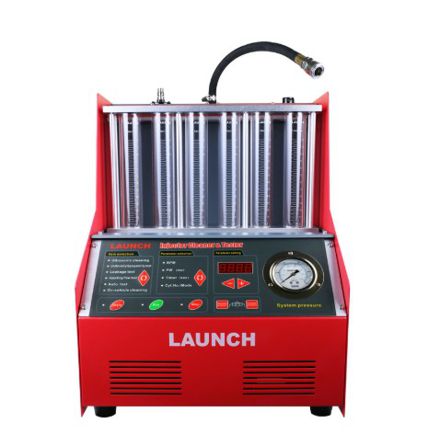

CNC-602A is an advanced electronic mechanical prouct,which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

Support Model:

Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen, Dacia,Dadi,Daewoo,Daihatsu,Demo,Fiat,Ford,GM,Holden, Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel, Peugeot,Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda, Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW,Yamaha

Important Noitice:

1.what liquid I can use for the checking

test liquid Inedible alcohol

2. what liquid for the cleansing mode of this machine?

Professional Injector detergent

Because liquid can not ship by airmail, our FUEL Injector Cleaner Tester do not contain Injector test liquid and Injector detergent, you can purchase it from your local market. Please kindly forgive.

3.Is this machine an English panel?

Yes,it is english panel.

5.Can this equipment clean the motorcycle?

Yes,but it can only do simple cleaning and can not test.

6.Other Questions?Please feel free to contact me,thanks!

Launch CNC602A Features & Functions

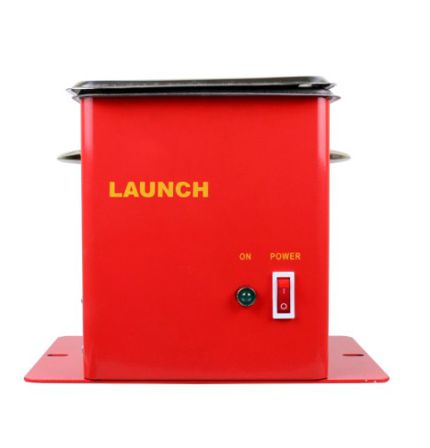

1. Ultrasonic Cleaning: Perform simultaneous cleaning on several injectors and remove the carbon deposits

on the injectors completely.

2. Uniformity/ Sprayability Test: Test the uniformity each injector, and monitor the spraying status of each

injector with the help of backlight. This test is also for reverse flush.

3. Leakage Test: Test the sealing and dribbling conditions of injectors under system pressure.

4.Injecting Flow Fest: Check the injecting amount of 15 seconds constant injection.

5. Auto Test: Test injectors by simulating different working conditions.

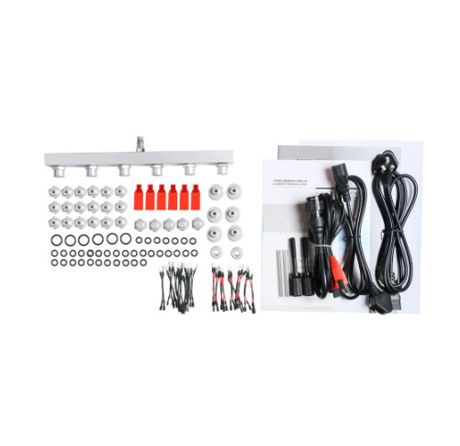

6. On-vehicle Cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning

injectors on vehicle.

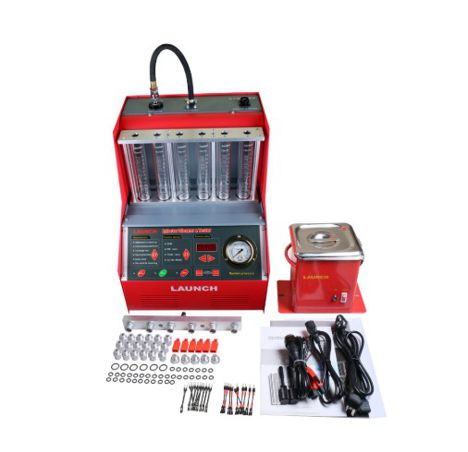

CNC-602A Spare Parts

No. PartCode PartName

1 105020217 CNC pulse signal connection cable 1,T=0.5

2 105020218 CNC pulse signal connection cable 2,T=0.8

3 103260037 Ultrasonic cleaner assembly 100W

4 106030038 On-vehicle adaptor package(tool kits)

5 107010428 CNC-602A user manual(En&Ch)

6 103250013 Top-supply connector 1

7 103250015 Swiss thread adaptor for fuel top-supply injector

8 103250016 Coarse thread adaptor for fuel top-supply injector

9 103250018 CNC-601/801 Hexangular stopper

10 104990012 CNC-801 BUICK injector adaptor

Specification:

* Power supply: AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz.

* Input power: 250W;

* Ultrasonic cleaner power: 100W;

* Simulated RPM range: 109990rpm; step: 10rpm;

* Time range: 19999s;

* Pulse width: 0.525ms; step 0.1 ms;

* Fuel tank capacity: 4700ml;

* Dimensions: 385mm×410mm×500mm;

* Weight: About 28kg
