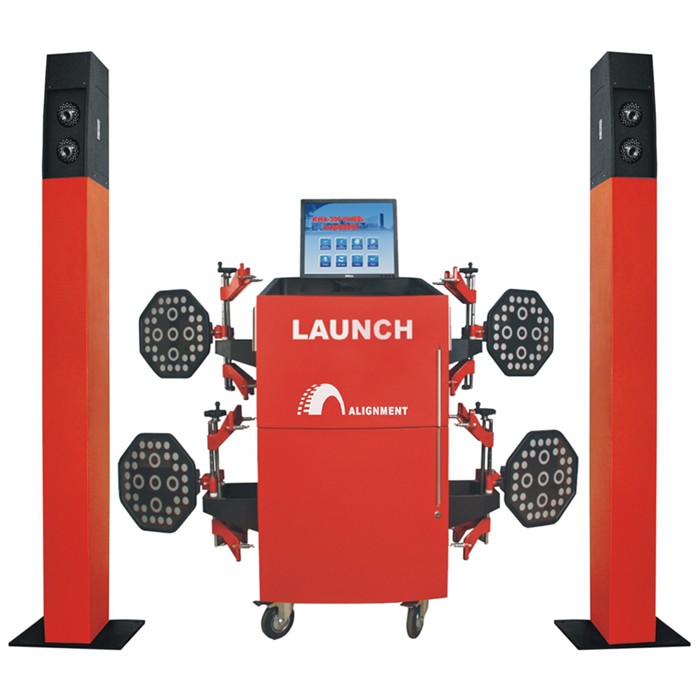

KWA-300 Wheel  Aligner


Durable  Target:
Passive target demanding no calibration
Easy operation and maintenance due to no  request for cable connection and battery charging Convenient runout compensation  procedure

Precise  measurement:
Stable light source
Dynamic compensation measurement
Real-time display of data makes the adjustment  easier
Flexible measuring modes give easy access to  users of traditional wheel aligners


User  friendly:
Advanced graph processing, mode identification  and computer visual technology
Perfect 3D model on the base of Kinesiology,  optical measurement and automotive technology


KWA-300 3D Wheel Aligner is the latest 3D  graphic wheel aligner which can establish movement models and therefore provides  full-range aligning service through visual measurement  technology.
KWA-300 3D Wheel Aligner features complete  functionalities, reasonable interface, automatic monitoring and operating tips  to eliminate improper operation. The equipment is capable of convenient  alignments with real time adjustment of front and rear wheels, and a full range  of chassis diagnostic parameters.


Feature

Durable  target：
* Passive target demanding no  periodic calibration
* Easy operation and maintenance due to no request for  cable connection and battery charging
* Convenient runout compensation  procedure with no need for reference

Precise  Measurement：
* Stable light source without  shine interface disturbance
* Dynamic compensation measurement
* Real-time  display of data makes the adjustment easier
* Flexible measuring modes to  give easy access for users of traditional wheel aligners
Use  Friendly：
* Advanced graph processing,  mode identification and computer visual technology
* Perfect 3D model on  the base of Kinesiology, optical measurement and automotive technology


Specification:
Item Measurement Range
Total  toe-in 0~±40°
Camber 0~±20°
Caster 0~±25°
Kingpin  Inclination 0~±25°
Maximal wheelbase it can Measure 4000mm

Requrements  on Surroundings:
Ambient temperature: 0~50℃
Relative humidity:  ≤85%

Spare  Parts

1 TLT440EW Turntable

2 Standard clamp 11″-20″

3 Middle clamp 11″-25″

4 X-631 turntable

5 Quick clmap

6 X-631 calibration frame

7 Aluminium kit  (standard)

8 X-531/X-631calibration block  assemblly

9 Large clamp 11″-30″

10 Aluminium kit (middle)

11 Wheel clamp extension

12 Round adaptora
