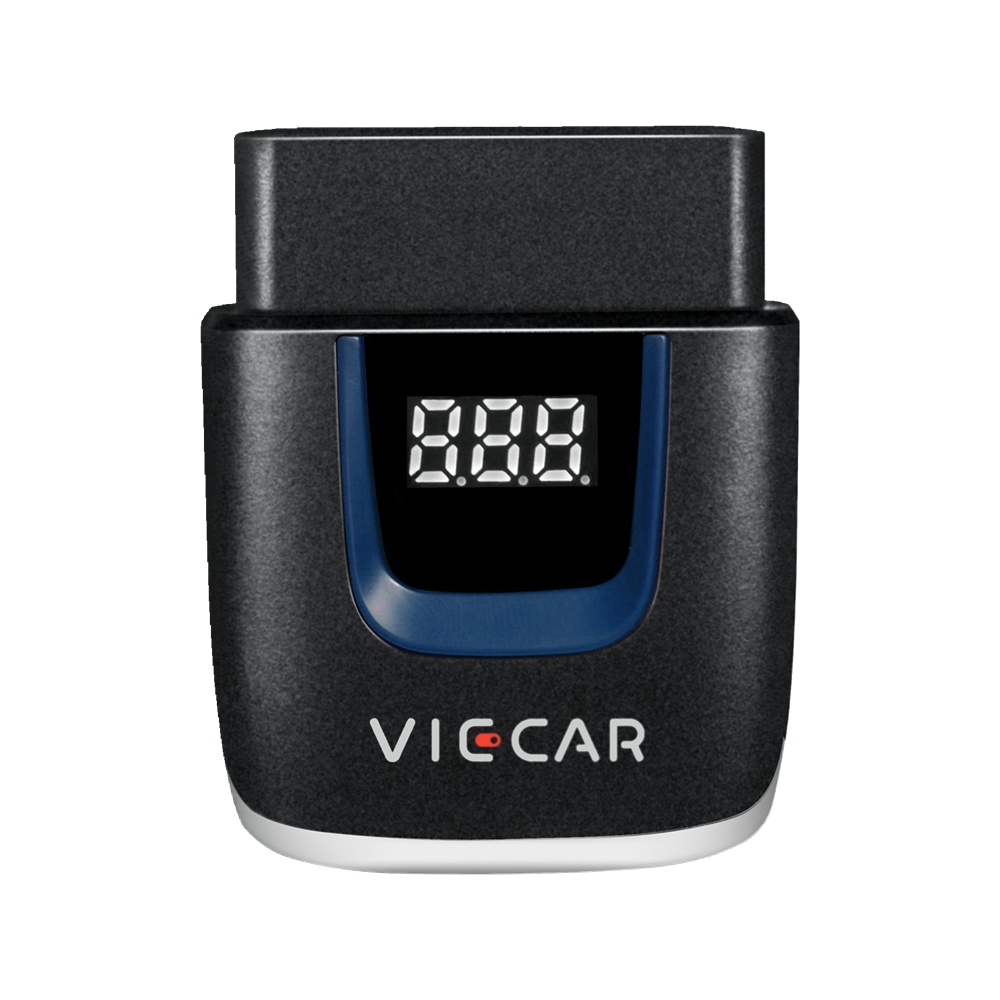

Viecar VP001 PIC18F25K80 Can for Android/iOS OBD2 ELM327 Bluetooth 4.0 USB Car Diagnos Tool

Product Description:

The VP001-VP004 is WIFI/Bluetooth 4.0/Ty-pe C(USB)Bluetooth OBD product with the following features:

1. Compatible with dual mode WIFI/Bluetooth 4.0 data transmission With USB2.0 transmission(With your choose)

2. Nine protocols supporting the OBD II/EOBD standard

3. Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection;

4. With standby low power mode to ensure the safe use of car batteries;

5. With digital tube display voltage, current, enhance customer experience


Viecar ELM327 Comparison:

1.Product Name: Vircar ELM327 V2.2 VP001/VP002/VP003/VP004

2.Connection method:

VP001(Bluetooth 4.0)

VP002(WIFI)

VP003(Bluetooth 4.0+Type-C)

VP004(WIFI+Type-C)

3.Supported systems:Android/IOS,PC need with Type-C

4.Firmware Version:V2.2(better than V1.5/V2.1)

5.Support systems:

Android:Vicar/Torque/Dash Command/Auto Doctor

IOS:Vicar/Auto Doctor/Dashcommand/EOBD

Windows:ScanMaster

Supported Vehicle Data:

1.Read error diagnostic code

2.Clear the fault code (clear the error code and turn off MIL)

3.Engine revolutions per minute (RPM)

4.Calculated load value

5.Coolant temperature

6.Fuel system status

7.Speed

8.Short-term fuel situation

9.Long-term fuel situation

10.Intake manifold pressure

11.Fuel injection advance time

12.Intake air temperature

13.Air flow rate

14.Throttle absolute position

15.Oxygen detection voltage associated with short-term fuel state

16.Fuel system status

17.Fuel pressure

18.Fuel consumption monitoring, etc.

Remarks: The number of data items supported by the model year is also different, subject to actual support.


Supported Protocols:

SAE J1850 PWM (41.6 Kbaud )

SAE J1850 VPW (10.4 Kbaud )

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )

ISO 14230-4 KWP (fast init, 10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID, 500 Kbaud)

ISO 15765-4 CAN (11bit ID, 2500 Kbaud)

ISO 15765-4 CAN (29bit ID, 250 Kbaud)

Technical Parameters:

SSID: Viecar

Firmware Version:V2.2

Main control chip: PIC18F25K80

Software platform: support Android /IOS/ Windows

Working voltage: DC 9~3 6V

Working current: 40mA

Standby current: 5mA

Operating environment: -20 ~ 65 ° C

Storage temperature: -40 to 80 ° C

Dimensions: 56*45.8 *24mm

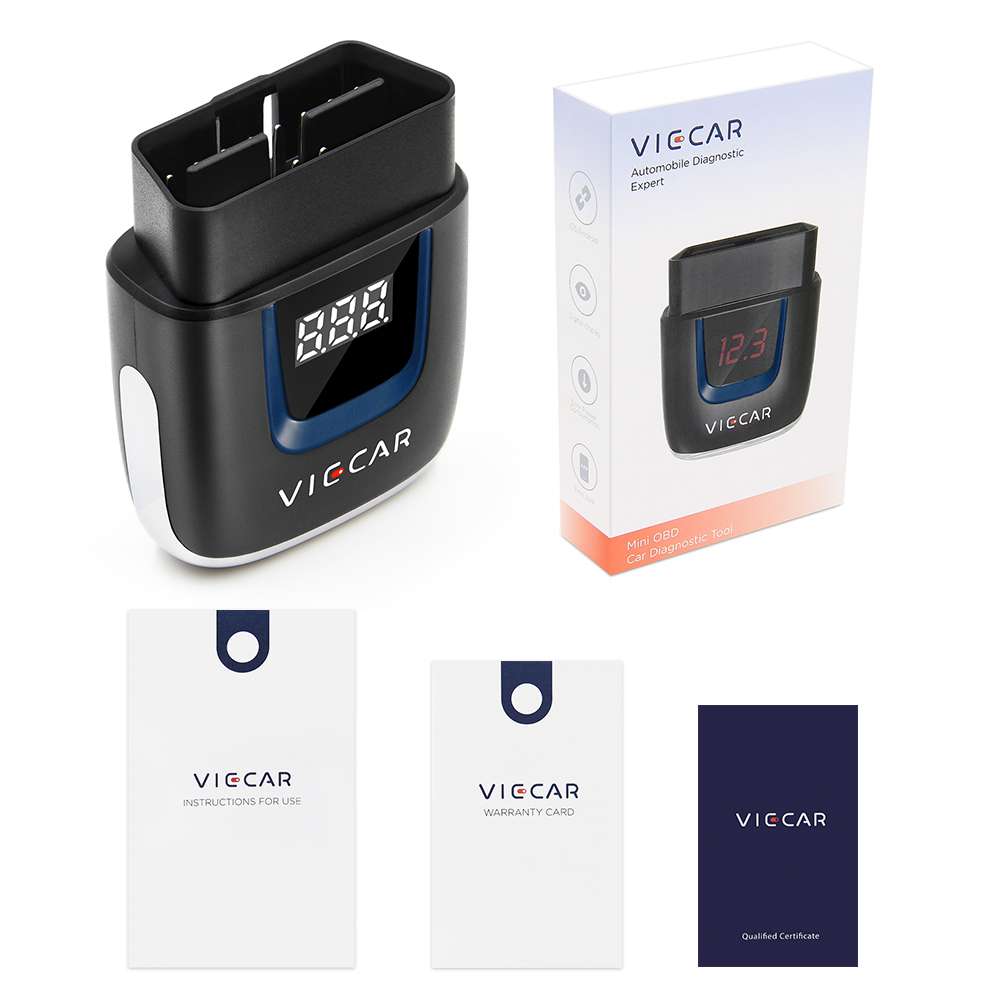

Packing List:

1pc x Viecar ELM327

1pc x instruction manual

Download QR code for original Viecar software:

1.Android password:a123456

2.IOS don't need password

3.PC:WWW.ELM327.COM

Original Viecar software connection method:

Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection:

APP Description:

Convenient and Non-Destructive Installation:


FAQ:

Q:What is the difference between V1.5 and V2.2?

A:Our V2.2 is the new real version with no fake. It can support more instructions and cars than V1.5, and can support buyers to DIY some instructions. It is more powerful functions than V1.5


Q:Why choose Viecar VP001-VP004?

A:1. Good quality, long-term use without replacement.

2.Type-C+BT4.0/WIFI 2 in 1 with Real-time voltage/current display,No ELM327 can      do these

3.Support more cars than normal ELM327 like for GAZ/for LADA/for BMW/for VW etc.
