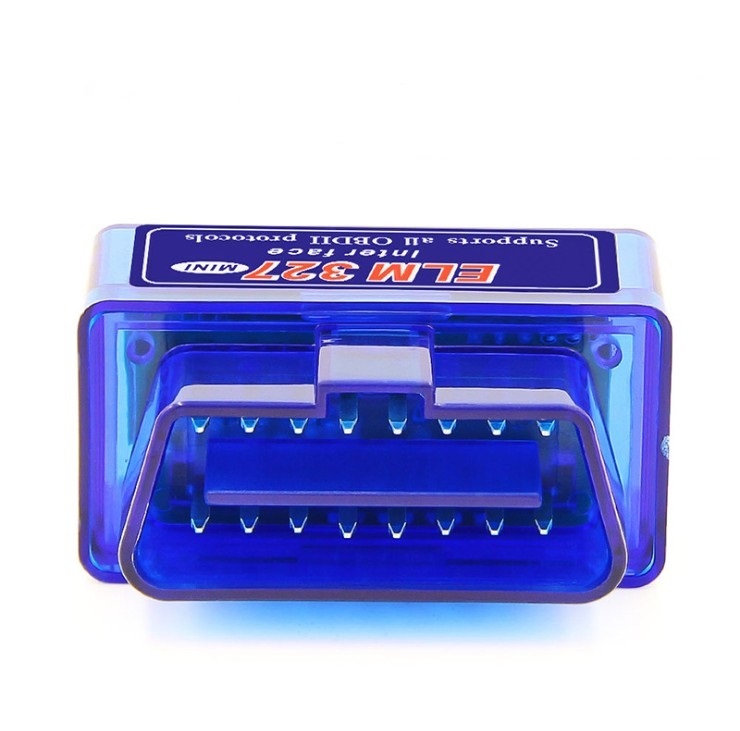

Super Obd Elm327 bluetooth 25K80 OBD2 diagnostic instrument V1.5

It Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

The OBD-II protocol is supported as follows:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

A. SAE J1939 CAN (29bit ID, 250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

Top 6 Reasons To Get Super MINI ELM327 Bluetooth

1. Software Version : V2.1

2. Hardware Version : V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)

5. Software included for Palm, PDA, Windows PC, Windows Smartphone

6. Supports ISO 9141, KWP2000, CAN bus

Supported protocols:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings (user adjustable)



MINI ELM327 Bluetooth Functions:


•Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

•Clear trouble codes and turn off the MIL ("Check Engine" light)

•Display current sensor data, including:

•Engine RPM

•Calculated Load Value

•Coolant Temperature

•Fuel System Status

•Vehicle Speed

•Short Term Fuel Trim

•Long Term Fuel Trim

•Intake Manifold Pressure

•Timing Advance

•Intake Air Temperature

•Air Flow Rate

•Absolute Throttle Position

•Oxygen sensor voltages/associated short term fuel trims

•Fuel System status

•Fuel Pressure

•Many others
