Vgate vLinker BM+ is an adapter that is perfectly compatible with BimmerLink:

Support Protocols

Multiple protocols:

--15 ELM format protocols;

-- 23 STN format protocols;

-- Up to 64 user-defined protocols.

OBDII 5 standard protocols:

-- SAE J1850 VPW

-- SAE J1850 PWM

-- ISO 9141-2

-- ISO 14230-4

-- ISO 15765-4 CAN

Additionalprotocols:

-- SAE J1939 CAN

-- ISO 11898 (raw CAN)

These protocols cover almost 99% of the OBDII Cars on the market

Rich instruction set, compatible with more APP software:

-- Fully compatible with ELM's AT command set;

-- Fully compatible with STN's ST command set;

--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.

-- Compatible with ELM and STN power management solutions.

-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;

-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.

-- Device sleep power consumption is less than 2 mA.

-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.

-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.

-- 256-byte storage unit

-- More than 100,000 erasable times

-- Read and write operations on any unit in the storage area by using the VT command

-- Mix ID Sending" mode of CAN protocol.

-- Optional formatted send data according to protocol

-- Multiple WM sequence settings

-- Support AT command to manually set WM sequence

-- Support for specifying a protocol or a full protocol-wide temporary WM sequence

-- Support for a permanent link between a protocol and a private WM sequence

-- Secure bootloader for easy firmware updates

Packing List:

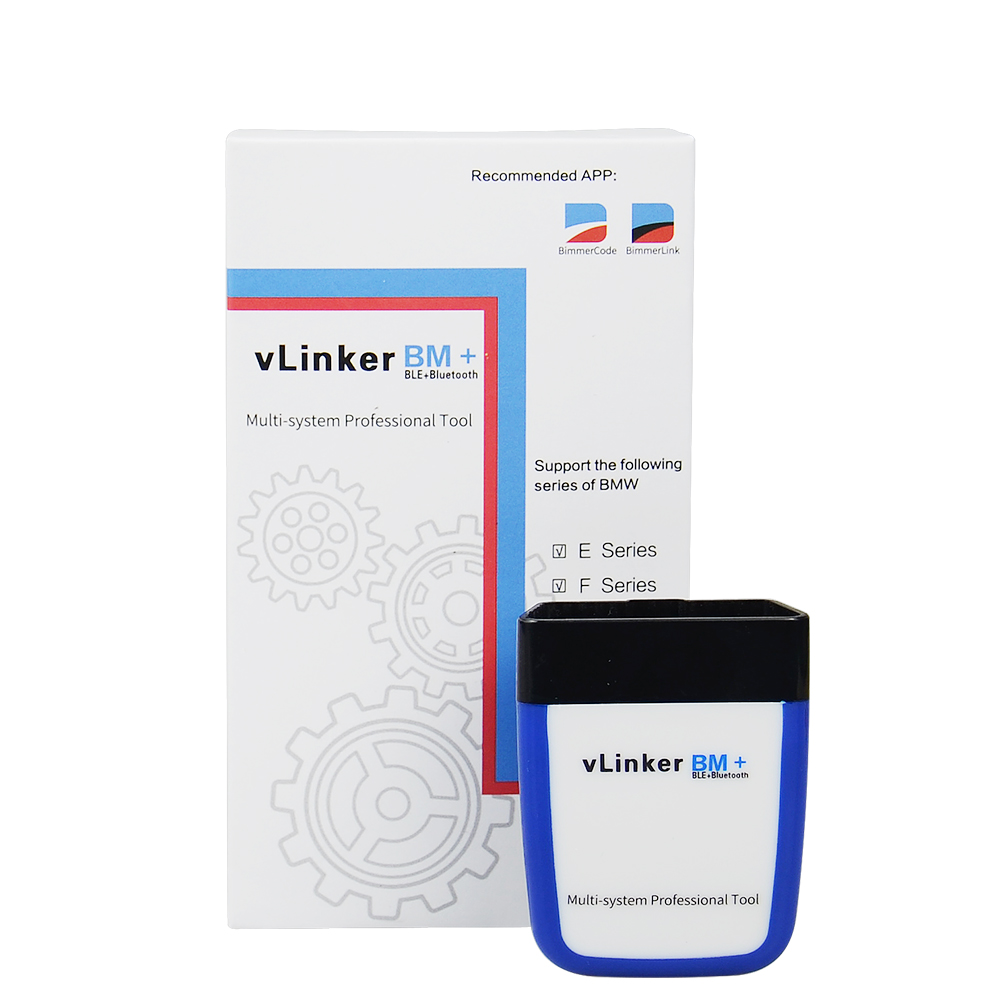

1 x Vgate vLinker Bluetooth 4.0 Android & iOS

1 x User manual
