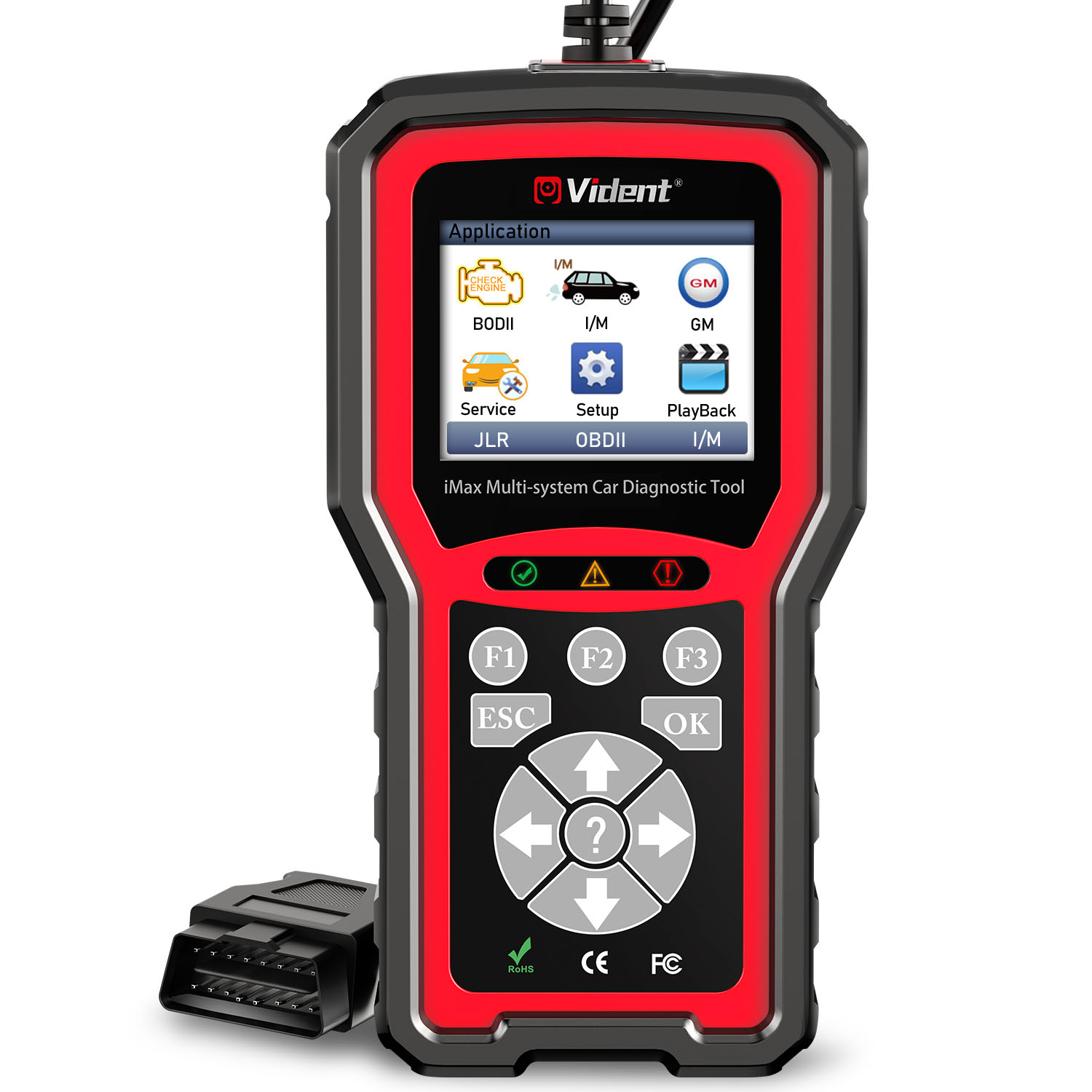

VIDENT iMax4304 GM Full System Car Diagnostic Tool

VIDENT iMax4303 GM is a professional full system car diagnostic tool for Chevrolet, Buick, Cadillac and GMC, which features full ECU diagnosis of single vehicle brands and test modes mainly include CANBUS, ISO9141, KWP2000, and J1850 etc. With a TFT LCD and unique diagnostic software, it enables technicians to accurately diagnose complex problems.




15). Multi-Language: English, Portuguese, Italian, German, Russian, Dutch, Spanish, French etc.

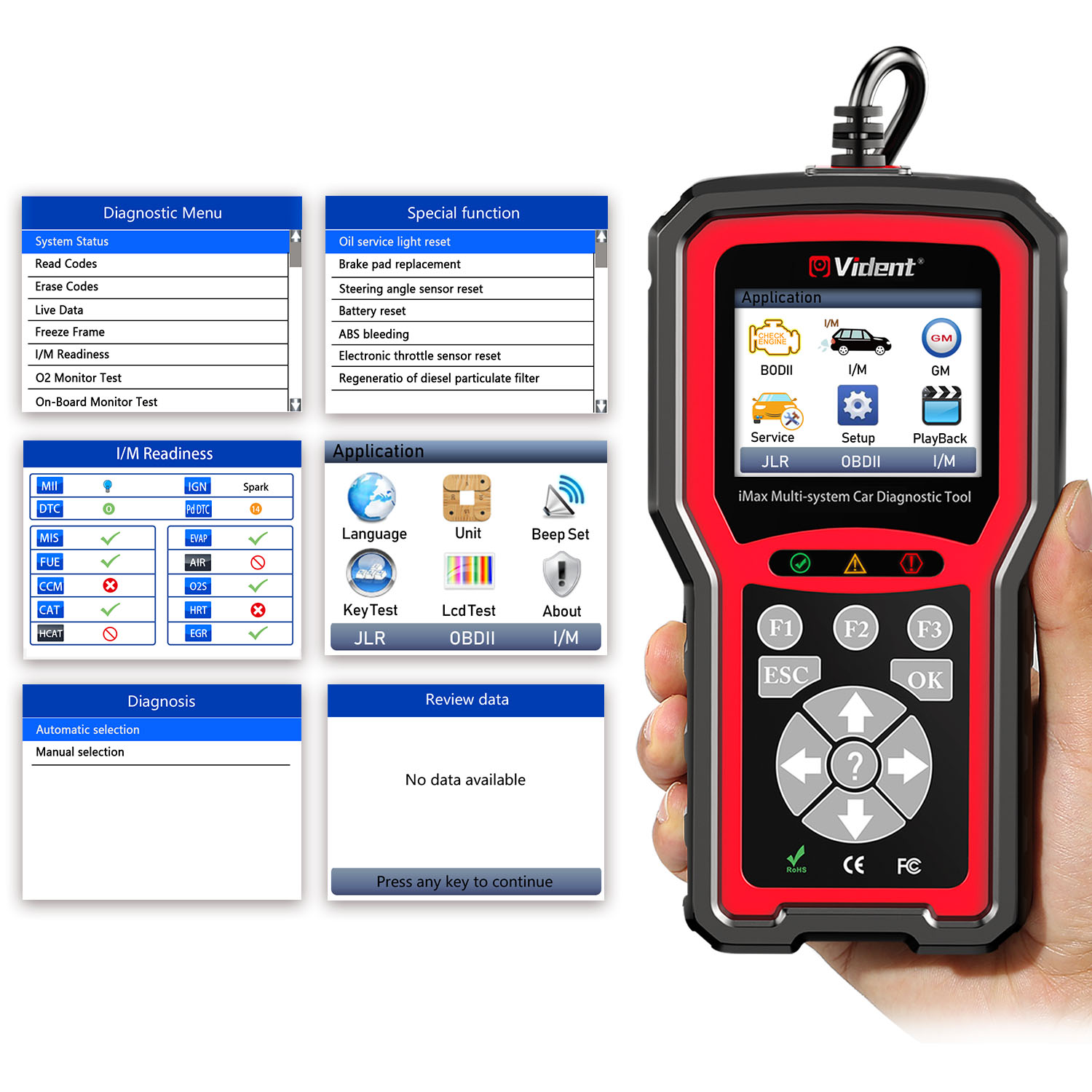

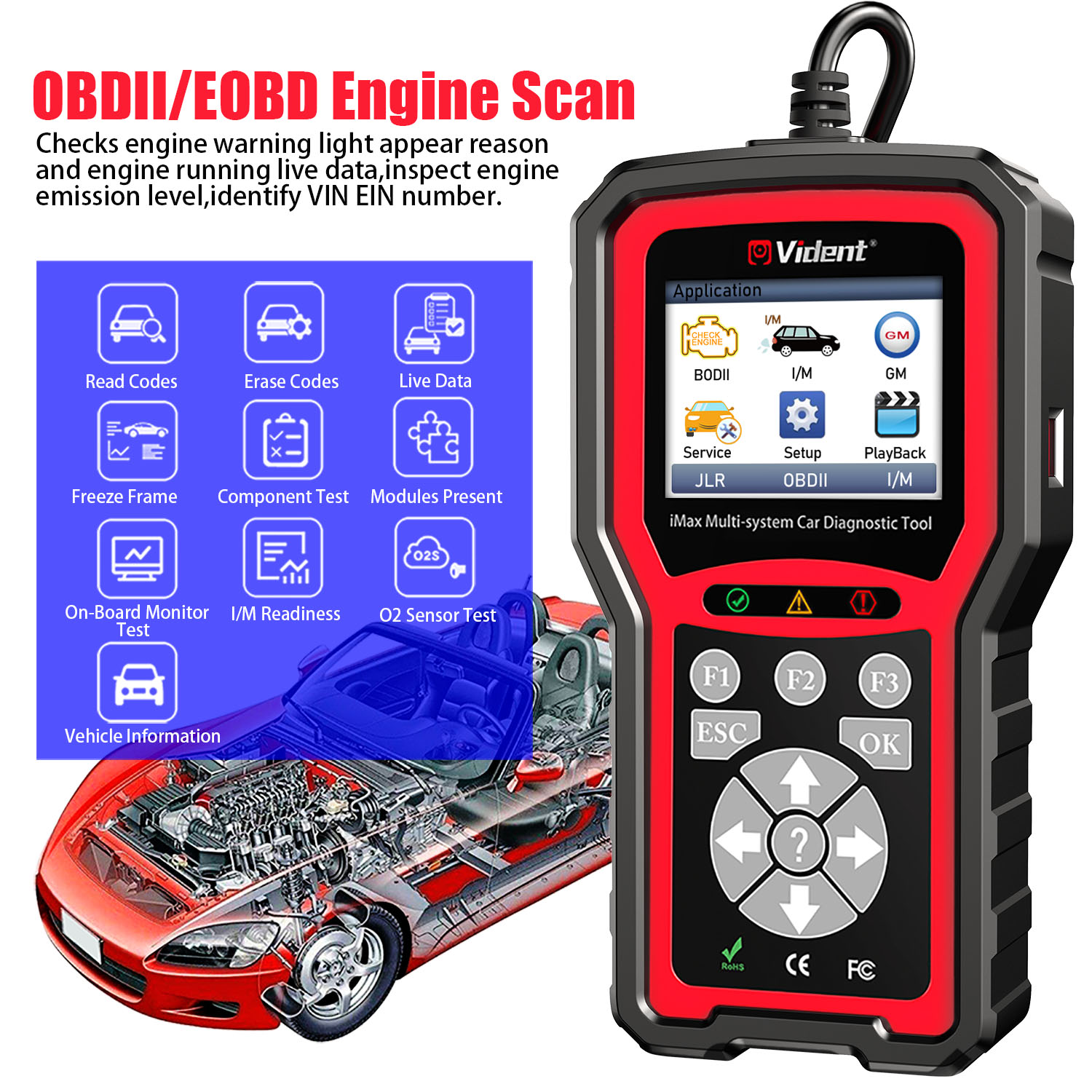

VIDENT iMax4304 GM OBDII Function Lists:






OBDII Function for all OBDII cars, not only GM(Chevrolet, Buick, Cadillac and GMC)!


Read Codes:Read generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) permanent and pending Diagnostic Trouble Codes.

Erase Codes:Erase generic and manufacturer specific Diagnostic Trouble Codes.

Determine MIL:Turn off Check Engine Light (MIL) after clearing codes and reset monitors.

DataStream:Read live PCM DataStream. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.

Freeze Frame Data:When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.

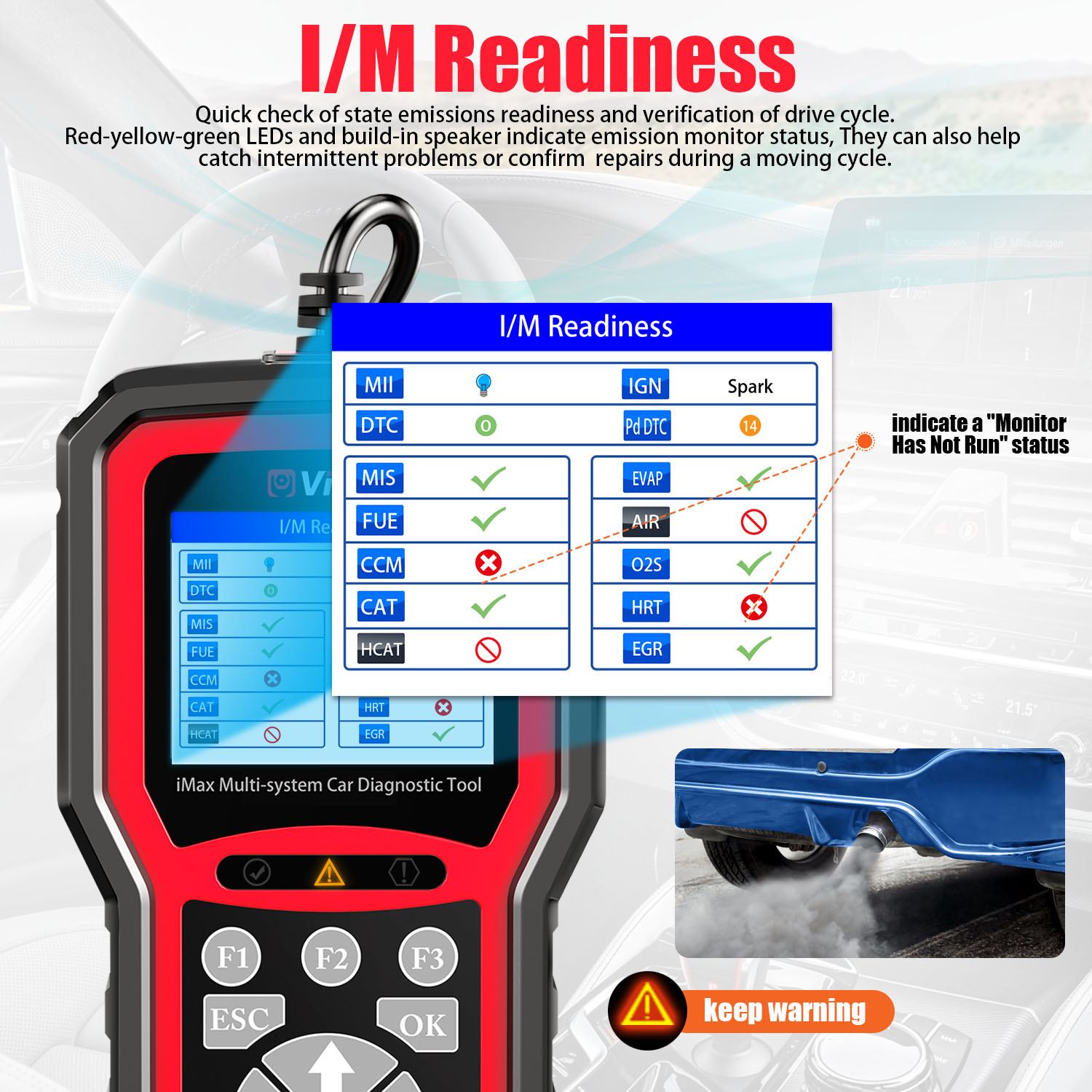

I/M Readiness Test:Indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

O2 Sensor Test:This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.

Evap System Test:The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

On-Board Monitoring:This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.

Vehicle Information:Displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the vehicle.

Comprehensive Help:Including OBD Parameter, Mode Explanations, DTC search & More.


VIDENT iMax4304 GM OBDII Function supports most of OBDII/EOBD test modes including CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.

VIDENT iMax4304 GM OBDII Function works on most of 2001 and later European OBDII compliant PETROL vehicles and most of 2004 and later European OBDII compliant DIESEL vehicles.

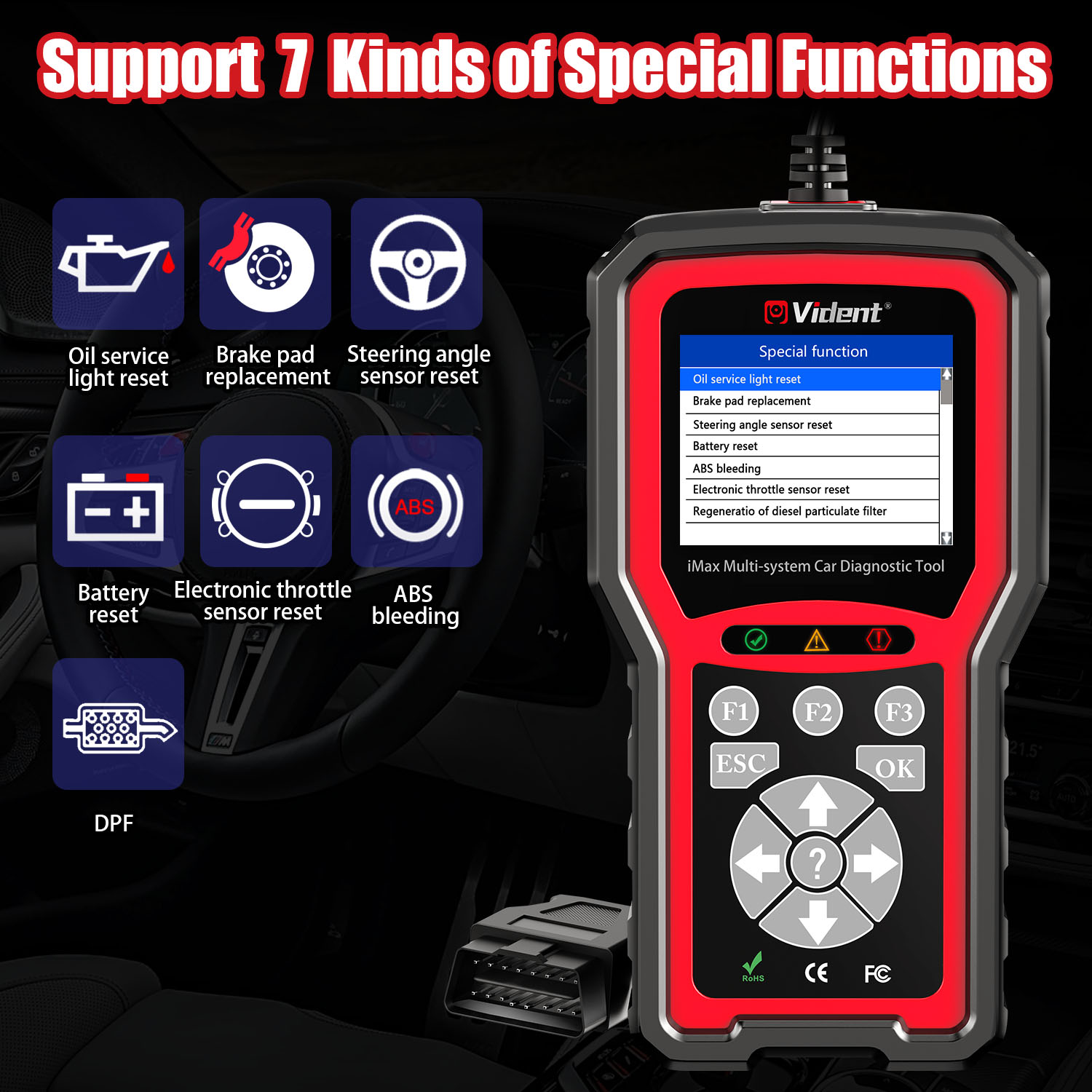

VIDENT iMax4304 GM Special Functions for CHEVROLET, BUICK, CADILLAC and GMC:


1.VIDENT iMax4304 GM reads and clears trouble codes on most of the electronic systems such as engine, transmission, ABS, airbag, body, chassis etc.

2.Support OBDII/EOBD (Ten Modes of Operation)

3.Full ECU Diagnosis

4.Oil Light/Service Reset

5.Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization

6.Battery Management System (BMS) registers new battery to the BMS while battery replacement

7.Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator

8.Electronic Throttle Control system (ETC) relearns the throttle value while clear or replaces the throttle valve

9.Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.

10.Applies to most of GM models which equipped with OBDII-16 DLC.
