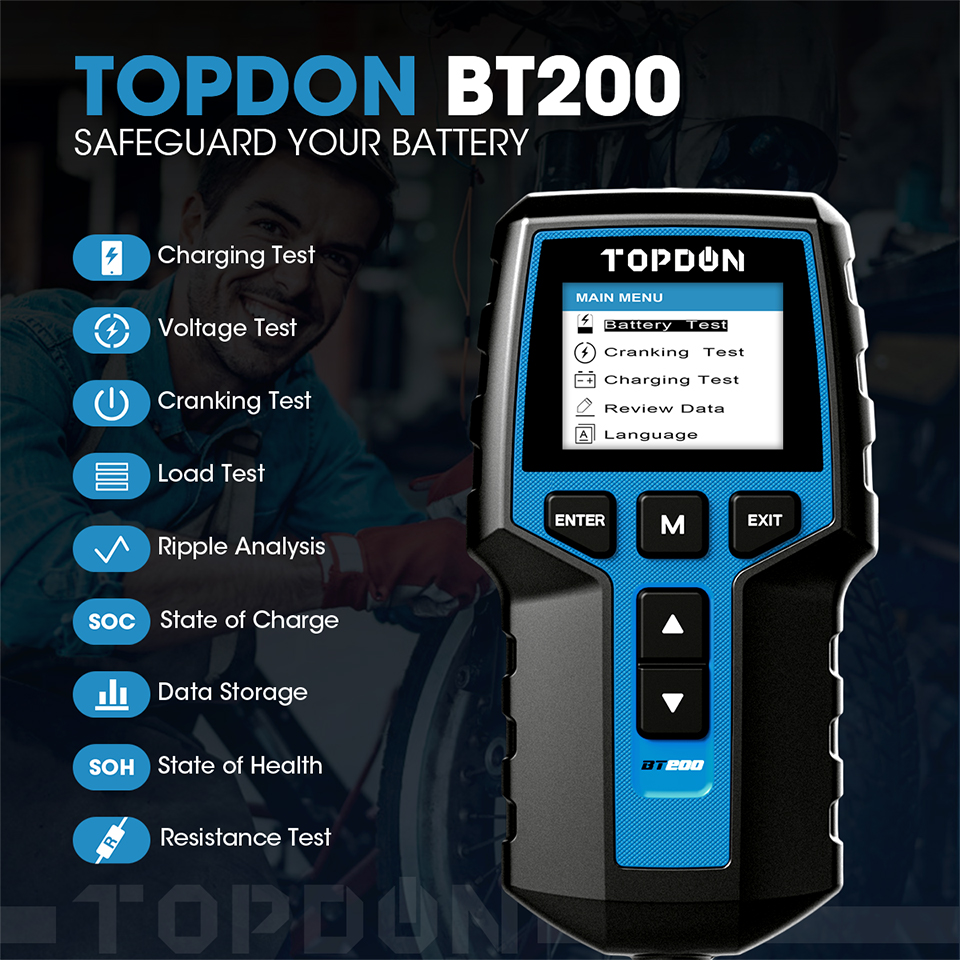

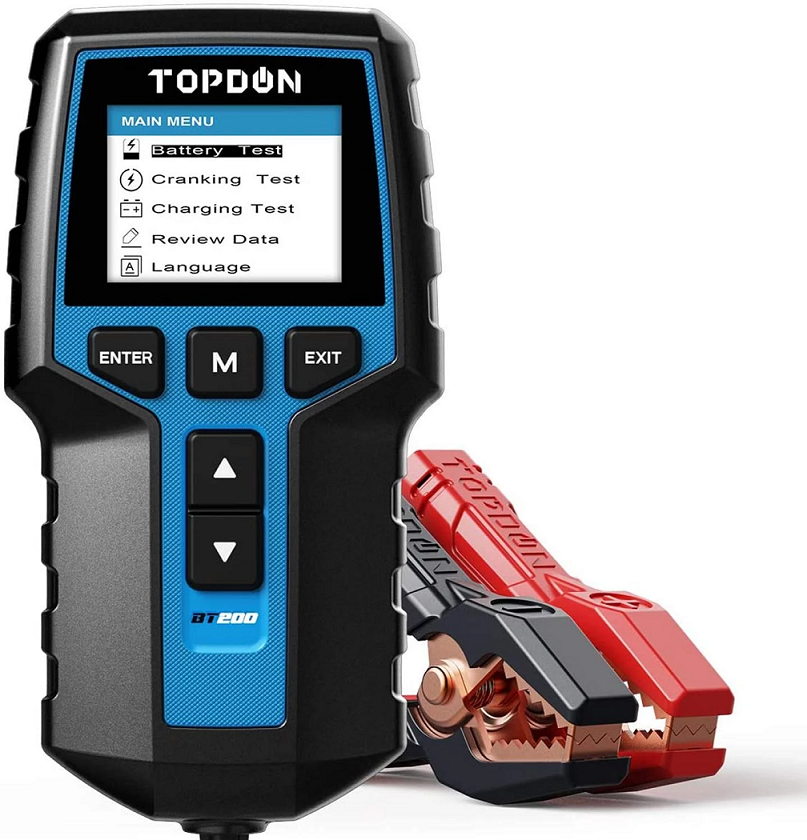

TOPDON BT200 12V Car Battery Tester Digital Automotive Diagnostic Battery Tester Analyzer Vehicle Cranking Charging Scanner Tool

Applying the most advanced conductance testing technology, and the reverse polarity protection etc., TOPDON BT200 serves as a 12V~24V Battery Tester to provide technicians with critical information about battery health status, to find battery and charging problems quickly, easily and accurately.

Specifications:

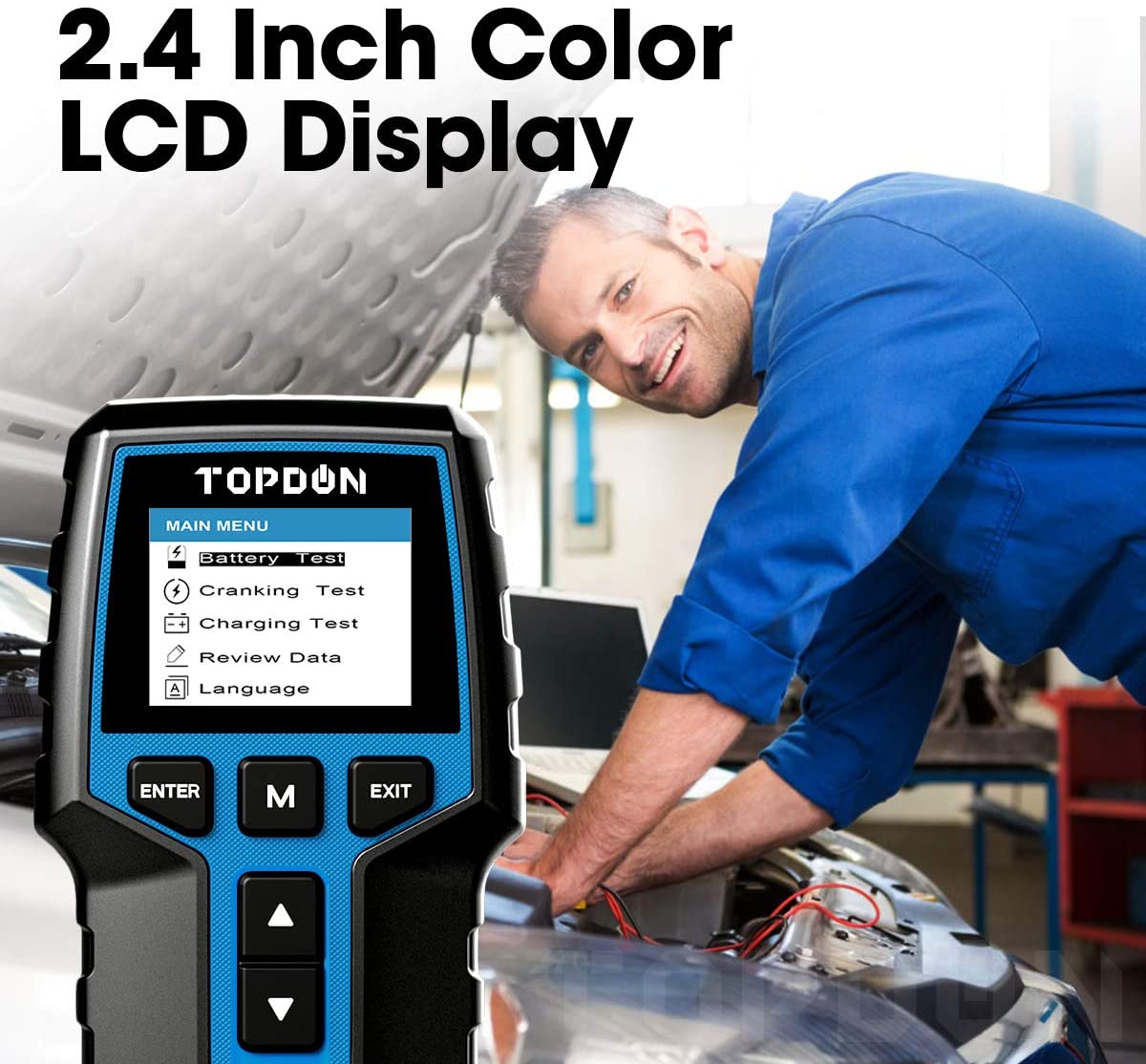

Display.24"LCD
Display Resolution:320-240Piels
Cable Reach:.920 mm(36.22inches)
Storage Temperature:-20*C~70*C(-4~158*F)
Working Temperature-20C~60'C(-4~140F)
Dimensions (L·wH):178-94.533 mm(7·3.72+1.3inches)
Weight:440g(097 Ib)

LANGUAGE:

Spanish, Japanese, Italian, German, French, Portuguese, Polish

WARRANTY

TOPDON One Years Limited Warranty

The TOPDON Company warrants to its original purchaser that TOPDON products will be free from defects in material and workmanship for 12 months from the date of purchase (Warranty Period). For the defects technical support analysis and confrmation, either repair or replace the defective part or product

The TOPDON shall not be liable for any incidental or consequential damages arising from the use,misuse, or mounting of the device. Some the above limitations may not apply to you
This limited warranty is void under the following conditions:Misused, disassembled, altered or repaired by a non-TOPDON technical repair specialist

Careless handling and violation of operation.

Compatibility:

Please be noted that battery type and CCA values(Cold Cranking Amp)marked on the battery labe. Please refer to it before using.

BT200 supports the fllowing types.

1.VRLA/GEL/AGM/EFB
2.Regular Flooded

Charging Test

Before Test:
The engine must be ON during test in order to have results.Ensure all electrical accessories and devices remain in the OFF state.

*Turning ON/OFF any electrical accessories in the vehicle during the test willaffect the accuracy of the test result.

Cranking Test

Before Test:
The engine and allother accessory loads must be OF during test in order to have accurate results.

Battery Test:

TOPDON BT200 will test each battery according to the selected actual system standard and rating marked on the battery, to get the accurate results.

Before Test:
The engine and all other accessory loads must be OFF during test in order to have accurate results. Tun on the vehicle headlamps for 2~3 minutes until the battery voltage drops back to normal value if the battery is just fully charged.

Battery System Standard Description And Measuring Range

The battery tester analyzer wiltesteach battry according to the selected system and rating

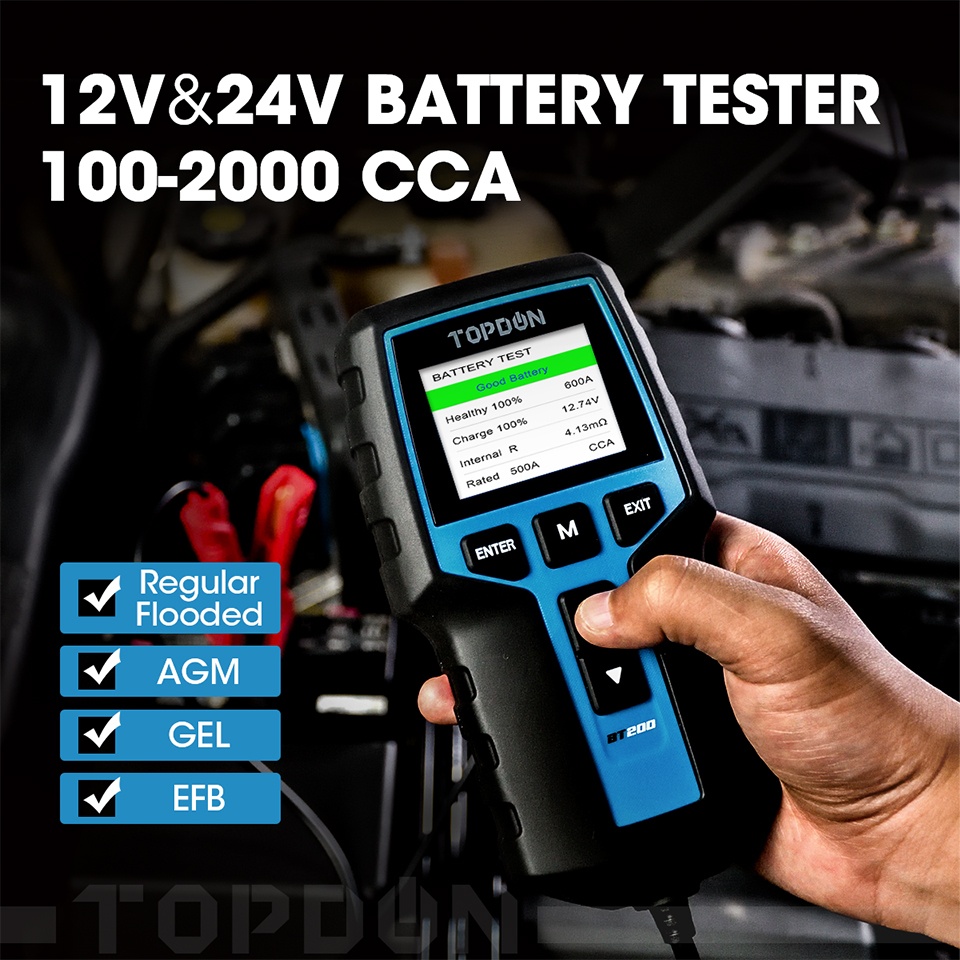

The Battery Tester can perform test on batteies ratedwithin 100-2000CA/30Ah-220AH

Other Battery Tester Model Comparison

PACKAGE LIST:

1.IOPDON Battery TesterB12UU
2.2.User Manual
