TOPDON Phoenix Max Auto Scanner Car Truck ECU Programmer with 2-Year Free Update Full System Diagnostic Tool

The Phoenix Max is TOPDON's newest cutting-edge automotive diagnostic scanner. With a 13.3 inches screen, this all-in-one tool offers a wide array of functionalities that will expand any technician's capacity to complete even more jobs. The Phoenix Max includes Topology Mapping that shows all car systems in one view. Its updated MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive and heavy-duty vehicles with optional add-on software.

Features and Benefits:

Get More Done

Automotive and Heavy-Duty coverage in one tool, it just makes sense. 2 years of automotive and 1 year of HD updates keep supporting the latest models.

Explore More Features On the Phoenix MAX

* 41 maintenance services for mainstream vehicle models.
* Topology map granting a clear picture of relational vehicle systems and status.

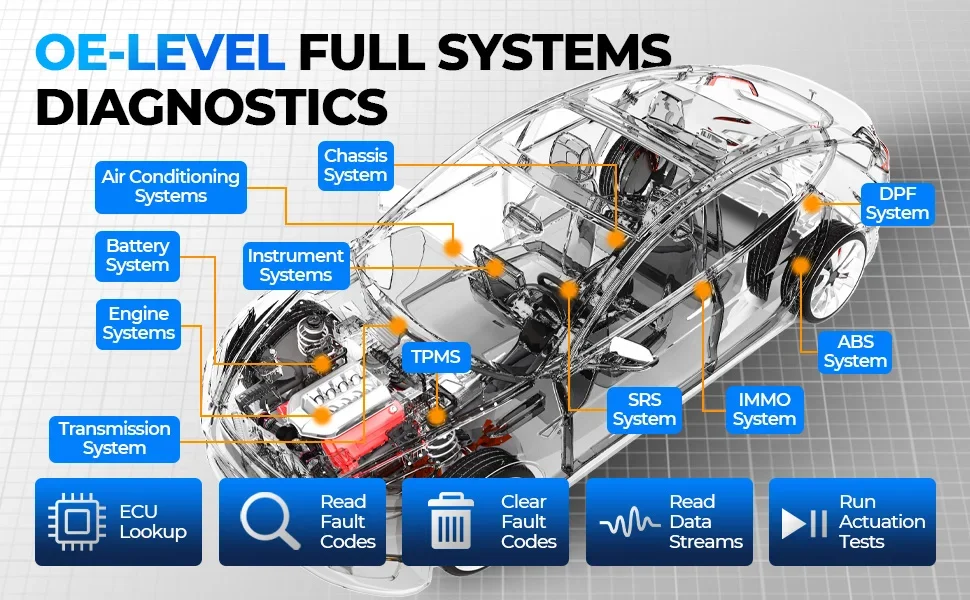

* Full-system diagnostic (Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning) for over 200 vehicle models.
* 5 Full-system diagnostic basic functions: access ECU info, read DTCs, clear DTCs, read data stream, active test.

Explore More Features On the Phoenix MAX

* AutoVIN for automatic vehicle identification.
* Guide Function for VAG.
* The FCA Secure Gateway Module(SGW) unlocks the FCA vehicle, in order to perform functions such as clearing DTCs, bi-directional testing and calibration.
* Data stream recording for users to play back diagnostic activities.

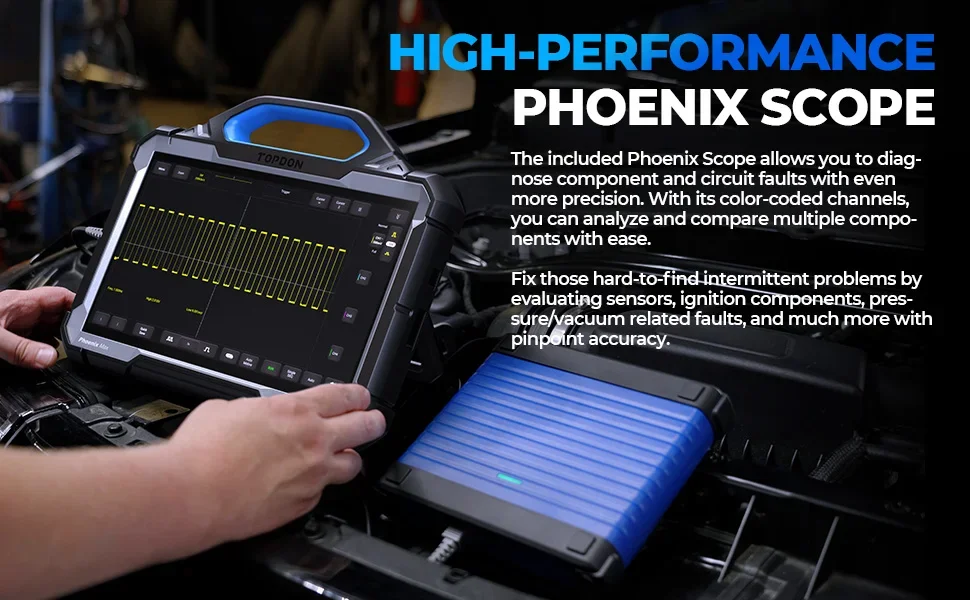

Phoenix Scope

The included Phoenix Scope allows you to diagnose component and circuit faults with even more precision. With its color-coded channels, you can analyze and compare multiple components with ease.
Fix those hard-to-find intermittent problems by evaluating sensors, ignition components, pressure/vacuum related faults, and much more with pinpoint accuracy.

Cloud-Based Programming and Coding

Elevate your game with Cloud-based programming for brands like Benz, BMW, Volkswagen, Audi, Skoda, Seat, Porsche, Land Rover, Jaguar, Hyundai, Nissan, Subaru, Renault, and online coding for Audi, BMW, and Porsche.

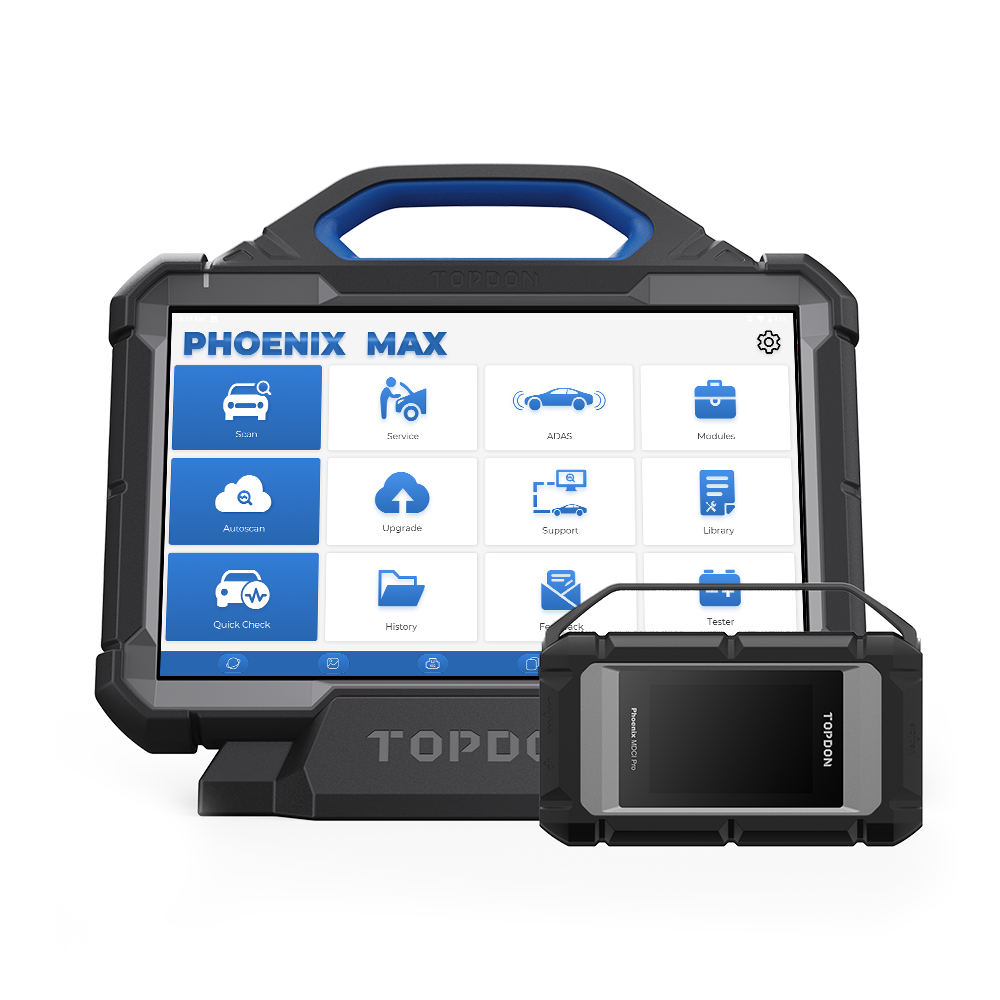

The Phoenix MDCI Pro Has You Covered

TOPDON’s Phoenix Max comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols. This MDCI Pro’s unparalleled coverage allows you to offer OE-level services to newer and more modern vehicles. With the Phoenix MDCI Pro, you will never be forced to outsource!

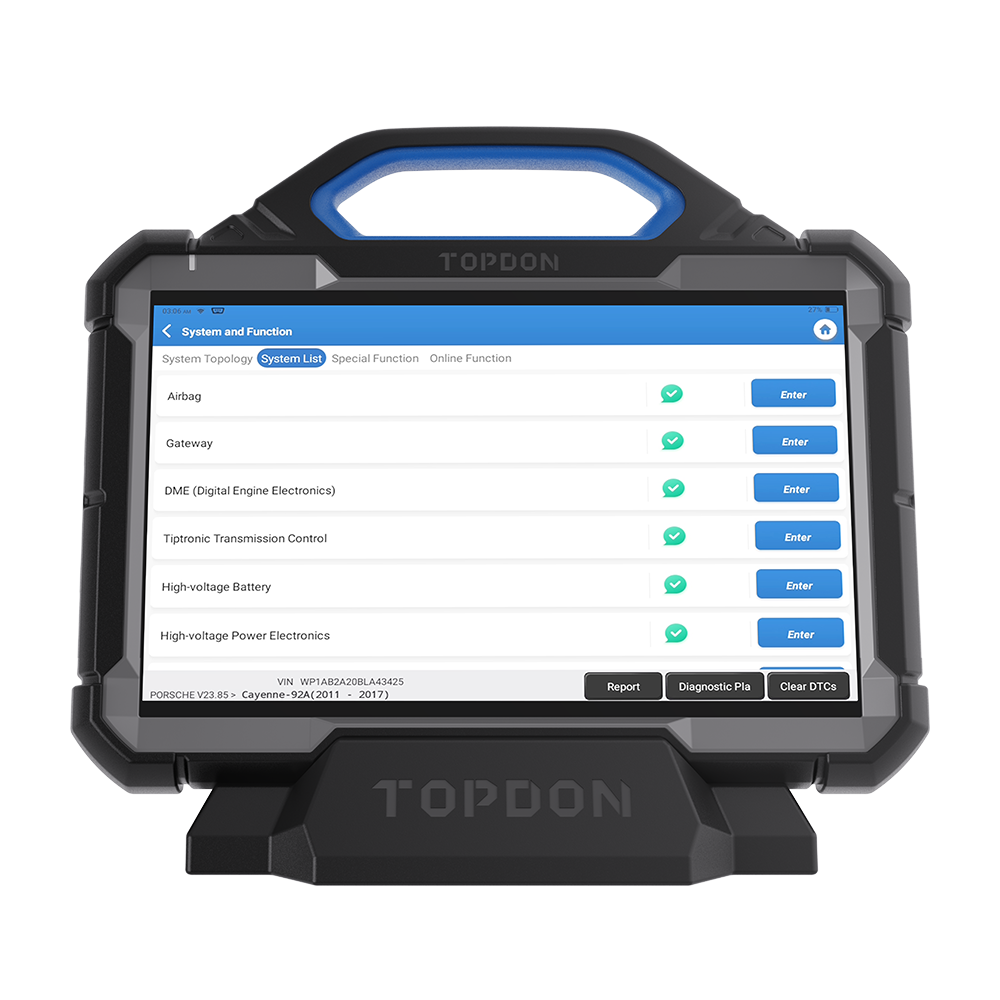

Big Display for Big Productivity

Featuring a large 13.3”, 1920 x 1200 display, 8G RAM/256G ROM, and utilizing Android 9, the Phoenix Max will take on whatever you throw at it with fast and smooth operation.

All Day Battery Life

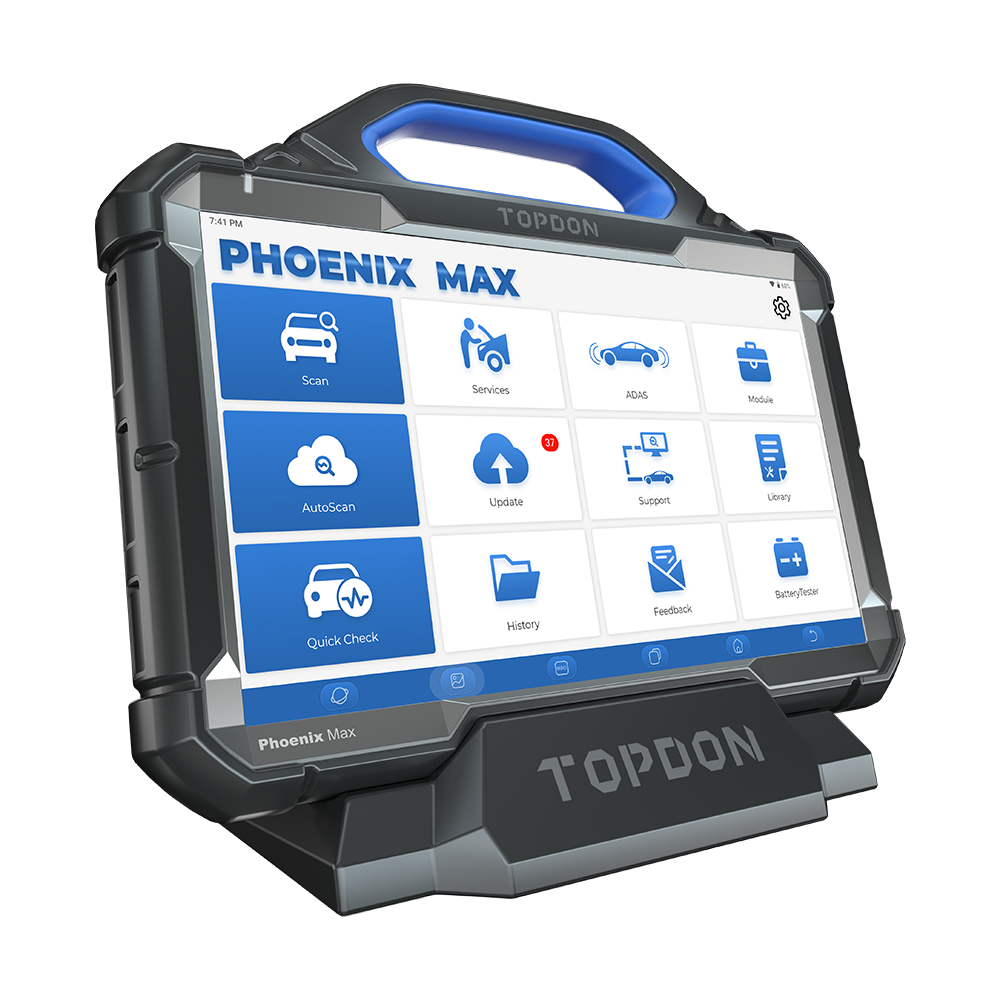

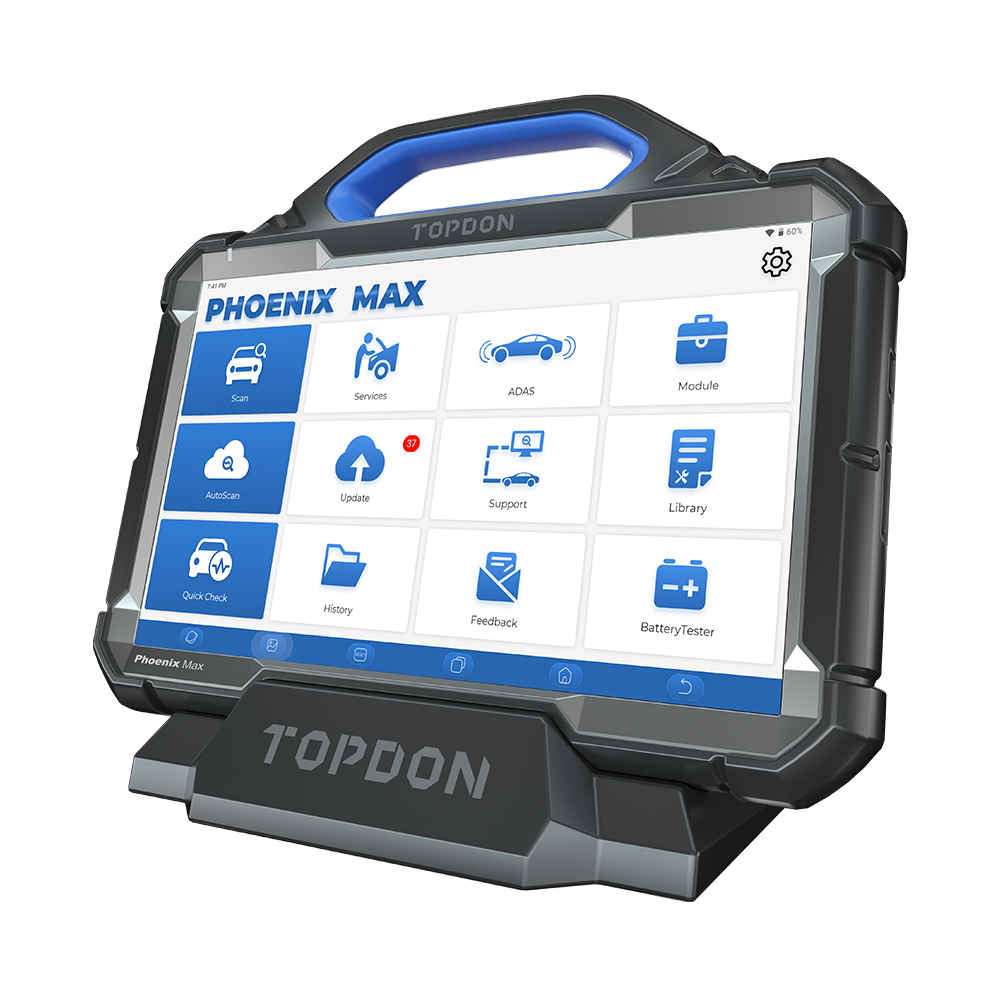

Convenient docking station included so your Phoenix Max is always charged and within reach.
The 18600 mAh, 3.8V battery will power through the day, just like you. 8 hours of run time will ensure you’re never down.

Extended Capability

Compatible with Phoenix Mobile ADAS, BTMobile ProS, T-Ninja Box.

PHOENIX MAX SPECS

Display: LCD 13.3 inches, 1920 x 1200 pixels
CPU: 8-Core Processor, 2.0 GHz, Android 9.0
RAM: 8G
ROM: 256G
Battery: 18600 mAh / 3.8V
Operating Voltage: 9~18V
Storage Temperature: -20℃~60℃(-4℉~140℉)
Working Temperature: 0℃~50℃(32℉~122℉)

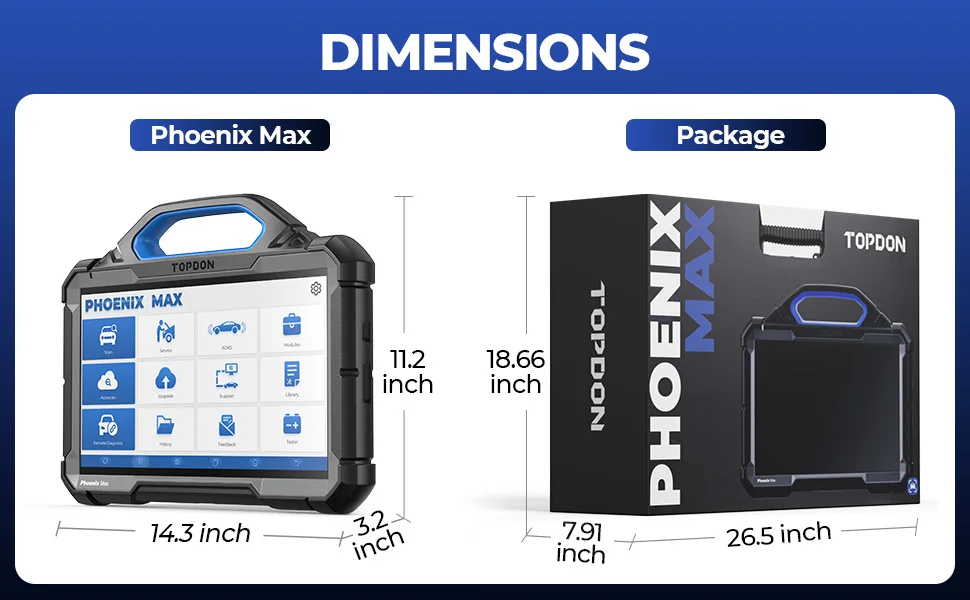

Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)
Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)

Multilingual Support: 24 Languages

English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

PHOENIX MDCI PRO SPECS

CPU: Cortex-A7 + Cortex-M7, Dual Processor
Operating System: Linux
RAM: 256M
ROM: 8G
Display: TFT, 3.97 inches, 320 x 480 pixels
Wi-Fi: 2.4GHz/5GHz, Dual Band
Working Temperature: 0℃~50℃(32℉~122℉)
Operating Voltage: DC 9~36 V
Dimensions: 196 x 135 x 42.8 mm(7.72 x 5.31 x 1.69'')
New Protocols Supported: J2534, CAN FD, DOIP, D-PDU, RP1210

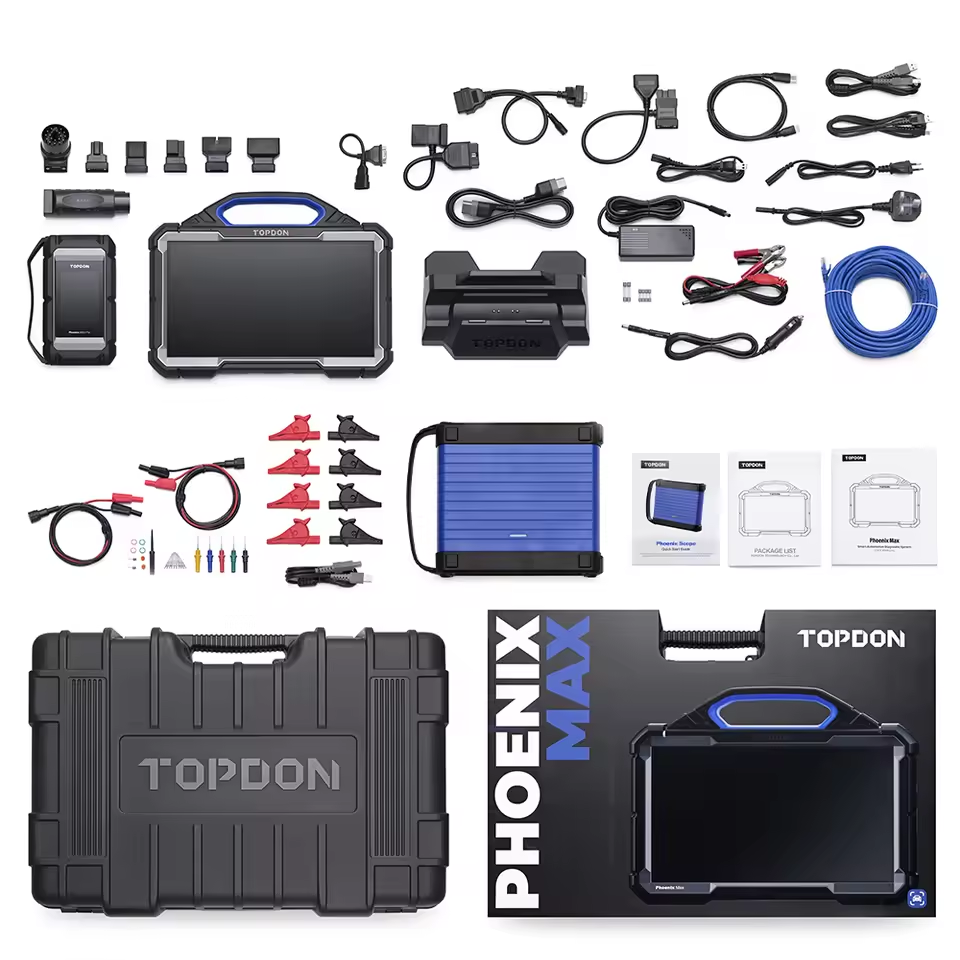

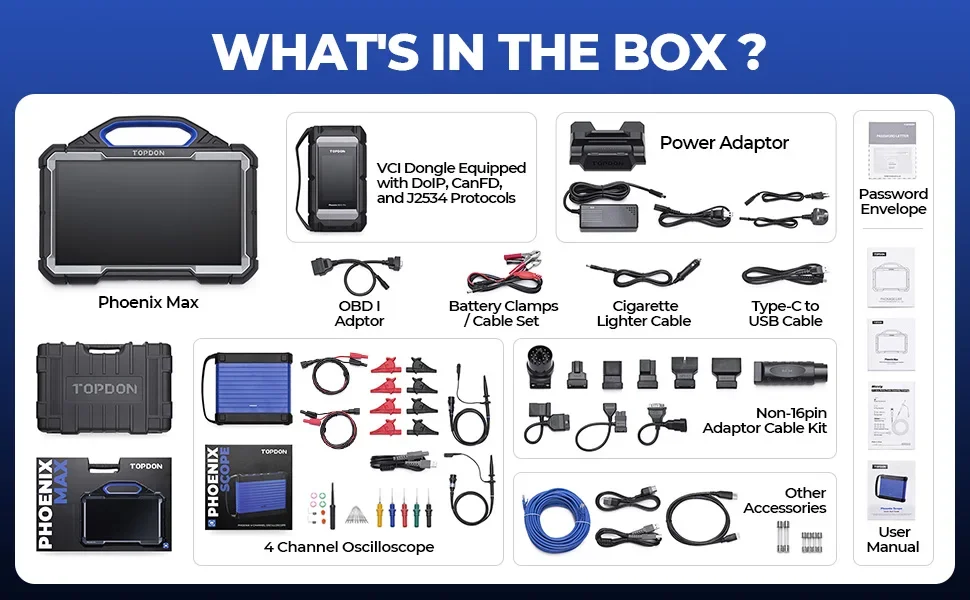

Packing List:
