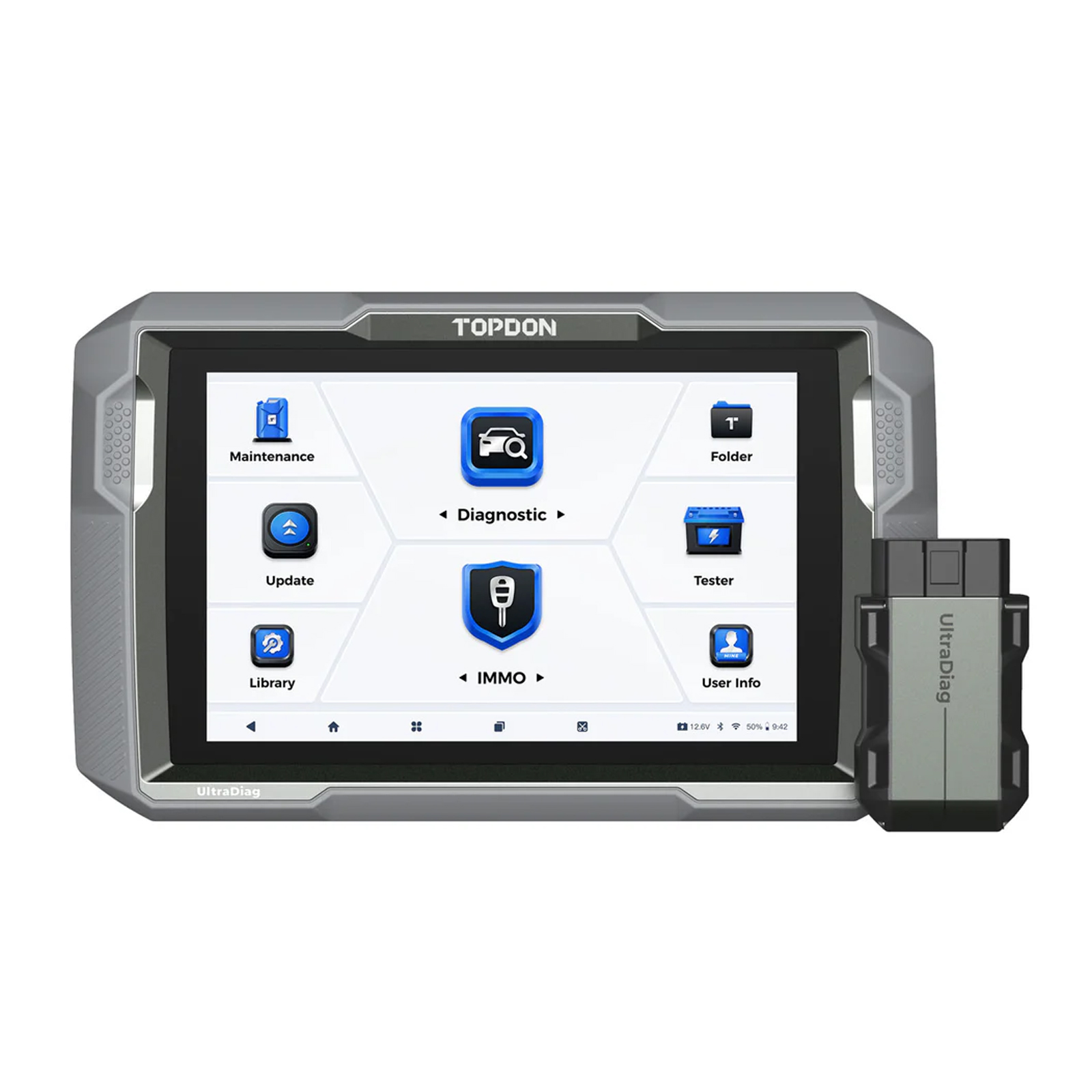

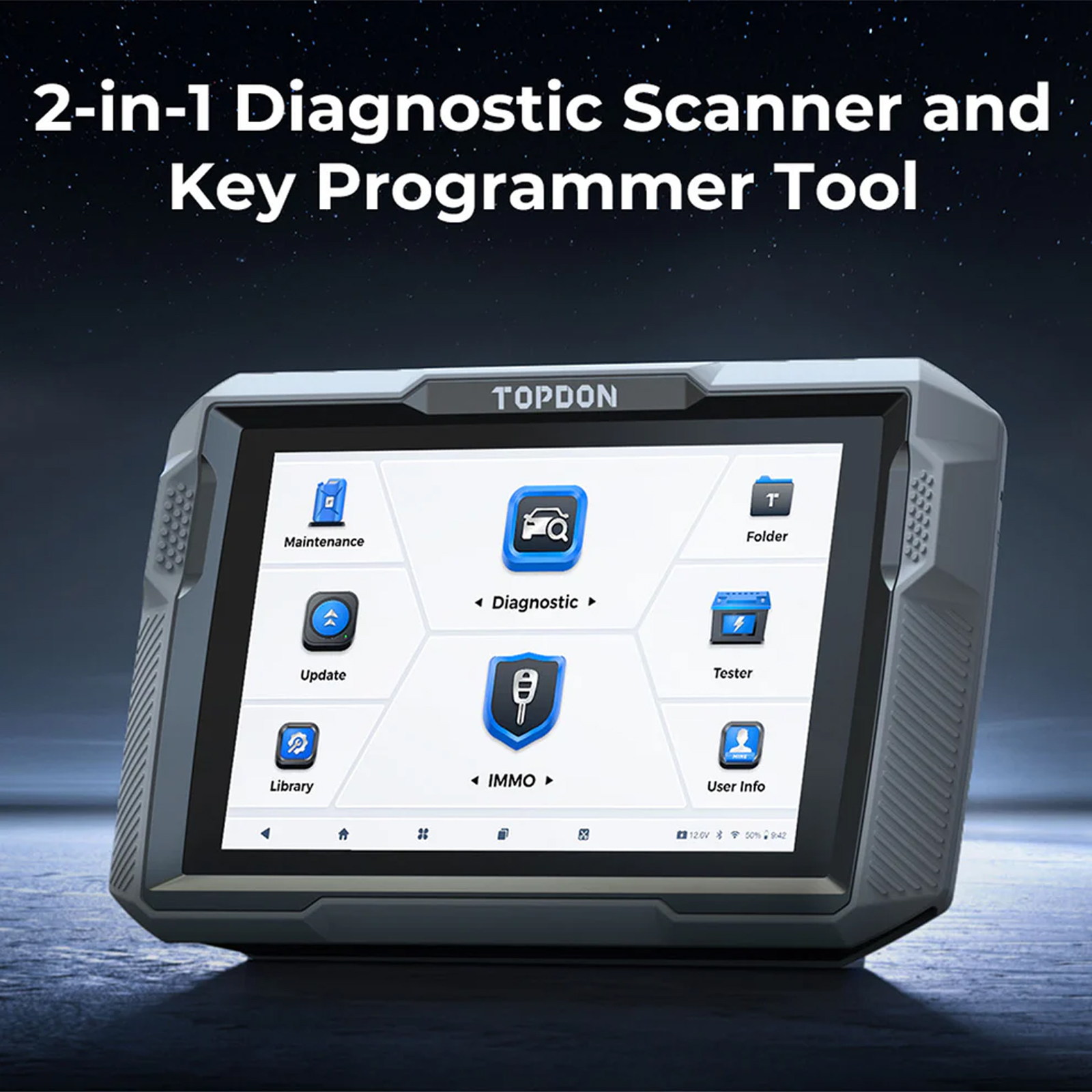

TOPDON UltraDiag 8" Scan Tool & Key Programming Bi-Directional Controls with 30 Reset Functions

The TOPDON UltraDiag is a well-rounded diagnostic tool with added key programming features. The UltraDiag is capable of performing full OBD2 capabilities, accessing 30 commonly used maintenance services, and supports full-system diagnostics for 100+ car brands all over the world. Stepping into more advanced functions, the diagnostic scanner includes features such as the Repair Data Library to quickly get started on auto repair jobs and bidirectional controls to locate the faulty parts accurately.

This powerful tool can act as key matching tool to work on car keys and immobilizer systems. Functions include PIN reading, key learning, remote control learning, and all keys lost. These key programming functions add versatility to open many new streams of revenue. The perfect tool for repair shops and locksmiths.

Full System Diagnostics for 100+ Brands

Get a complete diagnostic report on over 100 different car brands with the UltraDiag scanner. This powerful tool performs a comprehensive scan through all vehicle systems, including engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio, and air conditioning. The UltraDiag provides a complete picture of your car's health, eliminating guesswork and ensuring smooth operation.

Pro-Level OBD2 Code Reader

The UltraDiag offers an extensive OBD2 code reader for enhanced emissions diagnostics. Key functions include DTC lookup, live data, freeze frame data, and more. Ideal for both professional mechanics and DIY enthusiasts, the UltraDiag helps quickly identify and resolve issues related to your vehicle's emissions system.

Effortlessly Program Your Vehicle Keys

With the key programming add-on, the UltraDiag is compatible with over 40 vehicle brands. Functions include Number of Keys, PIN Reading, Key Learning, Remote Control Learning, Delete Keys, and All Keys Lost. This powerful tool simplifies a wide range of automotive locksmithing tasks.

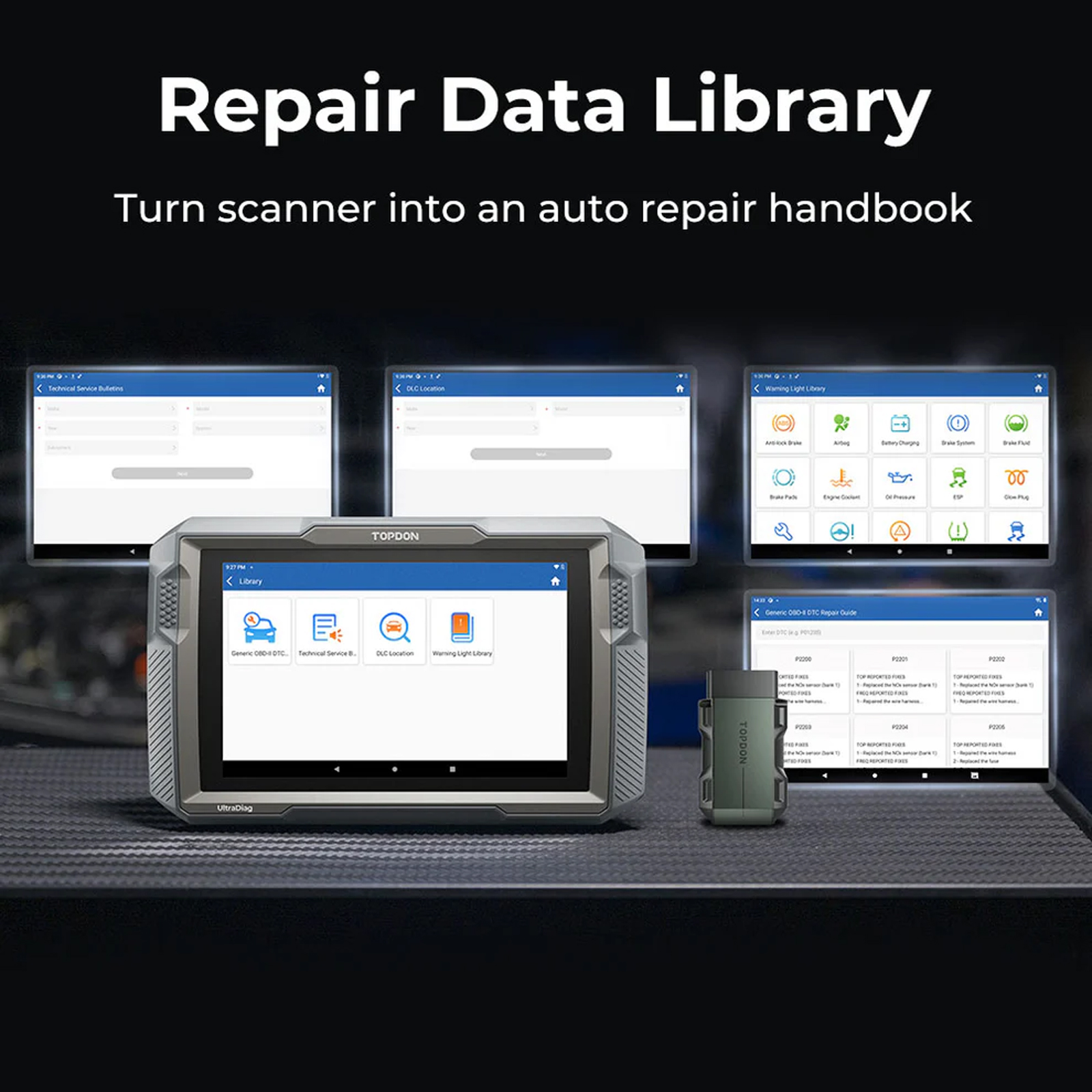

Repair Data Library

Upgrade your diagnostic skills with the UltraDiag’s OBD2 DTC Repair Guide. This guide provides comprehensive fault code definitions, repair guidance, service bulletins, and DLC location guides. It also includes solutions for dashboard warning lights.

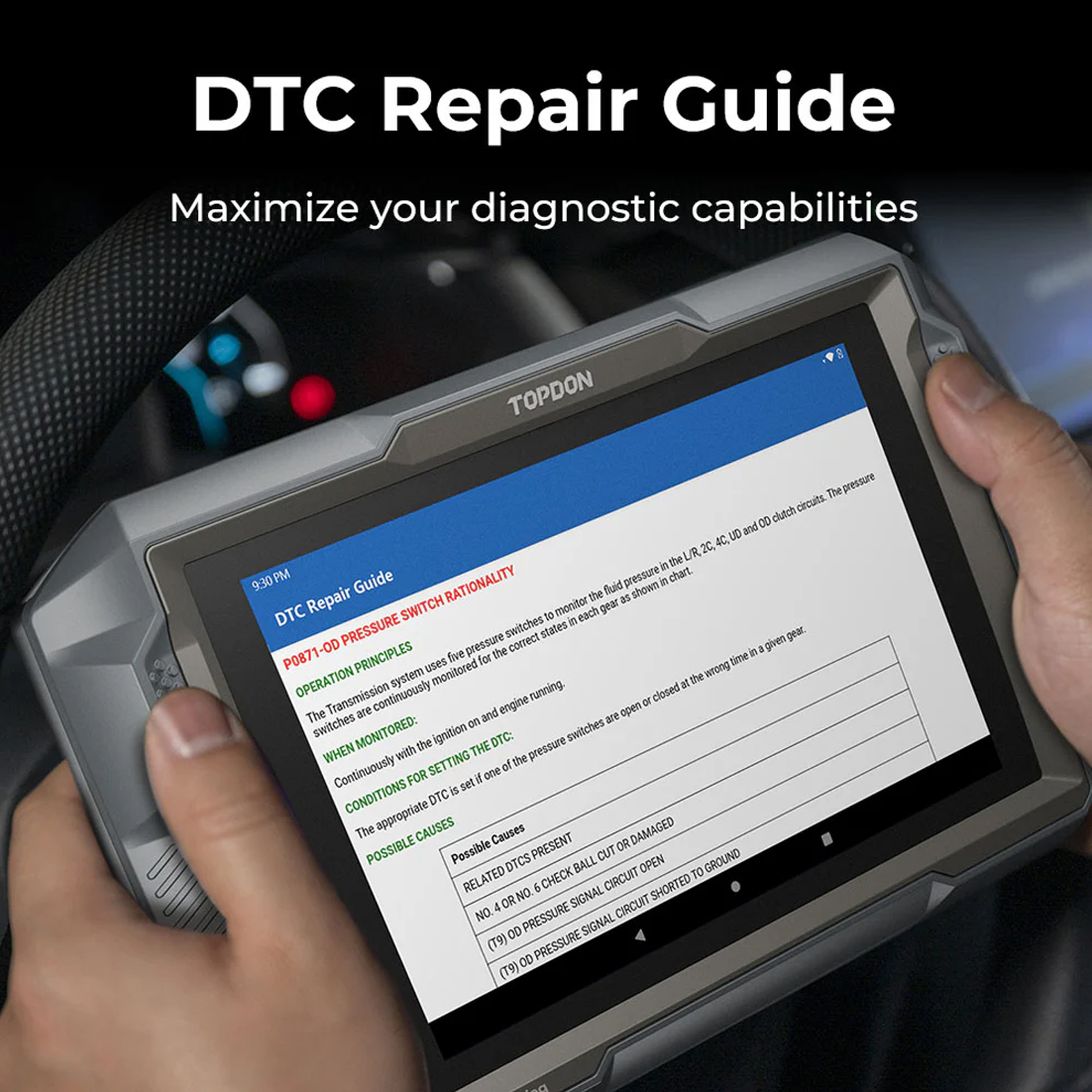

DTC Repair Guide

DTC Repair Guide walks you through the processes and codes of vehicle diagnostics. After reading the fault codes, it can display the definition of fault codes and offer guidance in how to repair it.
It includes the fault code definitions for all systems, such as Dashboard, Air Conditioning, and more. Currently, the TopScan is compatible with Chrysler/Dodge/Jeep/Fiat 2010-2014 (Compatibility expands as updates release).

Bidirectional Control

Accesses vehicle-specific subsystems and component parts to drive actuators for specific functions. This feature helps determine the integrity of systems or parts, allowing users to analyze and locate faults accurately. Bidirectional control includes components like fuel injectors, coolant pumps, windows, and windshield wipers.

30 Reset Functions

The UltraDiag offers 30 commonly used reset functions for passenger vehicles: Oil, EPB, Throttle, Steering, ABS, BMS, DPF, Airbag, Injector, TPMS, Seats, Windows, Sunroof, Suspension, AdBlue, A/F, NOx, Stop/Start, AFS, Gear, Language, Transport, GPF, Gearbox, EGR, Water Pump, Tire, Power Balance, VGT, ODO

AutoVIN & AutoScan

AutoVIN automatically identifies vehicle information such as make, model, and year, while AutoScan detects all vehicle systems and retrieves DTCs effortlessly.

Vehicle Coverage Lookup

Use the Vehicle Coverage Lookup function to check if the device is applicable to your vehicle by entering the vehicle information and desired functions. The Lookup Coverage supports over 60 brands.

VCI Bluetooth Wireless Diagnostics

The UltraDiag includes a magnetic VCI for easy storage, connecting to vehicles via Bluetooth for flexible diagnostics. This setup enhances user convenience and mobility.

Improved Hardware

The UltraDiag features a long-lasting 10000mAh battery, Android 11.0 for faster processing, and an upgraded user interface. It also includes a USB-Type A port for reliable data transfers, an HDMI port for projecting diagnostic processes, and a TF card expansion slot supporting up to 128G of additional storage.

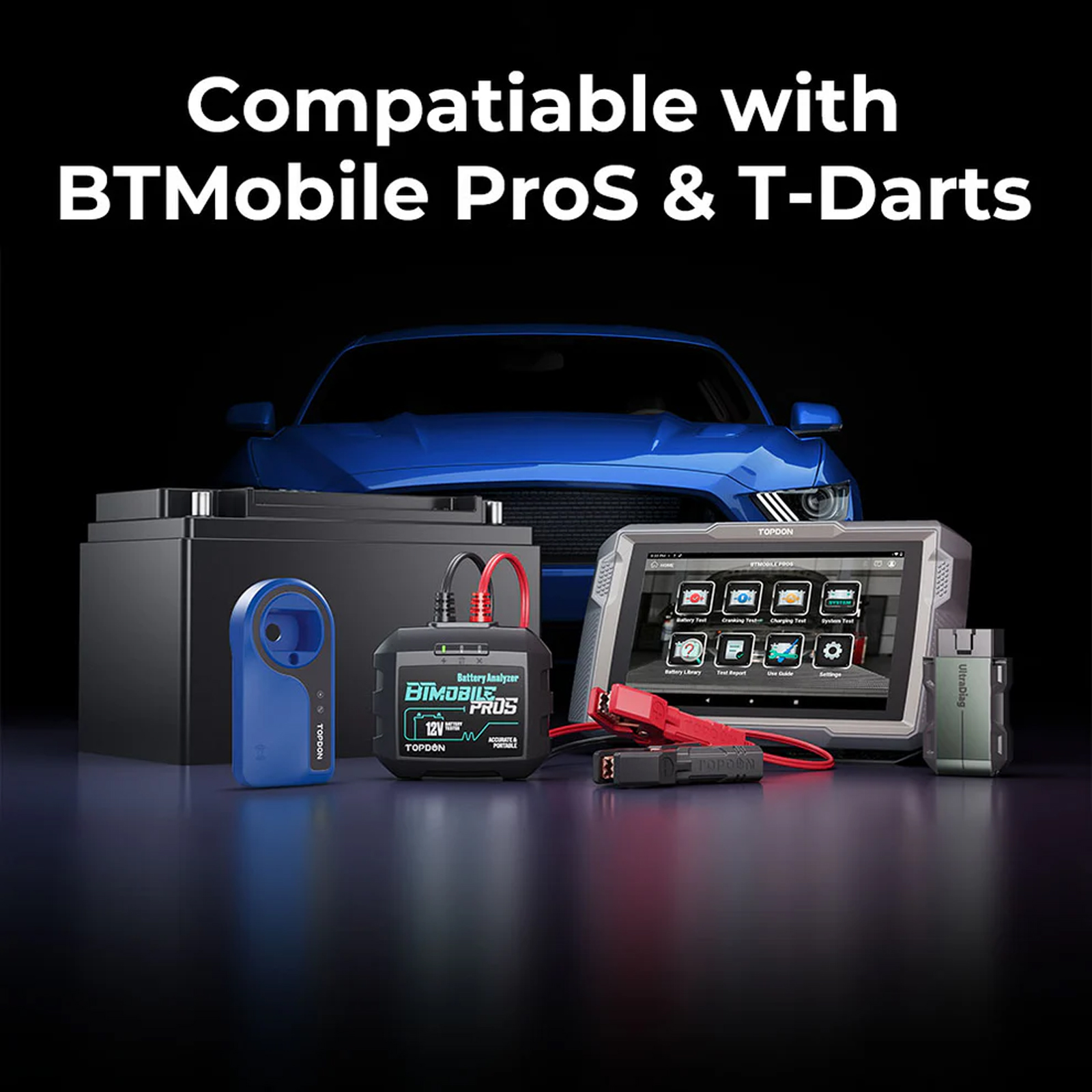

Optional Battery Testing Capability

Pair with the BTMobile Pro battery analyzers to monitor car battery health wirelessly. This pairing transforms the device into a high-tech battery testing tool.

Product Functions:

Auto VIN
Full System
Read DTCs
Clear DTCs
Data Stream
OBDII Code Reader
Bi-directional Control
Read ECU Information

Product Specifications:

Display: 8-Inch
RAM: 2G
ROM: 32G
Battery: 10000mAh
Vehicle Coverage: 100+
Service Function: 30(Oil, BMS, TPMS, A/F, EGR, Tire, EPB, DPF, Window Calibration, NOx, Transport Mode, VGT Learning, Throttle Adaptation, Airbag, Sunroof, Start/Stop, Aftertreatment, Gearbox Matching, SAS, Seat Calibration, AdBlue, AFS, Language, Cylinder Balance, ABS Bleeding, Injector Coding, Suspension Matching, Gear Learning, Water Pump, ODO)
Software Languages: Chinese, English, Traditional Chinese, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Korean,Turkish(MAHINDRA, MARUT and TATA are currently available only in English)
IMMO software language support:English, Spanish, Italian, Portuguese

Package includes:

1pc x UltraDiag Tablet
1pc x UltraDiag VCI
1pc x Power Adapter
1pc x OBD-II Extension Cable
1pc x USB Cable (Type-A to Type-C)
1pc x Quick User Guide
1pc x User Manual
1pc x Carrying Case
1pc x Package Box
