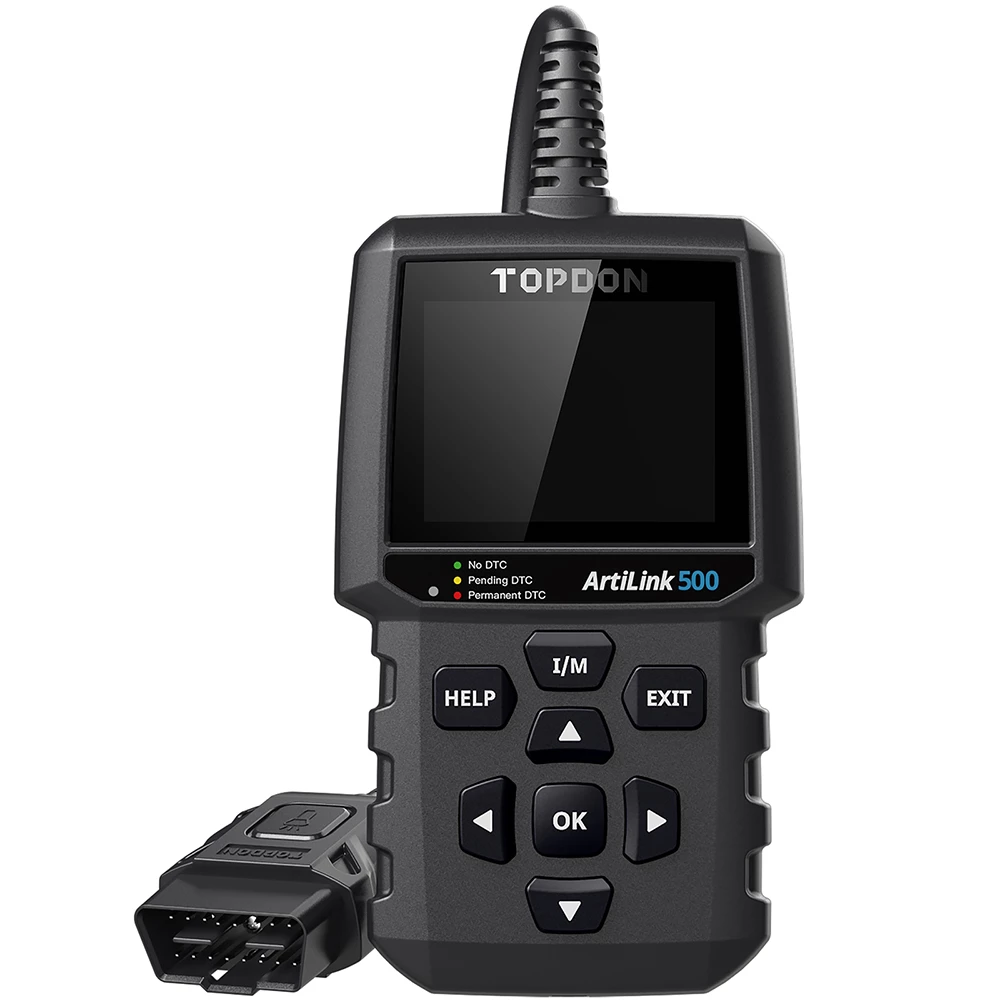

TOPDON ArtiLink 500 OBD2 Scanner AL500 Auto Engine EOBD OBDII Code Reader Car Automotivo Tool OBD Car Diagnostic Tool

OBD2 Scanner TOPDON AL500 Code Reader Check Engine Light Diagnostic Tool with All OBD2 Functions, Turn Off MIL, I/M Readiness, O2 Sensor Test, Mode 6, Built-in Help Menus, Free Update DTC Lookup LED

The TOPDON ArtiLink 500 OBDII Code Reader works with all 10 modes of OBDII test for complete vehicle diagnostics (1996 and newer). The easy-to-use tool features a One-Click I/M Readiness Key for quick State Emissions, DTC lookup, data record & replay, and more, to help get a reliable assessment of any car obd2 related issues.

WHY CHOOSE TOPDON AL500 OBD2 SCANNER?

TOPDON AL500, a fantastic vehicle CEL (Check Engine Light) doctor with useful diagnostic functions, provides quick and accurate diagnostics for DIY users to avoid costly repairs: ● locate the bad O2 sensor/gas cap/…; ● pass Smog Tests; ● check the repairs; ● turn off the MIL.

All-in-1 OBD2 Scanner ‒ Keep Cars Running Safely on the Road:

1. Support all OBD2 protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, CAN;
2. Work with American vehicle after 1996, European vehicle after 2002, and Asian vehicles after 2006;
3. Support 10 modes of OBD2 test;
4. I/M and HELP shortcut keys for quick tests;
5. LED indicator in 3 colors for different DTCs;
6. Diagnostic connector with LED illumination;
7. Support data review & printing;
8. DTC Lookup & LCD Color Display;
9. Lifetime update included (for newer cars and more cars);
10. Multiple languages: English, French, German, Spanish, Portuguese, Russian, Japanese

WHAT CAN AL500 CODE READER DO FOR YOU?

TOPDON AL500 code reader can do all OBD2 scanners do with all the OBD2 functions you need. This check engine light killer can read and clear fault codes, view data stream, I/M Readiness, Freeze Frame and vehicle information, and run O2 sensor test, On-board monitor test, and EVAP system test.

Money Saver ‒ Avoid Being Charged More than Needed

Through these OBD2 functions, you can tell the difference between a faulty gas cap and a bad catalytic converter, which costs much more than a gas cap and get a wealth of information about which parts cause the light on, and save unnecessary money and time on driving to dealership and wait for days. Frequently needed information are below:

√ O2 Sensor
√ Gas Cap
√ Catalytic Converter
√ Air Fuel Ratio Sensor
√ Mass Air Flow Sensor
√ Ignition Coils
√ Spark Plugs
√ Spark Plugs Wires
√ Thermostat
√ EGR Valve
√ Evaporative Emission Canister Purge Valve (EVAP)

Car Coverage

Supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM & CAN (Controller Area Network). - Works on most vehicles sold worldwide with the model year of 1996 or newer.

American (USA) cars

for Standard OBD2 Cars from 1996 to Now:
for Chrysler,for Ford,for GM,for Jeep

European cars
for Standard OBD2 Cars from 2003 to Now:
for Alfa Romeo,for SAAB,for Acura ,for Opel,for Audi,for Seat,for Peugeot,for Bentley,for Skoda,for Daewoo,for Benz,for Daihatsu,for Land Rover,BMW,for Vauxhall,for Citroen,for Volvo,for Fiat,for VW,for Ford,for Jaguar

Japanese cars
for Standard OBD2 Cars from 2007 to Now:
for KIA,for Isuzu,for Honda ,for Mitsubishi,for Hyundai,for Dacia,for Lexus,for Mazda,for Nissan,for Subaru ,for Suzuki,for Toyota.

France Car after 2006:
for Citroen,for Fiat,for Renault,for Peugeot
Not Support for Renault Clio 2/Megane/Dacia Logan

Chinese cars:
for Standard OBD2 Cars from 2008 to Now

Multilingual Support: English, French , German,Spanish, Portuguese, Russian, Japanese

WHAT MAKES AL500 DIFFERENT?

In addition to the OBD2 functions, TOPDON AL500 is also designed with lots of additional functions, allowing DIY users to fix it on one’s own and enabling mechanics to greatly improve their work efficiency.

Expand Your Capability-HELP Shortcut Key

√ Provides quick access to the built-in Help Menus associated with the current DTC;
√ Offers you advanced DTCs query to identify the detailed meaning, causes and tips of DTCs;
√ Enables you to troubleshoot and fix the issues by yourself.

Make Diagnostics Easier & Faster.

LED Light in OBD2 connector makes it easy for users to find the OBD2 DLC (16-PIN Data Link Connector) of the vehicle in the dim environment (at night, underground parking) and plug it into the DLC fast and firmly, speeding up the whole diagnostic progress.

3-Color LED Indicator

LED Indicator in 3 colors ‒ Let you know the vehicle’s health condition at a glance. This diagnostic scanner displays different colors for different fault codes:

√ Green ‒ No fault code;
√ Yellow ‒ Pending fault codes;
√ Red ‒ Permanent fault codes.

DTC Detailed Description

DTC Lookup ‒ Turn this OBD2 scanner, AL500, into an electronic dictionary of DTCs. Get DTCs’ explanation in 2 seconds.

√ Input the 5-digit code;
√ View its detailed definition;
√ Press [HELP] key;
√ View the diagnostic tips/solution for the current DTCs.

Data Sharing via Printing

Data Printing ‒ Print the records saved in read codes or data stream and share your diagnostic data with others for further analysis.

√ Connect AL500 to a PC;
√ Download and run the Update Tool;
√ Select and print the data.

2 Shortcut Key to Save Time:

2 Shortcut Key to Save Time:
√ I/M Shortcut Key: directly access to I/M Readiness function and check if the vehicle is ready for the emission test.
√ HELP Shortcut Key: quickly get detailed descriptions or tips for current diagnostics.

User-Friendly Design

√ Extra-long and durable diagnostic cable (about 56.49 inches) allows you to diagnose even out of vehicle.
√ The anti-collision structure, clearly arranged keys, easy-to-follow interface, hand-held size, etc. make this OBD2 scanner sturdy, durable, and easy to use.

Product Update

Lifetime update service helps fix the bugs and improve performance. Note: Update function is only compatible with Windows XP/7/8&10.

Specification:

Display:LCD 2.8-Inch,320X240
Operating voltage: 9~18V
Storage Temperature:-20℃~70℃(-4℉~158℉)
Working Temperature:-10℃~50℃(14℉~122℉)
Dimension:163.6*94.3*31.4mm(6.44*3.71*1.23 inch)
Length: 1435mm(56.49 inch)

Net Weight: 270g

Package List:

1* ArtiLink 500 Code Reader,
1*Quick start,Guide,
1* User's Manual, USB Cable
