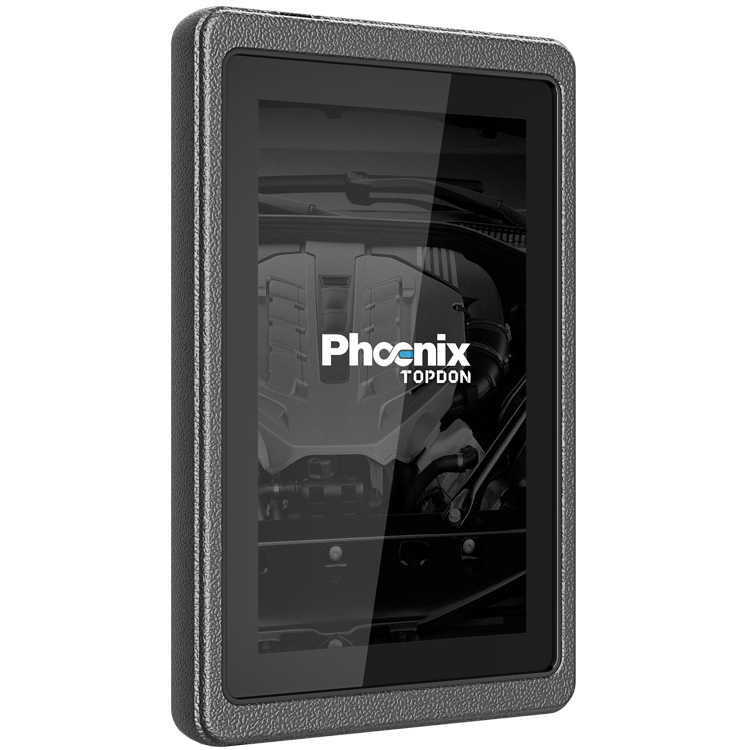

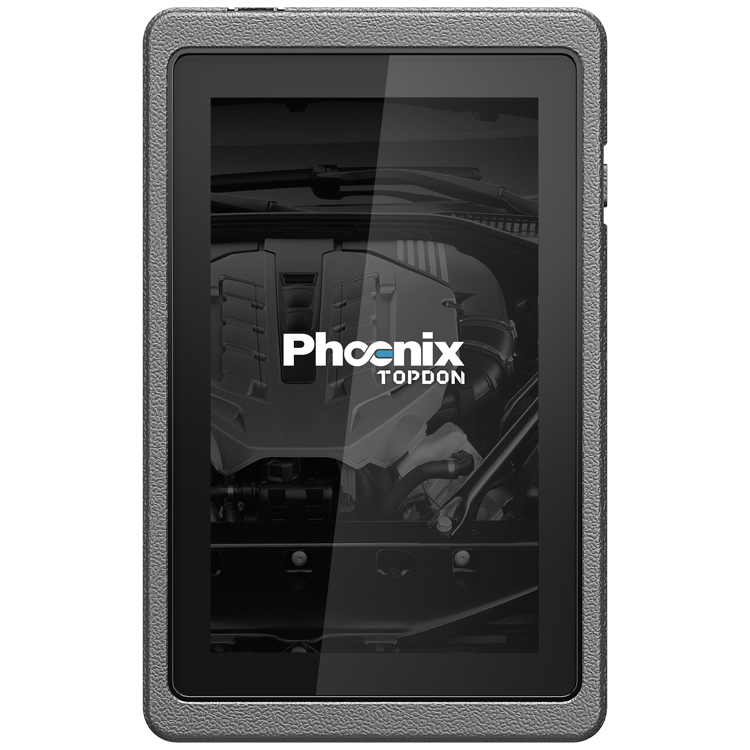

TOPDON Phoenix Lite

We equip TOPDON Phoenix & Phoenix Lite with the same proven diagnostic capabilities as our Phoenix, but simplify the accessories. This intelligent handheld diagnostic tablet is designed to be the smart choice helping technicians to improve productivity of daily workshop routines and achieve optimal diagnosis, with more profitable solutions.


Multilingual Support

Italian, English, Chinese simplified, Chinese traditional, German, Japanese, Russian, French, Spanish, Portuguese, polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romania, Serbia, Finnish, Swedish, Czech


ECU Coding and Active Test

This diagnostic tablet supports ECU coding function on a large amount of makes, including for Benz, for Ford and more. It also supports quick diagnosis via one-button VIN scanning.

Active test is to test output elements. You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status.


Auto VIN Tech

It supports quick diagnosis via one-button VIN scanning.


ALL Systems Diagnoses ALL Systems` Diagnoses (Faster and more effective than OE-level coverage diagnostic equipment)

To diagnose car comprehensively, it can read DTCs and data streams for ALL systems. For instance, Fuel system, Emission system, Transmission, Engine, Body, Powertrain and more. You do not have to buy other tools for diagnosing systems, saving you much time and money from a long term.


30+ Most-Commonly Used Maintenance Services

LAUNCH X431 V+ provides 30+ powerful special functions for precise test result of vehicle health status.

You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu.

Oil Reset Service

This function can be performed in the following cases:
i. If the service lamp is on, you must provide service for the car. After service,you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.

ii. After changing engine oil or electric appliances that monitor oil life, you need to reset the service lamp.

Steering Angle Calibration

This function can be performed in the following cases:

i. To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for  left and right steering.

ii. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

Electronic Parking Brake Reset

i. If the brake pad wears the brake pad sense line, the brake pad sense linesends a signal sense  line to the on-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

ii. Reset must be performed in the following cases:
1) The brake pad and brake pad wear sensor are replaced.
2) The brake pad indicator lamp is on.
3) The brake pad sensor circuit is short, which is recovered. The servo motor is replaced.

ABS Bleeding

This function allows you to perform various bi-directional tests to check the operating conditions of Anti- lock Braking System (ABS).

i. When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

ii. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

Electronic Throttle Position Reset / Learn

This function enables you to initialize the throttle actuators so that the "learned" values stored on ECU are returned to the default state. Doing so can accurately regulate throttle (or idle engine) operations to control the amount of air intake. Throttle matching must be performed in the following cases:

i. The ECU is replaced and the ECU does not yet store throttle working features.

ii. The ECU is disconnected from power and the ECU memory is lost.

iii. The throttle assembly is replaced.
iv. The intake pipe is replaced or removed, which affects idle speed control by ECU and throttle body.

v. The throttle is cleaned. Although the idle throttle potentiometer features remain unchanged, with the same throttle opening, the air inflow has changed and idle speed control features
have changed.


Battery Register/Maintenance

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching
will be done.Battery matching must be performed in the following cases:

i. Main battery is replaced. Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information. If the
related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start & stop function, sunroof without one-key trigger function,power window without automatic function.

ii. Battery monitoring sensor. Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately, which can avoid an error message displaying on the instrument panel.

Diesel Particulate Filter (DPF) Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel
additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
DPF regeneration may be performed in the following cases:
i. The exhaust back pressure sensor is replaced.
ii. The PM trap is removed or replaced.
iii. The fuel additive nozzle is removed or replaced.
iv. The catalytic oxidizer is removed or replaced.
v. The DPF regeneration MIL is on and maintenance is performed.
vi. The DPF regeneration control module is replaced

TPMS Tire Pressure Monitoring Sytem Reset

makes tpms senser in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor
replacement IDs and activate tpms sensors.

Anti-Theft Matching (IMMOBILIZER)

This function can protect your car from being stolen by clearing the lost car key information and programming new key into the ECU database. Also known as keys programming.

Injector Coding

i. Diesel injector code need programming ID and parameters to the ECU for accurate
communication and Injection control system.

ii. Program in the new fuel injector numbers after replacement to replace the ones previously programmed into the ECU.

Camshaft Gear Learning

Help user to finish tooth learning after changing crankshaft in car engine, so the new part can be used.

AF Adjustment

Additional 5 More Reset Functions

You can check the 5 reset functions in the car diagnostic software.

1. Air Suspension Reset
2. Gearbox Reset
3. Sunroof RESET
4. AFS Reset
5. EGR Reset

Car list of the 5 reset functions

Air Suspension Reset

For Audi, Mercedes Benz, BMW, Citroen, Chrysler, Ford, GM(Cadillac, Chevrolet, GMC, Holden) Peugeot, Seat, Skoda, VW, ChangAnFord, DFCitroen, SGM, YQVW

Gearbox Reset

For BMW, Mercedes Benz,Chrysler, Ford, GM(Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn), ChangAnFord, SGM(BUICK, CADILLAC, CHEVROLET, BUICK TRUCK), BYD, CHANGAN, Chery, Geat Wall, Geely

Sunroof RESET

For Mercedes Benz, BMW, CHRYSLER, Cadillac

For AFS Reset (Adaptive Front lighting System)

For AUDI, MERCEDES-BENZ, MG, CHRYSLER, GM(Cadillac, Chevrolet , GMC, Daewoo, Alpheon, PONTIAC, Holden, OLDSMOBILE, BUICK, SATURN, GMC TRUCK, CHEVROLET TRUCK), OPEL, SEAT, SKODA, VW, SHVW, SGM(BUICK, CADILLAC, CHEVROLET, BUICK TRUCK), YQVW, BAIC, GREATWALL, CHERY, CHANGAN, ROEWE, YQJC, ZOTYE

EGR Reset

MERCEDES-BENZ, BMW, CITROEN, Chevrolet, Daewoo, Holden, PEUGEOT, RENAULT, VOLVO

These reset functions support different models and years of the car. If you want to know more information, please contact us.

Supports 10000+ car models from America, Europe, Asia

If you need to get more information for supportted car list, please click the car list picture

Specialized Car Softwares for Local Malaysia, India, Iran car models

1. For Malaysia Proton and Perodua, India TATA, India Maruti and India Mahindra, X431 V+ offer them for free now.

For Iran SAIPA and IKCO, the price is 80USD per car model for one year.

After one year, the price is 40USD per model for one year.

2.If you buy Iran SAIPA and IKCO, the bundle price is 130$.

Bluetooth and Wi-Fi Enabled

You are able to do remote control as this tool can be used through Bluetooth or Wi-Fi. And via Bluetooth, it is simple for DBScar diagnostic connector to communicate with X431 V+.

Anti-theft Matching

This function can protect your car from being stolen by clearing the lost car key information and programming new key into the ECU database. Also known as keys programming.

Practical Remote Diagnosis

Not only users can launch the remote diagnosis with other diagnostic tools of LAUNCH family, which are equipped with this module as well, also they can ask for the remote control through phones, tablets, and computers etc. It has realized the reality that a mechanic can diagnose an abnormal vehicle which is even thousands of miles away.

Social Network

This vehicle code reader helps quickly retrieve vehicle history maintenance record so you can get a series of useful diagnostic references and recourses when you meet any problems in the process of repairing. In addition, you are able to connect with other users, sharing experiences of your automobile maintenance.

Specifications for Phoenix Lite

Operating System: Android 7.0
CPU: 1.3GHz Quad-core
Display: 7" Touch Screen (1024*600 Resolution)
RAM: 2GB
ROM: 32GB
Connectivity: Wi-Fi (802.11 b/g/n) / Bluetooth 4.0
Camera: 5.0MP Rear-Facing Camera with AF
Audio Input/Output: Microphone / Speakers
Input Voltage: DC 5V/2A
Power Consumption: Max. 20W
Working Temperature: 0ºC~50ºC (32~122ºF)
Storage Temperature: -20ºC~70ºC (-4~158ºF)
Built-in Battery: 4680mAh
Dimension: 205*130*50.8mm (8.07*5.11*2 inches)
Weight: 635g (22.39 oz)0ºC

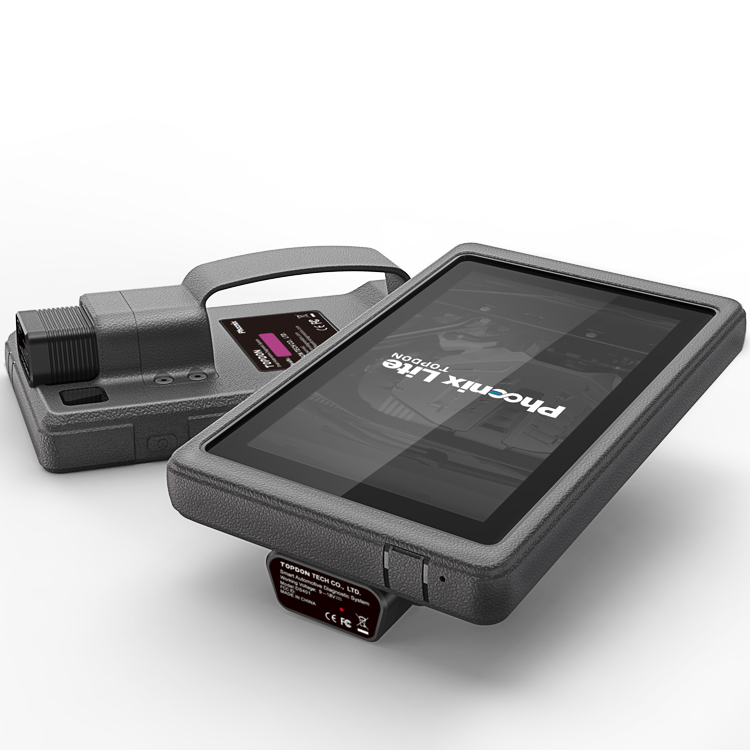

Package List for Phoenix Lite

1*Phoenix Lite Tablet
1*VCI Dongle
1*Power Adaptor
1*Charging/Data Cable
1*OBD II Extension Cable
1*Password Envelope
