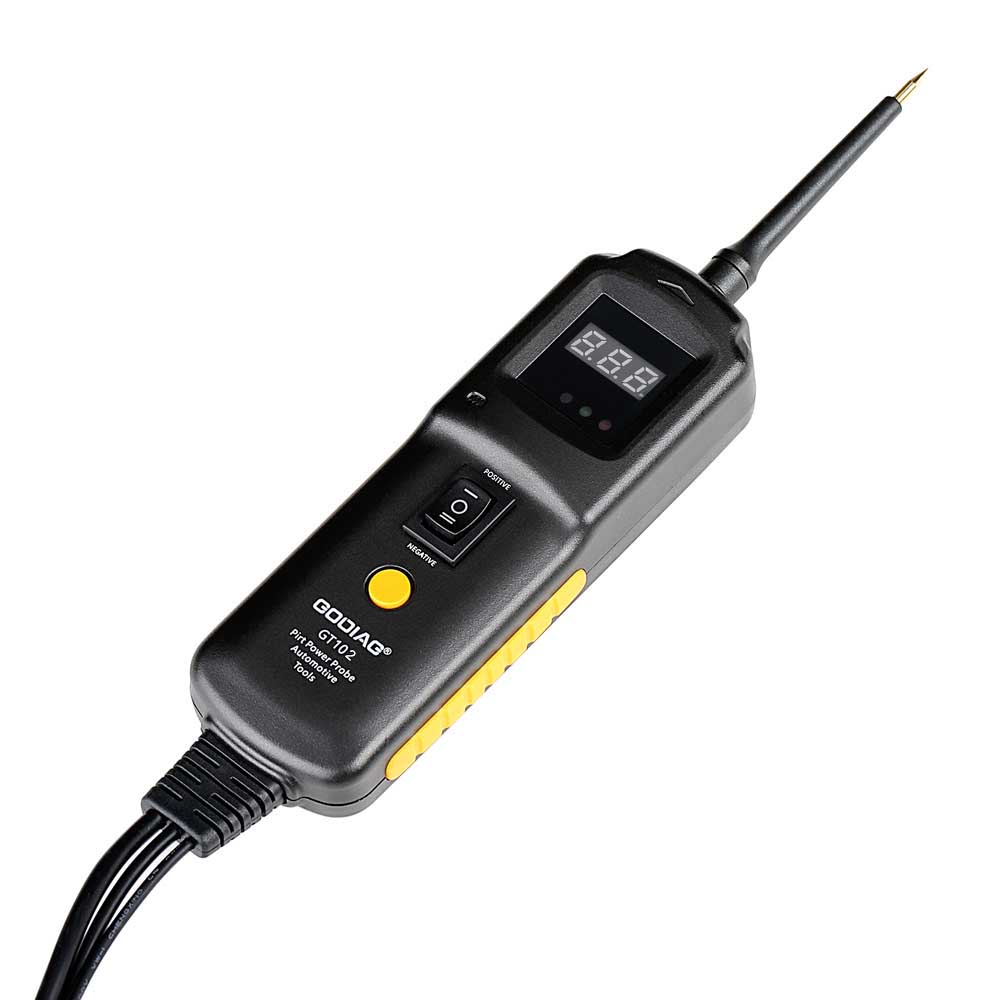

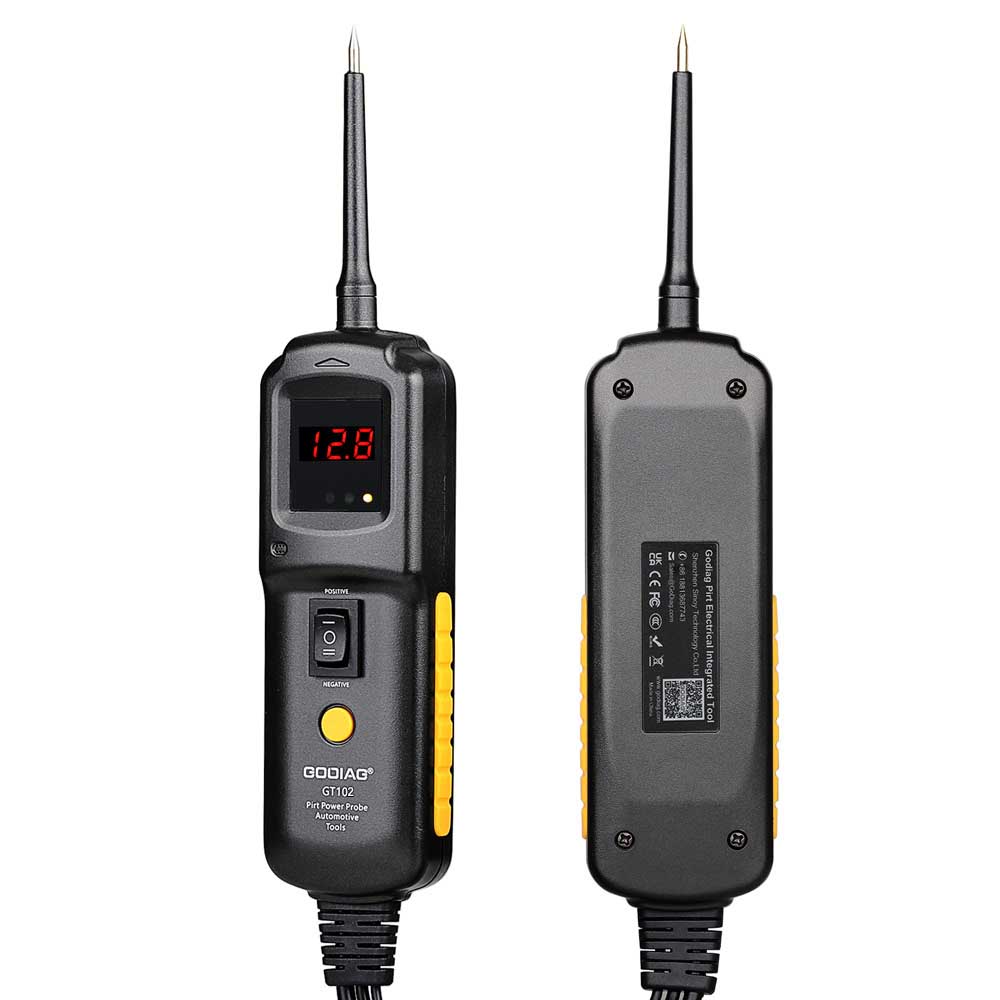

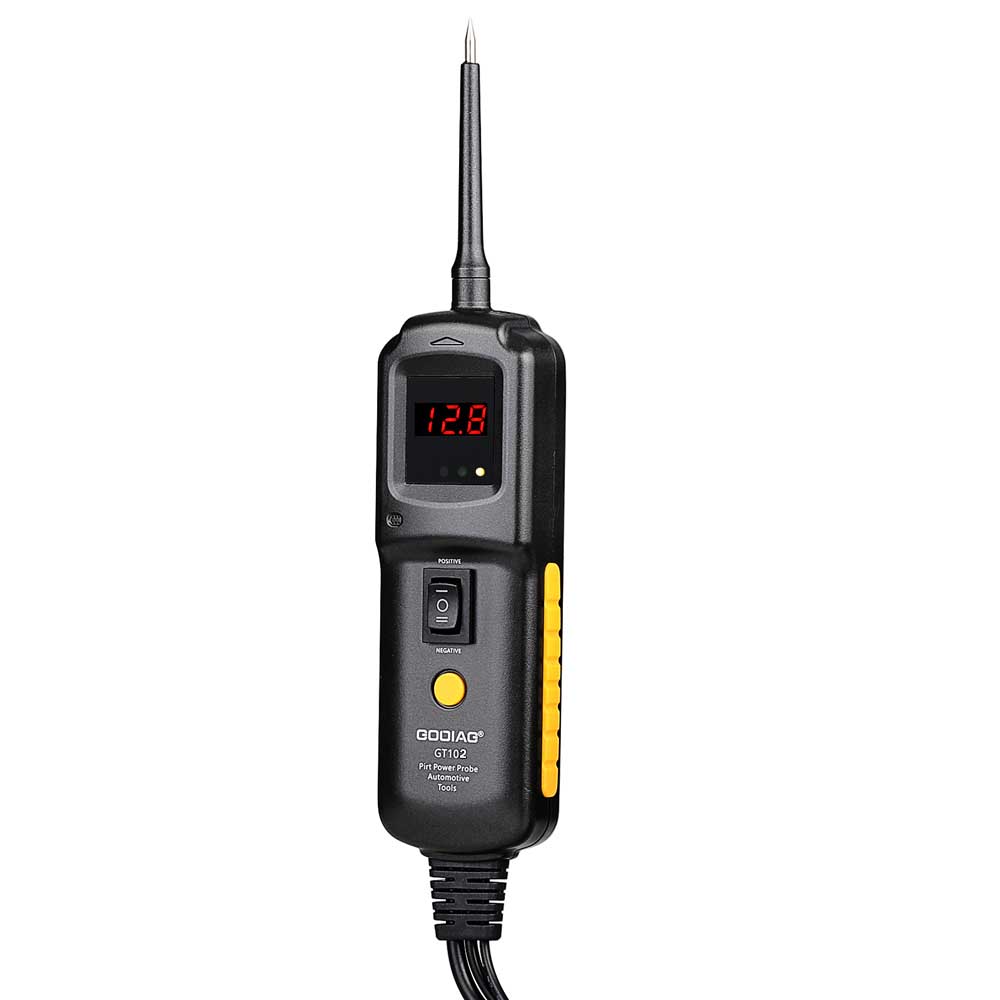

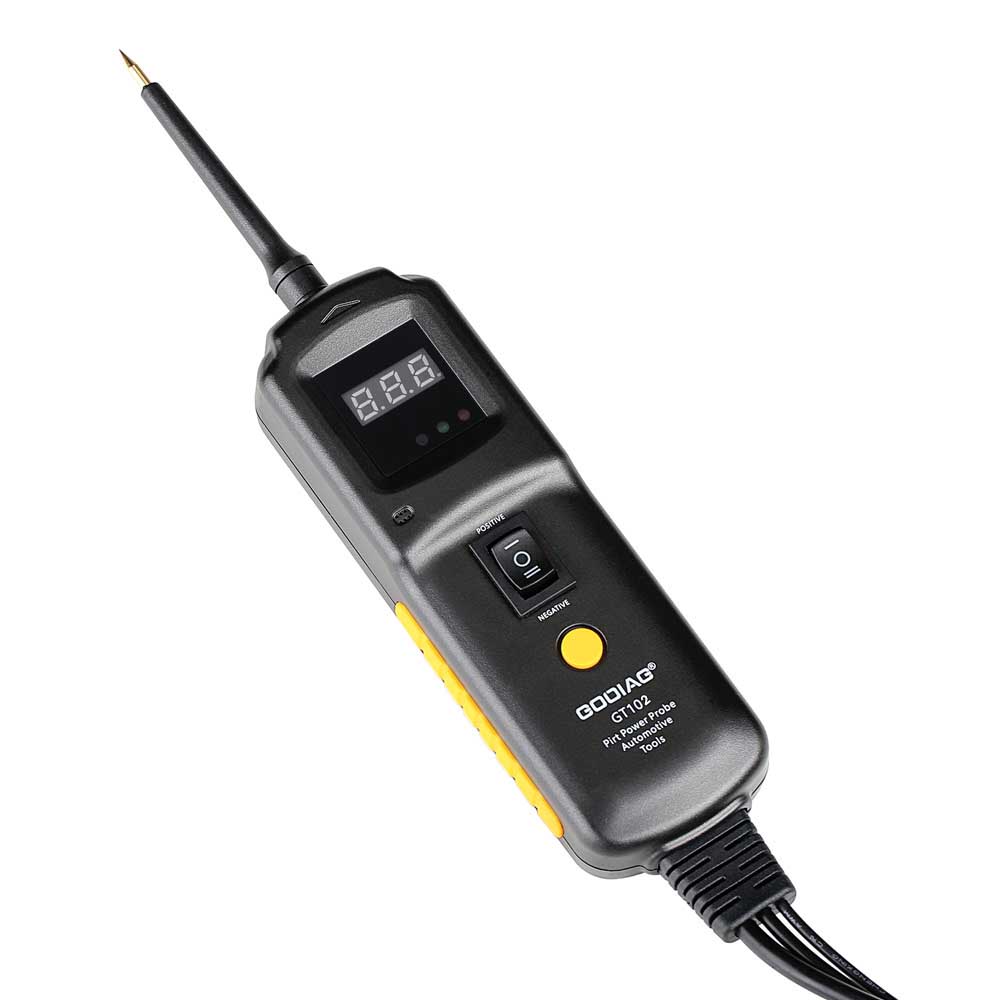

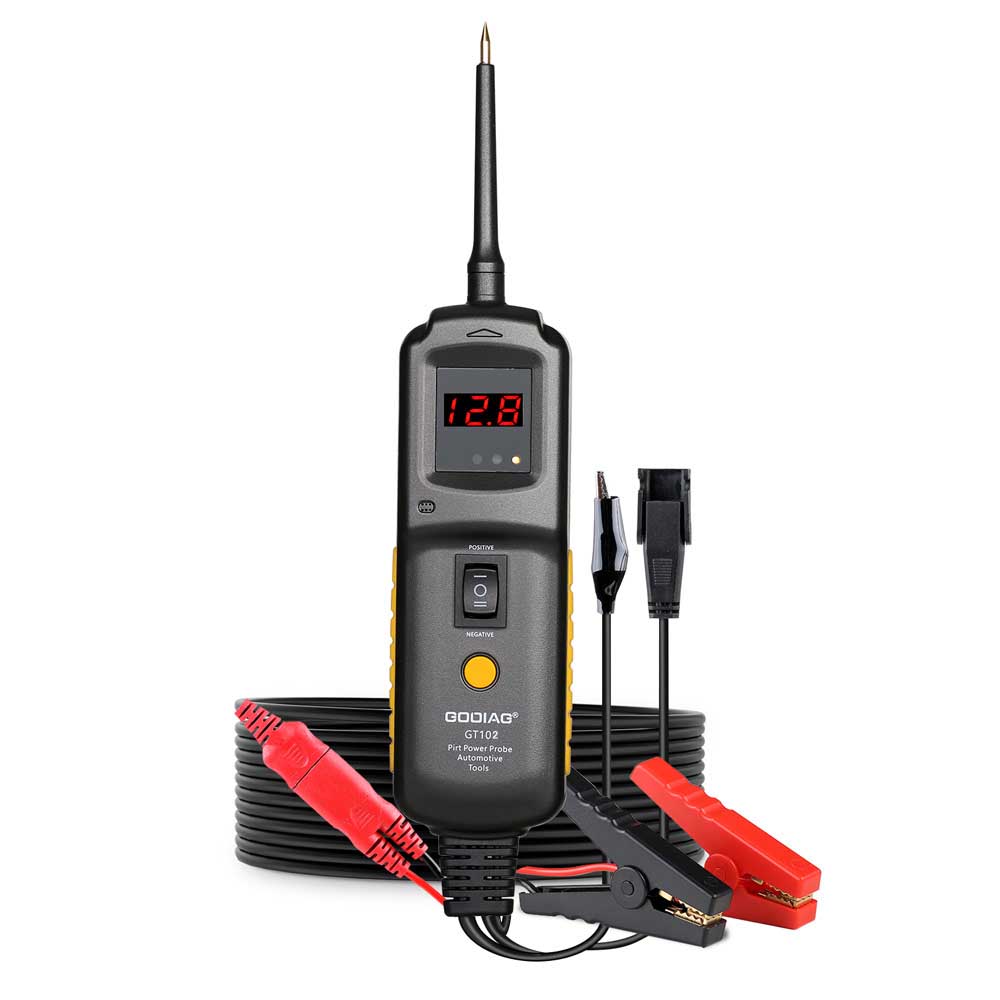

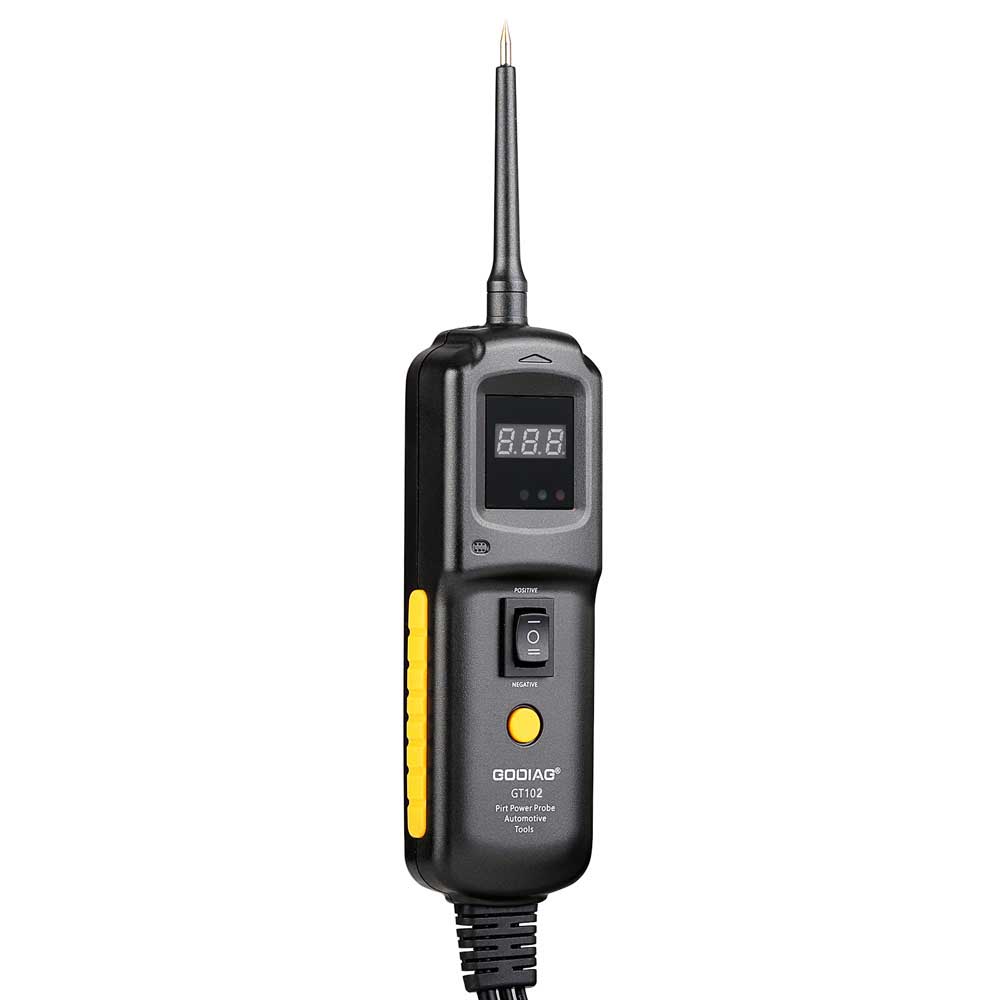

GODIAG GT102 PIRT Power Probe + Car Power Line Fault Finding + Fuel Injector Cleaning and Testing + Relay Testing Car Diagnostic Tool

GODIAG GT102 PIRT Power Probe is a multi-use circuit-tester with the diagnostic power from the car battery or the external battery. It is the best electrical tester for reducing diagnostic time in all 6- to 40-volt vehicle electrical systems. Undoubtedly it is the most versatile and practical tool ever for its users.

Why You Need GODIAG GT102 PIRT Power Probe:

①GODIAG PIRT Power Probe GT102 is a special circuit maintenance testing tool which is developed for automobile maintenance workers and engineers.
②It can be used to diagnose an open circuit, short circuit, detect positive and negative circuit and pulse current of power lines; and support the testing of lighting lamp,window lift motor, horn, ECU control Unit power supply and other individual component, vehicle component circuit.
③Moreover, its function also covers the detection of relays and fuel injectors as well as the cleaning of fuel injectors.
④The output current can be reversed to form a loop power, and when the current exceeds 20A, it automatically trip to protect the device and extend the service life.
⑤It can detect all 0-80v electronic systems, greatly shortening the detection time. The connection with the car battery is simple and easy to use.




GODIAG GT102 PIRT Power Probe Functions:

1.Circuit Troubleshooting Test (Short Circuit, Open Circuit)

When the vehicle's headlights, turn signals, lift windows, sunroofs and other functions fail, GT102 can be used to detect the circuit voltage or supply power for these components to find out whether it is a circuit problem or a component damage.

1)According to the circuit diagram, locate the fault point that may have the problem, and the GT102 electric tester can detect the positive and negative electricity.

2)Detect whether the circuit has normal positive or negative electricity.

3)Input positive voltage to the malfunctioning component (for example, headlight or motor). If the component works normally, it means that the circuit may be open. Otherwise, it means that the component is damaged.



2.Relay Test

When the car's headlights, turn signals, horn and the engine starter do not work, if there is no problem with these components after detection, you can check the relay switch.After the relay is removed from the car, connect the adapter based on the connection of the relay.




3.Fuel Injector Test

When the vehicle has difficulty in starting, acceleration and fuel consumption, etc, it is necessary to check the fuel injector. When detecting the fuel injector, if the fuel injector is driven to open or close and the fuel injector woks normally, it means that the fuel injector is normal. Otherwise, it means that the fuel injector is damaged.




4.Fuel Injector Cleaning

When the fuel injector is blocked, the fuel injection is not smooth. There are carbon deposits and thick sticky substance in the gap of the fuel injector. The designed fuel injection volume or atomization effect cannot be achieved, it needs to be cleaned.

1)Prepare a fuel injector cleaner pressurized can or a carburetor cleaner pressurized can(nozzle diameter of the pressurized cans : 4mm)

 2)Hold the manual cleaning tool tightly with your hand, and firmly fix the fuel injector with your fingers to prevent the pressure of the cleaner can from washing away the the fuel injector.

 3)Pay attention to the hazards of liquid to human body during manual cleaning, and take protective measures. Do not operate in dangerous places with open flames because the pressurized cans are extremely flammable. Choose an open place to facilitate the discharge of cleaning liquid.)


GODIAG GT102 Support Multiple Models:

GODIAG GT102 is used for DC 6-40v cars, motorcycles, trucks, buses, engineering vehicles,vessels, tractors, mining vehicles and other vehicles that use DC circuits.


GODIAG GT102 Comparison Chart:

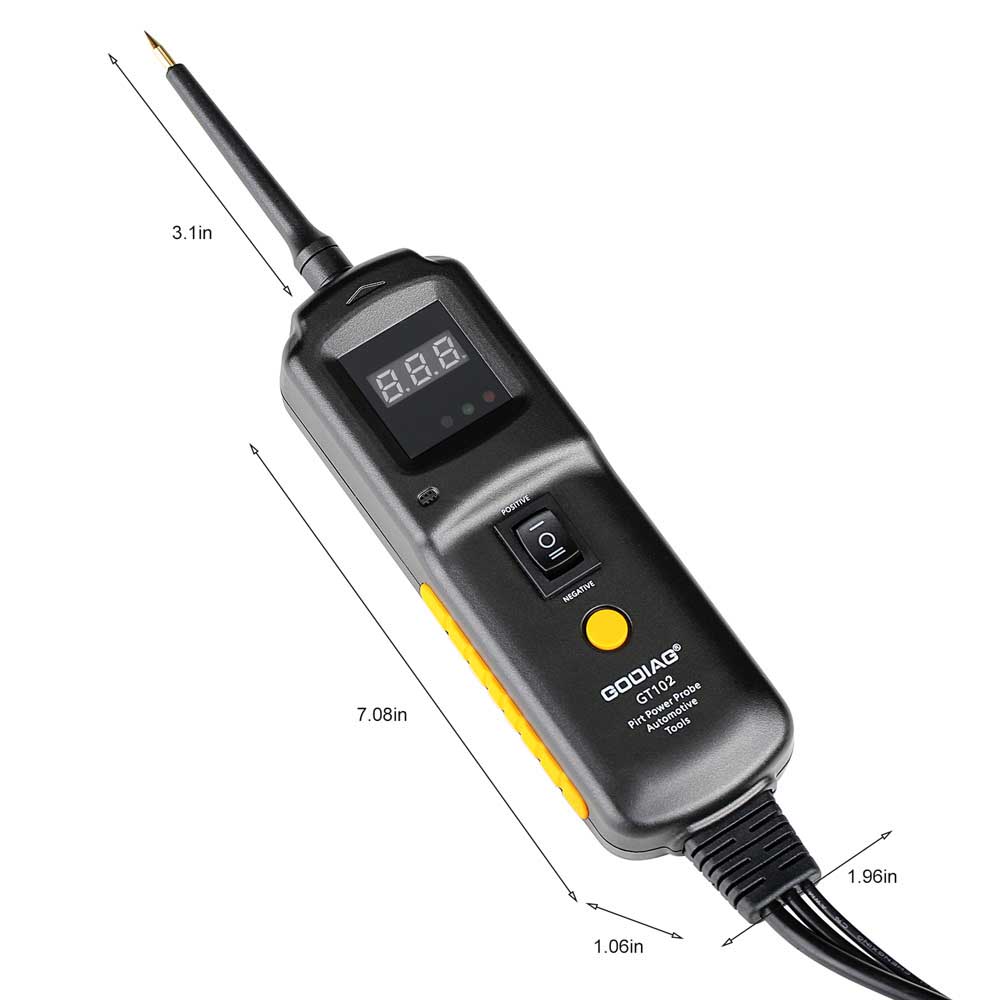

GODIAG GT102 Parameters:

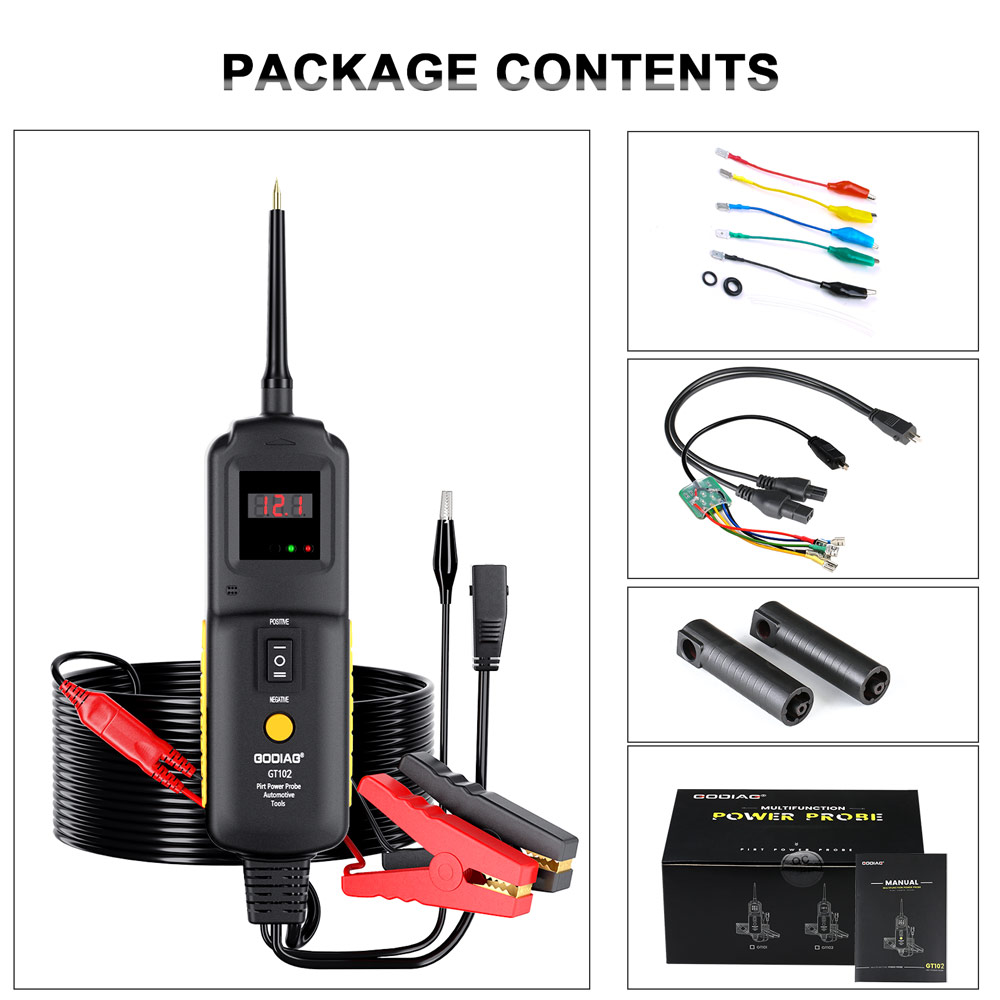

GODIAG GT102 Package Includes:

1pc x Main Unit of GODIAG GT102 PIRT Power Probe

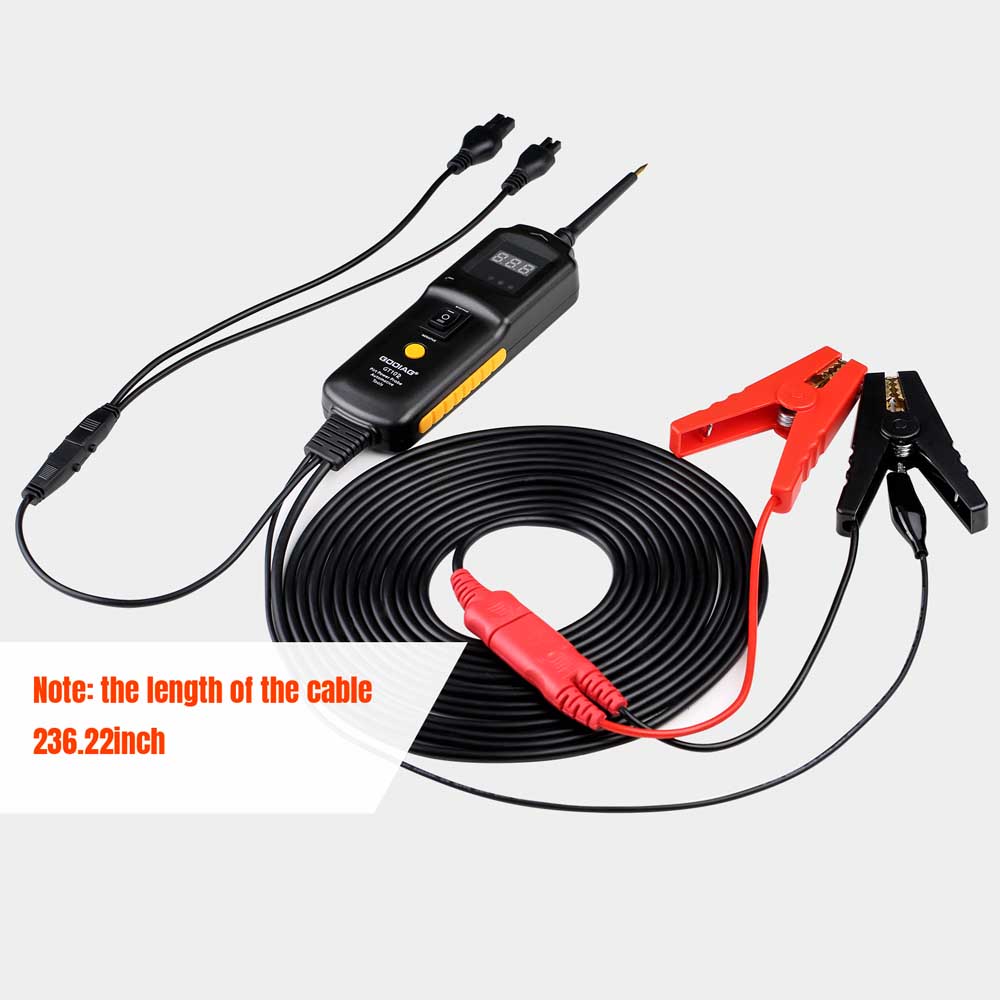

1pc x Clip to Connect Battery
1pc x Probe
1pc x Probe Cap
1pc x Fuel Injector Test Lead
1pc x 10mm Fuel Injector Cleaning Connector
1pc x 12mm Fuel Injector Cleaning Connector
1pc x Simple Relay Test Adapter
5pcs x Simple Relay Connection Leads
1pc x English Manual
