GODIAG GD801 Key Programmer Support Multi-Functions for ABS EPB TPMS EEPROM

GODIAG GD801 is a new Android-based vehicle trouble diagnostic device developed for Internet applications.It is characterized by covering wide range of vehicles,featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle. Meanwhile, taking advantage of mobile Internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

GODIAG GD801 Highlights:

1. Full Configuration: Immobilizer + odometer Adjustment + EEPROM/PIC Adapter + OBDII + ABS + Gear Learning + CVT Reset + Battery Match + EPB + TPS + SRS Reset + Low Tire + Steering Angle Reset + DPF Reset + Oil Nozzle Code.
2. Powerful Key Programming Function.
3. Diagnostic Function: Classify special function: ABS, EEPROM Adapter,Battery match, CVT learning, EPB, Gear learning, Immobilizer, TPMS (low tire) reset, Cluster calibrate,steering angle reset.
Specially designed for Android platform with clear and user-friendly interface.
4. Maintenance database: Equipped with powerful database.
5. One Key Upgrade: Built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
6. System setting: Set VCI formation, language, unit, data logging, user information etc.
7. Remote assistance: Achieve remote assistance by this function.
8. Support Multi-Languages: English, Italian, Spanish, French, Geman, Portuguese, Polish, Russian,etc.
9. Support Malaysian Proton Perodua with Extra Software License
10. Support Indian Maruti Mahindra TATA with Extra Software License
11. With Free Gift GT100 OBDII DetectorKey Programming Functions:

Key Programming Functions:

Programming & Erase Keys
Programming Remote
Pincode Read
Key Numbers Read
EEPROM Chip Reading
OBDII Diagnosis

Key Programming Highlights:

-Ford ESCAPE/ECOSPORTt/ESCORT/EVEREST/FIESTA etc supports up to 2018
-Renault CLIO/CAPTURE/DUSTER/KOLEOS etc supports up to 2015
-GM EQUINOX/MALIBU/TERRAIN supports to 2020
-GM CASCADA /ENCLAVE/REGAL/ESCALADE/CAMARO/IMPALA etc supports up to 2019
-Hyundai ACCENT/ELANTRA SEDAN/G90/GENESIS/KONA/SONATA etc supports up to 2019
-Landrover DISCOVERY  4/RANGE ROVER/RANGE ROVER EVOQUE supports up to 2015
-Volvo S60/V40/XC60 supports to 2017
-SUBARU ASCENT/CROSSTREK/FORESTER etc supports up to 2019


Mileage Correction Functions:

Read Odometer
Write Odometer
Read Flash
Write Flash
Read Eeprom
Write Eeprom
One-Click Upgrade
Wide Vehicle Coverage

Mileage Correction Highlights:

-Chrysler 300C/PACIFICA/CHALLENGER/CHARGER/DURANGO/RAM etc supports up to 2018
-Ford F250/F350/F450/F550/FIGO/ASPIRE/KA supports up to 2018
-Renault CAPTUR/CLIO/TRAFIC IV supports up to 2017
-GM TRAILBLAZER supports up to 2019
-GM ESCALADE / XTS /  COLORADO supports up to 2018
-Support part of Bentley/Maseratti/Porsche mileage correction

Technical Parameter:

● Operation system: Android 5.1.1
● CPU: RK3128 Quad-Core，ARM Cortex A7@1.2Ghz
● Battery: 3800mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity: 16GB
● LCD: 7.0 inches
● LCD resolution: 800*480
● Touch screen: Capacitive touch screen
● Wi-Fi: supported
● Working temperature: -20℃~55℃（14℉~131℉）● Storage temperature: -20℃~70℃（-4℉~158℉）
● Weight: about 850g
● Dimension: 214*133*28 mm

OBDII&EOBD Full Functions:

Protocols supported by OBDII:


• SAE J1850 PWM

• SAE J1850 VPW

• ISO 14230-4

• ISO 9141-2

• ISO 15765-4

• Supported functions of OBDII:

• Read Codes

• Erase Codes

• Read Live Data (can be displayed in three modes)

• Read Freeze Frame

• Vehicle information

• Component Test

• On-Board Monitor Test

• O2S Monitoring Test

• I/M Readiness

• HELP (Query trouble code)

EEPROM, PIC / Freescale:

Read Pin Code (from engine ecu,immobiliser,bcm,dashboard etc)

Data initialization Toyota/Lexus (immobilizer initialization, smart key system), Subaru (smart key system)
Data Recovery
Read/Write EEPROM


Supports 14 Maintenance RESET Functions:


• OIL/Services Reset

• ABS Bleed

• GEAR Learning

• CVT Reset

• Battery Match

• EPB

• TPS

• SRS Reset

• TPMS (LOW TIRE)

• Steering Angle Reset

• DPF Reset

• Injector Code

• SUS Reset

• Instrument Activation

Supported Vehicles List:

-Ford ESCAPE/ECOSPORT/ESCORT/EVEREST/FIESTA, etc, supports up to 2018
-Renault CLIO/CAPTURE/DUSTER/KOLEOS, etc, supports up to 2015
-GM EQUINOX/MALIBU/TERRAIN supports to 2020
-GM CASCADA /ENCLAVE/REGAL/ESCALADE/CAMARO/IMPALA, etc, supports up to 2019
-Hyundai ACCENT/ELANTRA SEDAN/G90/GENESIS/KONA/SONATA, etc, supports up to 2019
-Landrover DISCOVERY  4/RANGE ROVER/RANGE ROVER EVOQUE supports up to 2015
-Volvo S60/V40/XC60 supports to 2017
-SUBARU ASCENT/CROSSTREK/FORESTER, etc, supports up to 2019
-Chrysler 300C/PACIFICA/CHALLENGER/CHARGER/DURANGO/RAM, etc, supports up to 2018
-Ford F250/F350/F450/F550/FIGO/ASPIRE/KA supports up to 2018
-Renault CAPTUR/CLIO/TRAFIC IV supports up to 2017
-GM TRAILBLAZER supports up to 2019
-GM ESCALADE / XTS /  COLORADO supports up to 2018
-Support part of Bentley/Maseratti/Porsche mileage correction
For IMMO: BMW optimization, Opel, Roewe/MG optimization, Zhengzhou Mazda, Zotye, Zhengzhou Nissan, SAIC Maxus, Mitsubishi, Pentium, Hongqi, Jiangling
For odometer: Subaru optimization, Volvo, Toyota/Lexus, Alfa Romeo, Ferrari optimization, Maserati

GODIAG GD801 Functions List:

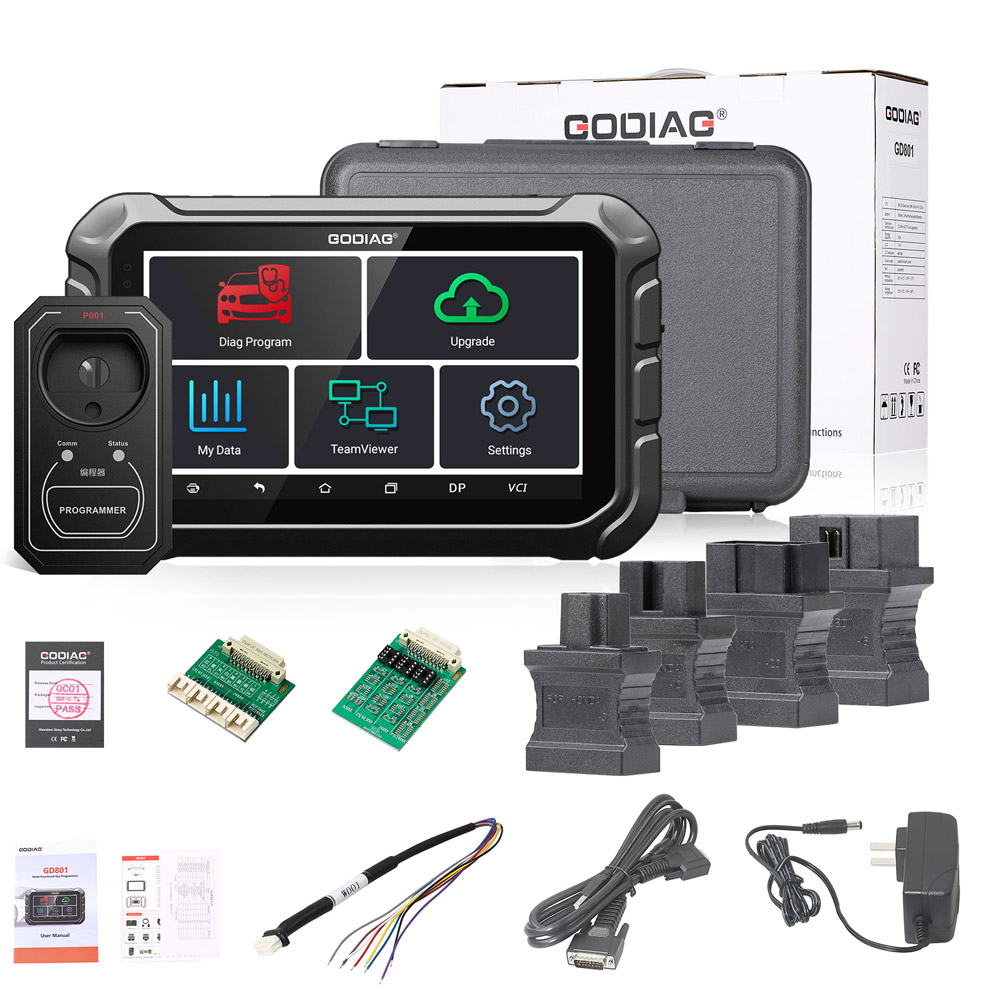

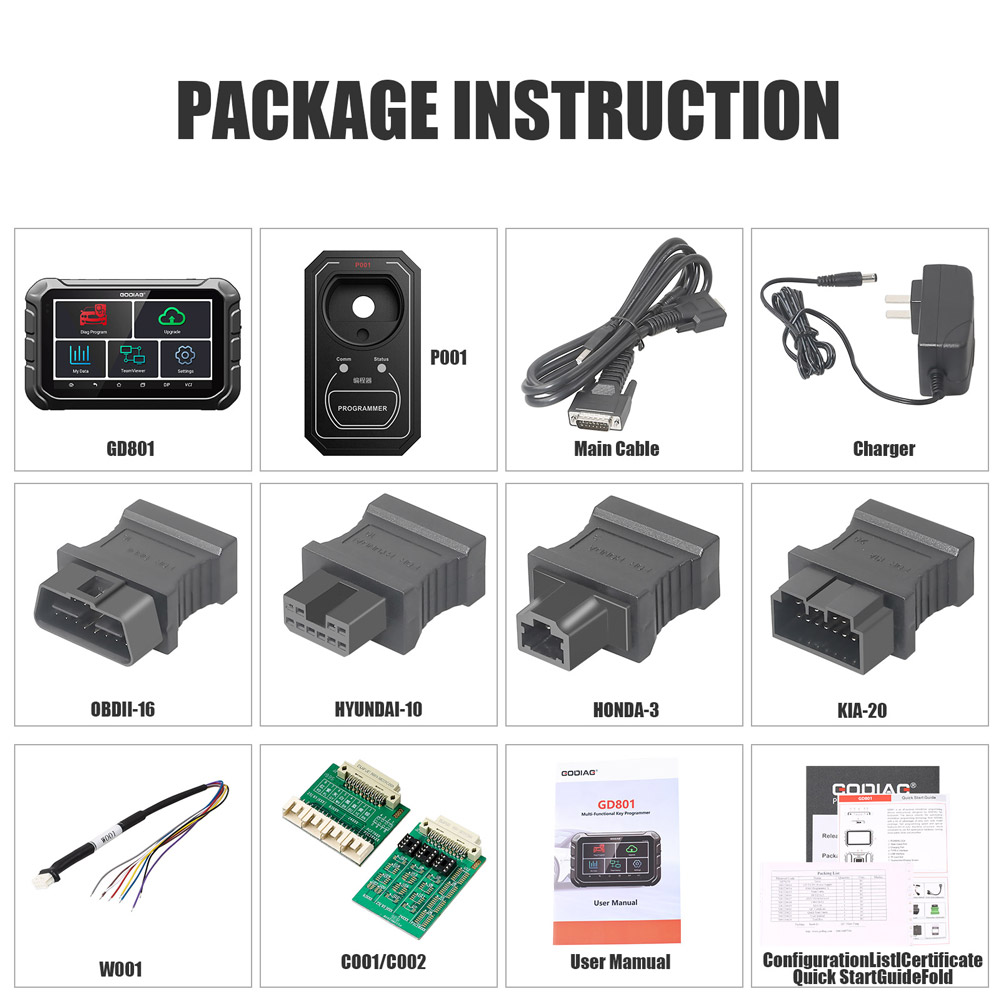

Package List:

1. Key Master DP Plus Unit
2. Main Wire
3. 12V2A DC Charger
4. KIA-20
5. OBD II-16 Connector
6. HONDA-3
7. HYUNDAI/KIA-10
8. P001 Programmer Unit
9. C001/C002 Circuit Board
10. W001
11. Configuration List/Certificate/Quick Start Guide Fold
