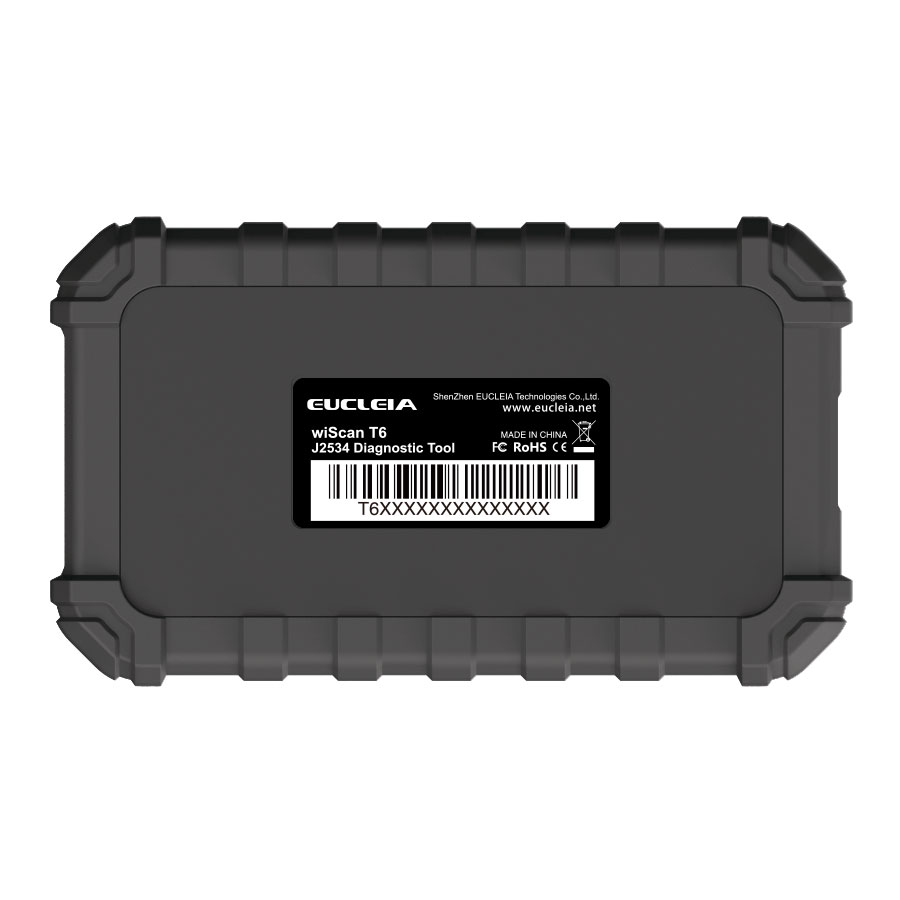

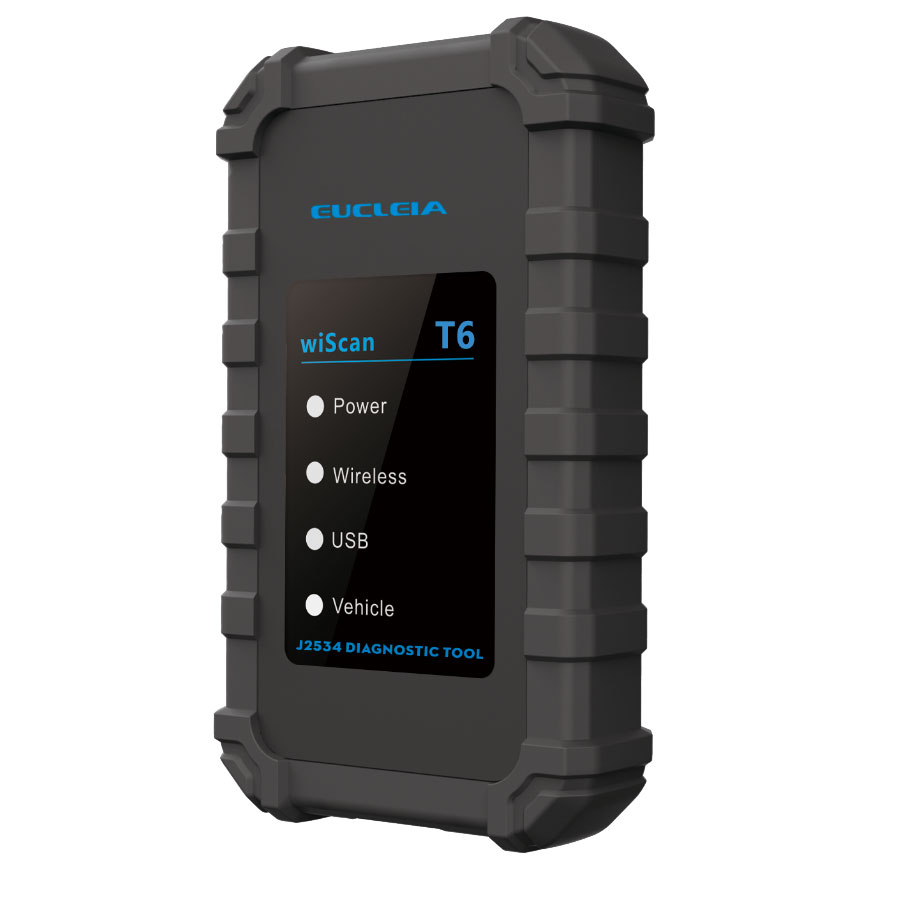

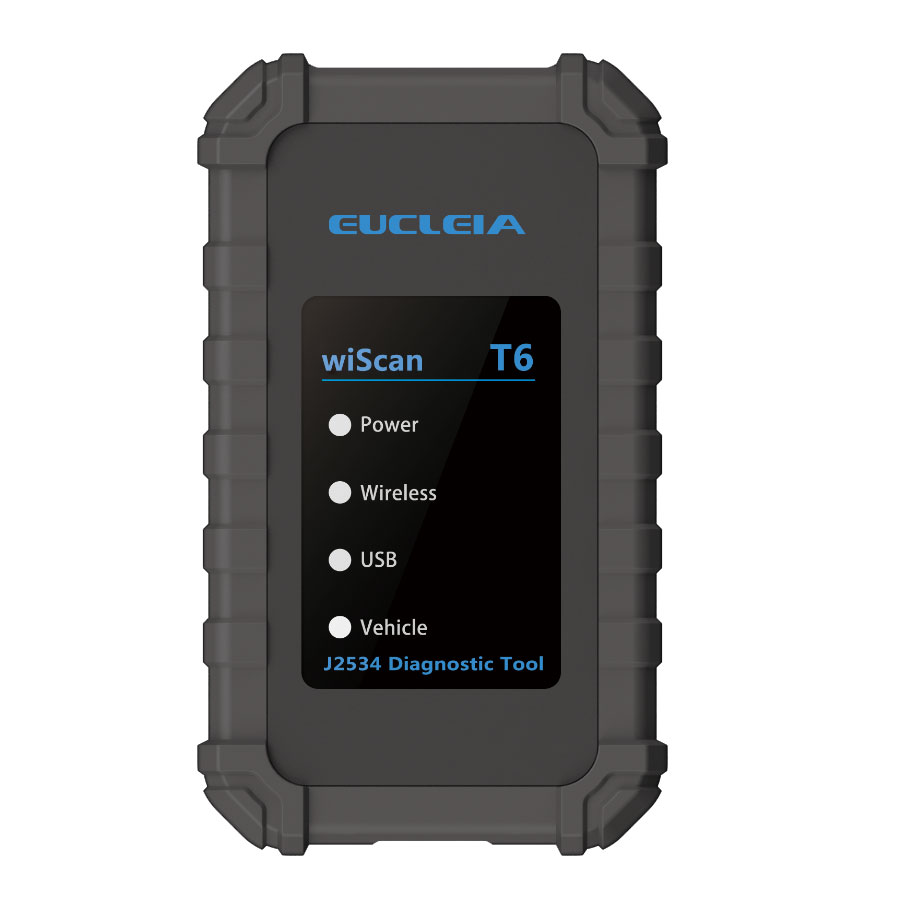

EUCLEIA wiScan T6 J2534 Diagnostic Tool

EUCLEIA wiScan T6 J2534 Diagnostic Tool Wireless VCI for TabScan S7W/ TabScan S8

wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major original manufacturer diagnosis software and function. wiScan T6 is a professional,reliable, fast, flexible and with wide adaptation diagnostic device.

SAE J2534 is a standard devised of two independent parts: subscription software and a J2534 compliant Pass Thru vehicle interface. The subscription software comes directly from the automaker, runs on your shop PC or laptop, and can either be web-based or CD-based. The subscription fees are charged differently for each automaker.

EUCLEIA wiScan T6 Features:

Compatible with J2534 standard interfaces

T6 Supports numerous OEM diagnostic software such as Volkswagen, Jaguar Land Rover,

Volvo, Honda, Toyota, Ford, Mazda, GM, etc.

Equipped with high performance processor and perfectly compatible with the original

diagnosis function

Network upgrades support

Rugged design can be used in a variety of harsh environments

EUCLEIA wiScan T6 Function List:

Supports OEM diagnostic software and diagnostic function

EUCLEIA wiScan T6 Car Model and Software Support:

Brand	Models	Software
Toyota	Toyota、Lexus、Scion	Techstream
Honda	Honda、Acura	HDS
Volvo	Volvo	VIDA
VW	Volkswagen、 Audi、 Seat, Skoda、Bentley、 Lamborghini	ODIS
GM	GM	GDS2
Mazda	Mazda	Mazda IDS
Ford	Ford	Ford IDS
JLR	Jaguar、Land Rover	SDD

Note: 24V model is not supported.

EUCLEIA wiScan T6 System Support:

System support: windowsXp、 win7、 win8、 win10and follow-up version of the 32 bit or 64 bit operating system.

EUCLEIA wiScan T6 Specifications:

Processor	ARM 32bit Cortex M3
Flash	512KB
RAM	128KB
Connectivity	USB Type-B,USB 2.0

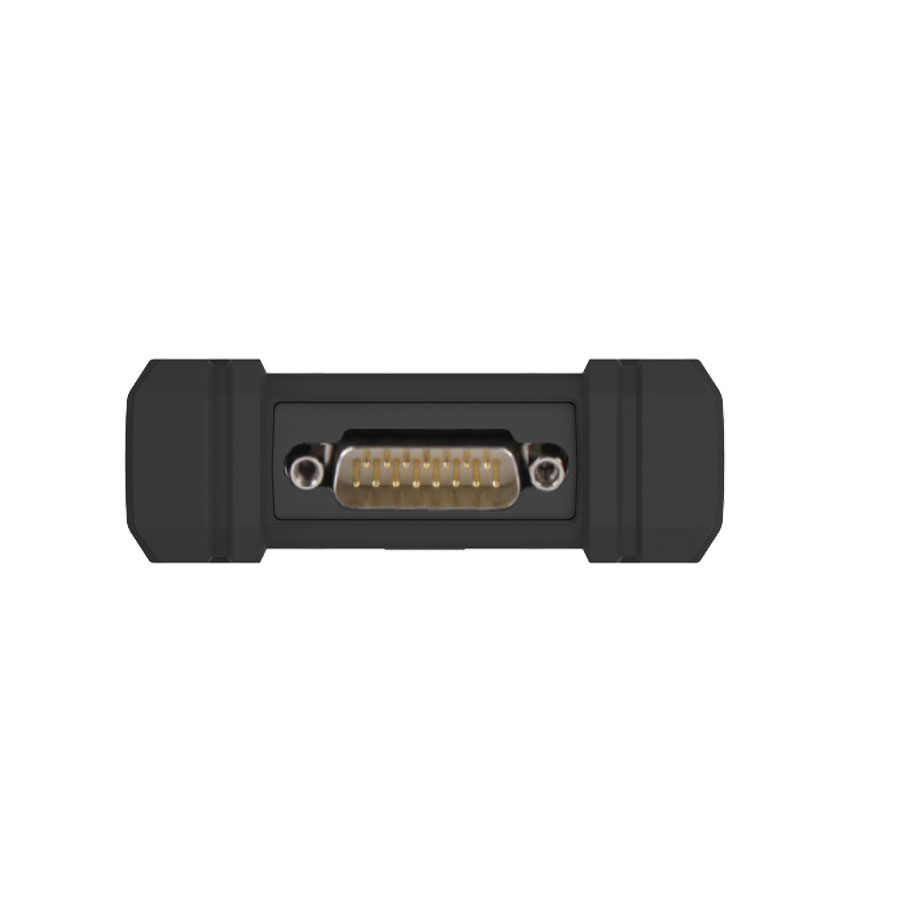

Interface	DB15， Double row joint
Connection mode	The main test line connected with the car, and USB connected with PC
Standard	Fully compatible with SAEJ2534-1 and SAE J2534-2 Supports OEM Diagnostics software
Support protocols	ISO9141(K-Line) ISO14230-2 (K-Line) ISO15765 (CAN) SAE-J1850 PWM (Ford SCP) SAE-J1850 VPW (GM Class2) Single line CAN(GMLAN)
Packing size ( mm)	292mm205mm80mm
Product dimension ( mm)	145mm85mm29mm
Net Weight	200g
Gross weight	1100g

EUCLEIA wiScan T6 Working Environment:

Input voltage: 7~18V DC

Working current: <300mA@DC 12V

Working temperature: -20~70 degrees Celsius

Storage humidity: <80%

Storage temperature: -40 to 80°C (-4 to 158 °F)

Housing: Rubberized external and rugged internal protection

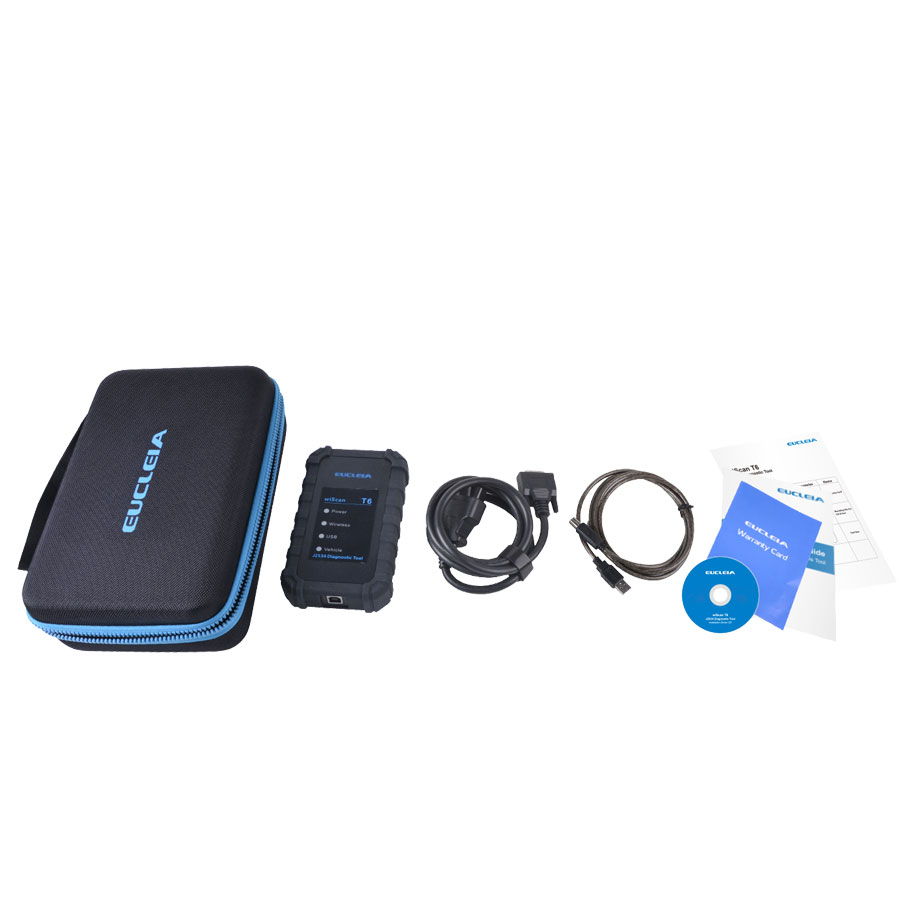

EUCLEIA wiScan T6 Package Includes:

1pc x wiScan T6

1pc x USB cable

1pc x CD driver

1pc x Quick start guide

1pc x Main line

1pc x Tool box

1pc x Warranty card
