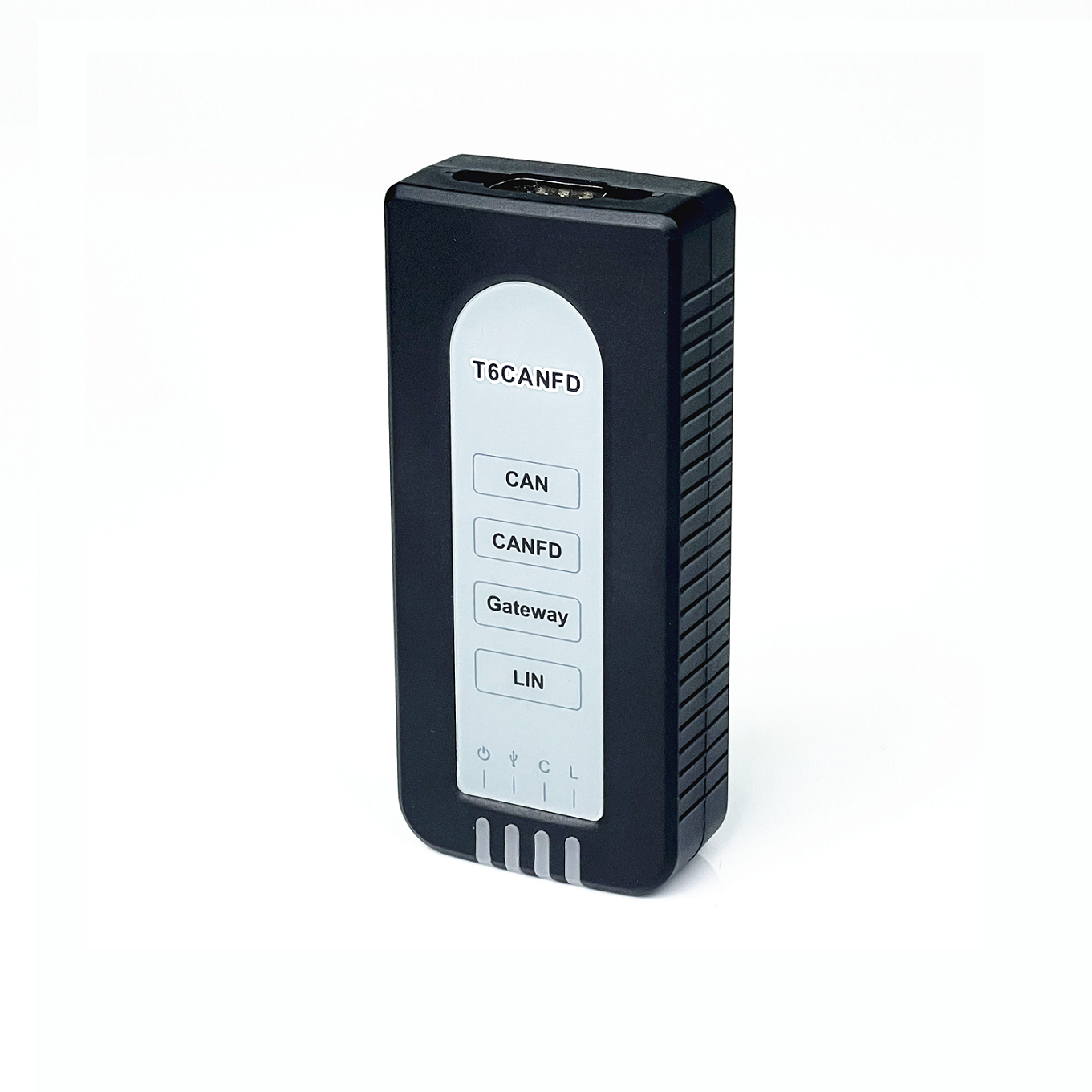

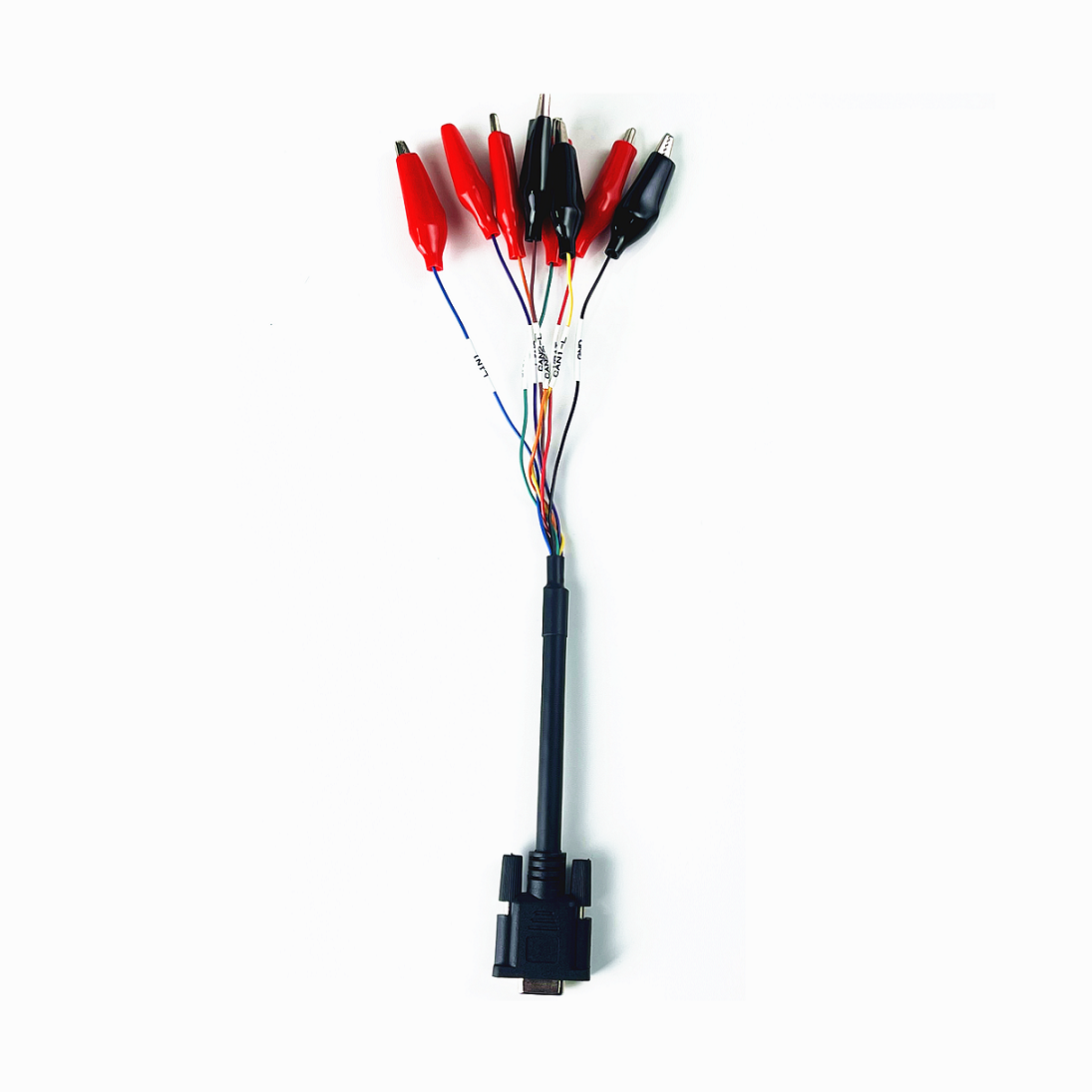

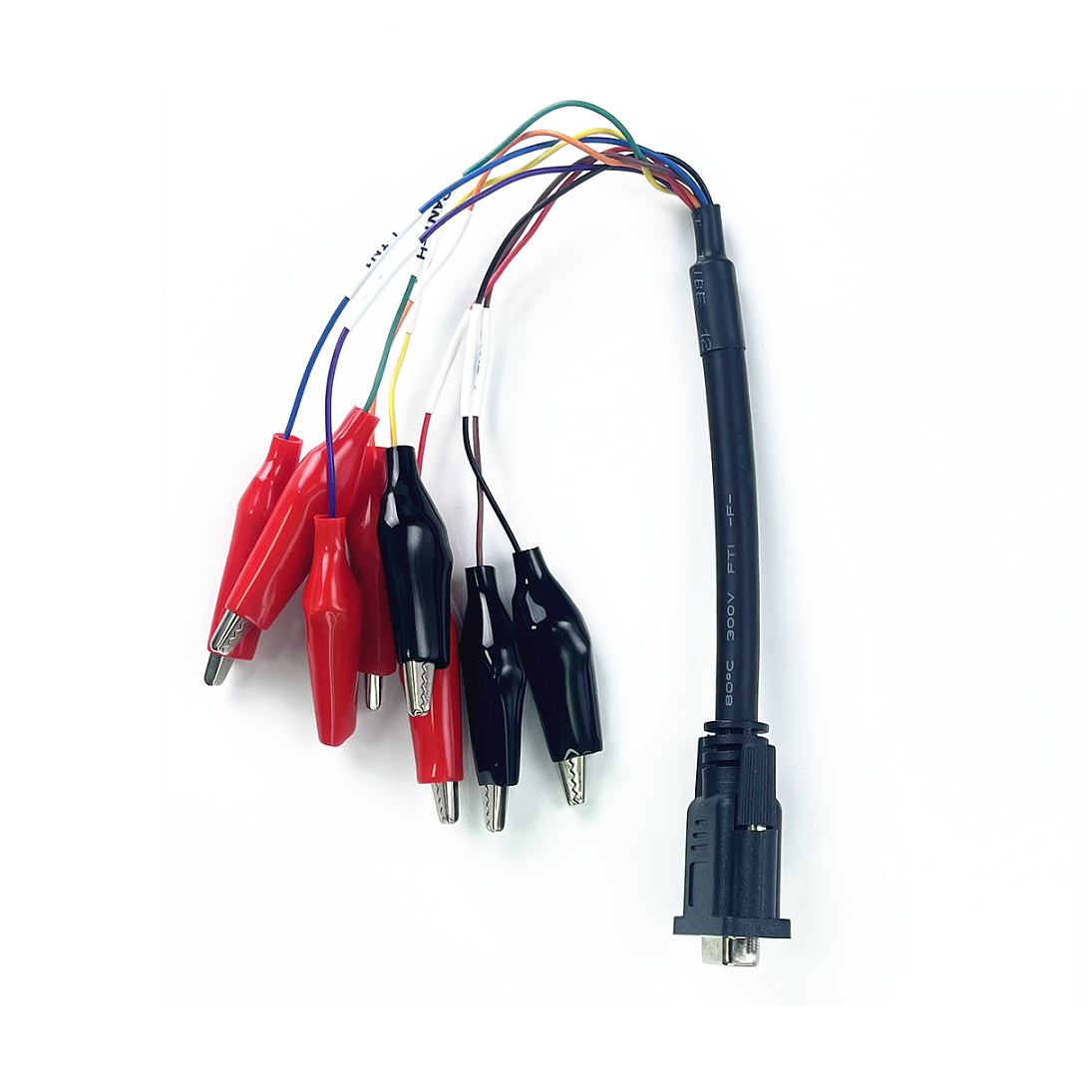

Eucleia TabScan T6CANFD For EV Vehicles

Message CollectionMessage SendingGateway Simulation

Affordable for Everyone, a Money-Saving Tool for Automotive Technicians

Product Description

T6CANFD is specially designed for automotive electronic maintenance personnel, new energy vehicle maintenance technicians, and automotive electronic development engineers. It integrates data acquisition capabilities for multiple communication protocols, including CAN, CANFD,and LIN, and features gateway simulation to meet various automotive electronic testing needs.

Three Major Functions in One

CAN and CANFD

1. Supports simultaneous acquisition of two CAN signals2. Supports automatic recognition of module baud rate3. Timestamp resolution of 0.1 milliseconds4. Baud rate range: 5KBPS - 1000KBPS5. Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)

Common CAN Protocol Modules:Engine Control Unit, Airbag Control Unit, Steering Control Unit, etc.Common CANFD Protocol Modules:Airbag Control Unit, Battery Management Module, Blind Spot Detection Module, etc.

LIN

1. Supports dual channels LIN1 and LIN2  2. Supports automatic recognition of slave device ID addresses  3. Baud rate range: 4800 bps to 20 Kbps  4. Supports LIN 2.0 protocol   Common LIN Protocol Modules:  Compressor, Wiper Motor, Window Motor, etc.

Universal Gateway Simulation

1. Most ECU modules, when removed from the vehicle, cannot communicate directly with a diagnostic tool due to the lack of gateway connection.

2. T6CANFD supports simulating a gateway, allowing diagnostic tools to connect with ECU modules, enabling diagnostic functions.

3. While using the simulated gateway function, T6CANFD can also synchronously collect data transmitted between both parties, providing support for further analysis and diagnostics.

Target Users and Repair Scenarios

Automotive Electronic Maintenance Personnel

Can be used for driving tests of electronic modules such as airbags, instrument clusters, and air conditioning panels after removal from the vehicle.

The universal gateway simulation function allows diagnostic tools to communicate with most modules for diagnostics.

Engine Control Unit

Steering Control

Instrument Cluster

More Automotive Electronic Components

More Automotive Electronic Components

1. Can be used for driving tests of electronic modules such as compressors, DCDC, and onboard chargers after removal from the vehicle.

2. The universal gateway simulation function allows diagnostic tools to communicate with most modules for diagnostics.

Battery Pack

Compressor

Motor Controller

OBC Onboard Charger

DCDC Converter

More Automotive Electronic Components

Powerful PC Management Software of Eucleia TabScan EV

1. PC Software Management

Supports users in adding third-party PC software for compatibility management, such as data collection software, battery pack analysis software, and compressor testing software. It allows for one-click import and management of various environmental dependencies, ensuring smooth software operation.

2. Data Acquisition

Automatic Baud Rate Recognition

For users unsure how to set parameters, the system can automatically scan and determine the required channel number and baud rate, simplifying the configuration process, making it easy for beginners to operate.

Multiple Save Formats

Users can choose to save collected data in CSV format, which can be opened with spreadsheet programs for easy analysis and data visualization; save in CAN format for professional CAN bus analysis; or save as TXT text files for easy viewing and simple editing.

Data Replay

Users can replay previously collected data, commonly used for module simulation drive tests, such as compressor drive tests, instrument wake tests, and motor drive tests, to ensure performance in a simulated environment, thereby reducing rework rates and improving testing efficiency.

LIN Automatic Slave Recognition

This feature can automatically identify all device ID addresses connected to the LIN bus, such as automatically recognizing the ID address of the window motor, allowing users to receive and send data for the identified IDs.

3. One-Click Entry into Enhanced Maintenance Mode for Tesla

Supports the use of a Tesla diagnostic adapter harness to activate the enhanced maintenance mode on the large screen with one click (activation code required). This allows access to special functions on the screen, such as software version updates, brake pad replacement, refrigerant charging, headlight calibration, airbag programming, high-voltage battery replacement, data stream reading, and more. It also supports one-click access to the corresponding vehicle maintenance documentation.
