EUCLEIA TabScan S8 Free Update Online for
18 Months, and will cost 350usd for another 18 months.
Breakthrough into the age of high-end
dual-mode:
High-end Dual-mode: Perfect adapt with
software ,more powerful in universal and original manufacturer
diagnosis.

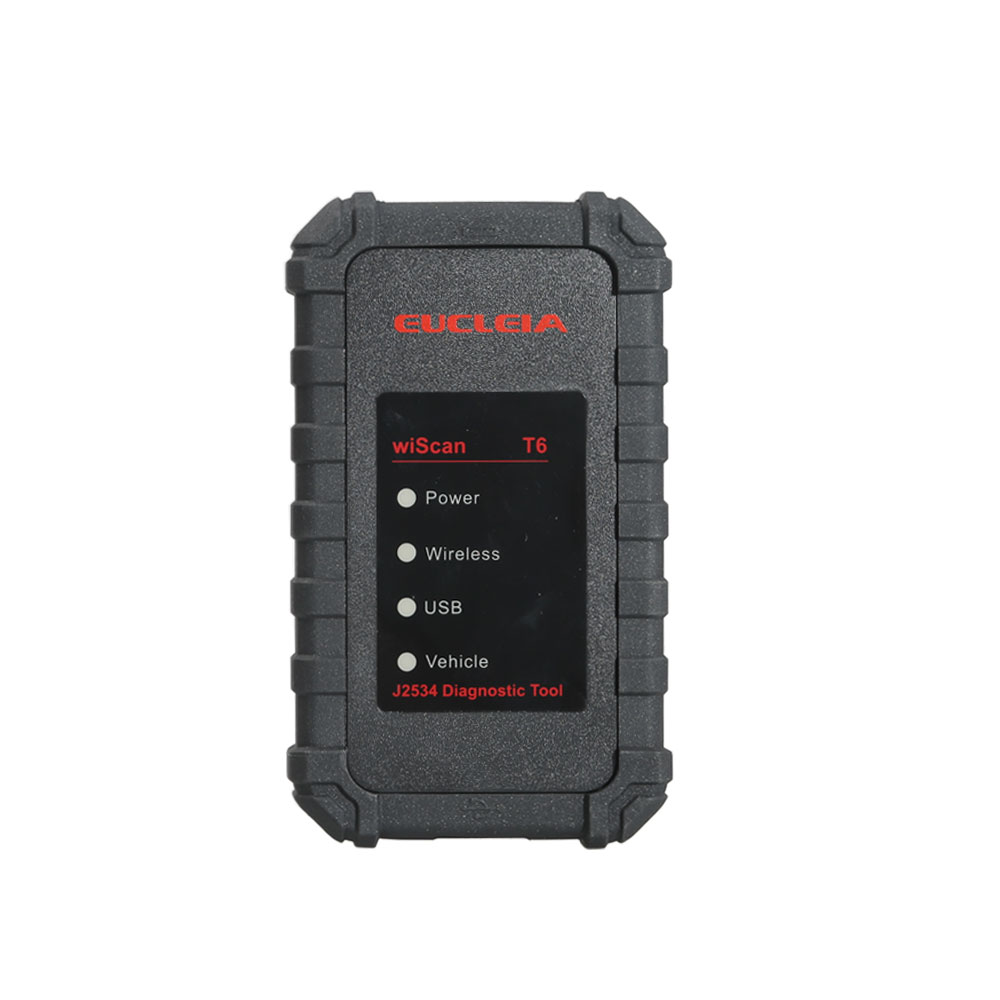

Multi-purpose: The wiScan T6 VCI can be
connected with tablet, PC and phone App to achieve
multi-purpose.

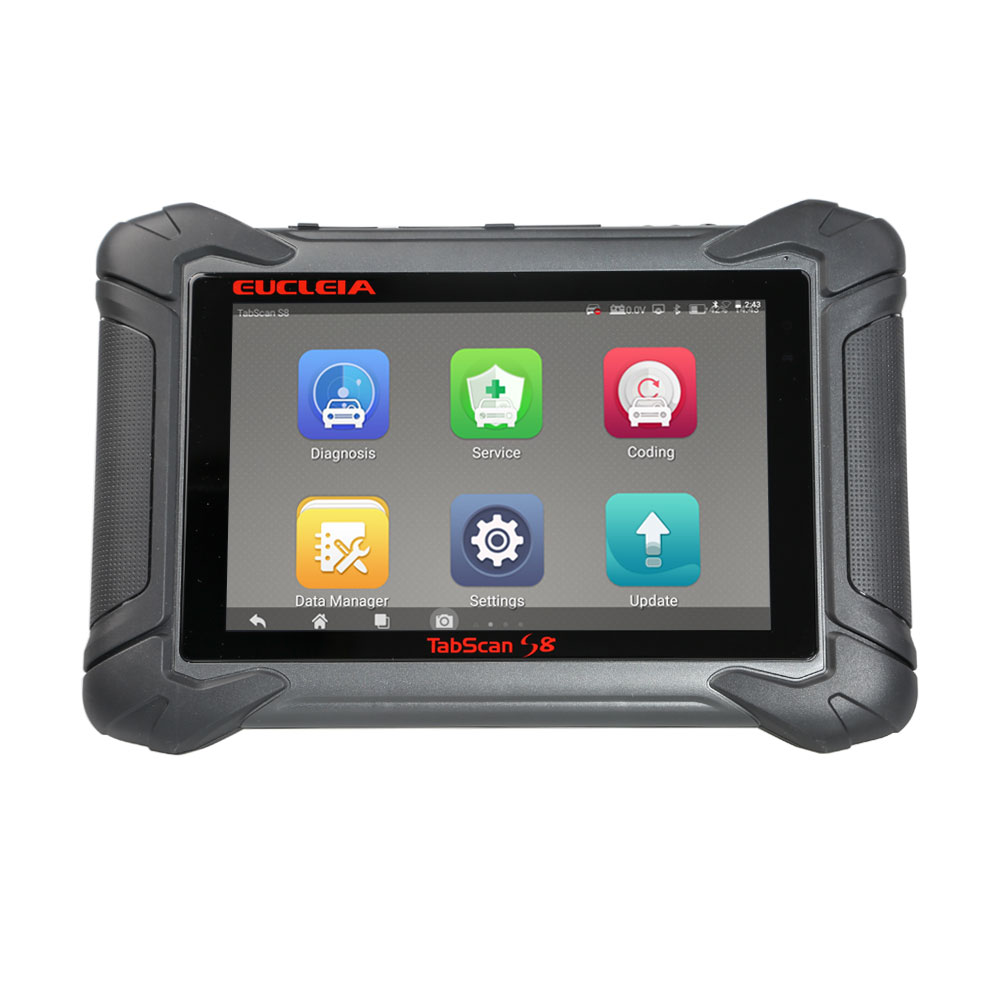

Built with RK3288( Cortex-A17 1.8GHz CPU),
4G RAM,32G ROM, and 8" capacitive HD touch screen, Tabscan S8 efficiently
provides comprehensive vehicle diagnosis and analysis.
EUCLEIA TabScan
S8 Features And
Advantages:
●Rk3288 tablet solution: Cortex-A17 1.8GHz
CPU ,Faster Booting in 10 Seconds, Fast Loading Apps Without Delay, Webpage
Speedy Loading
●Extending J2534: More PDU protocols and
access were added,support programing voltage .
●Unique patent: Intelligent searching
patent, tenfold faster than normal diagnosis.
●Humanity button: Real-time voltage and
connection dispaly, one-click reading VIN code.
●Convenient application: Provide PCBU
Query, remote assistance, workshop management and other convenient
service.
● Easier assistance: Feedbacks
automatically send to server which makes service more
easier.
EUCLEIA TabScan
S8 Functions:
Diagnosis function: Read and clear DTC, live data, active test,
ECU information, freeze frame etc.Service functions: ABS Bleeding, EPB Reset, Service Reset, CKP
Learning, Throttle Reset, SAS Reset, Battery Reset, CVT Reset, TPMS,
etc.Coding function: Brush hiding functions (VW, Audi,
Skoda,Seat and constantly adding)System functions: The system also includes the most recent
auto-VIN technology that identifies vehicles with one touch and exclusive
auto-scan function. One-click clear DTCs, one-click update, data record and
replay, workshop manager, database query, repair video research, vehicle data
manager, etc.
EUCLEIA TabScan
S8 Mode Two: Original Manufacturer
DiagnosisNumerous brands, accurate diagnosis, coding
,on-line programming, date searching etc.
Eucleia TabScan S8 Support
Protocols:
Compatible
SAE-J2534-1&SAE-J2534-2
ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 K-Line
ISO-11898 DWCAN
SAE-J1850-VPW(GM
Class2)
SAE-J1850-PWM(FORD
SCP)
SAE-J2411 Single Wire
CAN(GMLAN)
SAE-J2610
SCI(Chrysler)
SAE-J2740 GM ALDL
SAE-J2809 (HONDA
DIAG-H)
VAG TP16 CAN
VAG TP20 CAN(SAE
J2819)
VAG KW81(SAE
J2818)
BMW DS2
FORD UBP
Eucleia TabScan S8
Specifications: CPU | 1.8GHz quad-core |
RAM | 4GB |
ROM | 32GB |
External Storage | Support 32GB,up to
64GB |
Battery | 7600mAh lithium
battery |
Screen | 8-inch capacitive HD
1280x800pixels |
Operation System | Android |
Interface | Micro USB
2.0,HDMI,RJ45 |
WIFI | WIFI2.4/5G,FPC |
Bluetooth | Bluetooth V4.0(Bluetooth low
energy) |
Connectivity | Bluetooth |
Charging Method | Desktop charger and car
charger |
Diagnostic Connector | 7 connectors |
Product Size | 265mm*175mm*27.5mm |
Processor | ARM 32bit Cortex M3 |
Flash | 512KB |
RAM | 128KB |
Support OS | Windows Xp, win7, win8,
win10 |
Communication Connector | DB15 |
Wired Connection | USB Type-B,USB 2.0 |
Wireless Connection | Bluetooth3.0/4.0 |
Connectivity | Bluetooth / Connect computer using USB
cable |

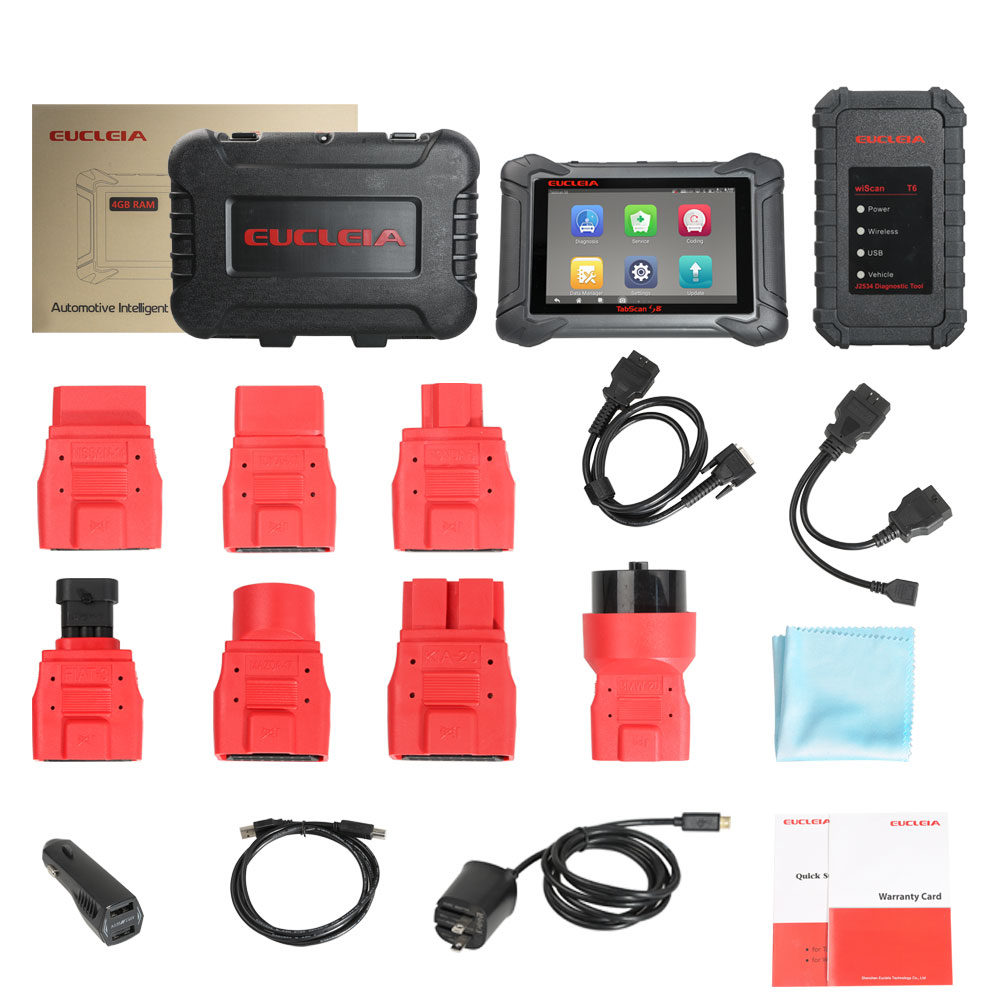

EUCLEIA TabScan
S8 Package
includes:

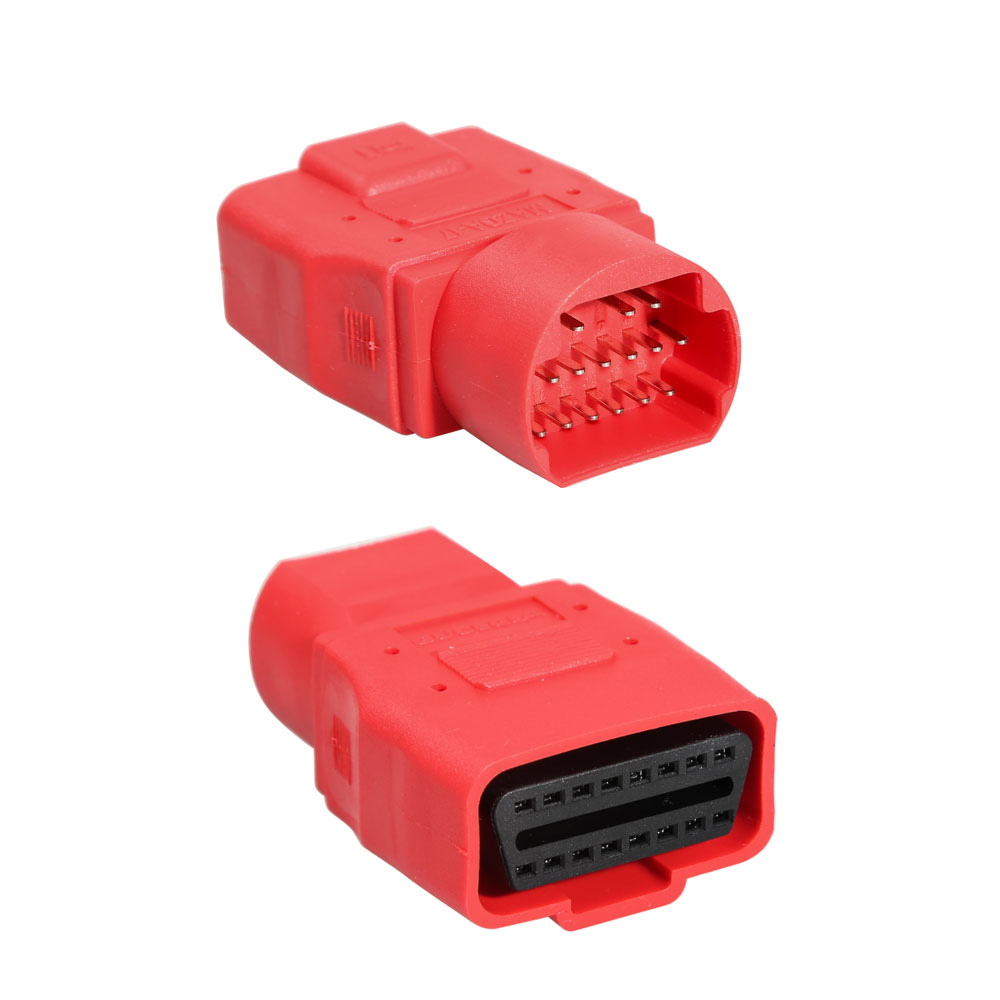

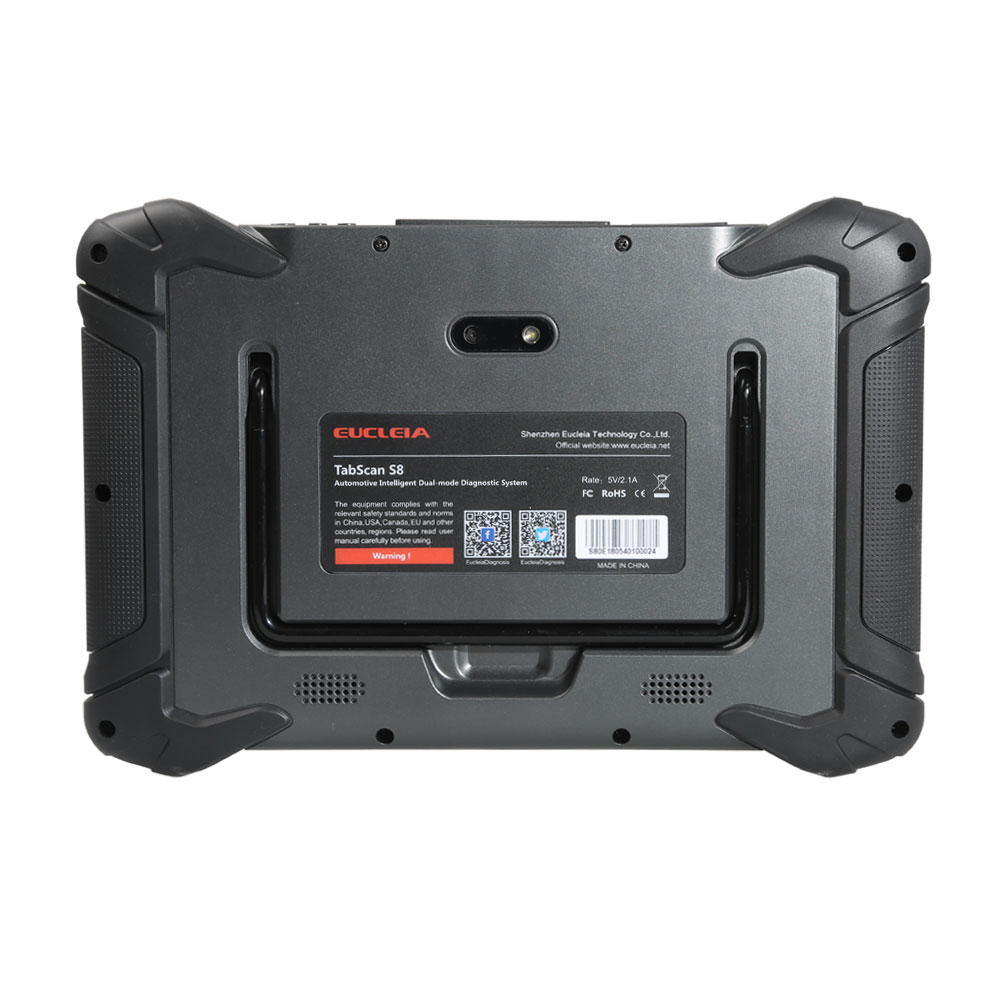

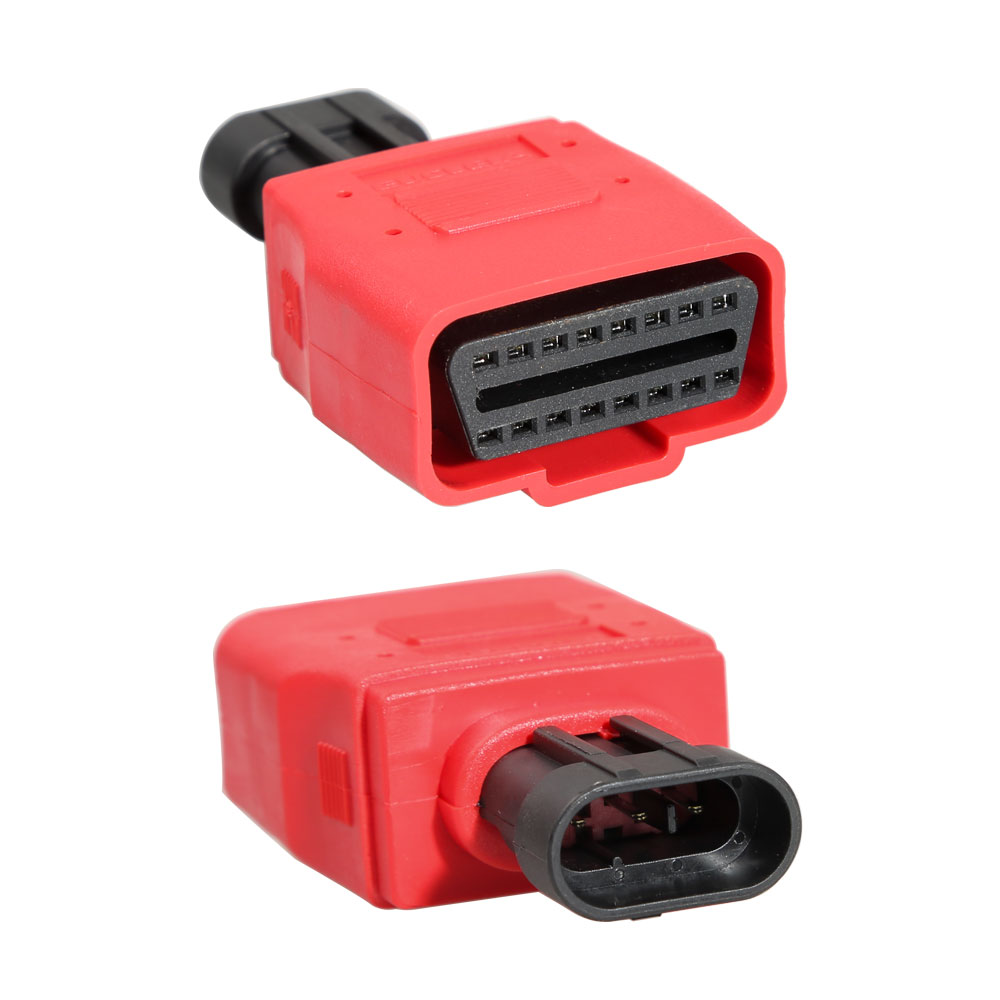

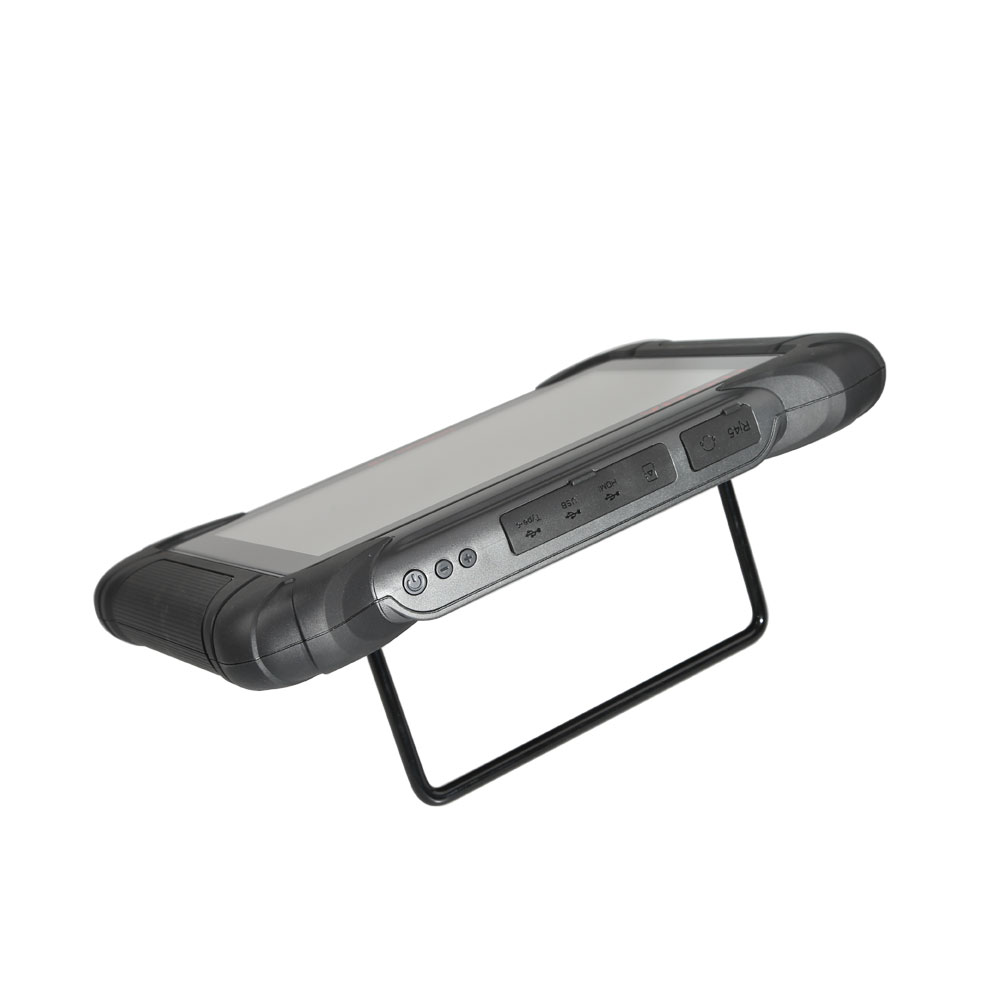

1pc x TabScan s8

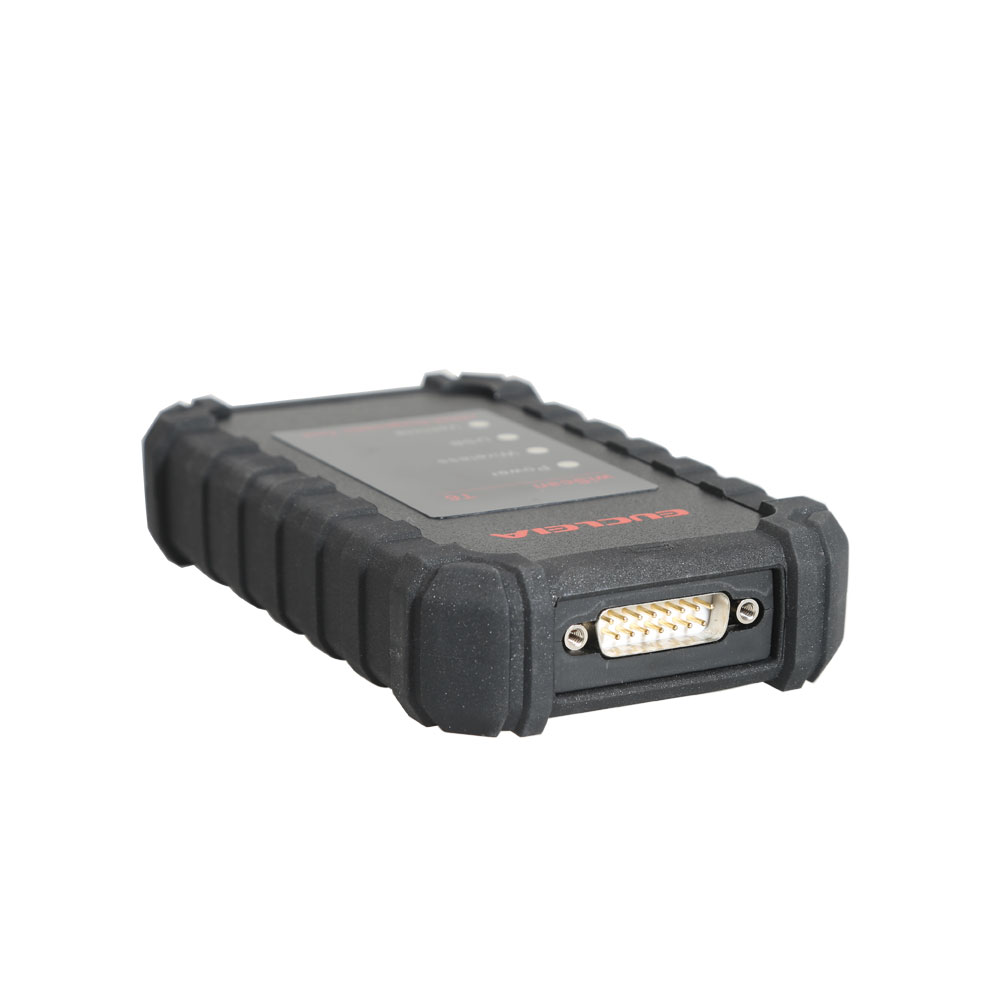

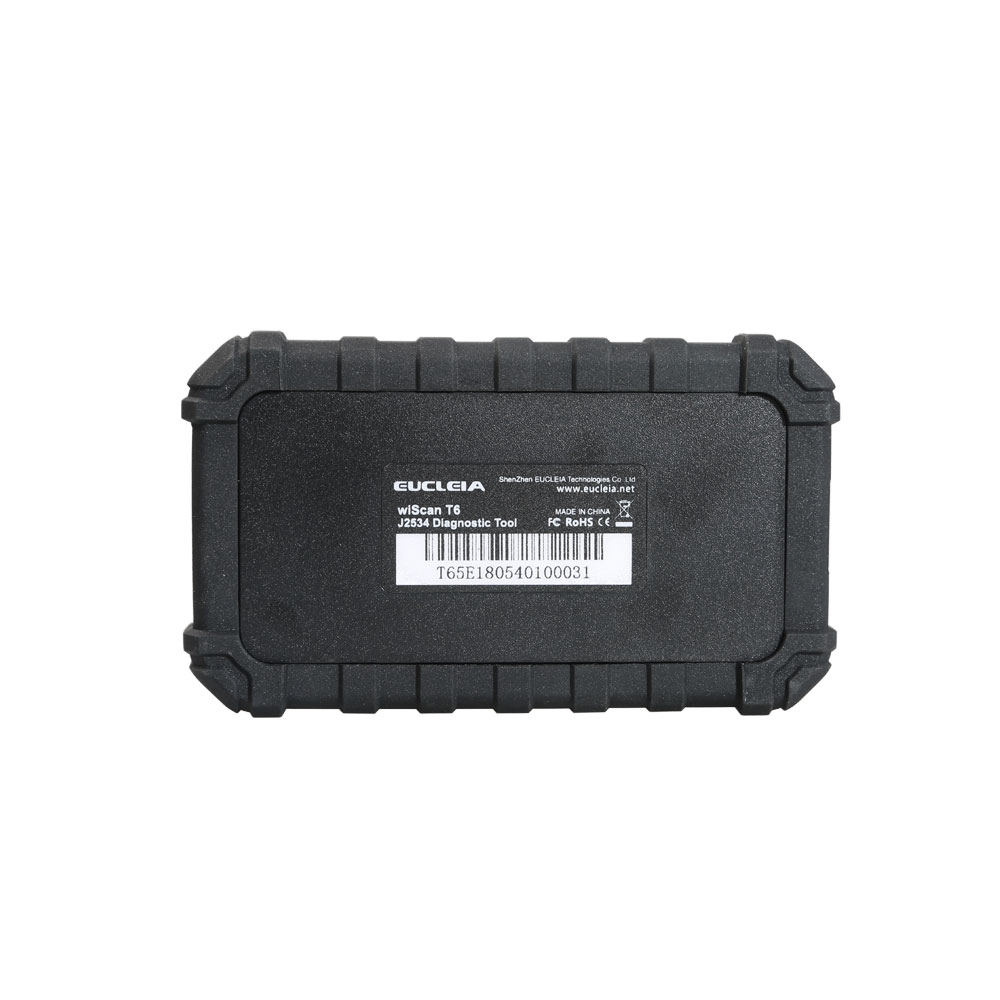

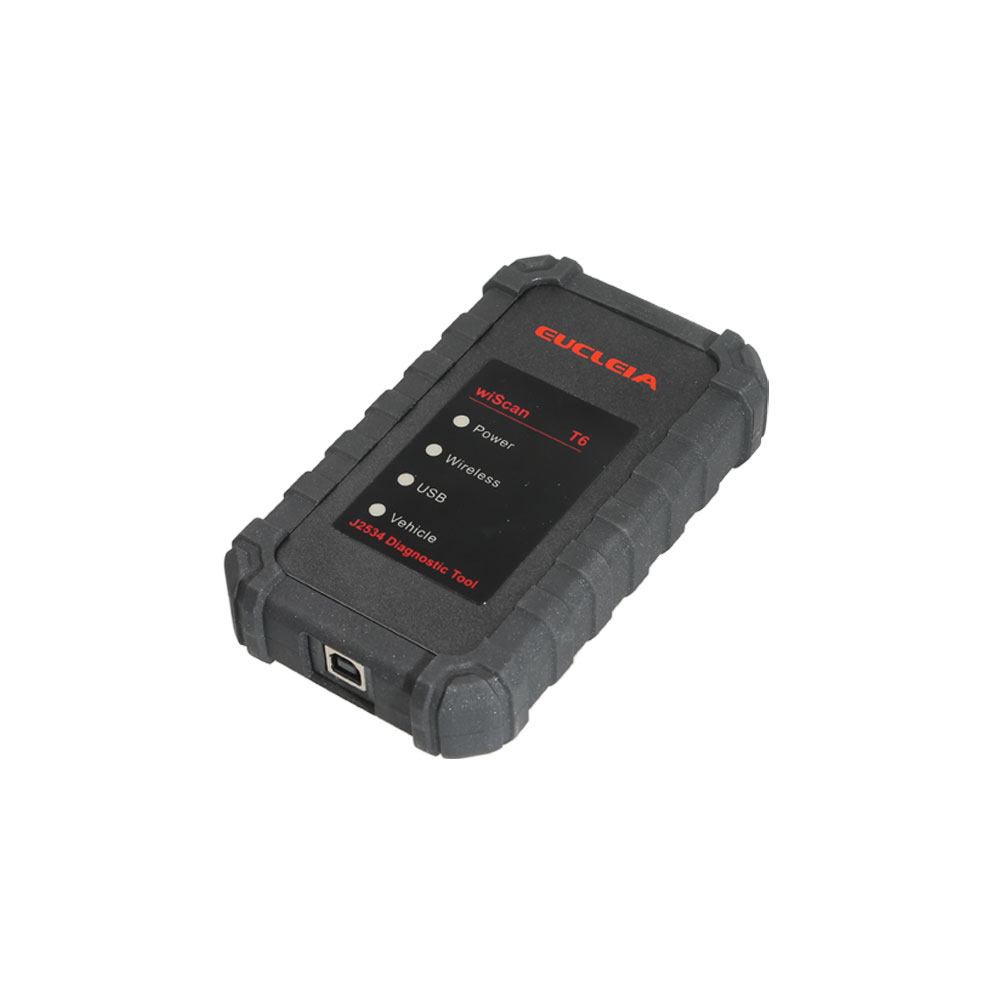

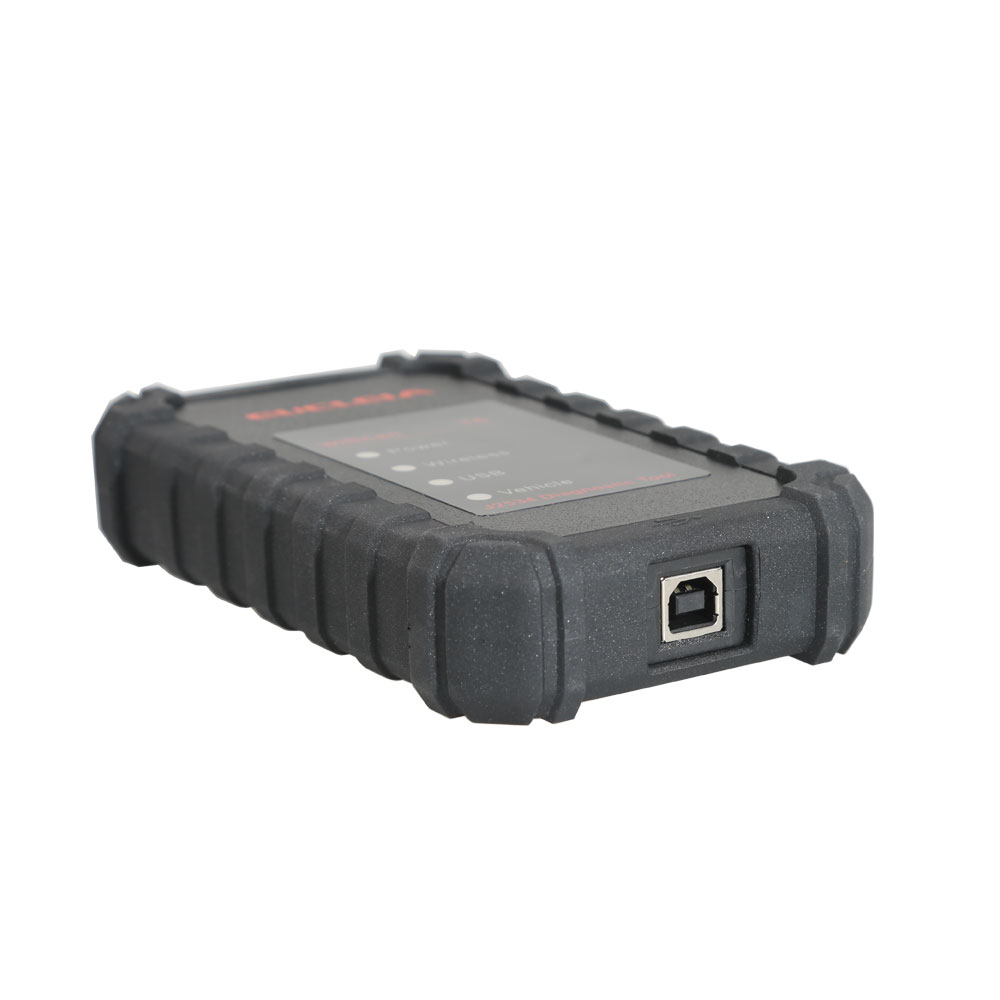

1pc x wiScan T6

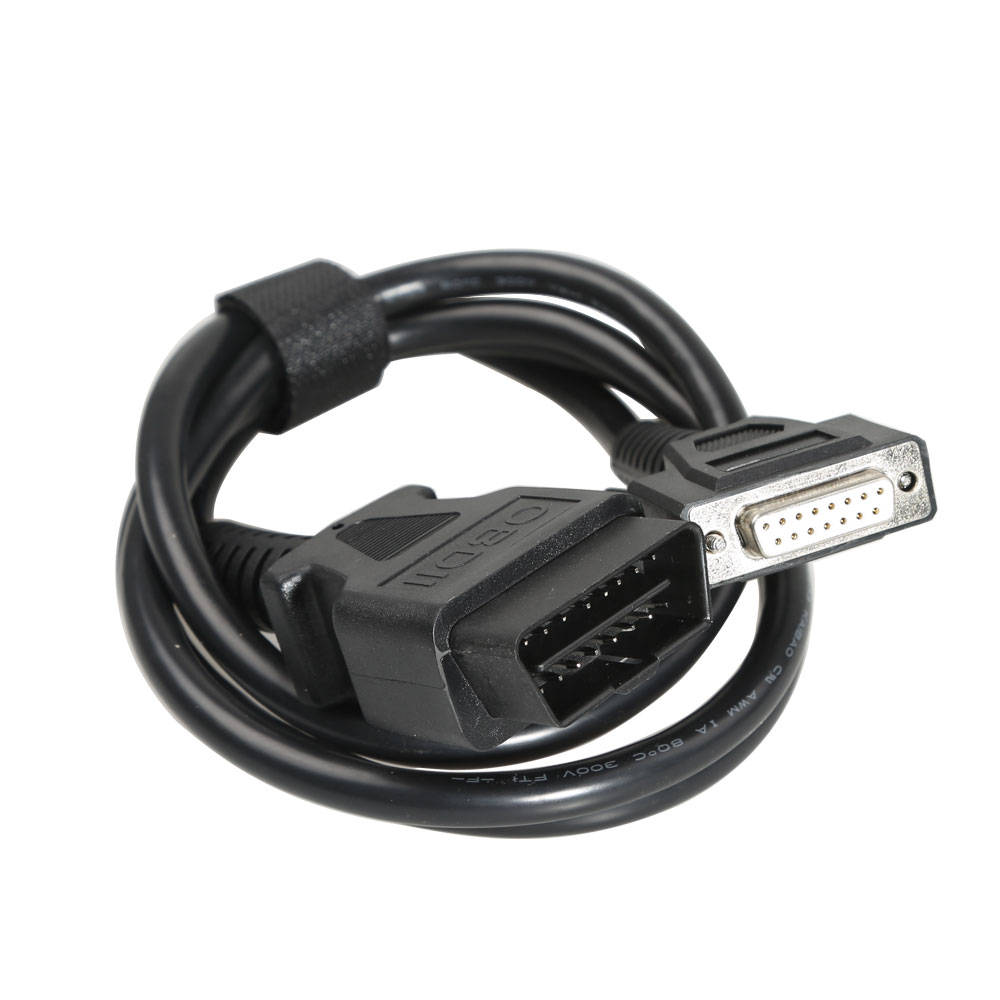

1pc x Main Cable

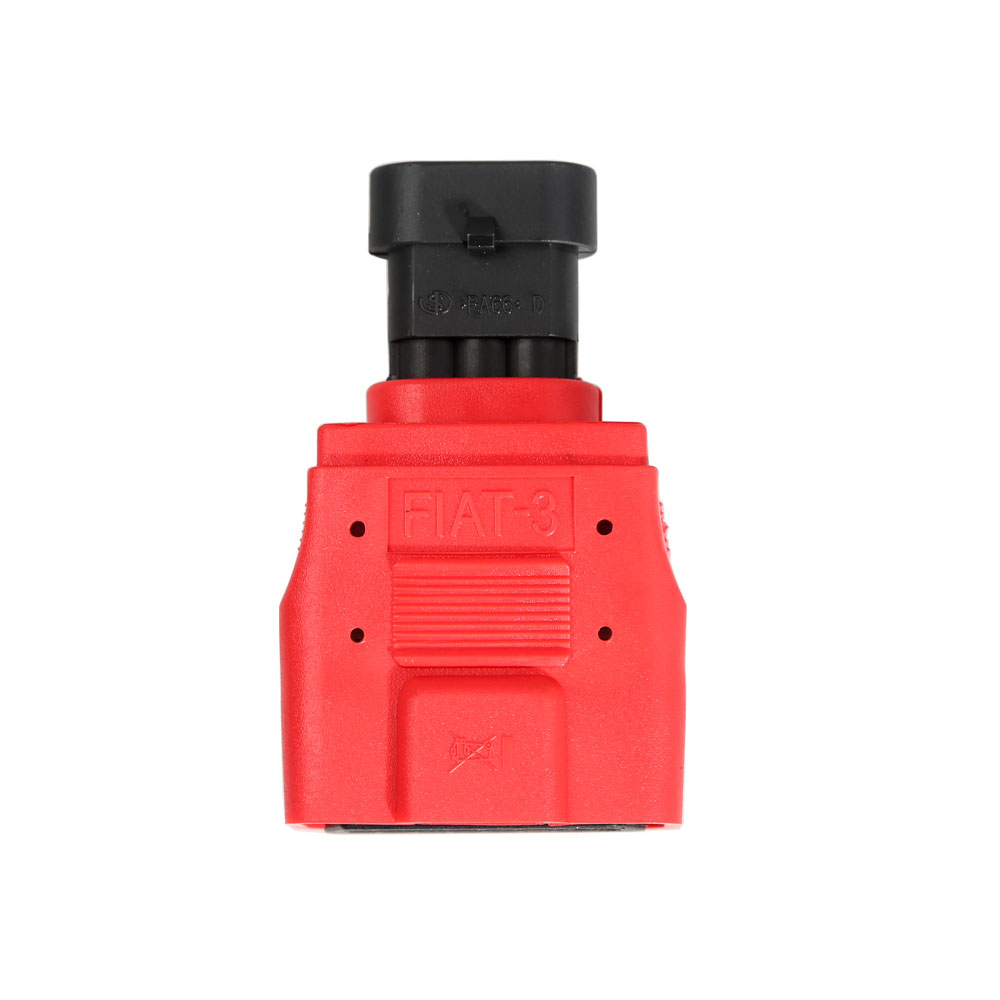

1pc x God Cup Chery changan
Fiat3
1pc x Nissan14

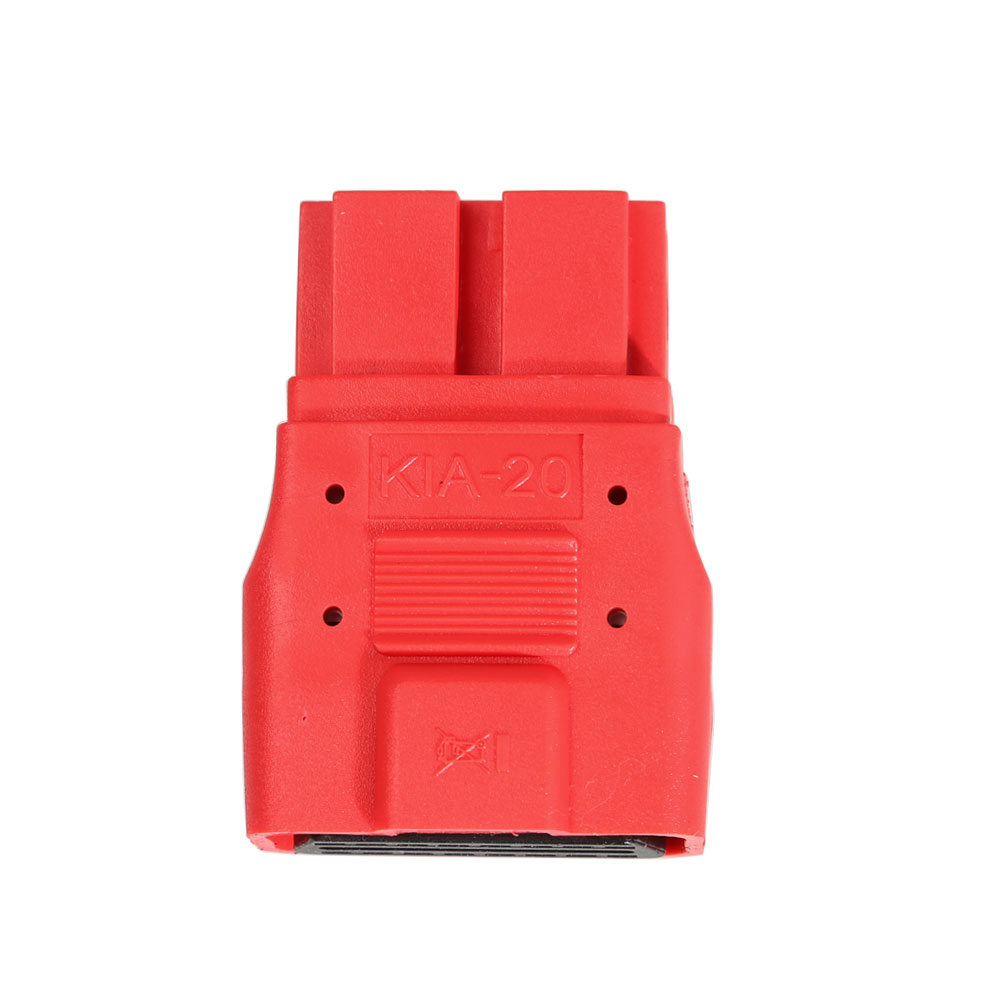

1pc x KIA20
1pc x Honda3
1pc x Toyota17
1pc x BMW20
1pc x Mazda17

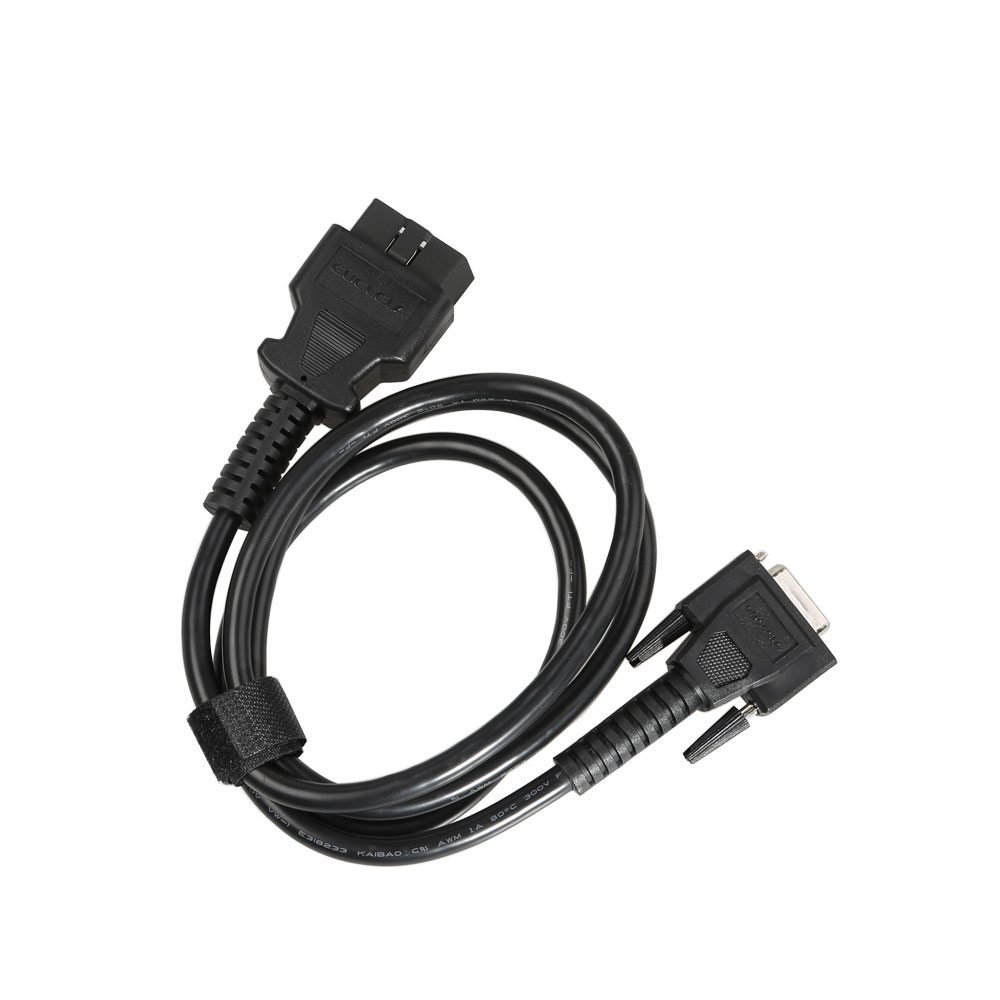

1pc x BMW Eengineer Test Main
Cable
1pc x USB connector
cable
1pc x Dual USB
charger
1pc x AC/DC
adapter
1pc x Warranty
card
1pc x User manual

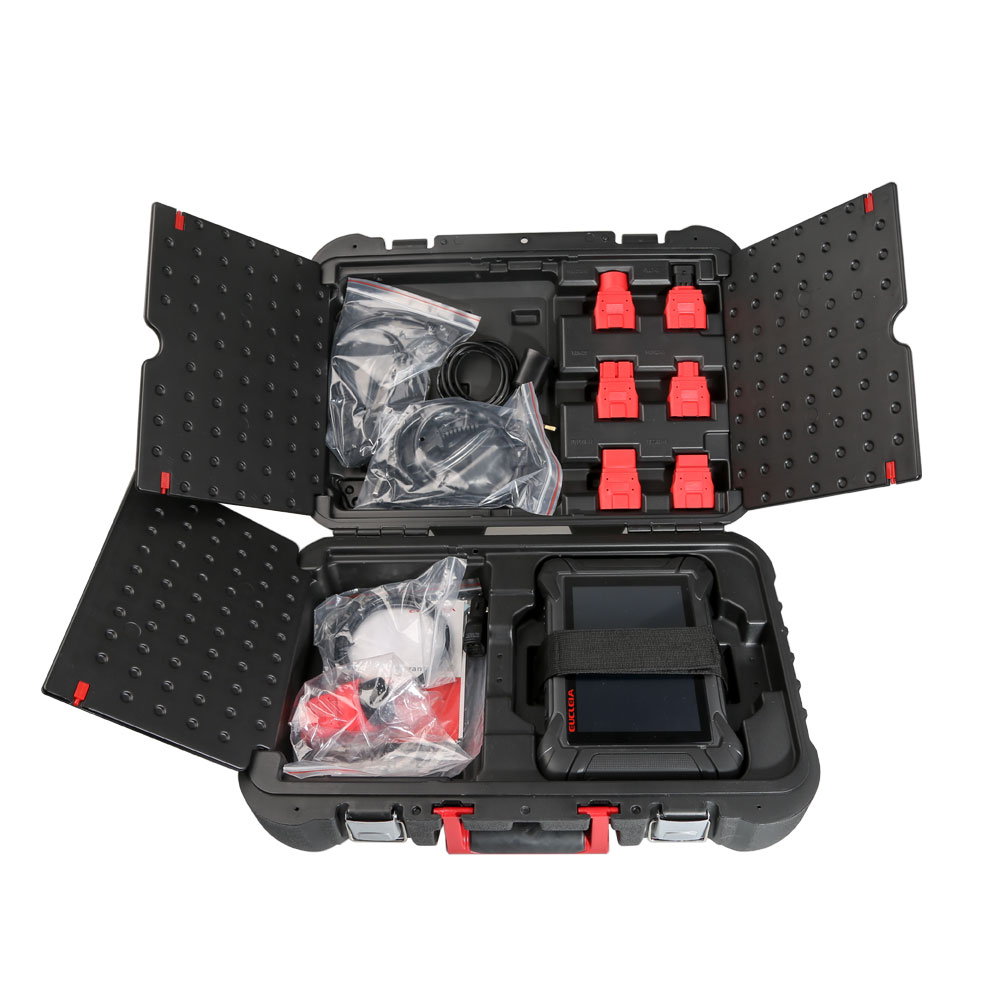

1pc x Fitting
box
