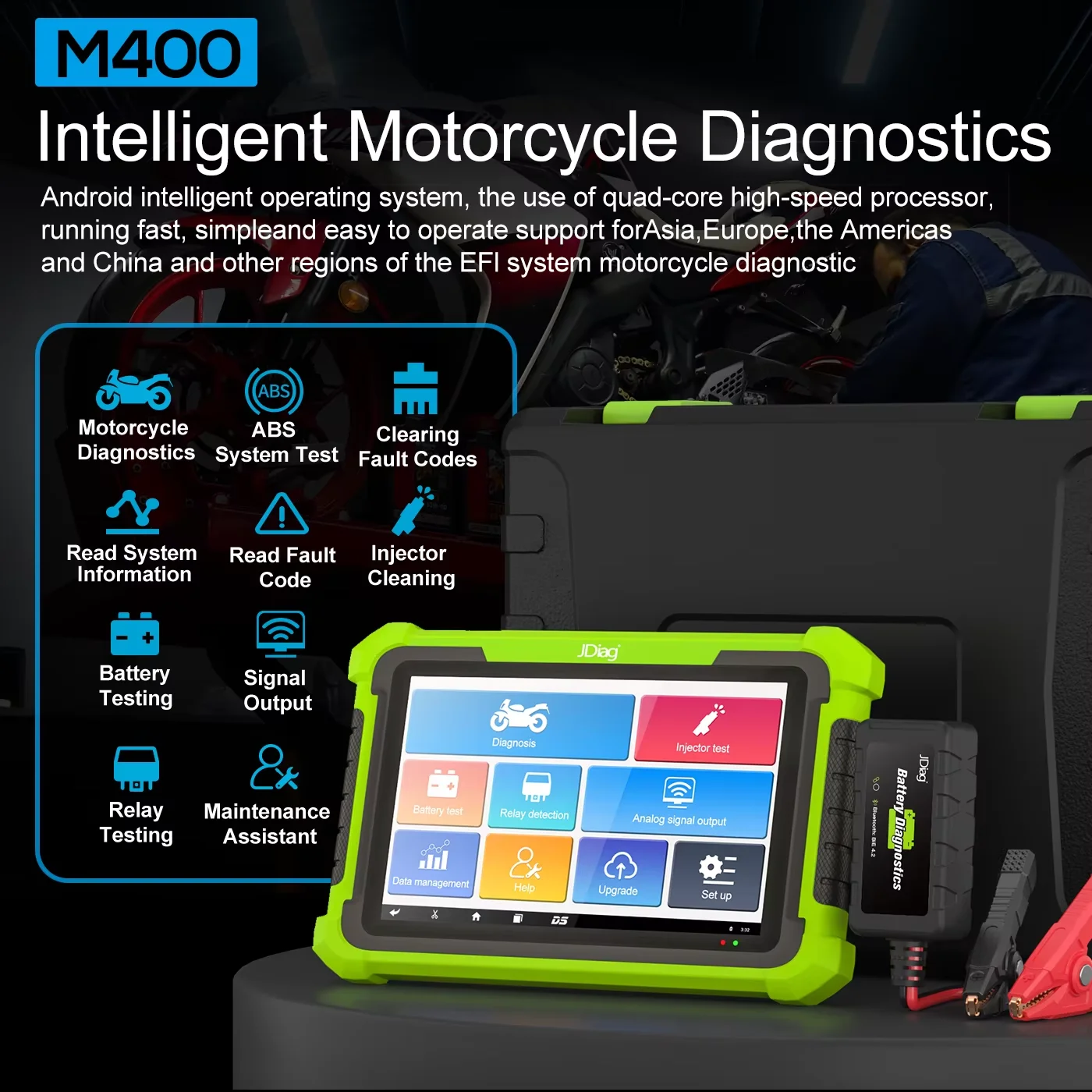

JDiag M400 Pro Motorcycle Diagnostic Scanner Diagnose ABS System EFT Code Clean Battery Tester for Electronic Fuel Injection EFI

JDiag Newest M400 Pro is based on Android 10 operating system, using 4-core high-speed processor.extremely fast and smooth; equipped with 8-inch TFT capacitive touch screen, simple andeasy to operate. lt can detect electric control system faults of most motorcycle models inAsia, Europe, America and China.

1. Diagnostic Functions: Read Fault Code, Clearing Fault Code, Read ECU version information, Viewing Data Streams, CO ldle Speed Adjustment, Freezing Data.

2. Special Functions: ABS System Test, ECU Reset, Injector Test, Battery Test, Relay Test, Analog Signal Output, Help And So On.

Product Description:

Operating System: Android 10
CPU Type: Quad-core high-speed processor
Extended Memory Card: Maximum support 128G
Resolution: 800*1280
Wireless: Support wifi6, 4.0 Bluetooth
Storage Capacity: 8GB
Screen Size: 8.0 inch TFT, RGB
Operation Mode: Touch (Capacitive)
Battery: 3.7V 4000 mAh
Package Size: 370*300*137mm

Support Vehicle Lists:

ADIVA
AEON
APRILIA
ARCTIC CAT
BAJAJ
BENELLI
BRP
BRIXTON
HARTFORD
HONDA
HYOSUNG
KAWASAKI
KTM
KYMCO
PGO
YAMAHA
PIAGGIO
ROYAL ENFIELD
SUZUKI
SYM
TRIUMPH
VESPA

M400 Pro Funtion:

1, Motorcycle Diagnostics

Enter the [Diagnostic] Function, where we can select all models, universal EFl, Chinese models, Asian, European, American, etc.A variety of options to choose from.

2, ABS System Test

Quickly read the status of the ABS system, troubleshooting, for the safety of your ride without worries Select [Diagnostics]-[General EFl]→[ABS System Diagnostics], enter the main page of [ABS System Diagnostics], and select the corresponding brand name.

3, Read System Information

4, Read Fault Code

5, Injector Cleaning

Connect the injector, take the injector of FAl as an example, it needs external power supply, refer to the following figure for the Connection

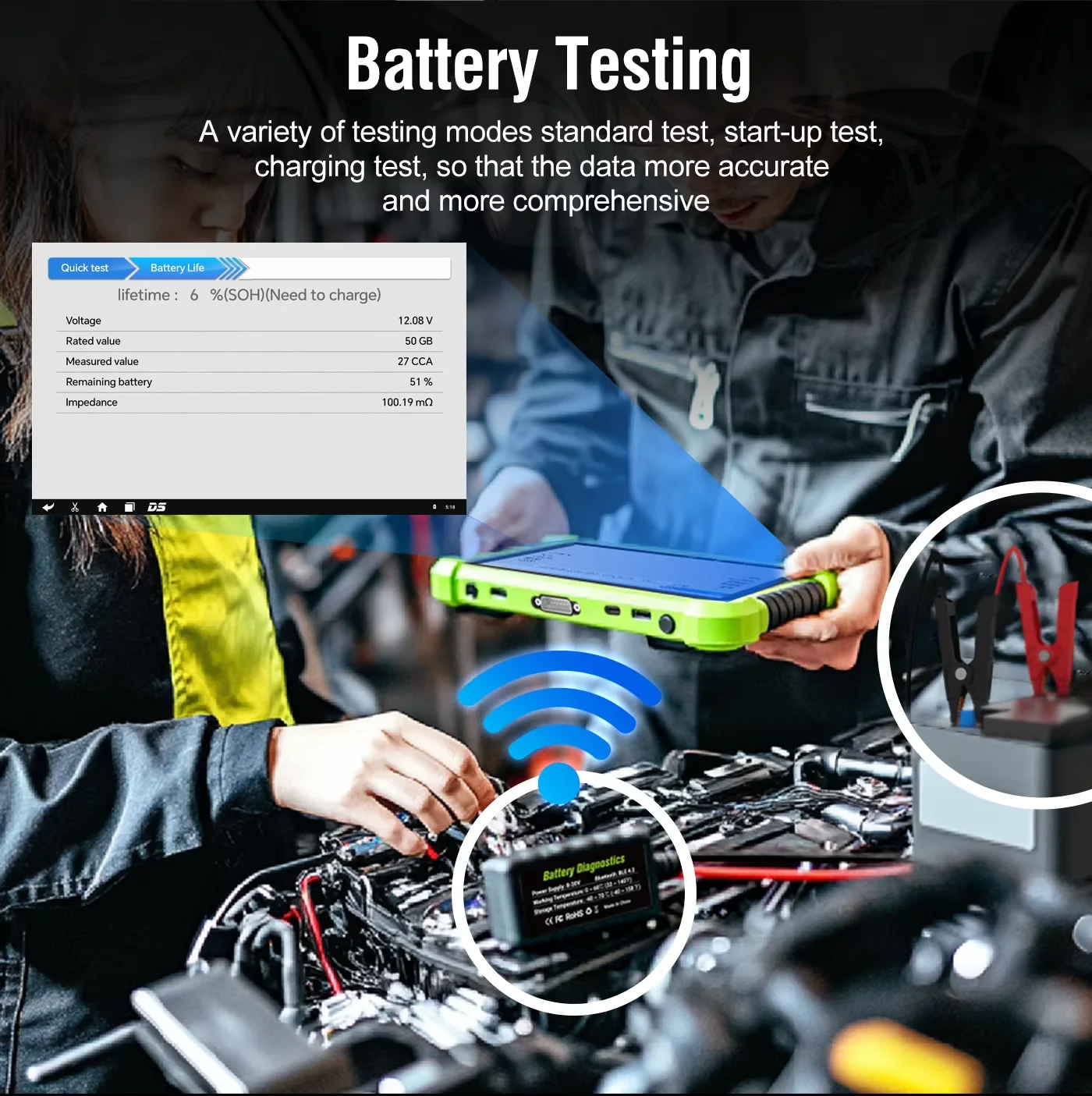

6, Battery Testing

A variety of testing modes standard test, start-up test, charging test, so that the data more accurate and more comprehensive

7, Signal Output

Can simulate crankshaft signals, PWM signals, injector signals, ignition signals and other mode requirements

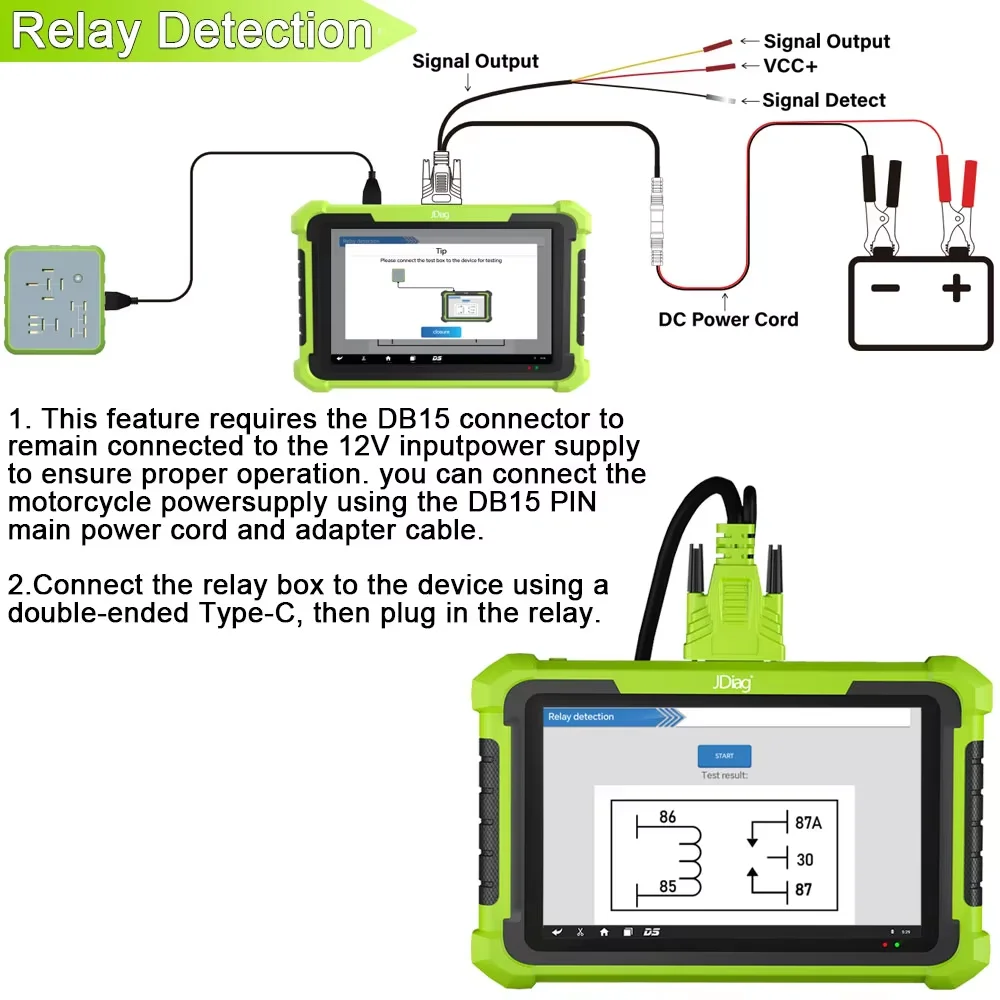

8, Relay Testing

1. This feature requires the DB15 connector to remain connected to the 12V input power supply to ensure proper operation. you can connect the motorcycle power supply using the DB15 PlN main power cord and adapter cable.

2. Connect the relaybox to the device using a double-ended Type-C,then plug in the relay.

9, Maintenance Assistant

Professional maintenance information, covering all major brands of motorcycle troubleshooting and maintenance guide, wish you fast and accurate problem solving!

10, Upgrade Online

Support wireless WlFl6 to connect to the network, one key online upgrade, enjoy a new experience

11, Intelligent Diagnostics, Worry-free Riding

Supports real-time data stream viewing, reading, and clearing of fault codes

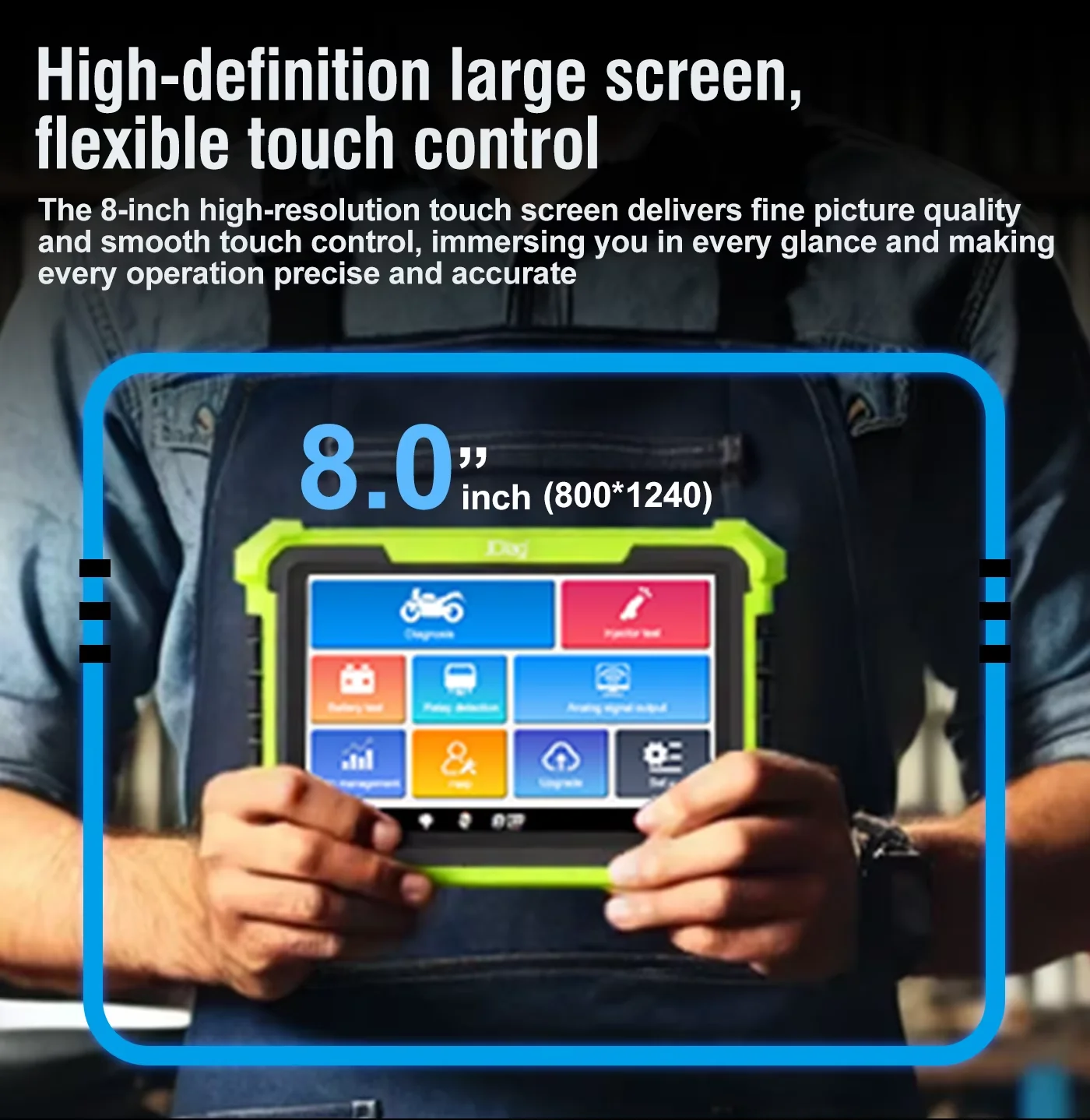

12, High-definition Large Screen, Flexible Touch Control

The 8-inch high-resolution touch screen delivers fine picture quality and smooth touch control, immersing you in every glance and making every operation precise and accurate

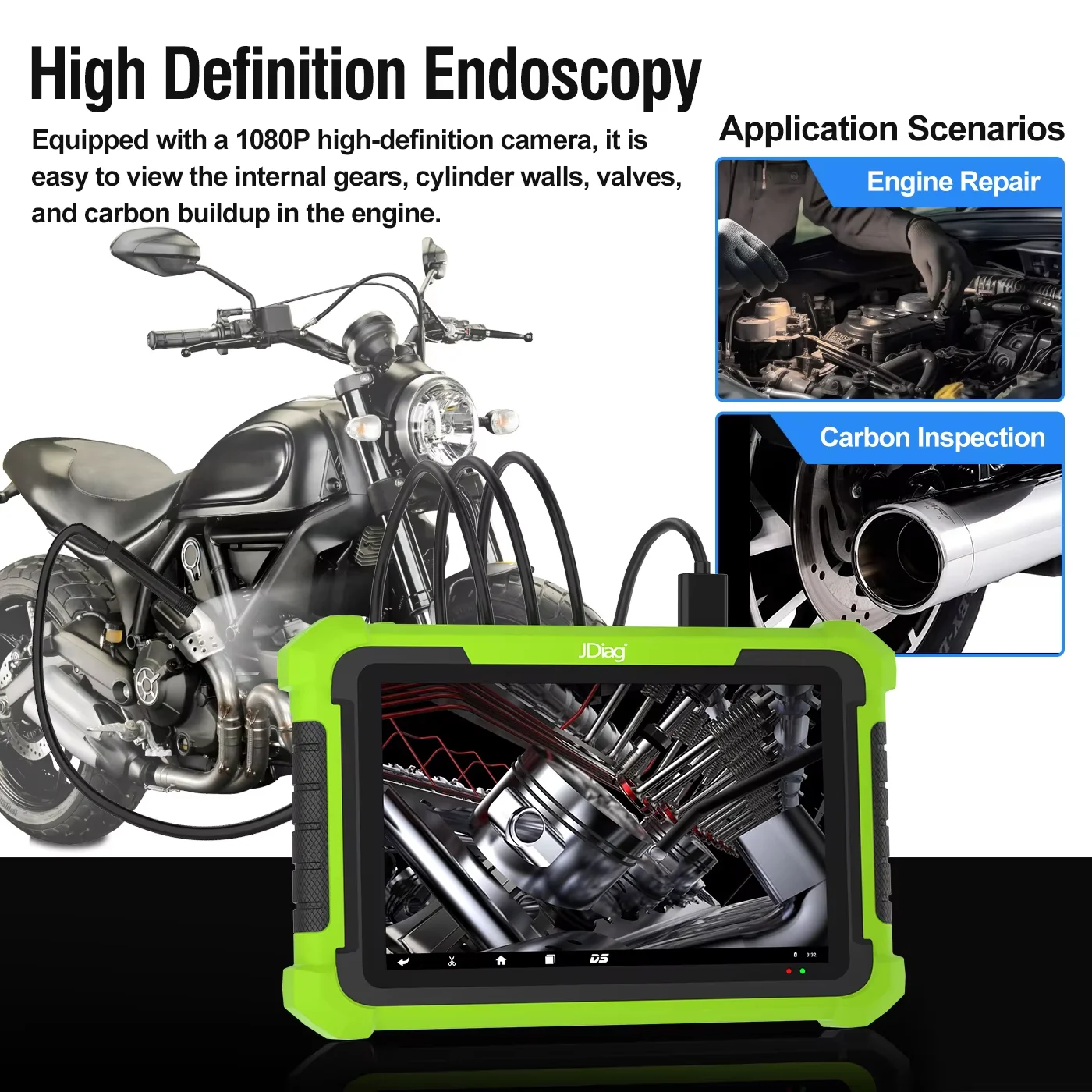

13, High Definition Endoscopy

Equipped with a 1080P high-definition camera, it is easy to view the internal gears, cylinder walls, valves, and carbon buildup in the engine.

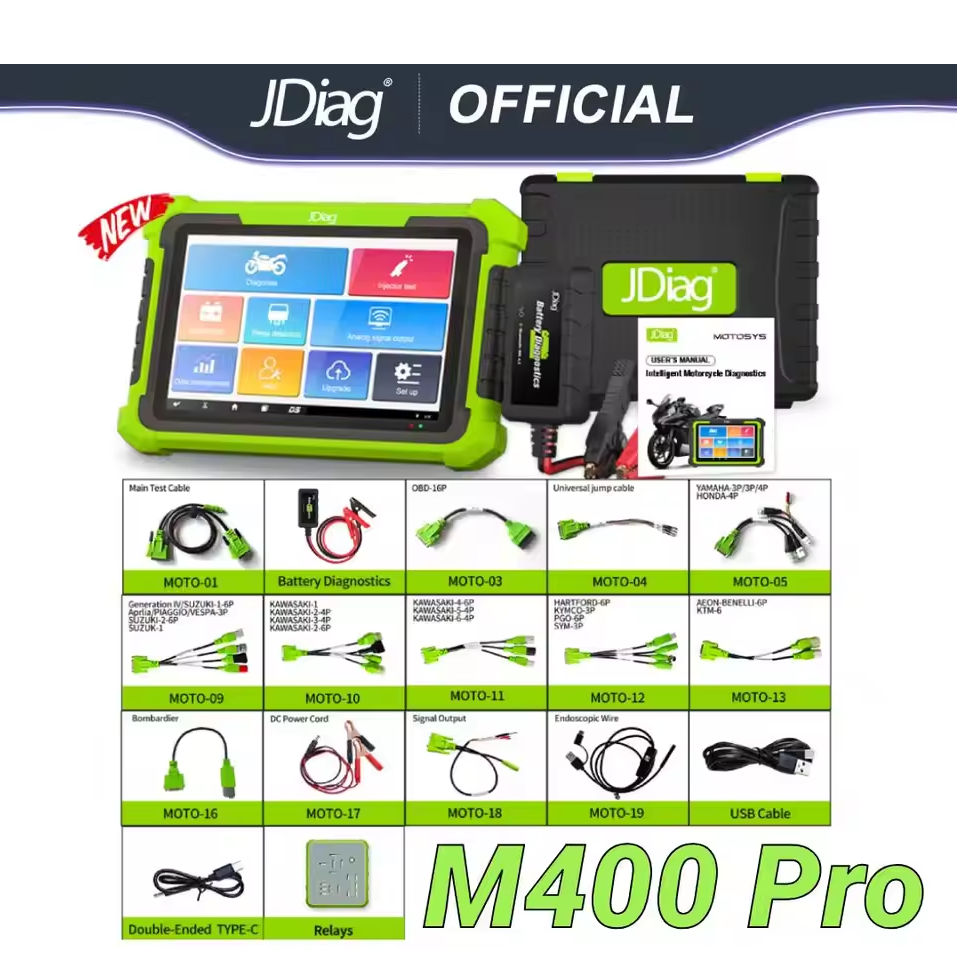

Package Lists:

1x M400 Pro Host.
1x 14 Adapted Cables.
1x USB cable +1x Type-C Cable
1x Relays
1x Tool Bag.
1x Pckage Box.
1x Users Manual.
