OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent  motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

OBDSTAR MS50 Features:

1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support  most of the Asia and Europe models;
9.OBDSTAR MS50 Supported car list.

OBDSTAR MS50 Advanced Function:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/Snowmobile/ATV/UTV Support Car Series:

Asia:
Honda,Kawasaki,Kymco,Suzuki,SYM,Yamaha,PGO,Hardford,AEON;

Europe:
Benelli,KTM,Piaggio,Vespa

More functions under developing...
Different configurations include different software. For details, please contact OBDSTAR.

Function Display:

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin/Fault Guidance

3)Supported System List/ Manual Service Function

4) Manual maintenance reset

5) Diag socket/Diag Connector Location

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

7)Special Function-Benelli

8) Special Function-KTM

9) Special Function-Piaggio

10) Special Function-Vespa

OBDSTAR MS50 Latest Update Information:

MS50 BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:


MS50 ENFIELD[V30.00] UPGRADE on Mar 30th, 2021


Product Parameters

Operation System: Android 5.1.1
CPU: Exynos4418  Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card:  32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD:5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature:  -20℃~55℃(14℉~131℉)
Storage temperature:  -20℃~70℃(-4℉~158℉)
Weight:  700g(Main Unit)
Dimension: 140mm*89mm*18mm

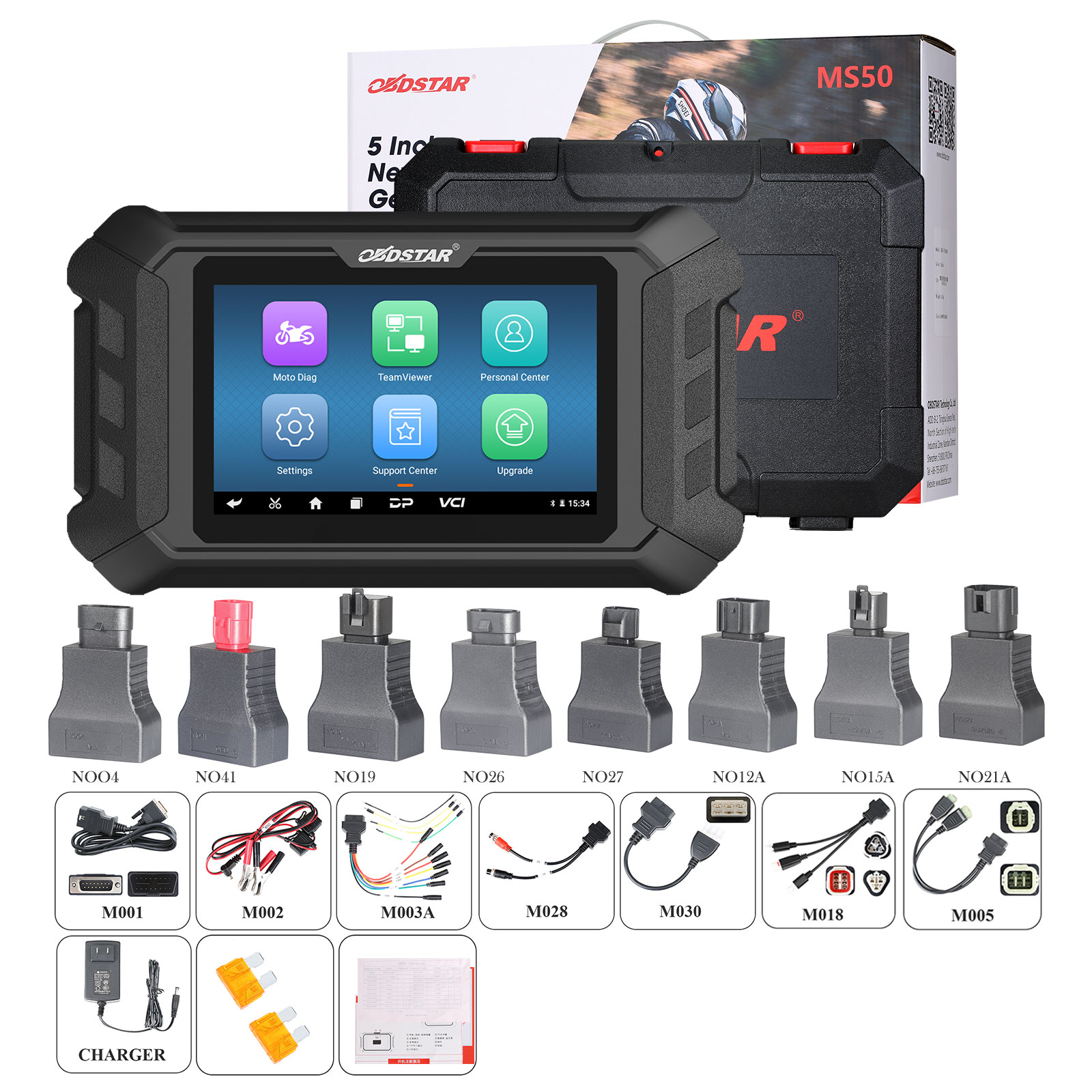

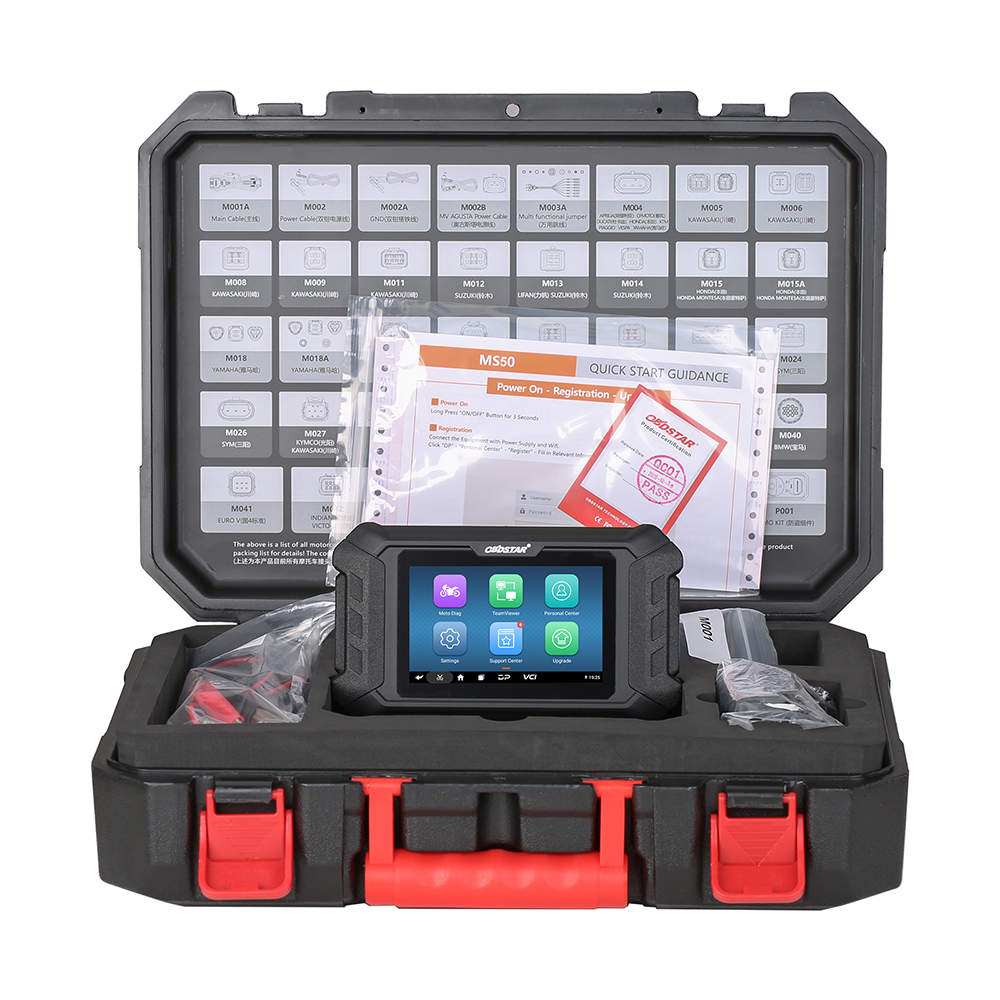

Package includes:

1pc x M001      Main Cable
1pc x M002      Power Cable
1pc x M003A    Multi functional jumper
1pc x M004      APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005      KAWASAKI
1pc x M012      SUZUKI
1pc x M015A    HONDA/HONDA MONTESA
1pc x M018      YAMAHA
1pc x M019      KTM
1pc x M021      AEON/BENELLI/BENELLI DSK
1pc x M026      SYM
1pc x M027      KYMCO/KAWASAKI                                                                                                    1pc x M028      PGO
1pc x M030      HARTFORD
1pc x M041      EURO V
1pc x 12V2A    CHARGER
