AUTOOL AST603 Car Brake Fluid Bleeder Pumps Automotive Fast Brake Extractor Brake Oil Exchanger Tool

AUTOOL AST603 Automotive Brake Fluid Bleeder is a brake fluid exchanger equipment. The physical principle is to suck the brake fluid from the new fluid storage tank through a pump, and continuously pump it into the automobile brake fluid container at a specified pressure.Compared with the traditional compressing way to exchange brake fluid, this pulsating brake fluid exchanger can effectively avoid the generation of air bubbles during the filling process, thereby optimizing or avoiding the artificial exhaust process.

Why you need to choose AUTOOL AST603 Barke Fluid Bleeder?

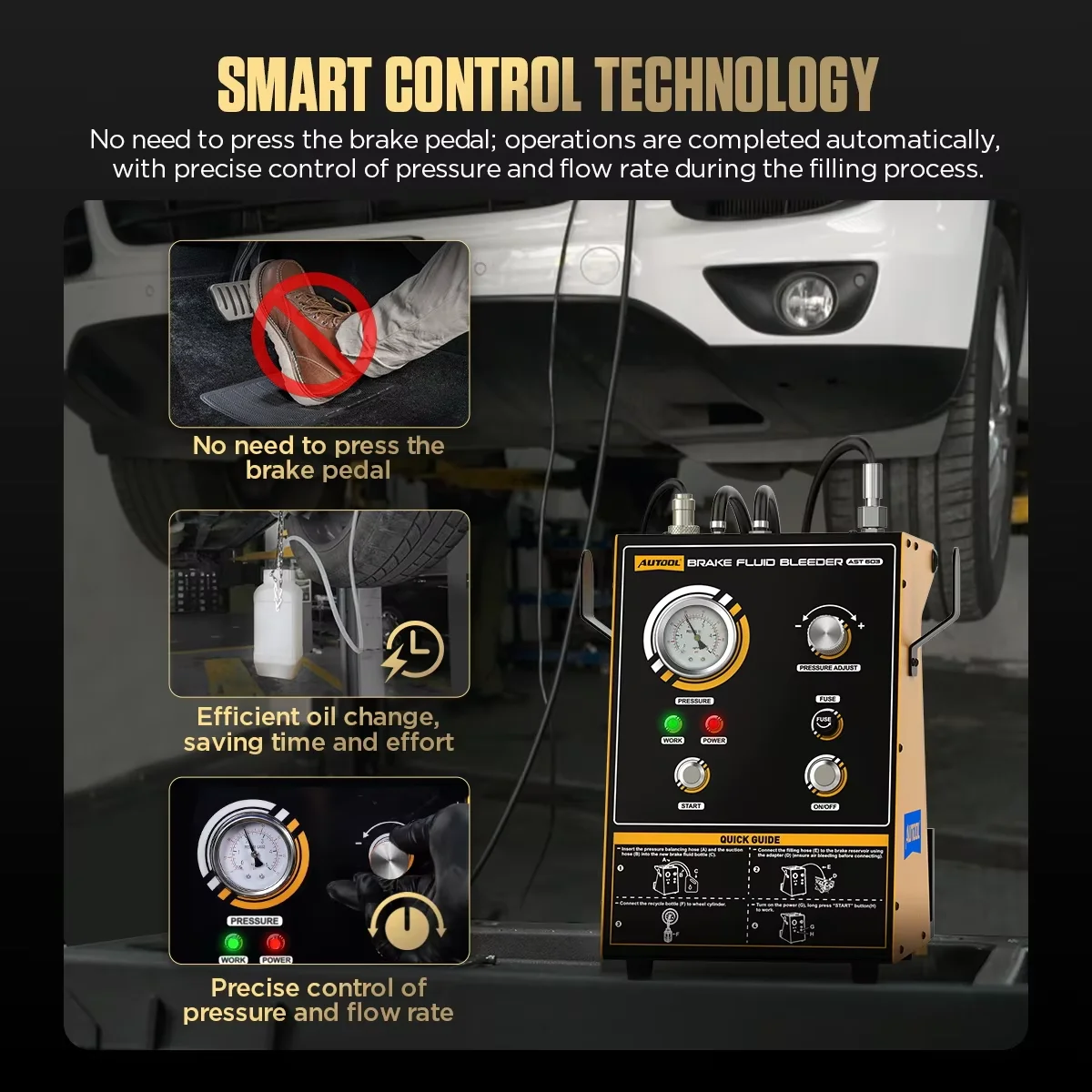

AUTOOL AST603 Brake Fluid Bleeding Device, compared with the traditional brake fluid changing tools, this device is easy to use by one person, which saves time and effort. After setting up the working environment, it only needs one button operation to realise automatic brake fluid change, and it also prevents the air from entering the pipe to affect the performance. Without any further complicated operation, you can do the brake fluid change work yourself. The device adopts a new pulse exchange technology, which not only solves the pipe bleeding problem by continuously emitting high-frequency pressure pulses, but also effectively removes dirt and impurities from the inner wall of the pipe, greatly improving the working efficiency.

Pulse one-button Replacement

Only one person to operate. It allows for easy brake oil changes. The kit can change oil from two sub-pumps simultaneously. Once you set the working environment, the entire process is automatic. You don’t need to worry about being too busy.

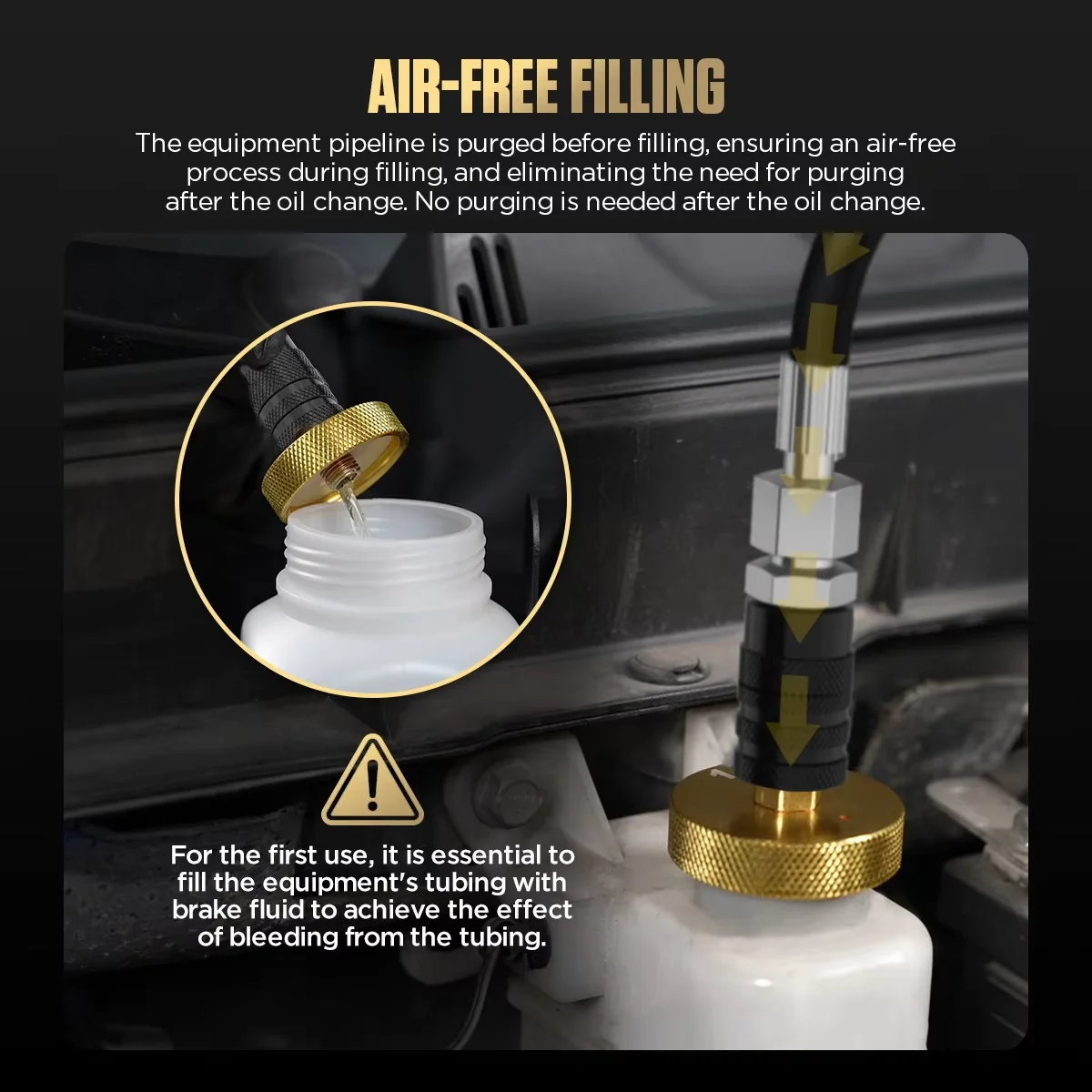

AIR-FREE FILLING

The equipment pipeline is purged before filling, ensuring an air-free,process during filling, and eliminating the need for purging,after the oil change. No purging is needed after the oil change.

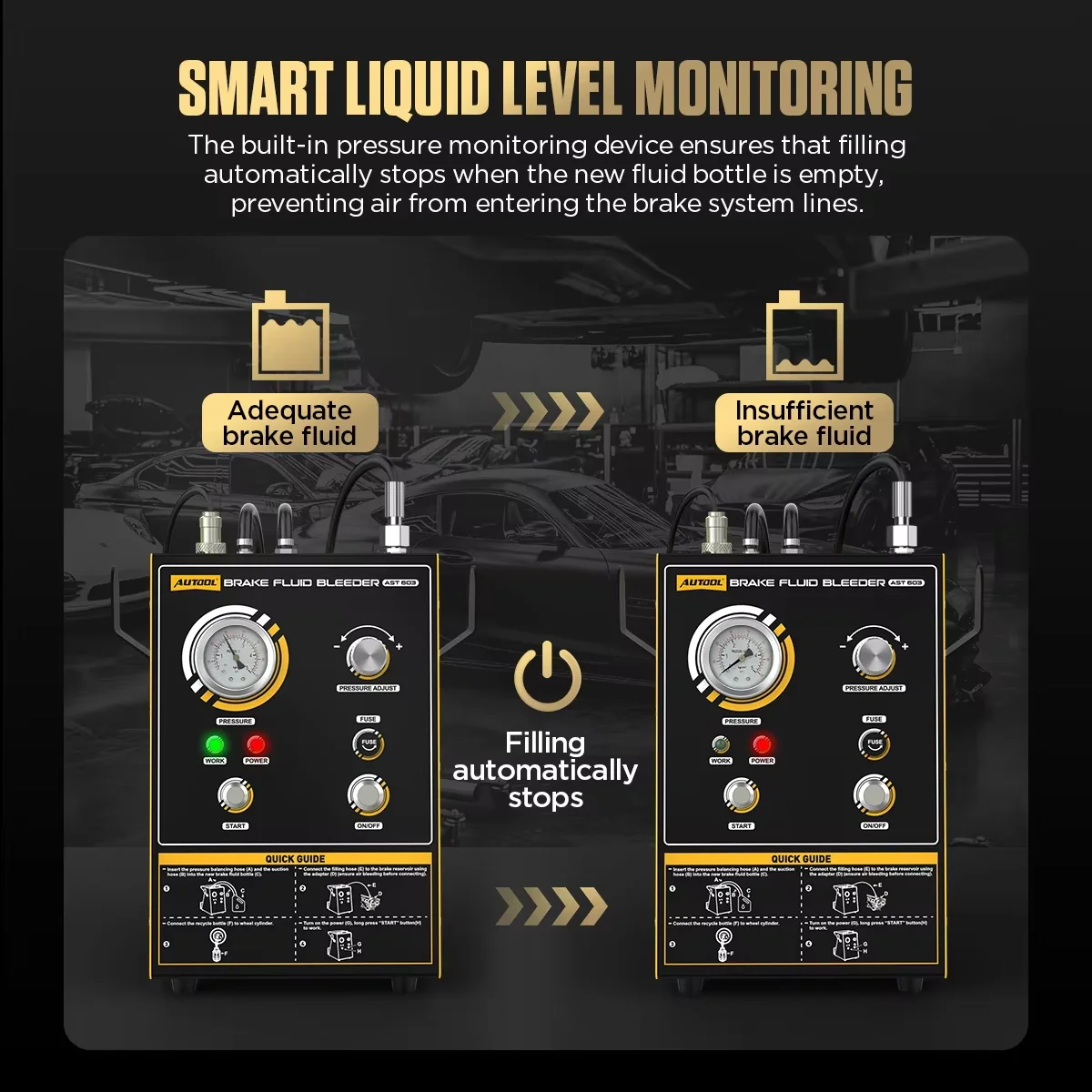

SMART LIOUID LEVEL MONITORING

The built-in pressure monitoring device ensures that filling,automatically stops when the new fluid bottle is empty.automatically stops when the new fluid bottle is empty.

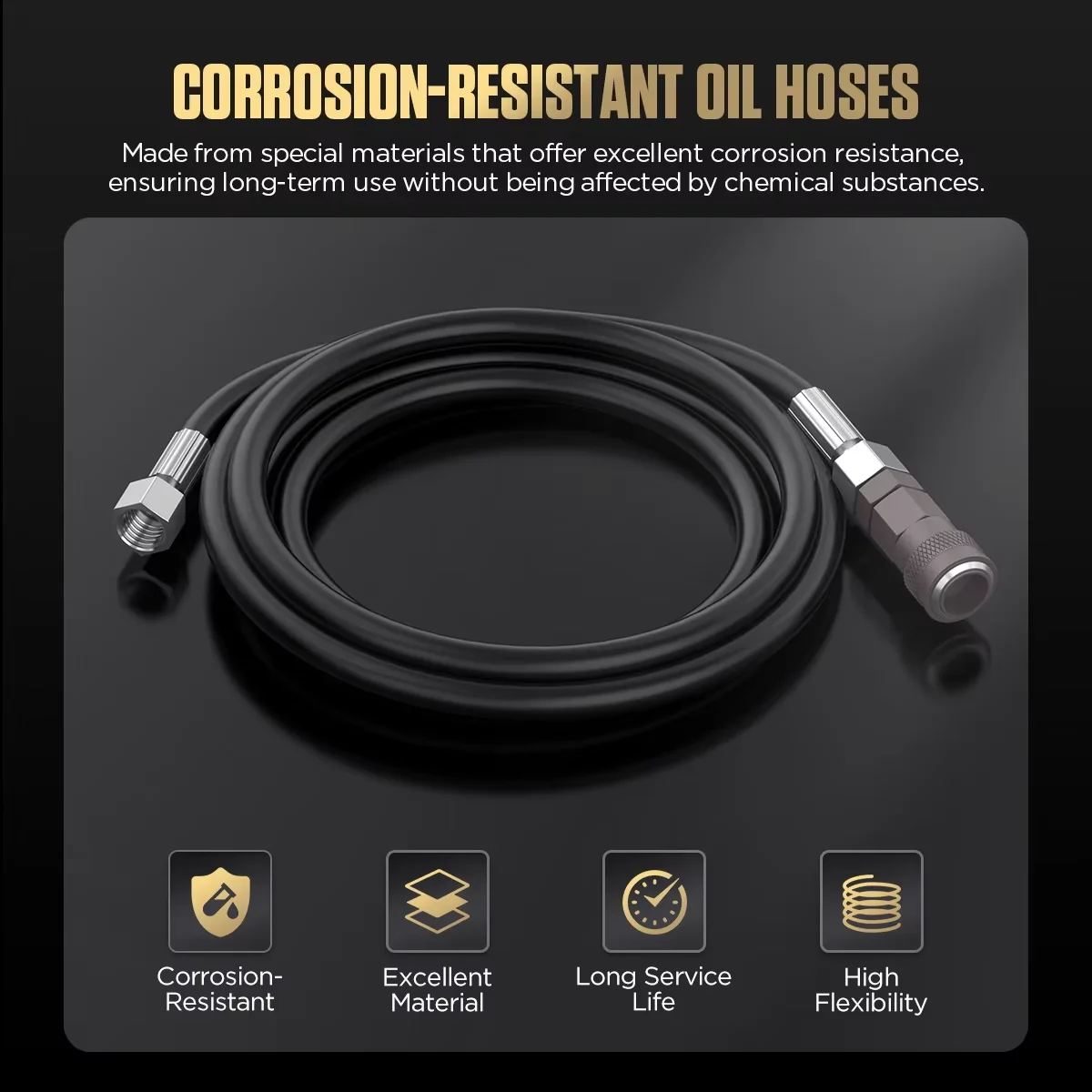

CORROSION-RESISTANT OIL HOSES

Made from special materials that offer excellent corrosion resistance,ensuring long-term use without being affected by chemical substances.

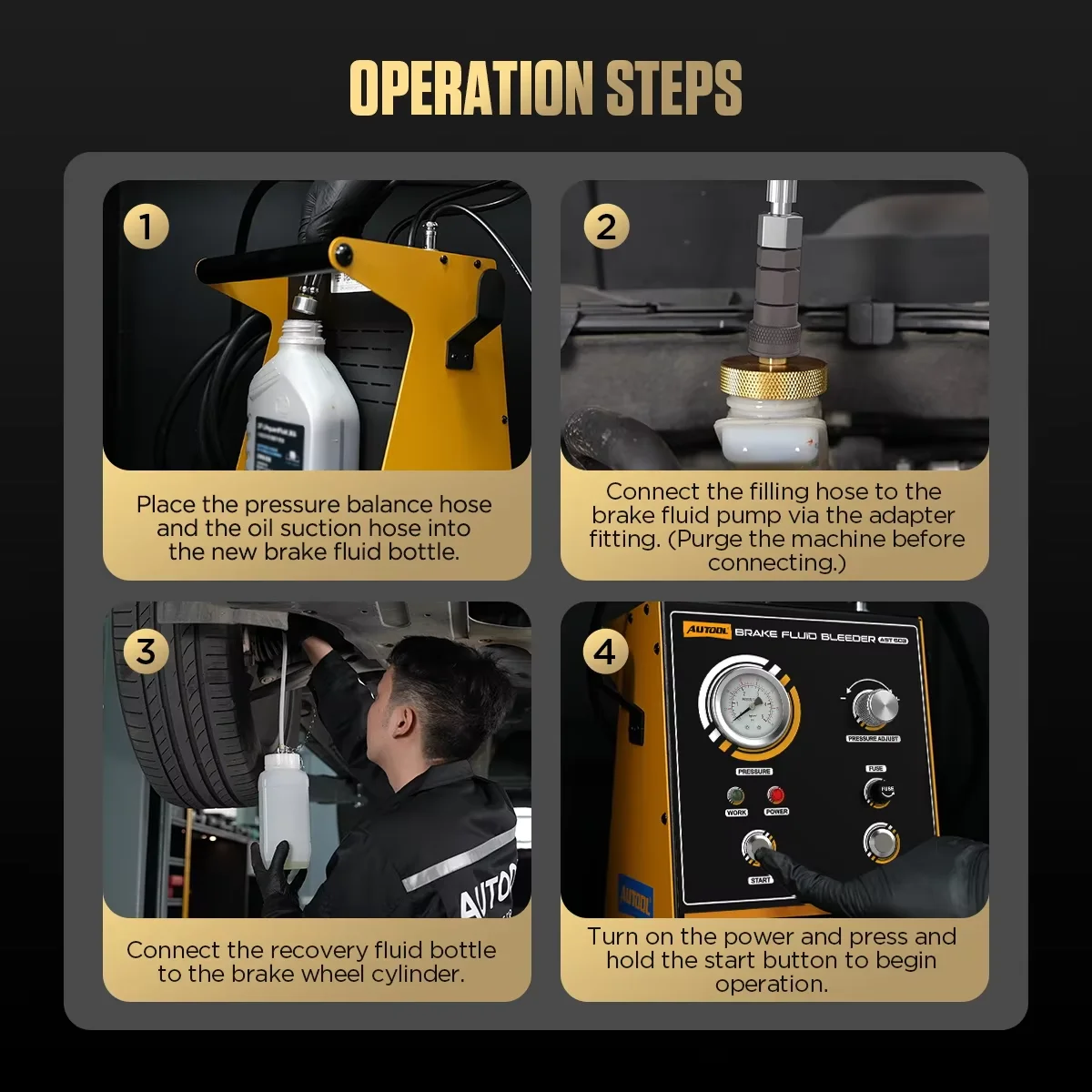

Operating Instructions

Step 1: Add new brake fluid into the storage bottle.

Step 2: Connect the suction hose and pressure balancing hose to the storage bottle.

Step 3: Connect to power supply

Step 4: After connecting the filling hose to the appropriate adapter, connect it to the vehicle’s brake fluid reservoir.

Step 5: Attach the recovery oil bottle to the brake cylinder.

Step 6: Turn on the power switch & press the start button to begin.

Note:

Each time use the equipment, you need to empty the air in the pipeline, you need to lock the drain screw in the state of brake fluid flow to avoid the suction hose sucked the bottom of the new liquid pot, resulting in the inability to suck in the brake fluid. Brake fluid is corrosive, to keep the equipment and the vehicle paint surface clean.

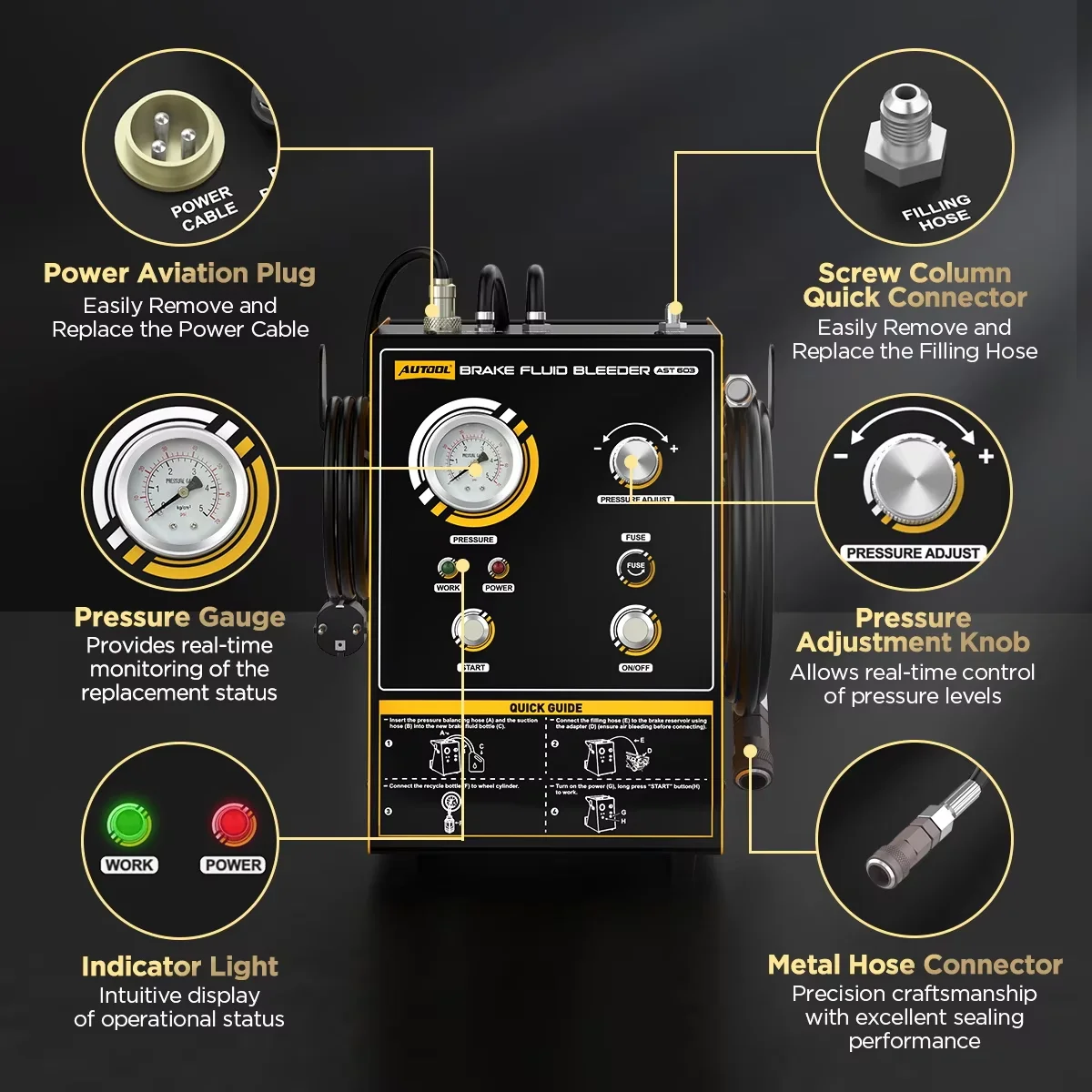

Detailed Design

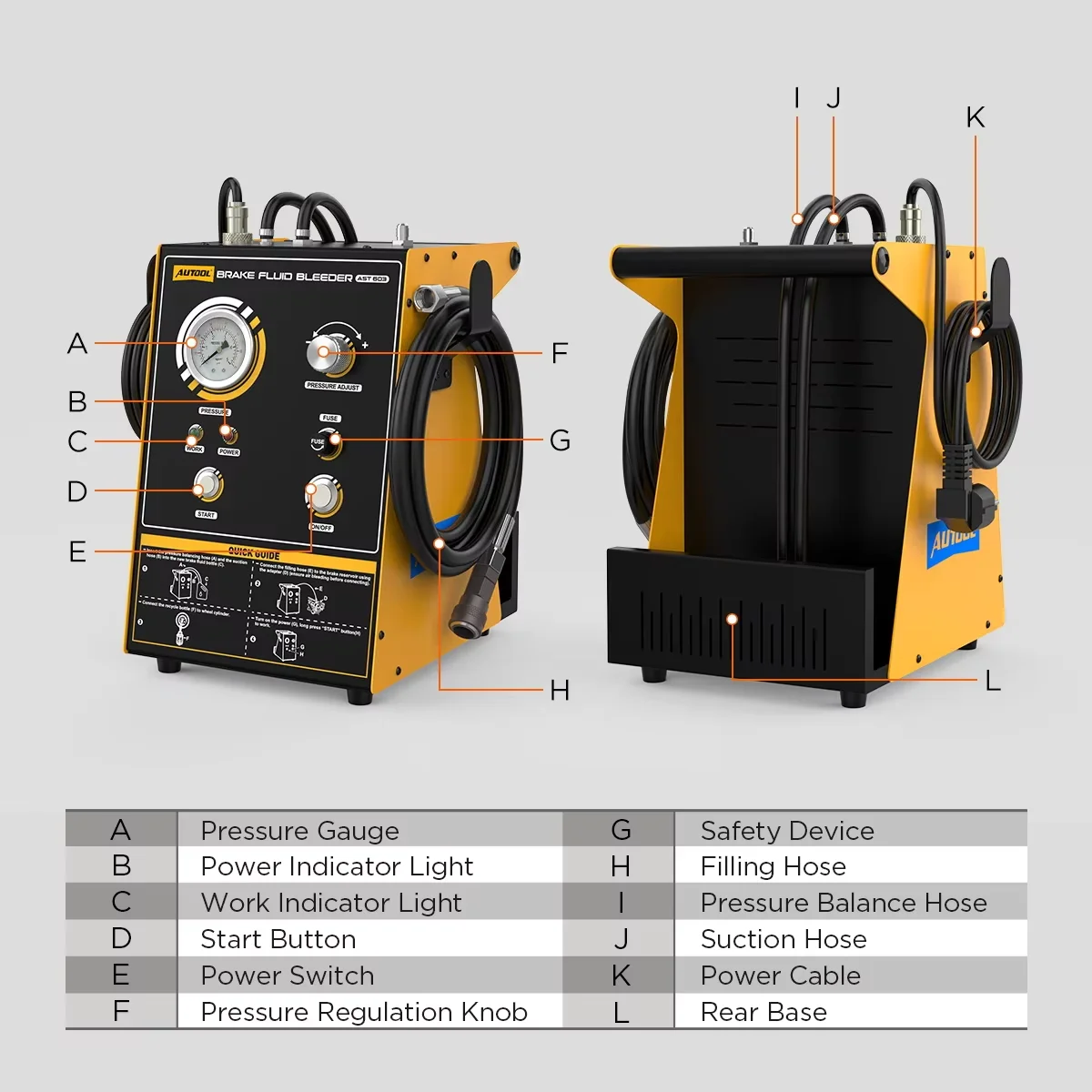

The AST603 features a Pressure Gauge Display that provides real-time monitoring of the fluid replacement status. Metal Hose Fittings, crafted with precision, ensure a strong seal and long-lasting durability. The Pressure Adjustment Knob allows for real-time control of pressure levels, while the Indicator Light Design clearly shows the operational status. An Aviation Power Plug makes it easy to remove and replace the power cable, with a self-locking mechanism to prevent detachment. Additionally, the Screw Column Quick Connector enables easy removal and replacement of the filling tube.

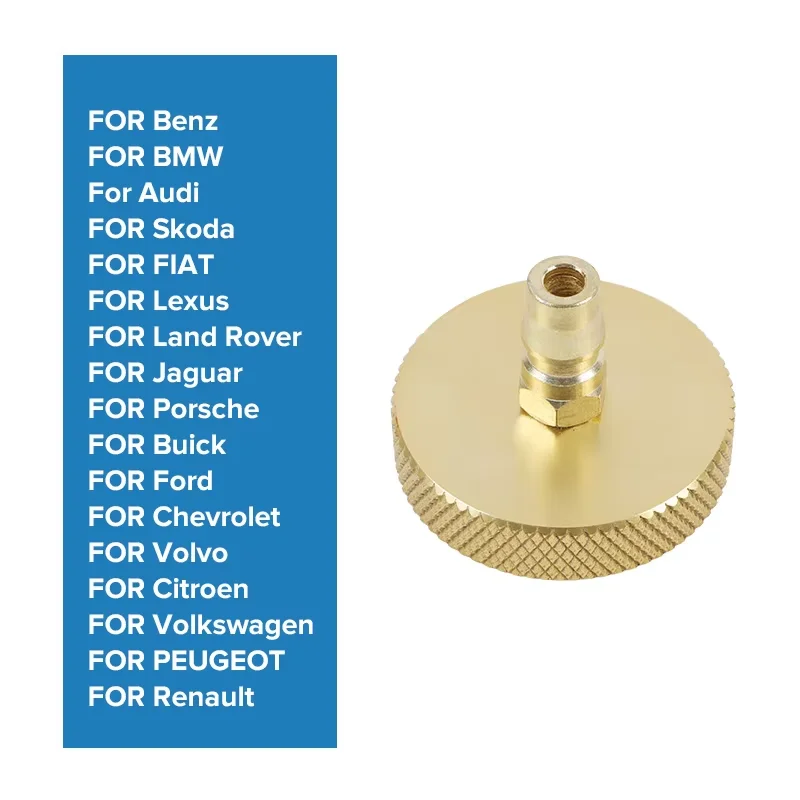

Wide applicability

Suitable for various models: Compatible with various vehicle models, including For Benz, For BMW, For Audi, For Skoda,For Fiat,For Lexus, For Land Rover, For Jaguar,For Porsche, For Buick,For Ford, For Chevrolet, For Volvo, For Citroen, For Volkswagen, For Peugeot, and For Renault. If you need compatibility with more models, please purchase the 17pcs brake oil exchanger adapter set.

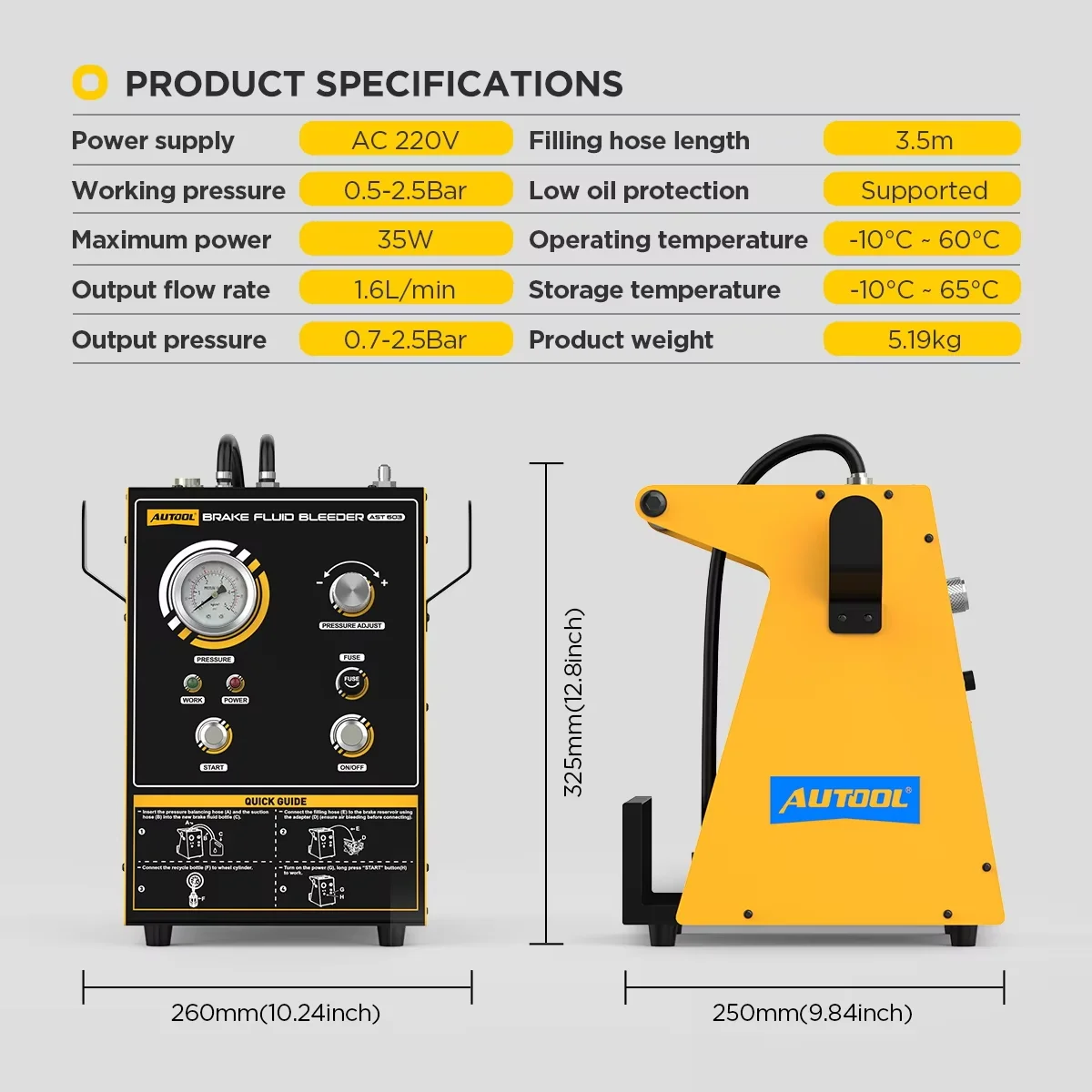

PRODUCT SPECIFICATIONS

●Power Supply:AC 110V/220V
●Working Pressure:0.5-2.5Bar
●Maximum Power:35W
●Maximum Output Flow Rate:1.6L/min
●Output Pressure:0.7-3.0bar(±0.2bar)
●Filling Hose Length:3.5m
●Low Oil Protection:Supported
●Operating Temperature:-10°C~+60°C
●Storage Temperature:-10°C~+65°

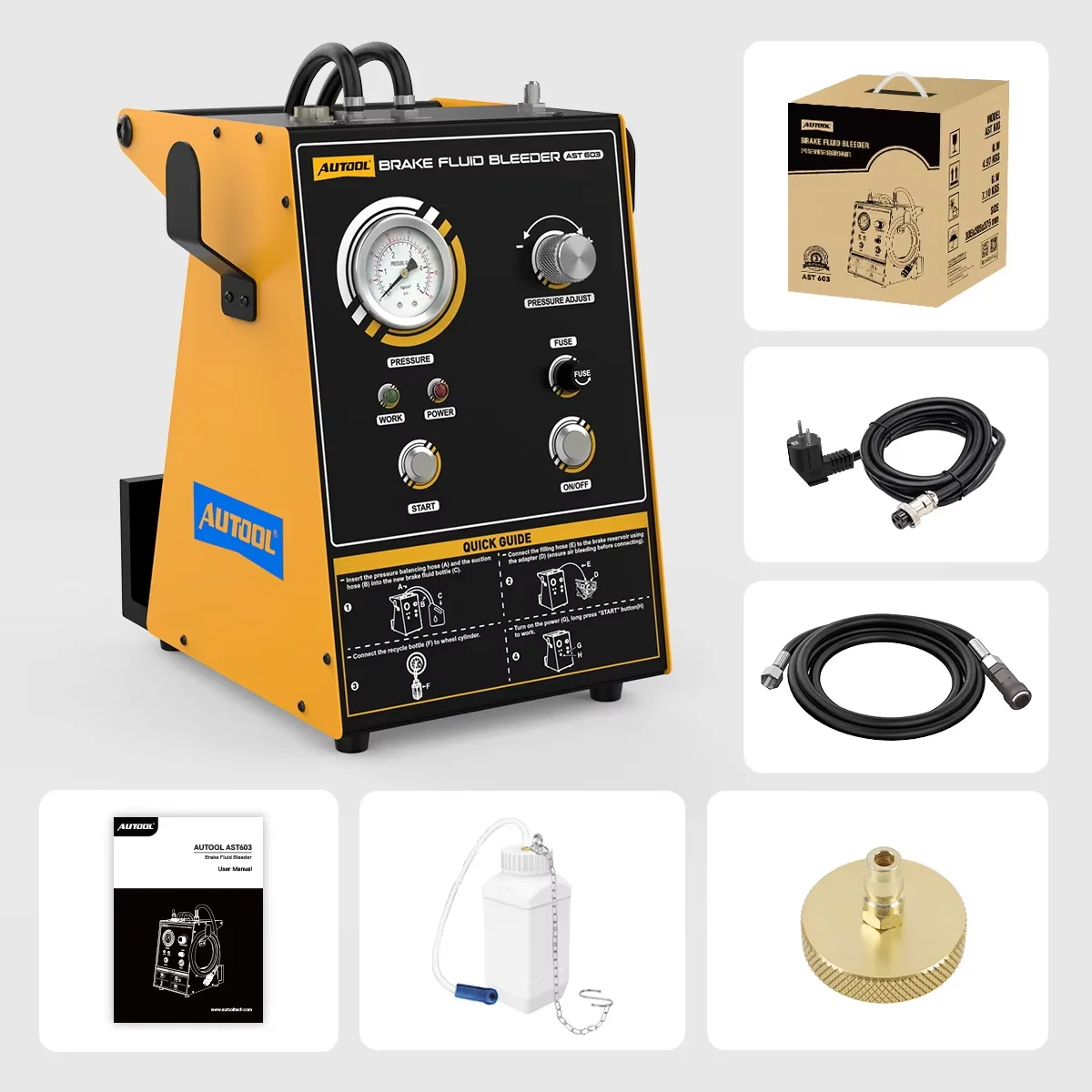

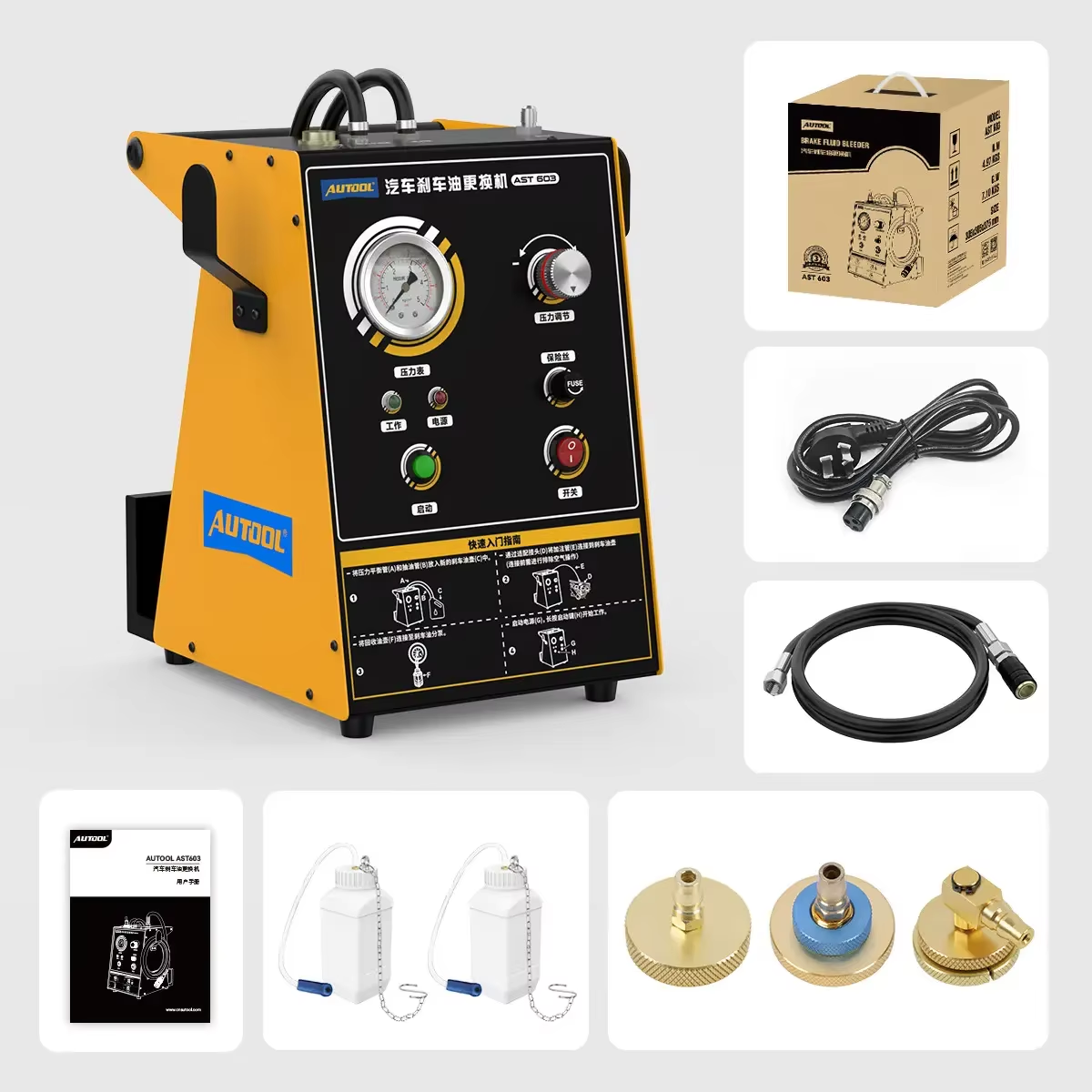

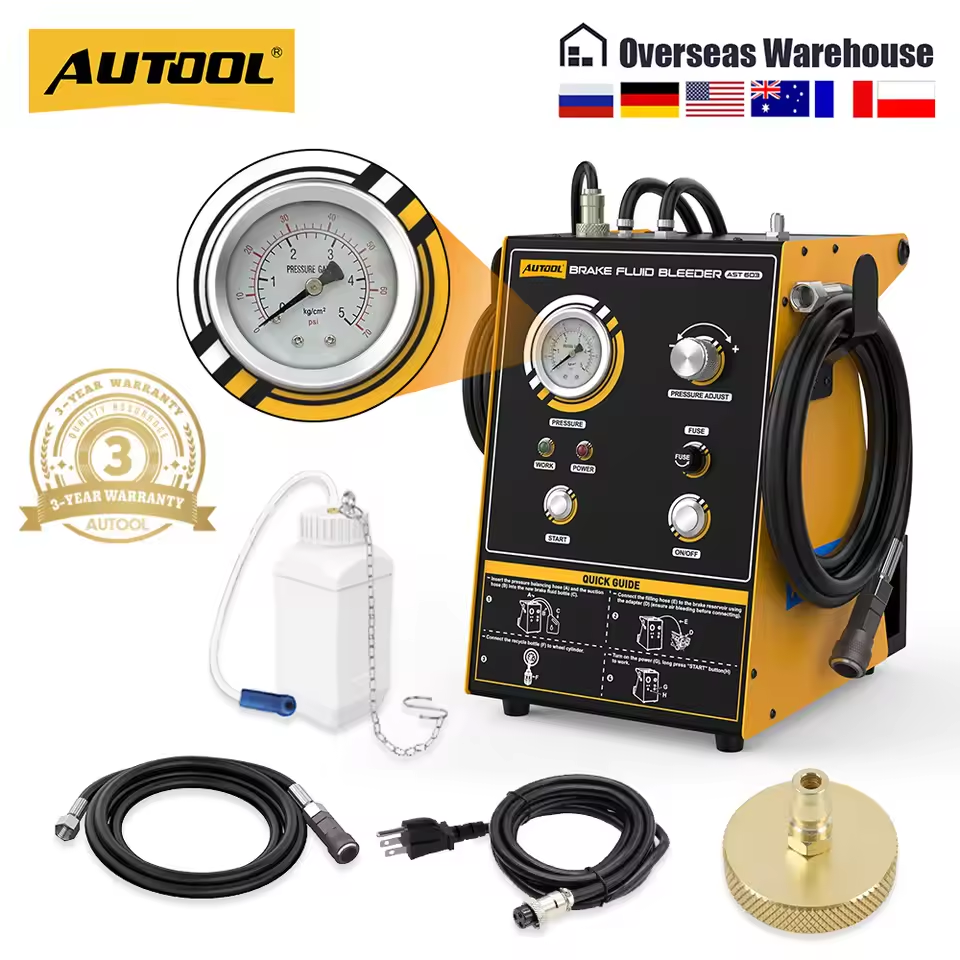

Packing List :

1 PC*Main unit
1 PC*Adapters
1 PC*Fluid recycling bottle(1.5L)
1 PC*Filling hose
1 PC*Power cable
1 PC* Manual
1 PC*Package
