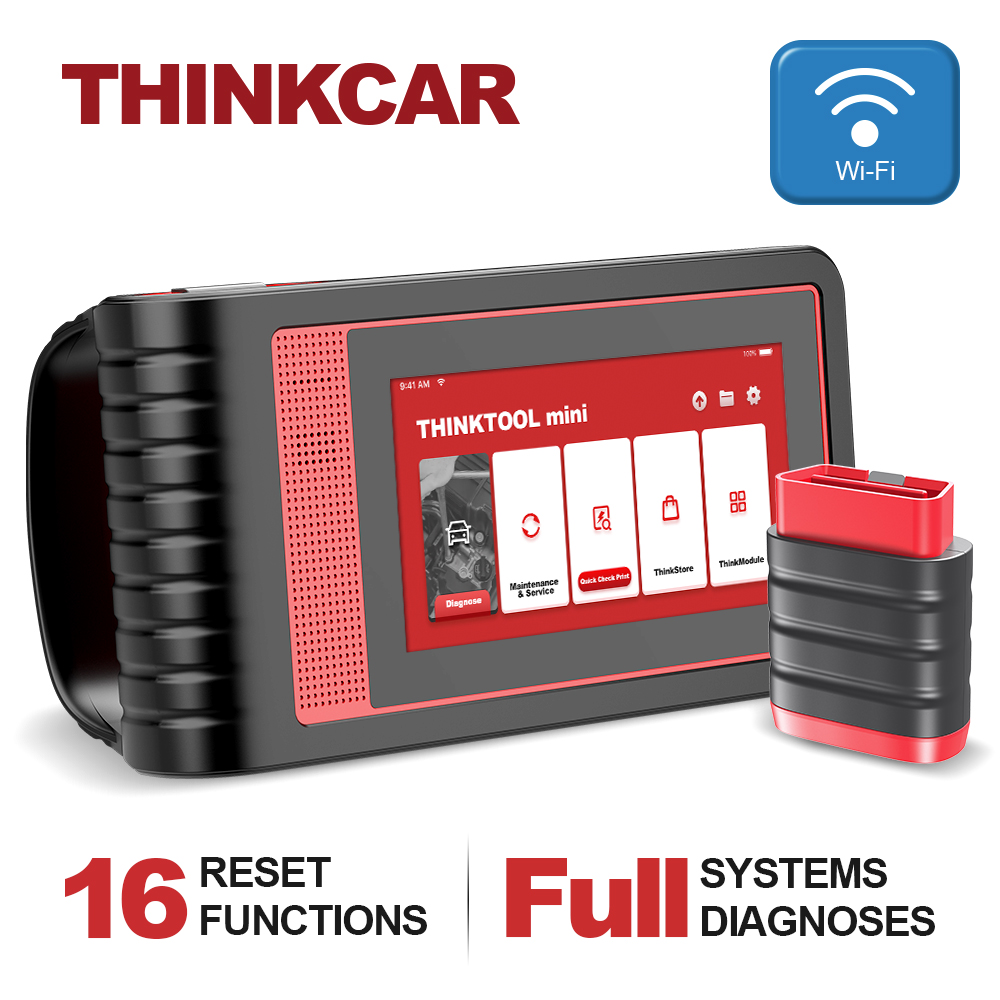

THINKCAR ThinkTool Mini Full System Diagnostic Car Scanner Professional OBD2 Auto Code Reader ECU Coding Active Test EOBD Tool

Thinktool mini Automotive Scanner All Systems Diagnostics:

This option allows you to detect whether the system parameters are normal or not. Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ,Air Conditioning System,Transmission System, ect... Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.

Thinktool mini 16 Special Service Function:

1.Oil Lamp Reset Service Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset It is important in the maintenance of electronic braking system's safety and efficiency. 3.BAT battery service Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset The sunroof needs to be reset when the sunroof control unit have communication problem or changed. 10.Suspension Reset Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset 'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

Thinktool mini supports OBD II Functions:

Mode 01---Request current powertrain diagnostic data.

Mode 02-Request freeze frame information.

Mode 03-Request emissions-related diagnostic code .

Mode 04-Clear/reset emissions-related diagnostic information.

Mode 05-Request oxygen sensor monitoring test results.

Mode 06-Request on-board monitoring test results for specific monitored systems.

Mode 07-Request emission-related diagnostic trouble codes detected during current or last completed driving cycle.

Mode 08-Request control of on-board system, test or component.

Mode 09-Request vehicle information.

Mode 0A-Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Support Expandable Module Functions

If you are interested in the expandable module,you can buy it separately.Click the picture.

Supported Car List：

Function Display:

Product Specification:

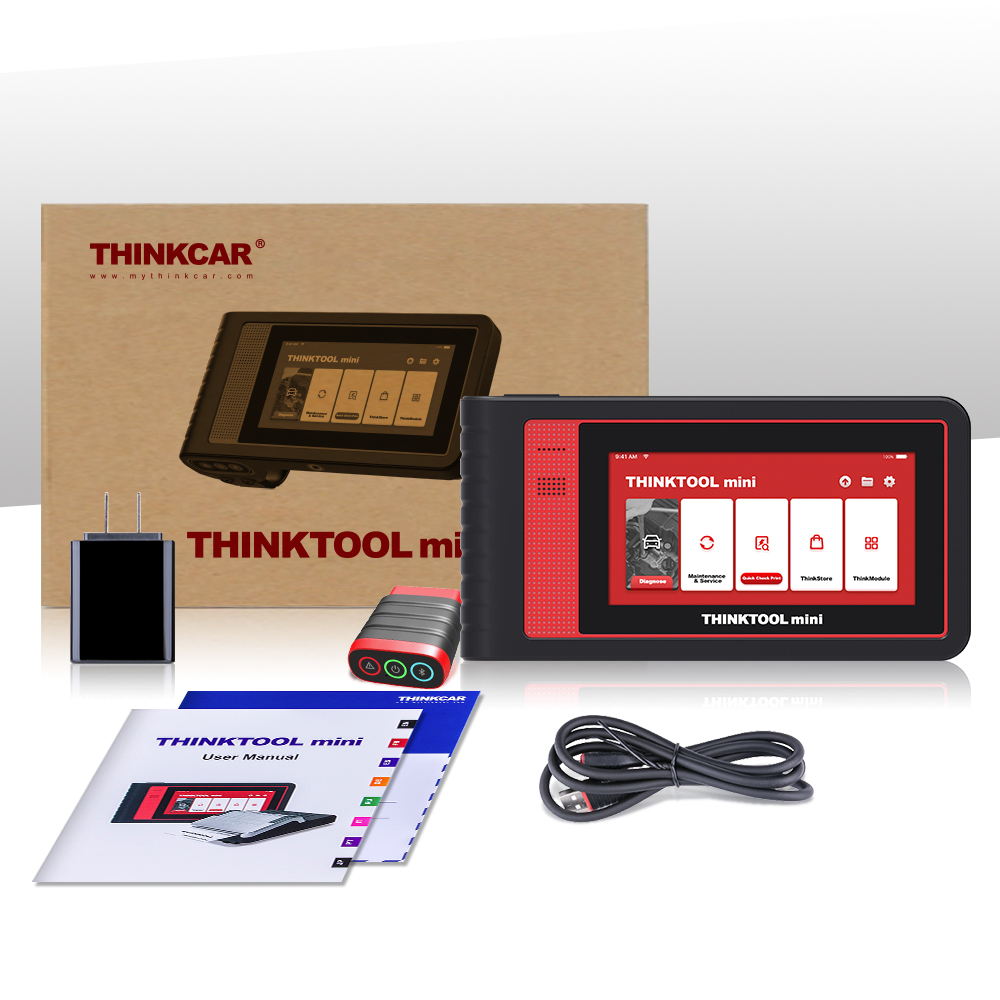

Packing List:
