LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device

Introduction:

When the detection tool indicates an issue with the internal cells of the battery pack, technicians typically replace the entire module (as repairing individual cells is challenging and time-consuming, hereby ref. to EVB624/ELB300 for cells balancing). After replacing the module, the EVP711 can be used for balancing. Once the voltage of the module is consistent, it can be installed into the vehicle.

During the balancing process with the balancer, it may take a considerable amount of time to complete. In such cases, you can use the EVP711 to charge the battery module first. When the voltage levels are approximately equal, use an equalizer(such as EVB624/ELB300) to balance the cell voltage consistency. Combining the use of the equalizer and the charge&discharge tool improves repair efficiency.

Product Features:

1. Supports charging and discharging maintenance for all common lithium-ion and nickel-hydrogen batteries on the market.

2. Adopts state-of-the-art charge&discharge testing technology to prevent interference with the BMS system.

3. Allows for the customization of charging and discharging rules.

4. Takes a wide voltage design and built-in multiple charging and discharging modes to meet the voltage and current requirements of various battery pack modules, ensuring safety while enhancing charging and discharging efficiency.

5. Safety Protections: Provides warning alerts for reverse polarity, high temperature, overcurrent, fan malfunction, high voltage, and excessive current to safeguard hardware safety.

User-defined operating parameters

You can set your own charging and discharging rules and activation times to achieve optimum battery capacity.

Alarm settings

Various alarm conditions can be set for voltage, current and temperature. This enables early intervention and ensures the safety of the battery and device.

Monitoring of maximum and minimum voltage

The device offers the option of displaying the highest and lowest voltages, temperatures and other data of individual battery strings, which can be enlarged or reduced in size for a better overview.
The new EVP711 is designed to support the charging and discharging of lithium and nickel-metal hydride batteries.

Security features

The EVP711 is equipped with a range of safety functions, including reverse polarity protection, overtemperature protection, overcurrent protection, fan failure detection, overvoltage warning and overcurrent warning. All of these functions contribute significantly to the safety of the operator.

The new EVP711 is capable of recording and displaying real-time data on the terminal voltage of the battery pack and the voltage of the individual cells.

Technical Profile

Charging and discharging power Charging: max. 4.4kW, Discharging: max. 7.2kW

Battery interface 16 Pin, 24 Pin

Channels HV-positive and HV-negative

Display 10″ LCD Display

Communication WLAN, Bluetooth

Product Specifications:

Power input: AC90-264V,

Group Terminal Voltage Accuracy:≤±(0.5%FS+0.3V),resolution:0.01V

Single Cell Voltage Accuracy: ≤± (0.1%FS+5mV), resolution: 0.01V

Test Current Accuracy:≤± (1%FS+0.2A), resolution: 0.1A

Charging&Dsicharging Voltage Range: DC 2~400V

Charging Current Range:0~100A, maximum power: 4.4kw

Discharging Current Range: 0~100A, maximum power 7.2kw

Data Communication:RS485

Display: 10.1' LCD

Charging Control: Constant current charging + constant voltage charging

Discharging Mode: Constant current discharging

Dimensions: 551*349*598 (mm)

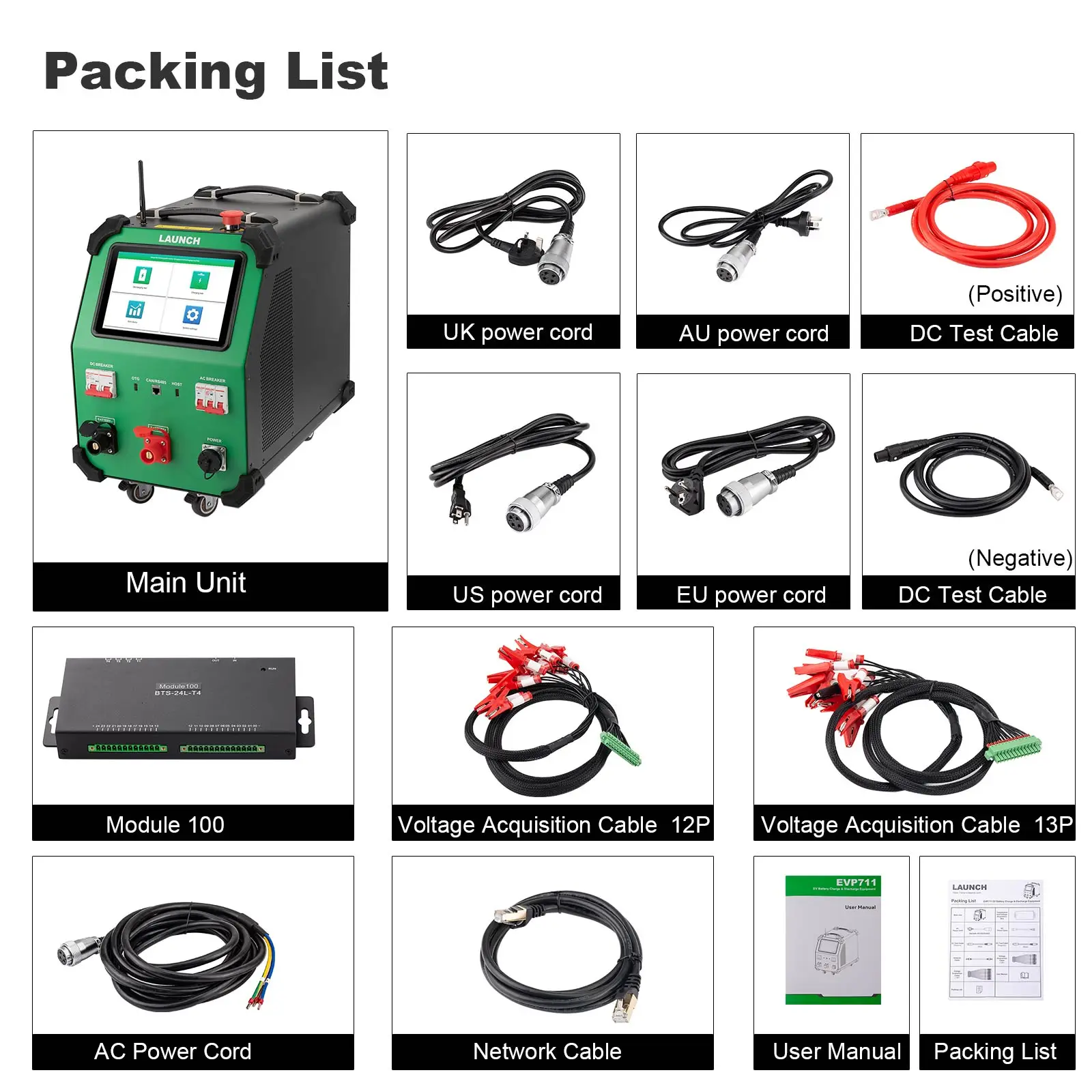

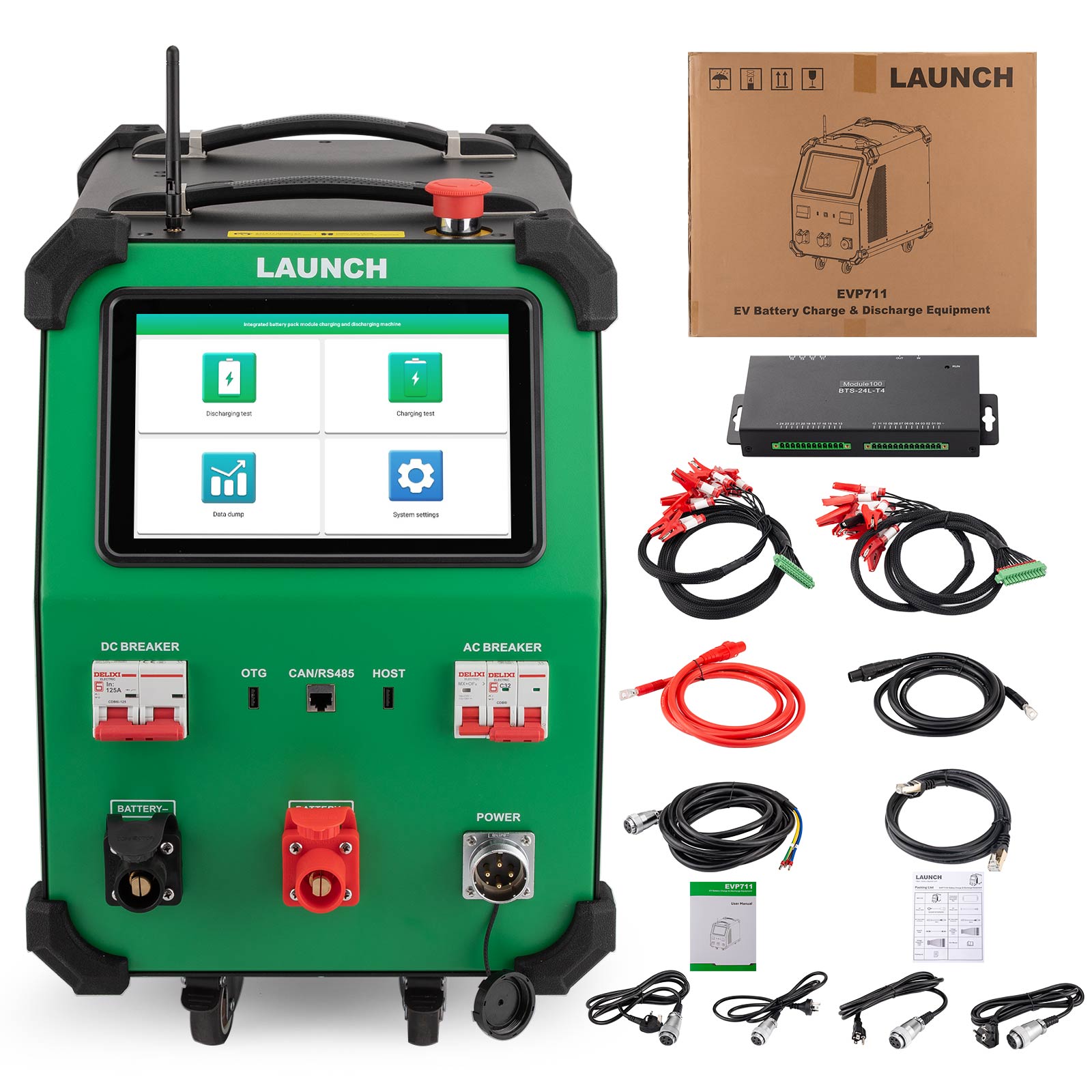

Package includes:

1pc x main unit

1pc x temperature and voltage acquisition box

1pc x AC power cord(include UK/US/EU/AU)

1pc x AC power cord(single-phase three wire)

1pc x DC test cable-positive(Red)

1pc x DC test cable-negative(Black)

1pc x network cable

1pc x voltage acquisition cable(12P)

1pc x voltage acquisition cable(13P)

1pc x User manual

1pc x Packing list
