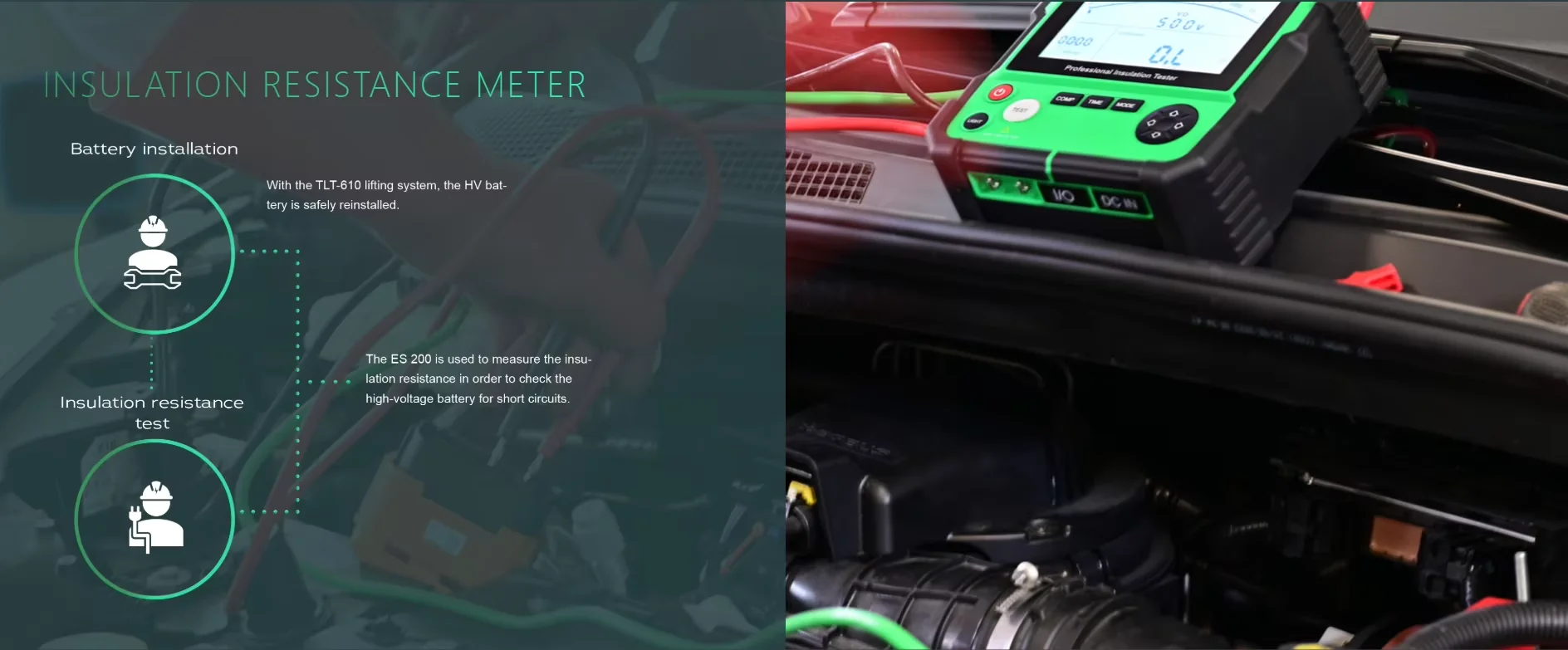

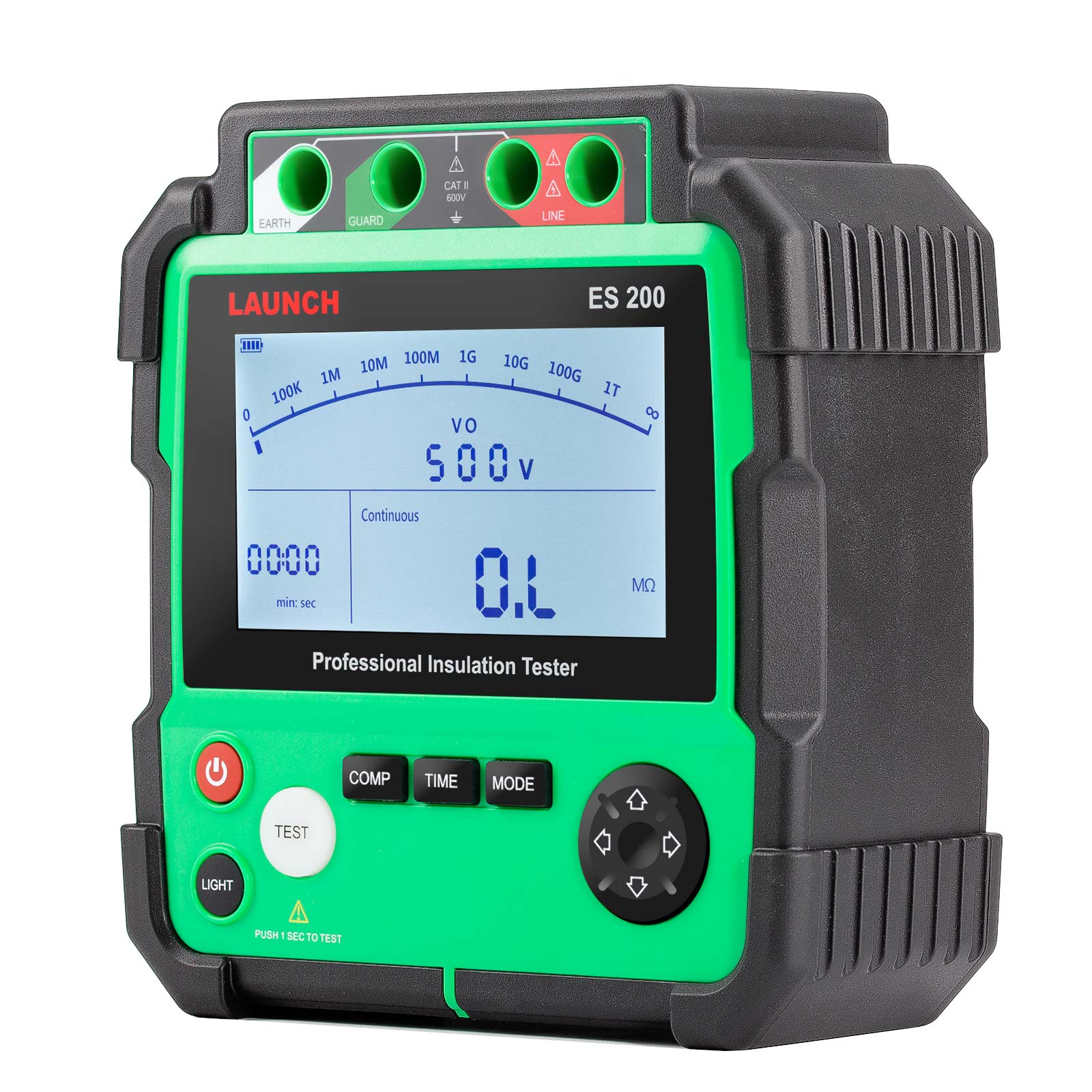

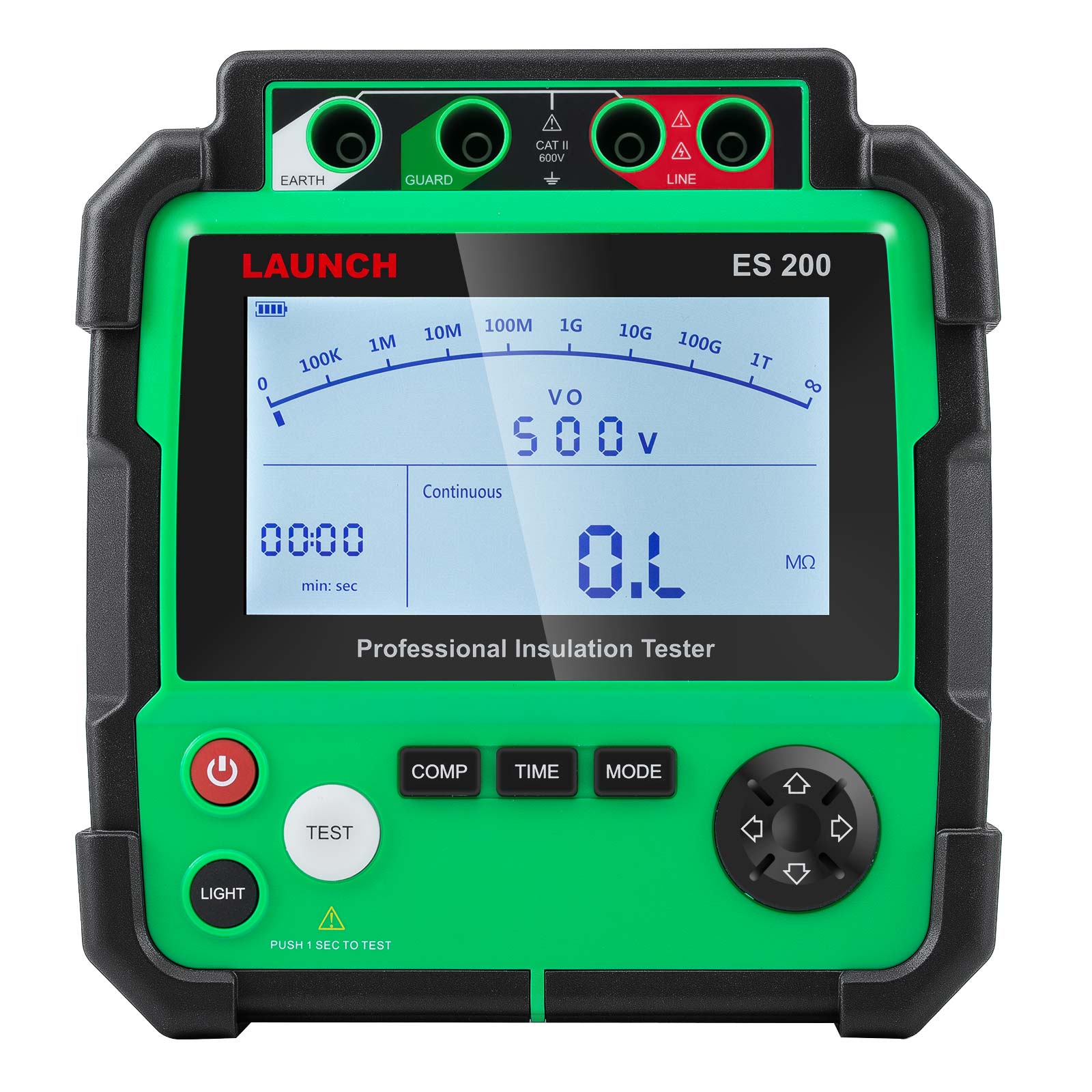

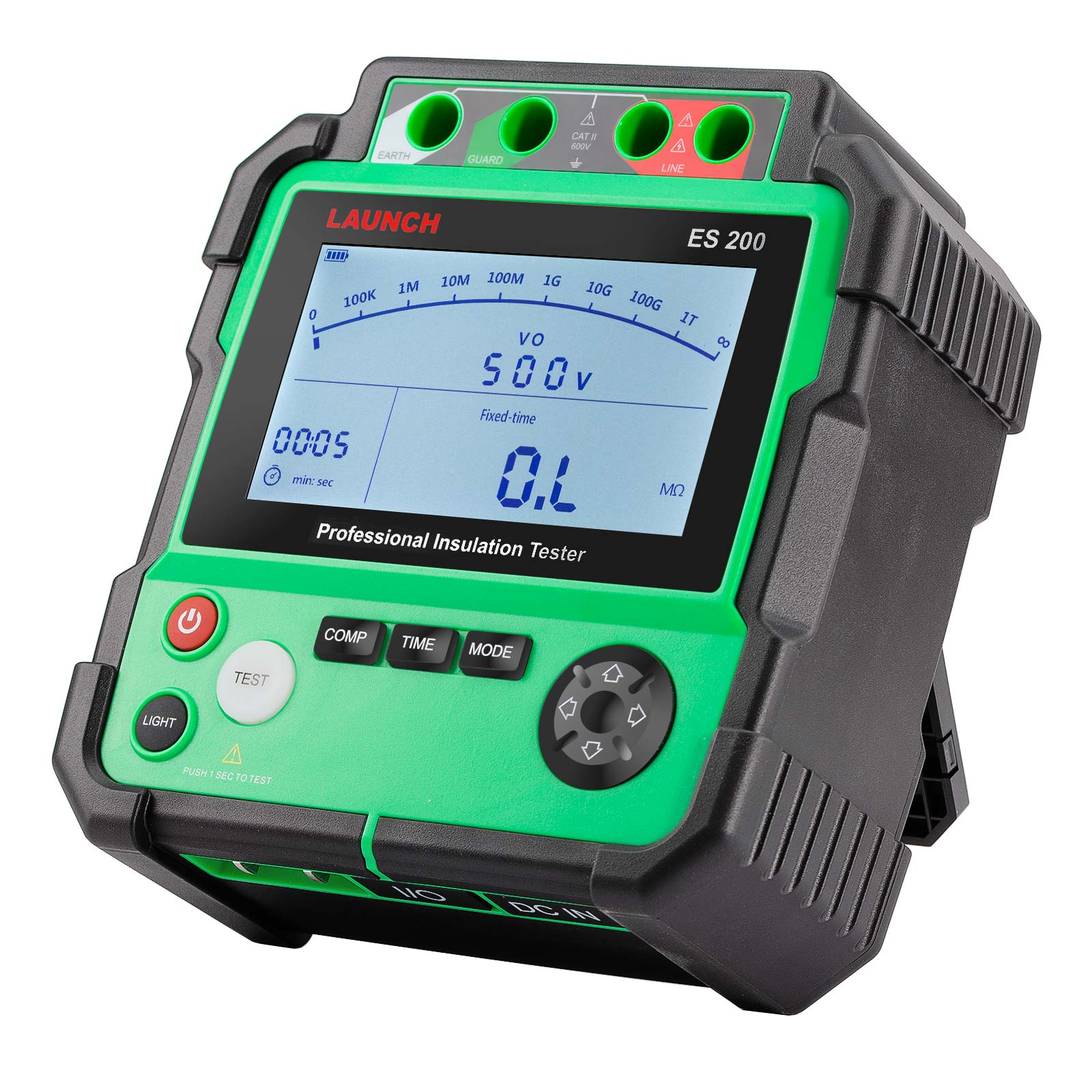

Launch ES200 EV Insulation Resistance Tester offers a comprehensive solution for ensuring the electrical safety of electric vehicles. By measuring insulation resistance, it helps detect potential leaks and faults in EVs' high-voltage systems, which are crucial for maintaining both safety and performance.

The ES200 not only measures insulation resistance but also incorporates voltage measurement functions, enhancing its utility. It features multiple testing modes to accommodate different diagnostic needs.

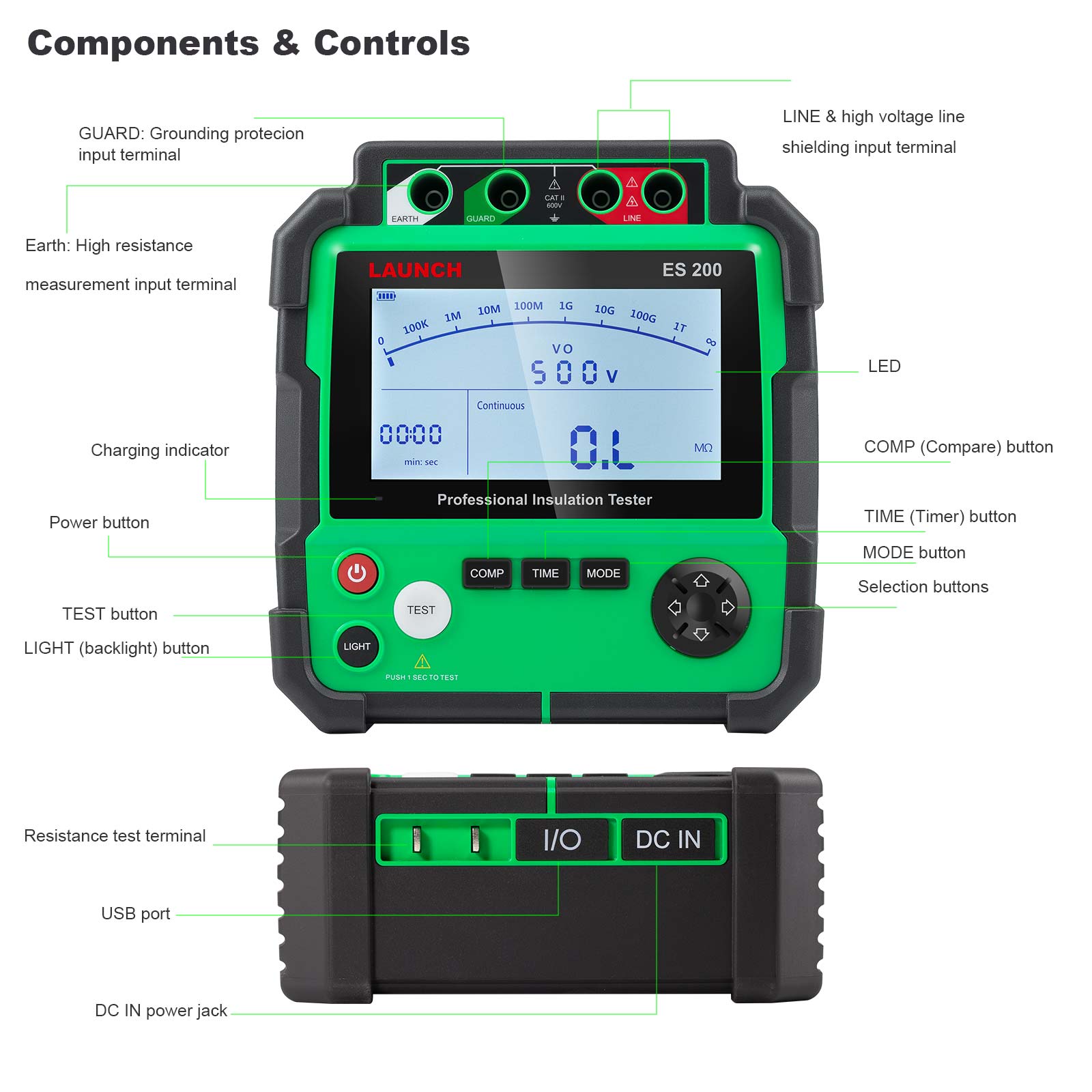

• Advanced insulation resistance measurements with optional high voltage settings (500V, 1000V, 2500V)

• Equipped with standard resistance for accuracy comparison in measurement mode

• Three measurement modes: timing, comparison, and continuous for comprehensive diagnostics

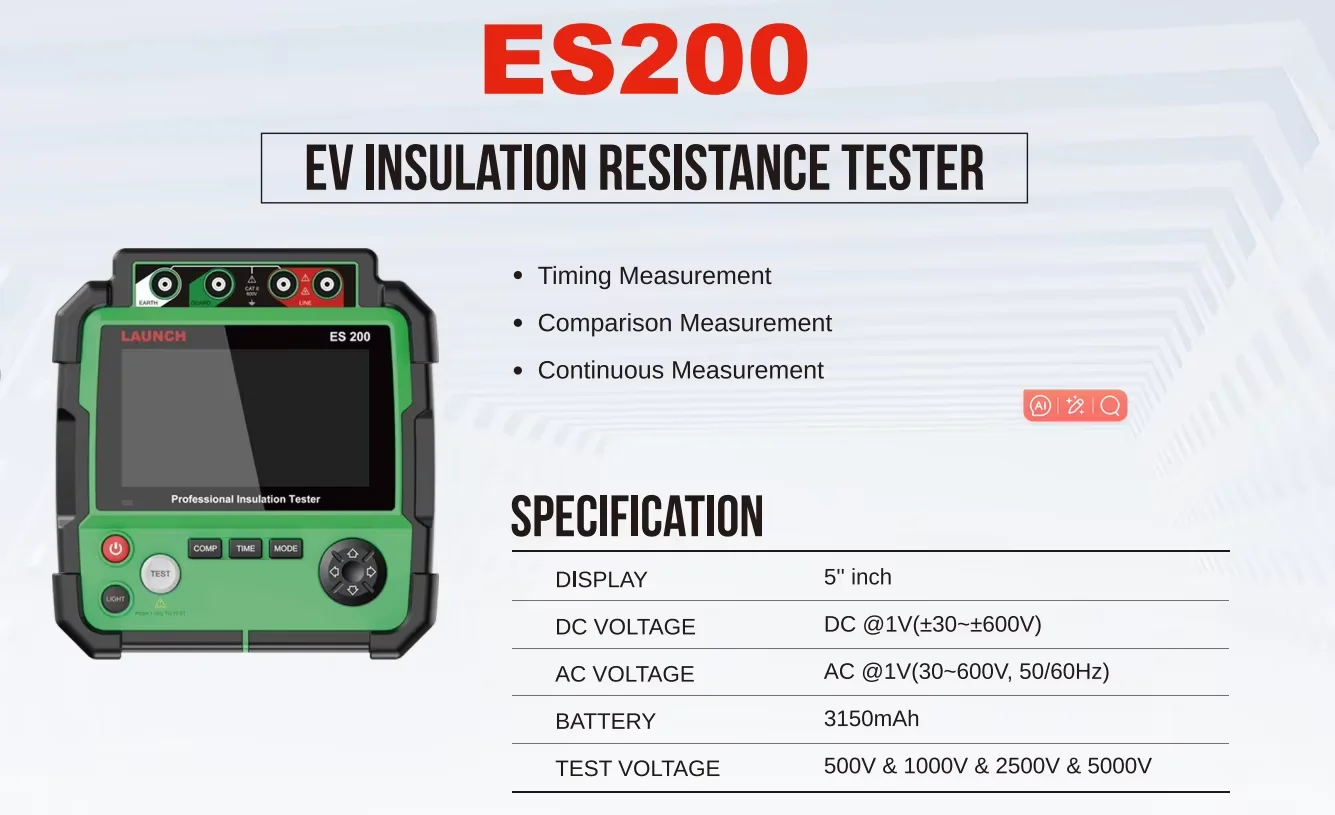

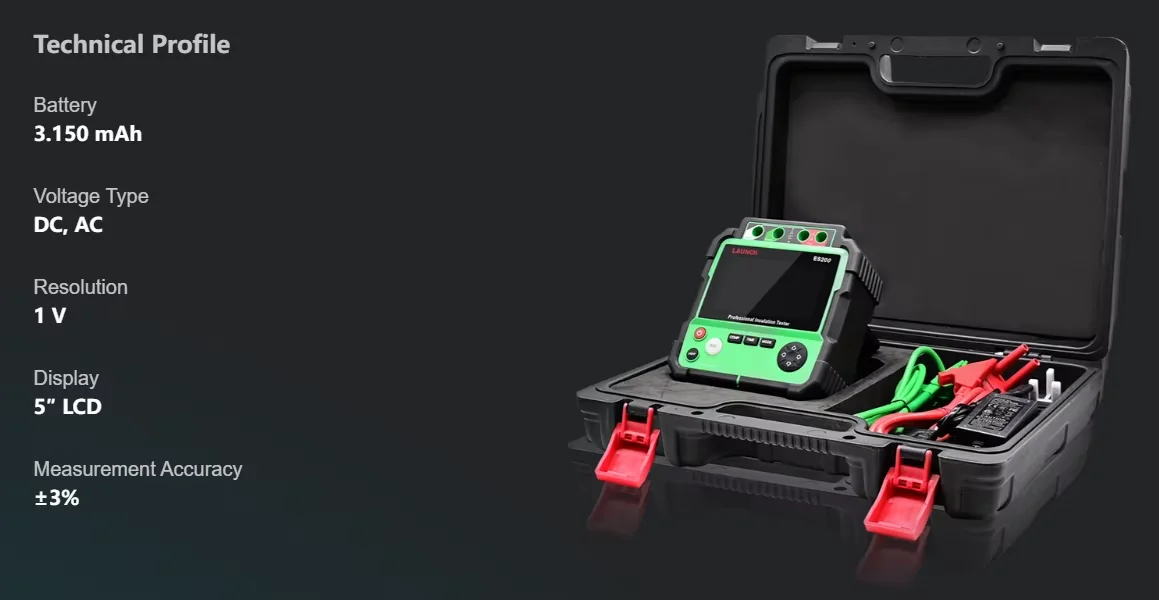

ES200 Specification



Battery: 3150mAh

Display: 5''

Working Temperature: 0~50℃

Dimensions: 180*174*65.5(mm)

Weight: 1.7kg



AC and DC Voltage Test Performance Parameters



Voltage Type                               DC Voltage                AC Voltage

Measuring Range                       ±30~±600V                30~600V(50/60Hz)

Resolution                                  1V                              1V

Measurement Accuracy              ±3%                           ±3%

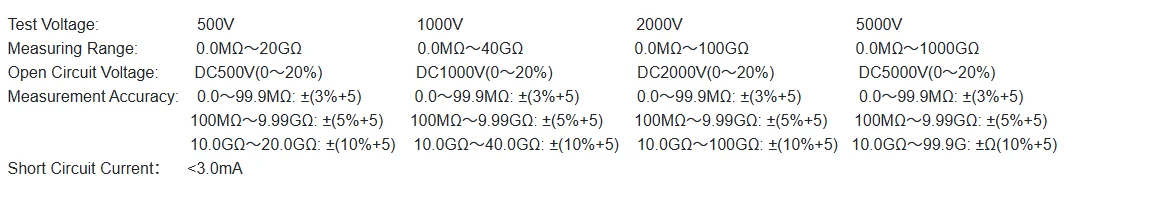

Insulation Resistance Test Performance Parameters

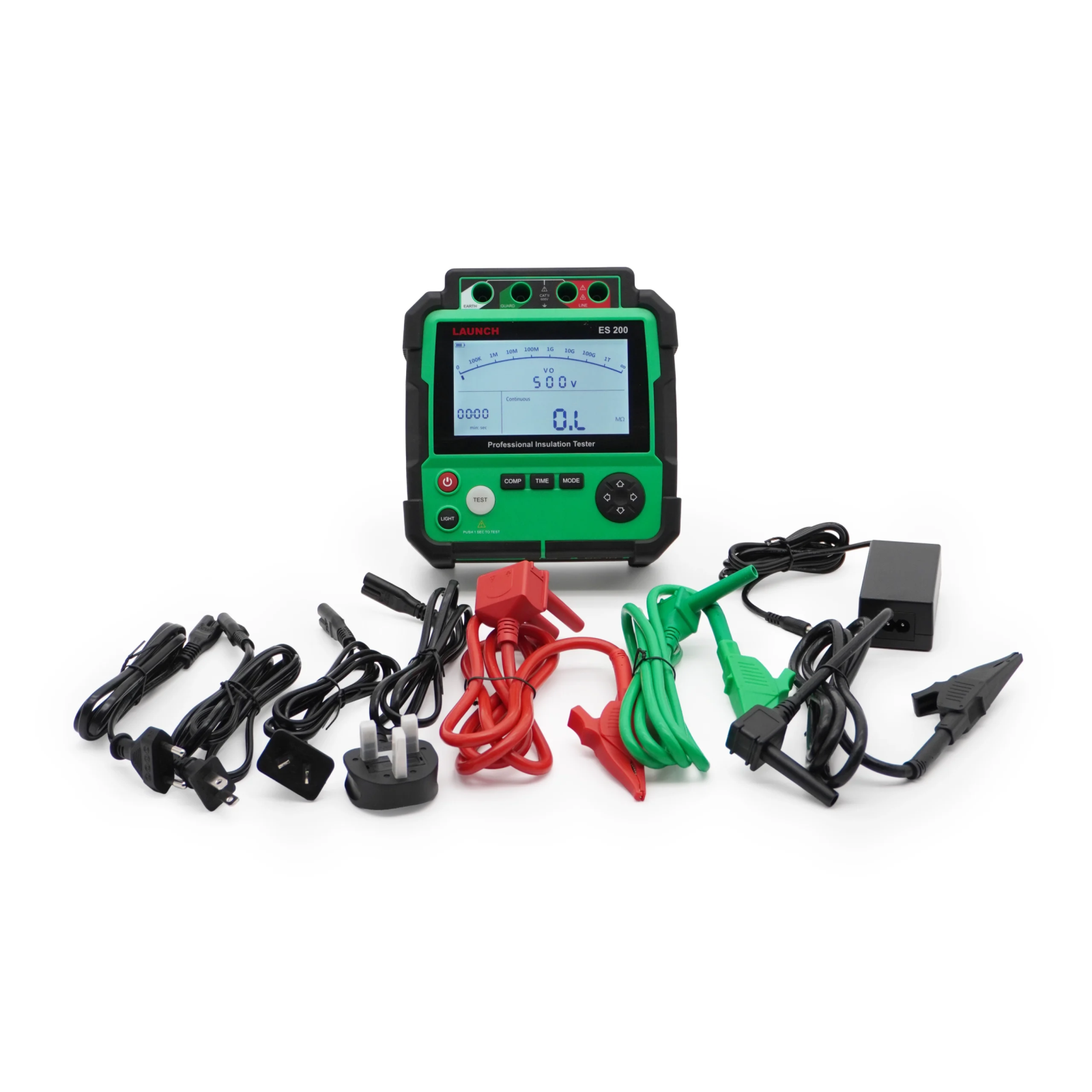

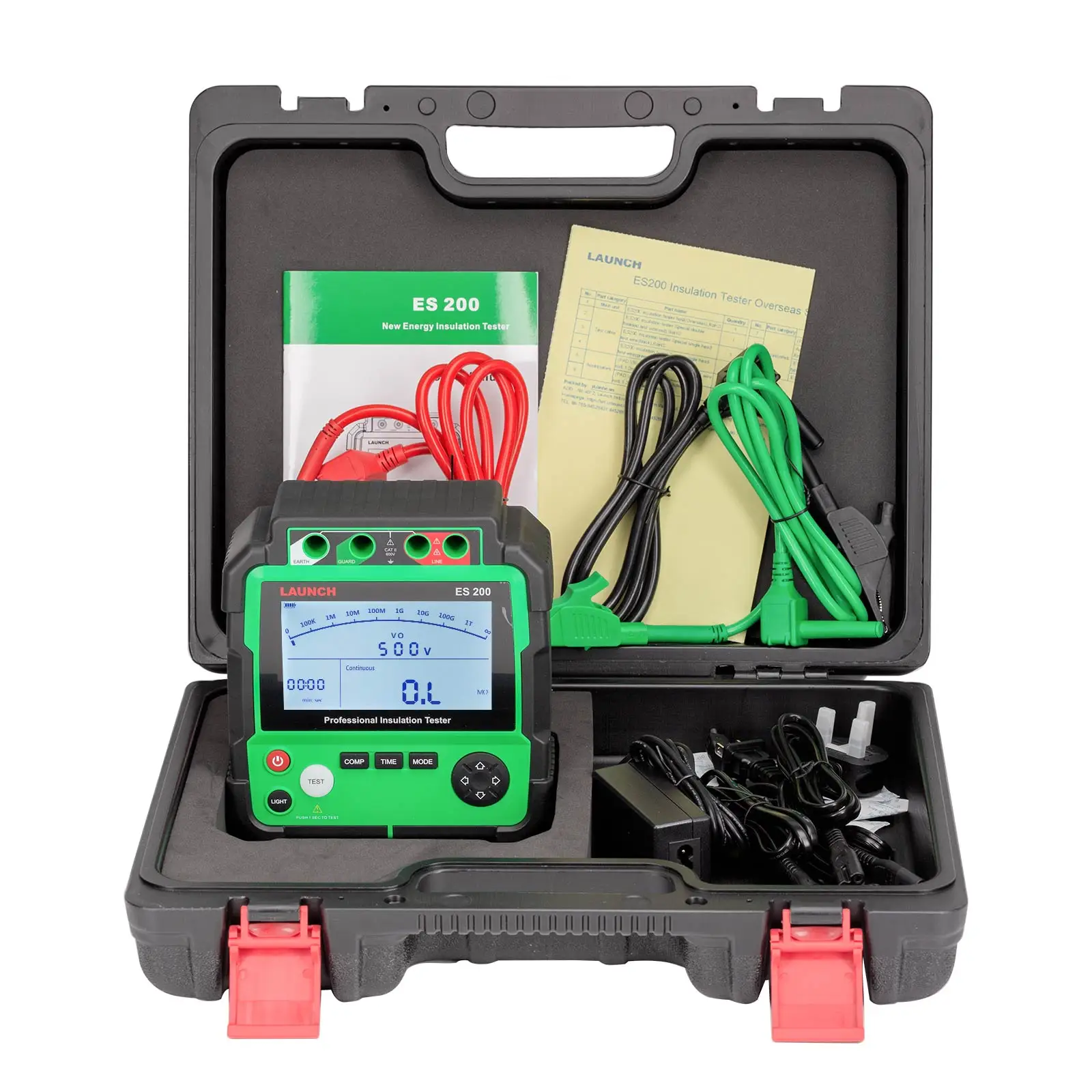

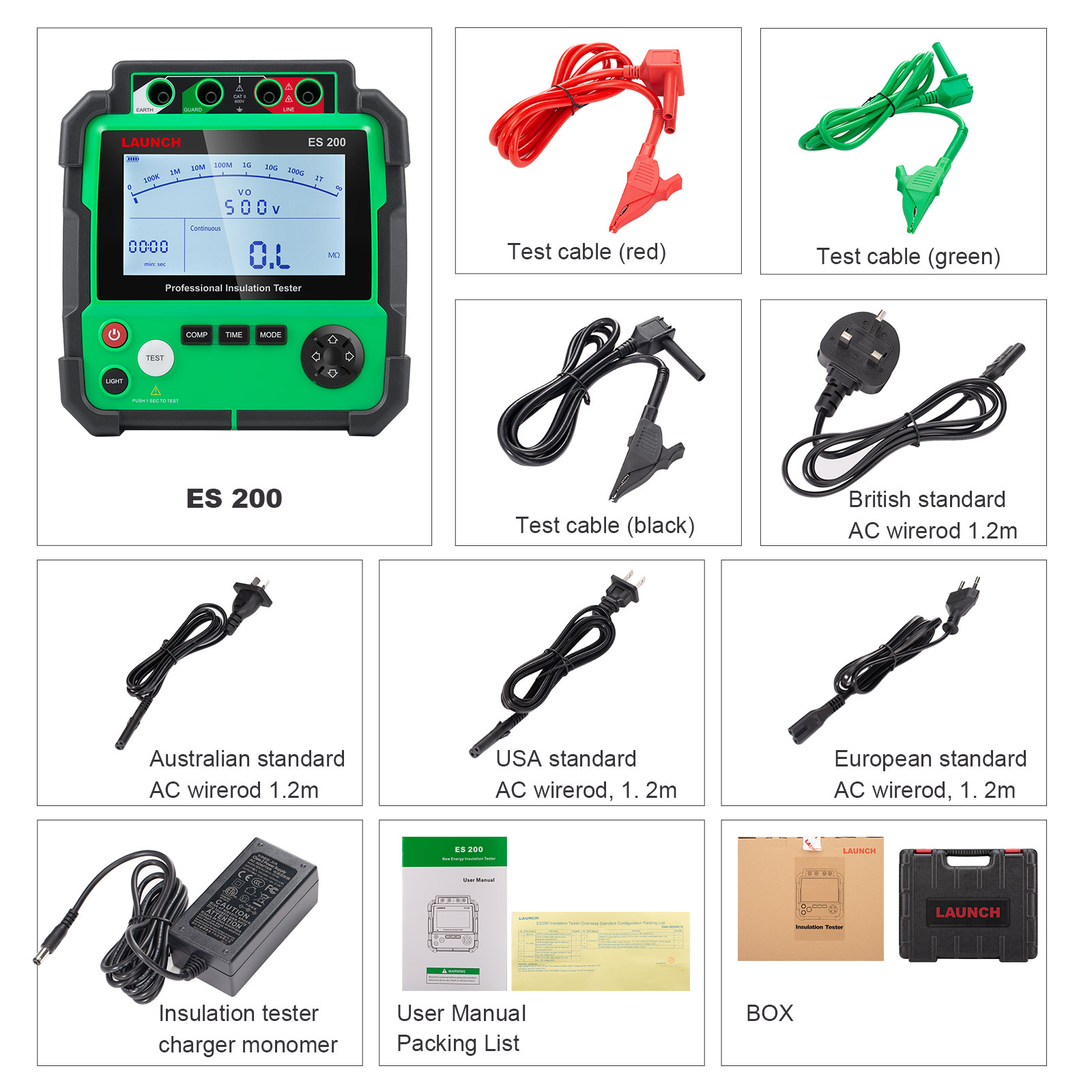

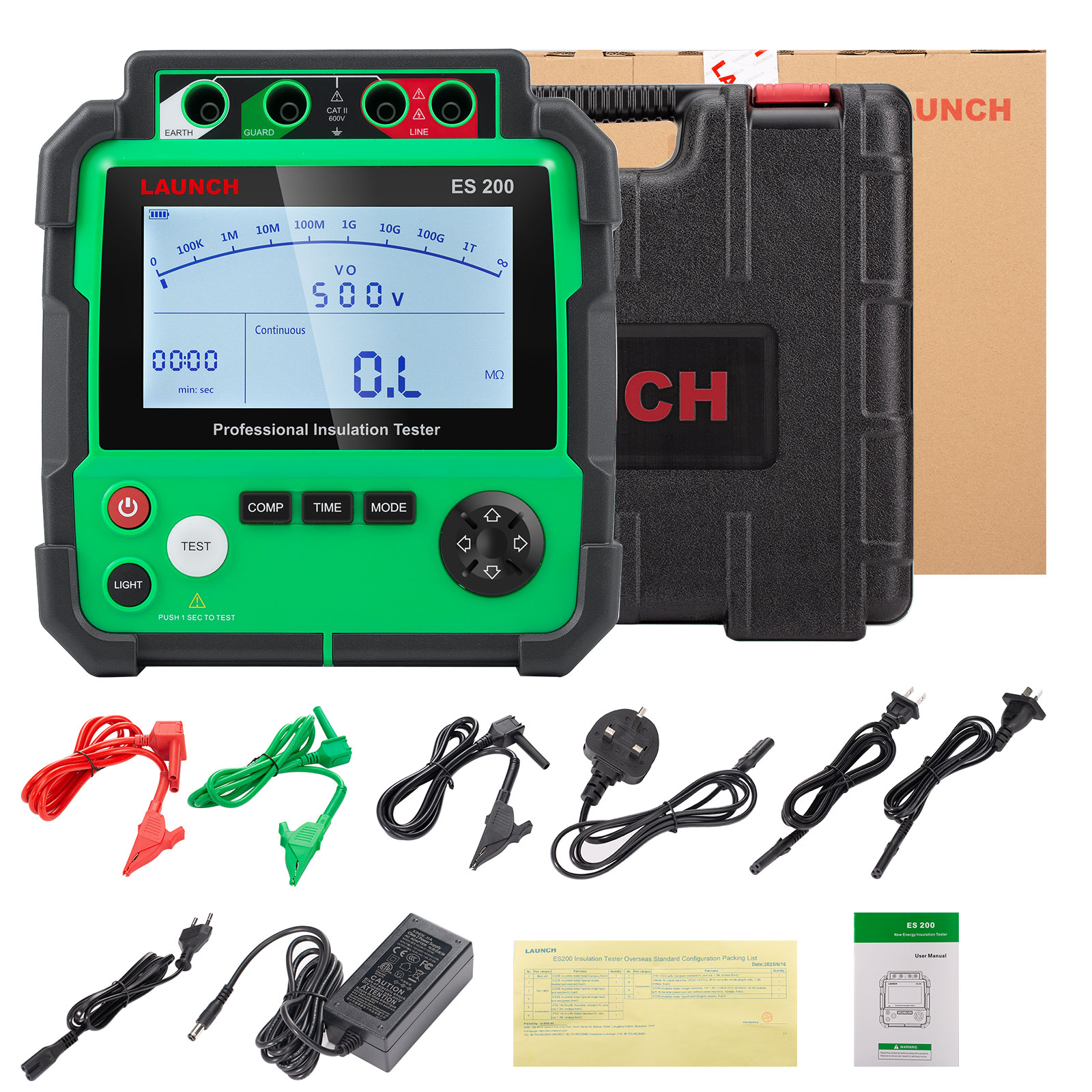

Package includes:



1pc x LAUNCH ES200 Main unit
1pc x double headed test wire(red)
1pc x single head test wire(black)
1pc x single head test wire(green)
1pc x Autralian standard AC wire rod
1pc x European standard AC wire rod
1pc x British standard AC wire rod
1pc x Adapter AC input line
1pc x charger
1pc x manual
