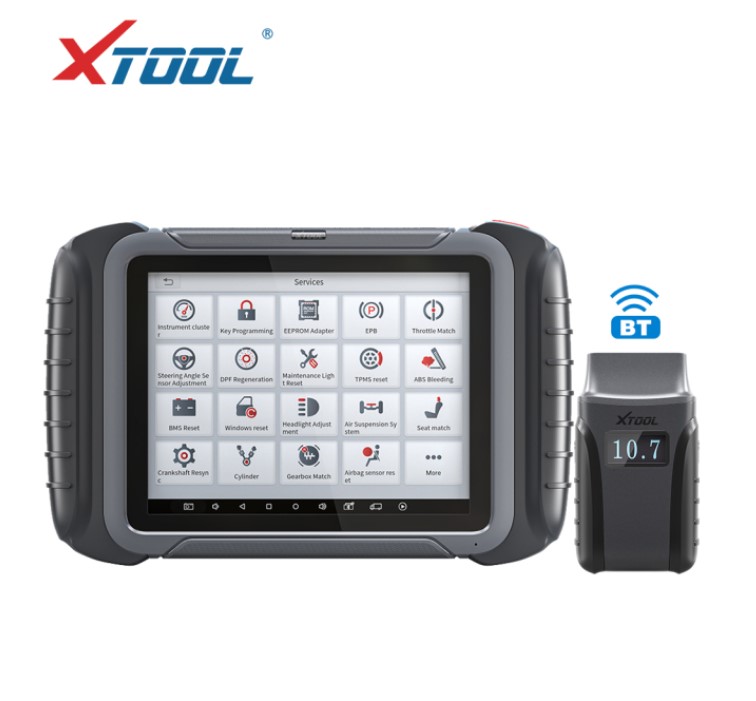

XTOOL D8 BT Automotive OE All Systems Diagnostic Scanner ECU Coding 30+ Service Functions Bi-Directional Control

XTOOL D8 BT Professional Diagnostic Scanner with Advanced ECU Coding, Bi-Directional Control, OE Level All Systems Diagnostics, Key Programming Functions, Support CAN FD Protocol.

1.Advanced ECU Coding and Online Coding Capability + Active Test (Bi-directional Control)

2.Support OE Level All System All Functions Diagnostics Included Engine, Airbag, ECM, TCM, ABS Systems and etc…

3.Support 31+ Service & Reset Functions like DPF, Oil Reset, EPB, SAS, IMMO and more…

4.Auto VIN/Auto Scan/VIN Scan/Manual VIN Input

5.Support CAN FD Protocol Vehicles for GM Cars

6.Woreless BT Connection: D8 BT connect via BT connection with a working range of 30 feet for higher mobility.

7.Android 5.1.1 OS, 1.8Ghz Quad-core Processor, 2GB+64GB Memory, 10,000mAh Built-in Battery

8.Multi-language Configuration & 3 Years Free Software Update

9.24 hours Technical Support and Weekly New Car models Update

10.Extensive Vehicle Coverage of 88+ Car Brands, More than 10000+ Cars

Advanced ECU Coding

XTOOL D8 BT newest automotive diagnostic scanner performs ECU coding and online coding, allow you to access the ECU of a vehicle to customize car settings, reprogram the adaptive data for certain components after replacement to enhance vehicle performance, and also can unfold the hidden features, disable the annoying functions.

Active Test ( BI-Directional Control)

XTOOL D8 BT comes with Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, like EVAP test, Cylinder Deactivation, Cycling A/C Clutch On/Off, switch fuel injector on/off, cycling ABS motor pump, test car window, door, sunroof, wipers and etc to pinpoint fault locations easily and effectively.

Note: ECU Coding and Active Test don’t support all car models.

Support CAN FD Protocol

As a newest automotive diagnostic scanner, D8 BT can work on newer CAN FD protocol vehicles (for GM vehicles after 2020).

OE Level All Systems Diagnostic (Few minutes Read all systems)

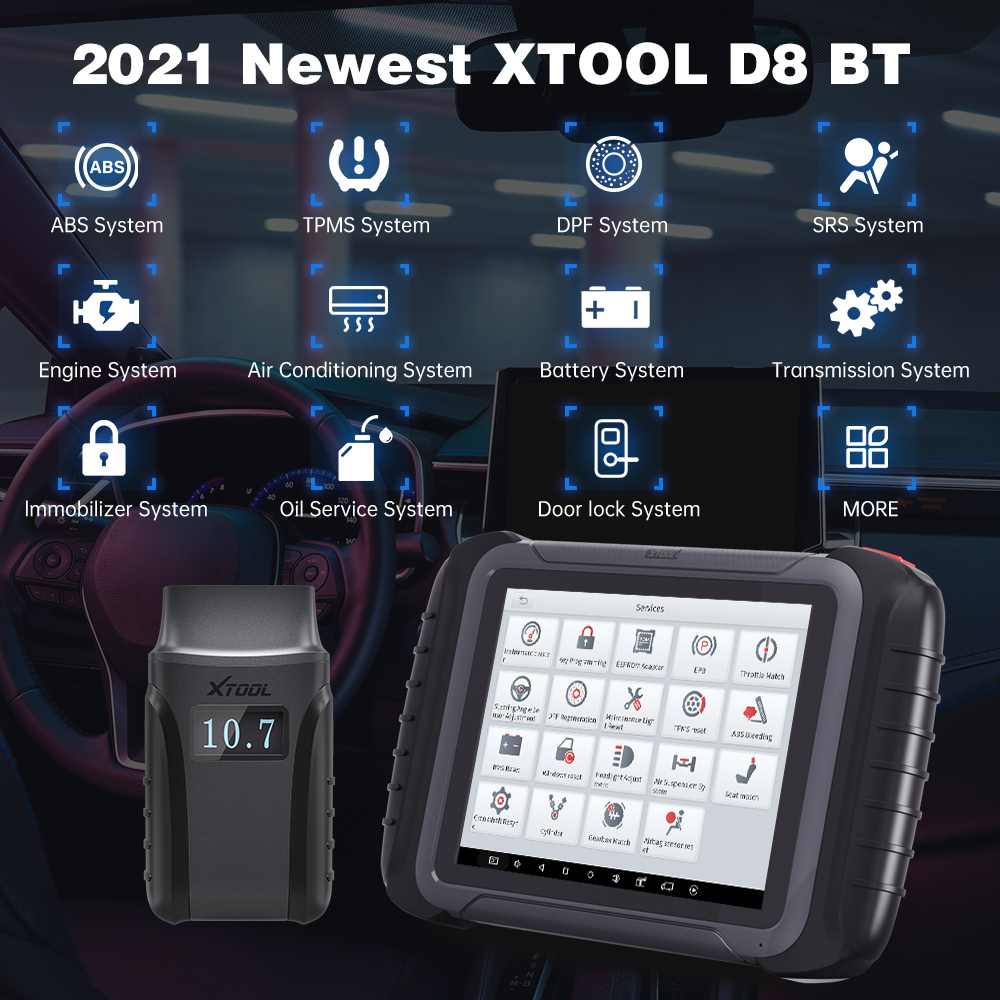

To diagnose car comprehensively, XTOOL D8 BT scanner can access most car ECUs to read, clear DTCs, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors.

For instance: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics and etc...

XTOOL D8 BT with 31+ Kinds of Special Functions (keep update)

1.Oil Reset:Close the oil service light and reset service mileage & service interval after replacing the engine oil.

2.Electronic Parking Brake Reset:Reset the new electronic parking brake for braking wheels safely again.

3.Throttle Relearn: Allows to reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.

4.Tire Pressure Monitor System Reset: Relearn TPMS sensors so that new sensors can be recognized by ECU.

5.ABS Bleeding: Get a firm brake pad after air exhaustion.

6.Key Programming/Immobilizer: Allows to disable a lost vehicle key to protect the vehicle from being stolen and add the new key.

7.DPF Regeneration: Allows to clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.

8.Injector Coding: Allows to write a new code to the ECU for accurate communication and Injection control. After the ECU or injector is replaced, the cylinder can better identify injectors to accurately control fuel injection.

9.SAS Calibration: Allow to clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.

10.BMS Reset: Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.

11.DIY Mode : Programmer Car models Hidden functions (High configuration hidden function) And Windows Calibration, Seats Calibration.

12.Gearbox Match: Matching the gearbox/transmission after replacement.

Other special functions include Headlight Adjustment, Airbag Reset, Tire Reset, Language Change, Suspension Calibration, ABS Initialization, Seat Calibrations, Transport Mode, Tire Upgrade, Tooth Learning, A/F Reset, Coolant Bleed, Transport Mode and etc.

More…

Note: these special functions don't work on all cars, please send your vehicle model and year for us to have a check.

Live Data Stream

XTOOL D8 BT Display live data stream in text or graphs like misfire data, transmission oil temperature, fuel trim, O2 sensors, ATF temperature, cylinder balance rates, engine rpm, mass air flow sensor data, fuel pressure, actual fuel temperature vs desired fuel temperature and etc.

4 Ways VIN Selection

1.Auto VIN Scan

XTOOL D8 BT diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.

2.Manual VIN Input:

For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.

3.Automatic Selection:

The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.

4.Manual Selection:

When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.

One Click Update Online & 3 Years Software Free Update

XTOOL D8 BT comes with one click online and 3 years free update to get the newest software that can support more functions and new vehicle models coverage.

The device still can work normally even when the free updates period expires.

Multi Language Support

XTOOL D8 BT can support 15 kinds of language: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese.

(please send us the S/N of the device and then we will help you authorize language, and you can free switch it)

Remote Technical Support

Users can receive a remote support from XTOOL’s technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the Team Viewer software.

Maintenance Help: Including How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.

Diagnostic History: Once a vehicle diagnosis is performed, XTOOL D8 will record the every detail of the diagnostic process. you can record/review layback live data anytime .The History function provides quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch

Diagnostic Feedback: allows you to submit any issues you can’t immediately fix. With the support of professional experts, XTOOL will make great efforts to provide you with the best solutions as soon as possible.

Remote diagnose: On Tablet have the Quick-help engineer can enter your tablet and help you make diagnostic and provide professional technical support

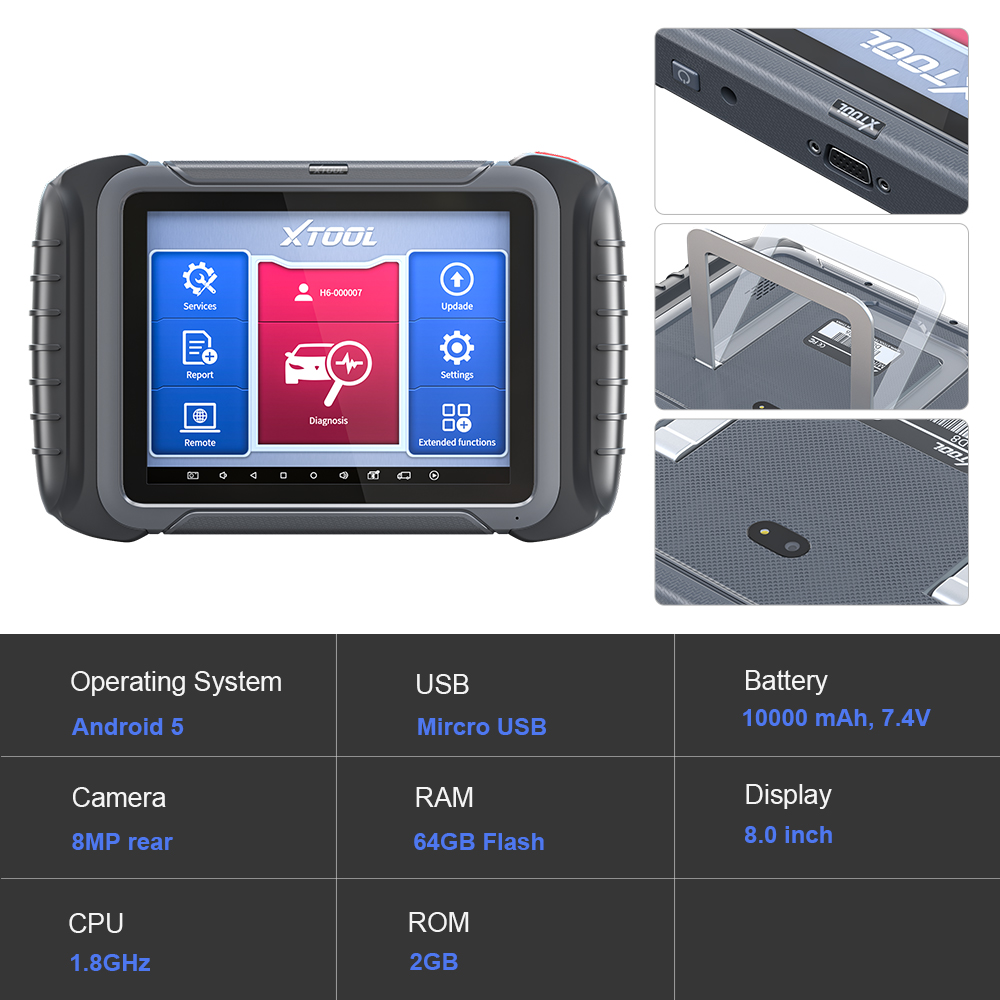

XTOOL D8 BT Parameter

Operating Systems Android 5.0

Storage:2GRAM. 64G ROM

Processor:Quad care processor 1.8GHz

Camera:8.0 Megapixel,Auto Focus rear camera with flash

Sensor: Sensor gravity sensing

Audio input: Microphone

Audio output: Speaker

Interface: USB 3.0 DC Charging port ,VAG interface

Battery: 10000mAh,3.7V lithium polymer battery

Input voltage 12V

woorking Temp : -10-50 Celsius

Relative humidity <90%

Tablet Size: 274X175X33.8(MM)

PS:In order to better protect the battery ,it is recommend to charge the diagnostic equipment at the ambient temperature of 0-40 Celsius
