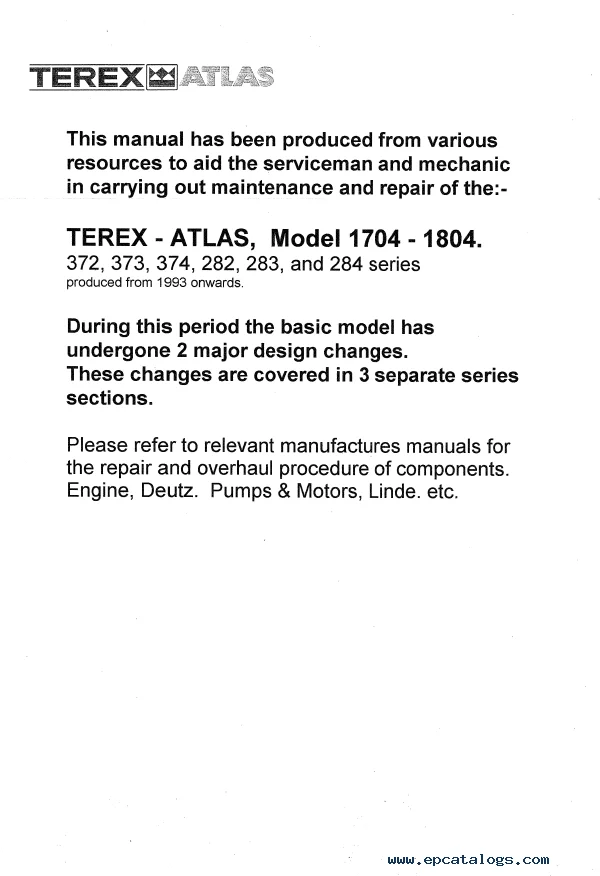

This manual has been produced from various resources to aid serviceman and mechanic in carrying out maintenance and repair of the: Terex Atlas, model 1704 - 1804, 372, 373, 374, 282, 283, and 284 series, produced from 1993 onwards.

This manual helps to quickly and easily eliminate all the interferences of excavators Terex Atlas, since 1993. With this information, you will save time searching for information about parts and money for service. Also,  manual can be easily used to treat the various kinds of damages and errors, because the manual includes detailed step by step instructions, special technical information, data on the assembly and disassembly, schematics, diagrams, and much other useful information.

Workshop manual provides detailed information to help implement the quality auto repair. This manual is presented in PDF format. Workshop manual contains 457 pages, any one of which we can be printed easily. To work with a manual you should use Adobe PDF Reader (or any analog).

Models: 1704-1804
Series: 372-282, 373-283, 374-284

Contents:

General view of mobile and tracked operators cabin
Right-hand switch panel
Left-hand switch panel
Function (standard and optional) left / right hand panels
Multifunction levers (mobile only)
Adjustable steering column (mobile only)
Displays and controls
