XTOOL EZ400 PRO Full System Auto Diagnostic Tool

XTool EZ400 PRO is a high-end and new style auto diagnostic device developed by XTOOL based on Android system which has same function as Xtool PS90. Xtool EZ400 Pro is based on Android system and Internet application,combines the XTOOL Company's vast vehicle coverage, strong diagnostic functions, many special functions and modern high quality tablet together,which makes it the best solution for workshops. XToolEZ400 PRO can work on Malaysia cars now, please pass us serial number of your device to get the authroization for free.

XTOOL EZ400 Pro Features:

1.Easy registration with EZ400 PRO connected to WIFI
2.Wireless diagnosis via Bluetooth
3.One-click software update via WIFI
4.Remote access
5.Diagnosis reports in PDF file
6.Record and playback live data
7.On-board battery
8.Extensive vehicle coverage for most US, Asian and European vehicle makes

XTOOL EZ400 Pro Function List:

▪Full System Diagnosis

▪Immobilization
▪Odometer adjustment
▪Service maintenance light
▪Electric Parking brake
▪Thrittle Relearn
▪Steering angle adjustment
▪Tooth learning
▪ABS exhaust
▪Headlight adjustment
▪DPF
▪Suspension
▪ECU reset
▪Type pressure reset
▪BMS reset

How to Update XTool EZ400 Pro?

One-Click Onlie Update

XTOOL EZ400 Pro Vehicle List:

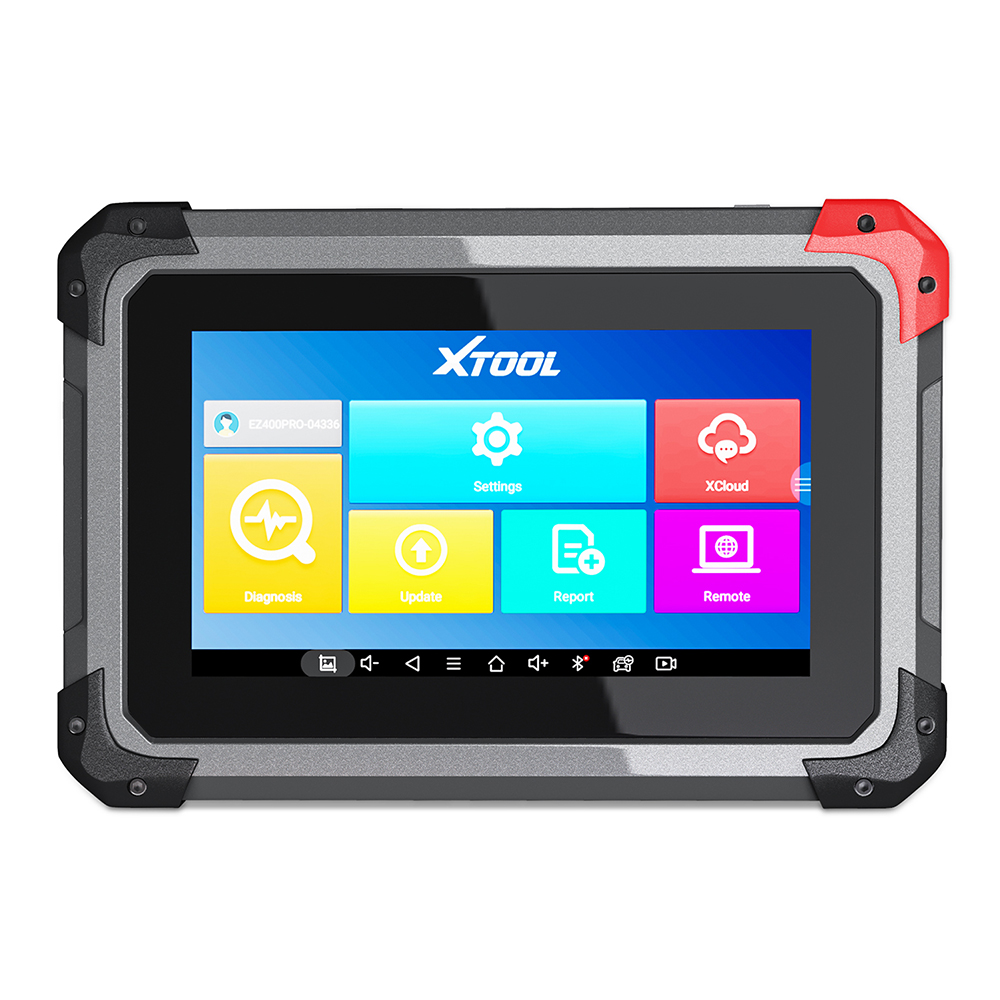

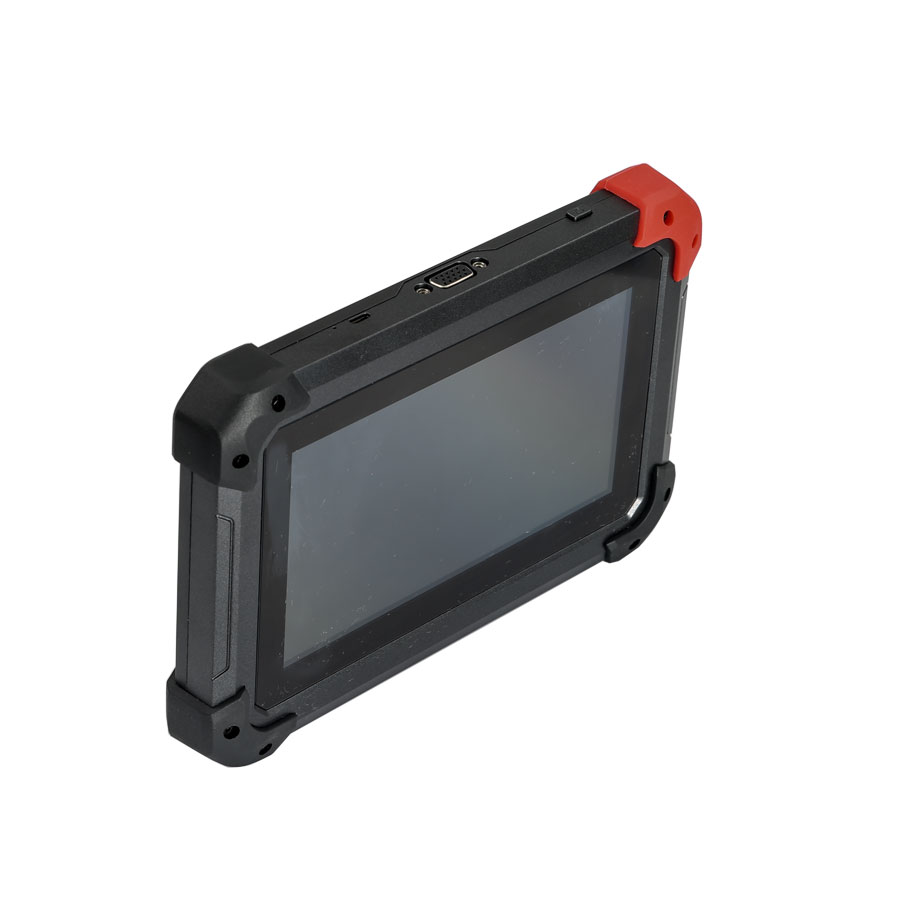

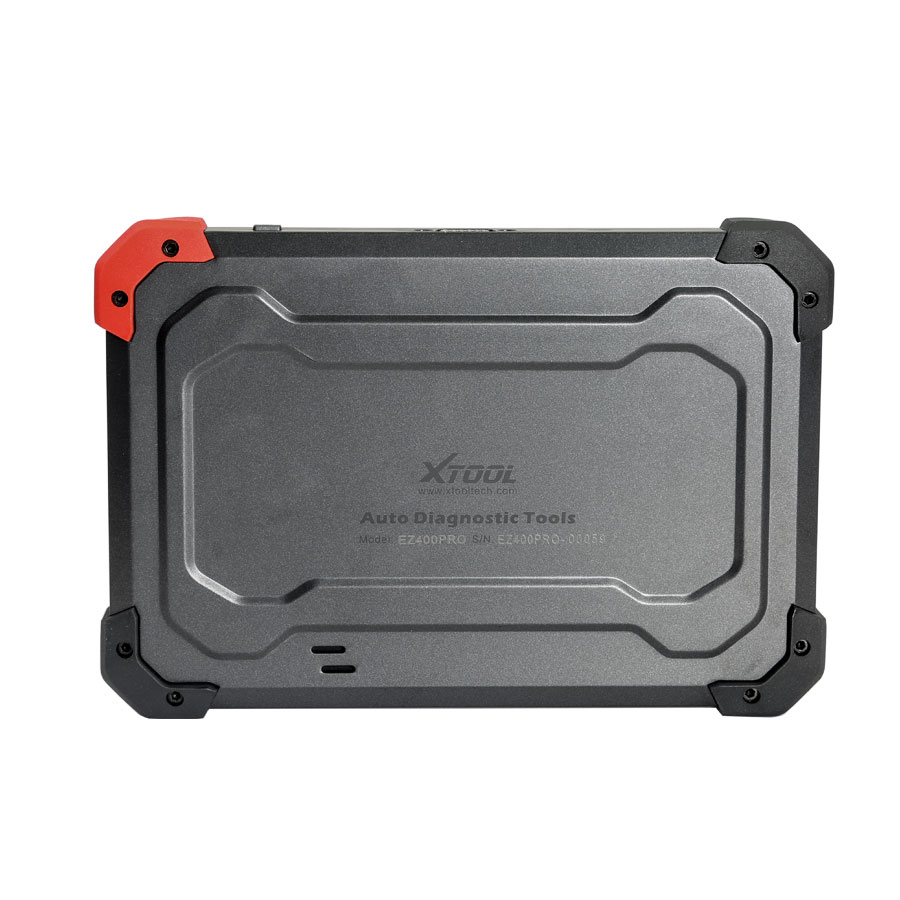

Xtool EZ400 Pro Tablet Overview:

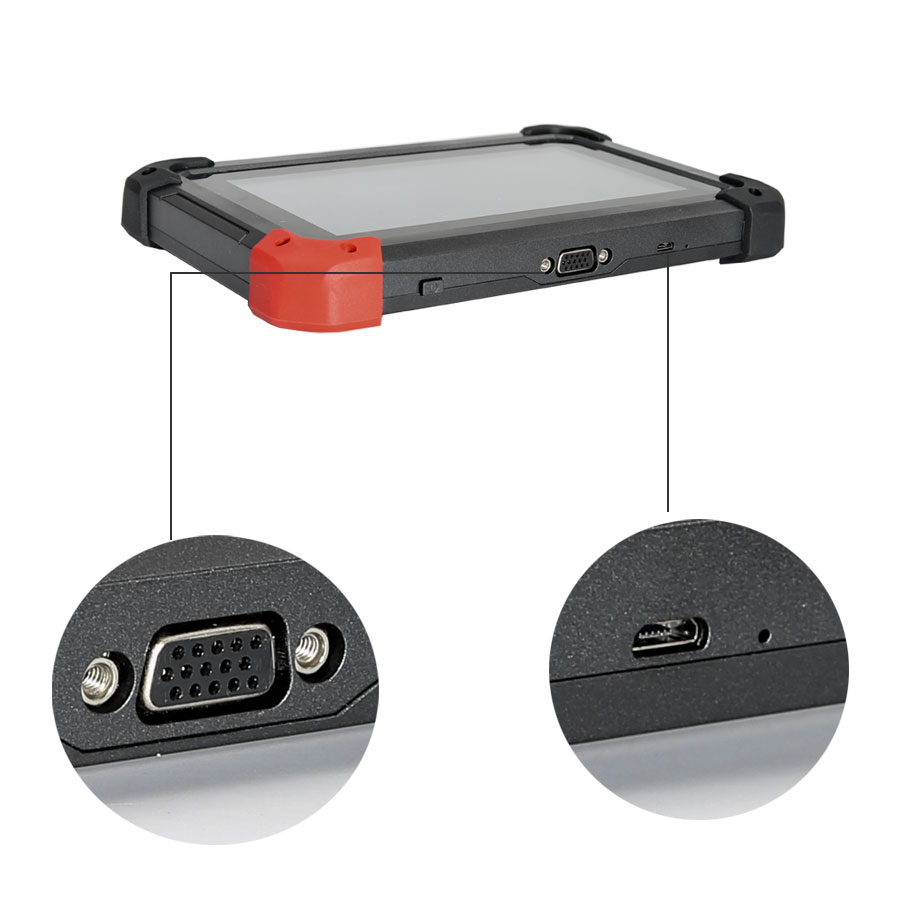

①MicroUSB：Battery charge or data synchronization with PC
②DB15 Port：Supports wired connection with car by the cable
③Power Button:  Power on or power off

Vehicle Connection Test

 Wired Connection  ①→②→③→④
a. Connect cables and EZ400PRO in following order: ①→②→③→④
b. Switch on the ignition and turn on EZ400PRO tablet, then tap on EZ400PRO application to test vehicles. (Shown as follows)

①
EZ400 PRO Mainframe  ② Main Test Cable  ③ OBDⅡ-16  ④ Vehicle

 Precautions Before Use

1. The vehicle power supply has to meet the normal voltage limits DC4.8V---5V.
2. When pull and plug test wire harness, users should pinch the front-end of the wire harness to pull and plug, not pull the middle section of the wire harness. Users should check the corresponding direction of the port and plug in horizontally when they plug the wire harness, instead of inserting in an oblique way, which may damage the terminal.
3. When taking some special functions tests, users are required to operate the device according to operating instructions. For vehicle, it has to strictly meet the requirements, for example, the conditions that some vehicle models need to be reached are as follows: engine temperature 80℃/105℃,turn  off the loads (such as headlights, air-conditioner, etc.), put accelerator pedal in released position, etc.
4. The ECU for Chinese domestic vehicle models are relatively disorderly, so when users meet conditions, such as the car can not be tested or the test data is wrong, they should consider whether the selected menu corresponds to the tested electronic control system, or they can find the car ECU and select the right menu according to the model number on the ECU label.
5. If users can not find the tested vehicle model or electronic control system in EZ400PRO test menu, they may need to update the software or consult Xtool technical service department
6. Banned to have connection test by using harness not from Xtool to avoid unnecessary losses.
7. Banned to power off directly in the communication between EZ400PRO and vehicle. Users should cancel the task and return to the main interface, then power off.
8. The device should be put and lifted slightly to avoid collision when using EZ400PRO. When click the screen, touch it gently to guarantee the service life of the touch screen.
9. During long period of non-use, please disconnect the power and turn it off.

After EZ400PRO tablet connected to vehicle via main cable, diagnosis can be performed now.

Settings
Select enter Settings; users can set the language, unit and other system related options:
Languages: select the language. Please tick the needed option from multi-language options on the right.

Units: Select unit of measurement. Users can tick Metric or English measurement.

System Settings: Android system setup, such as wireless, audio frequency, light sensation, etc.

XTOOL EZ400 Pro FAQs:

Q1:Does it can program a key 2014 ford fiesta St?
A1:yes,it work with 2014 year ford on key programmer.

Q2:Is this bidirectional for cadilac 04 srx will it test fans on hvac and reset mileage program key fobs?
A2:not sure of 2004 years. It will work for reset mileage and program key fobs for cadilac, but not support test fans on hvac.

Q3:Does do the km change on Mecedes w211 e320cdi 2004?
A3:yes,it does w211 E series.

Q4:Can this work on kia hyundai and toyota from central america form 2005 to 2017?
A4:Toyota yes but Kia haven't used it on it yet

Q5:Does it have bi directional control functions such as evap vent test or ABS bleeding?
A5:not support this function.

XTOOL EZ400 Pro Technical Parameters

Operating System:             Android
Processor:                          Quad-core 1.6GHz Processor
Memory:                            1G RAM，16G FLASH
Display:                              7.0 inch touch screen with 1024×600 resolution
Sensors:                             Gravity Sensor，Ambient Light Sensor
Audio Input/Output:         Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
Power and Battery:            4000mAh, 3.7V lithium-polymer battery
Power Voltage:                  5V
Power Consumption:         8W
Operating Temperature:    -20 to 50℃(-4 to 126℉)
Humidity:                           <90%
Dimension (L*W*H):           218*150*29mm

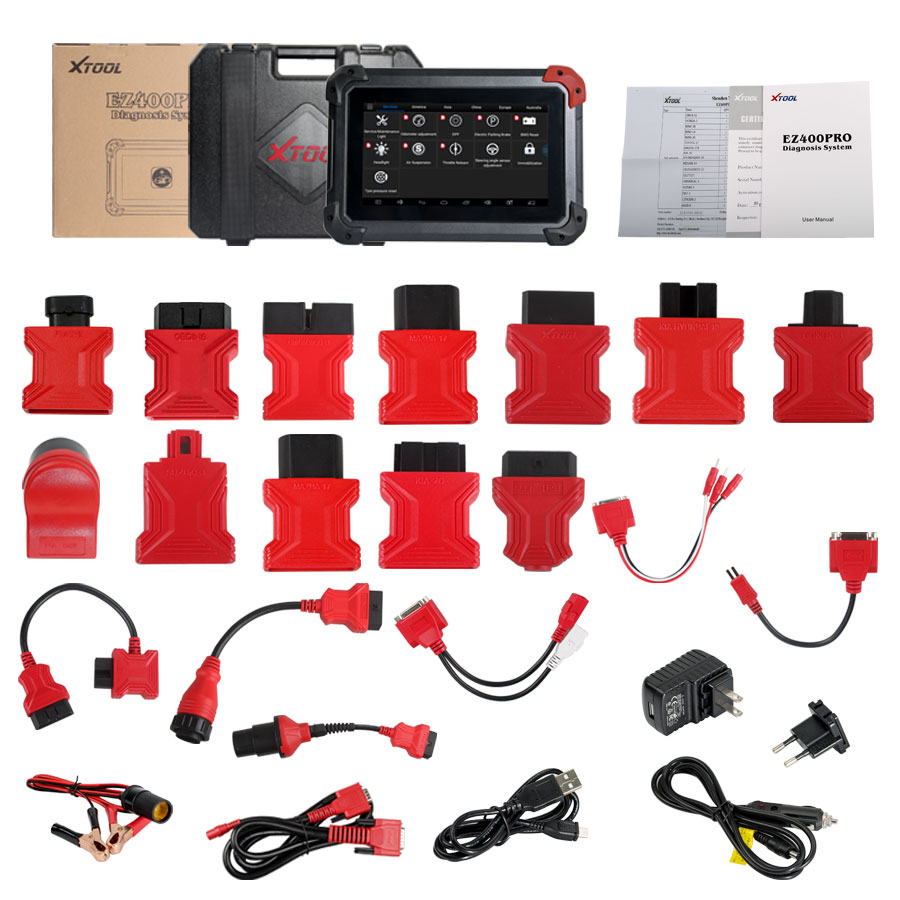

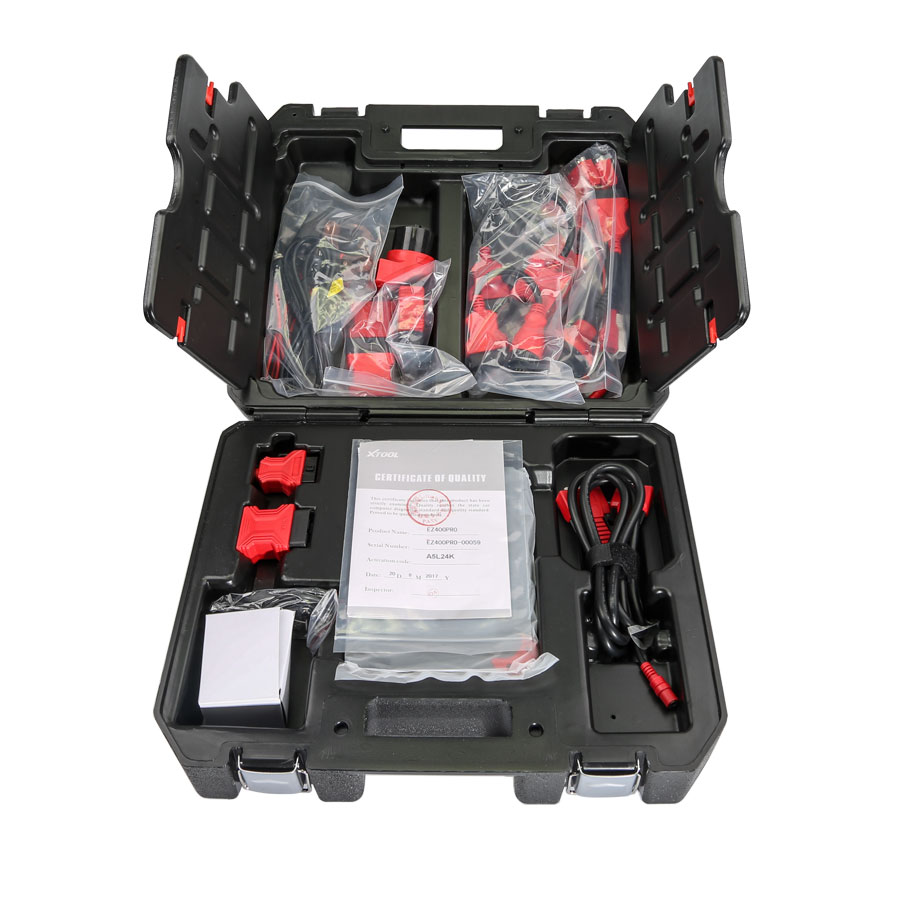

XTOOL EZ400 Pro Package List:

1pc x OBD II-16
1pc x HONDA-3
1pc x BMW-20
1pc x TOYOTA-17
1pc x MAZDA-17R
1pc x KIA-20
1pc x HYUNDAI/KIA-10
1pc x NISSAN-14
1pc x GM/DAEWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZUKI-3
1pc x FIAT-3
1pc x CITROEN-2
1pc x AUDI-4
1pc x MITSUBISHI-12+16
1pc x BENZ-38
1pc x BENZ-14
1pc x MAINCABLE
1pc x Battery Cable
1pc x Cigar Lighter Cable
1pc x EZ400PRO Tablet
1pc x Charger for Tablet
1pc x Charger US Adapter
1pc x Charger EU Adapter
1pc x MicroUSB Cable

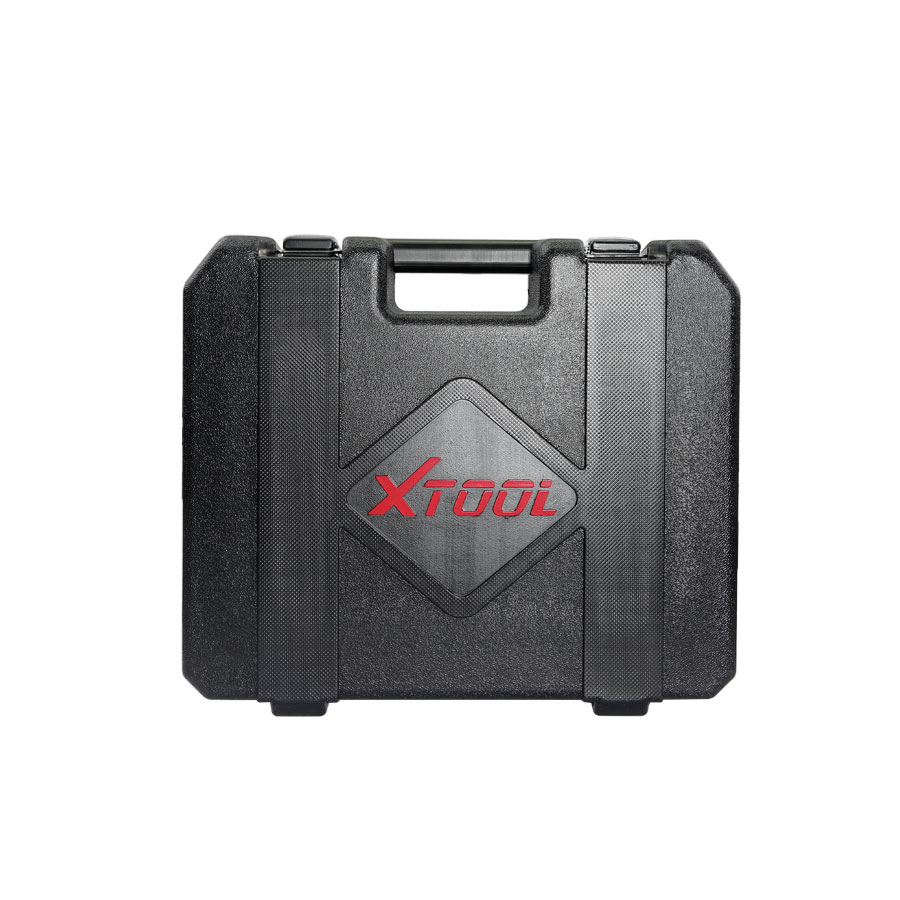

1pc x Tool Case
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton
