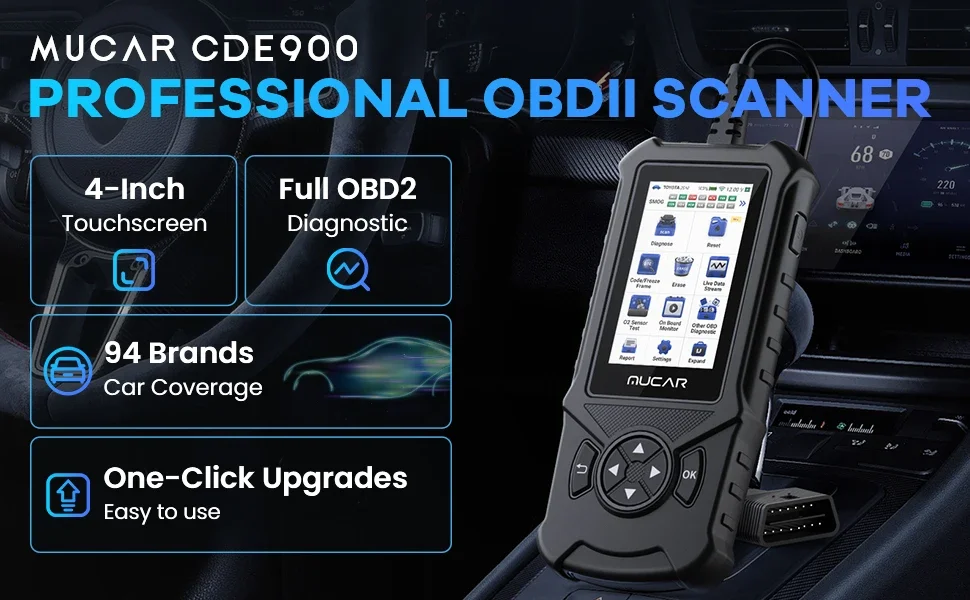

Top Choice OBD2 Scanner Diagnostic Tool

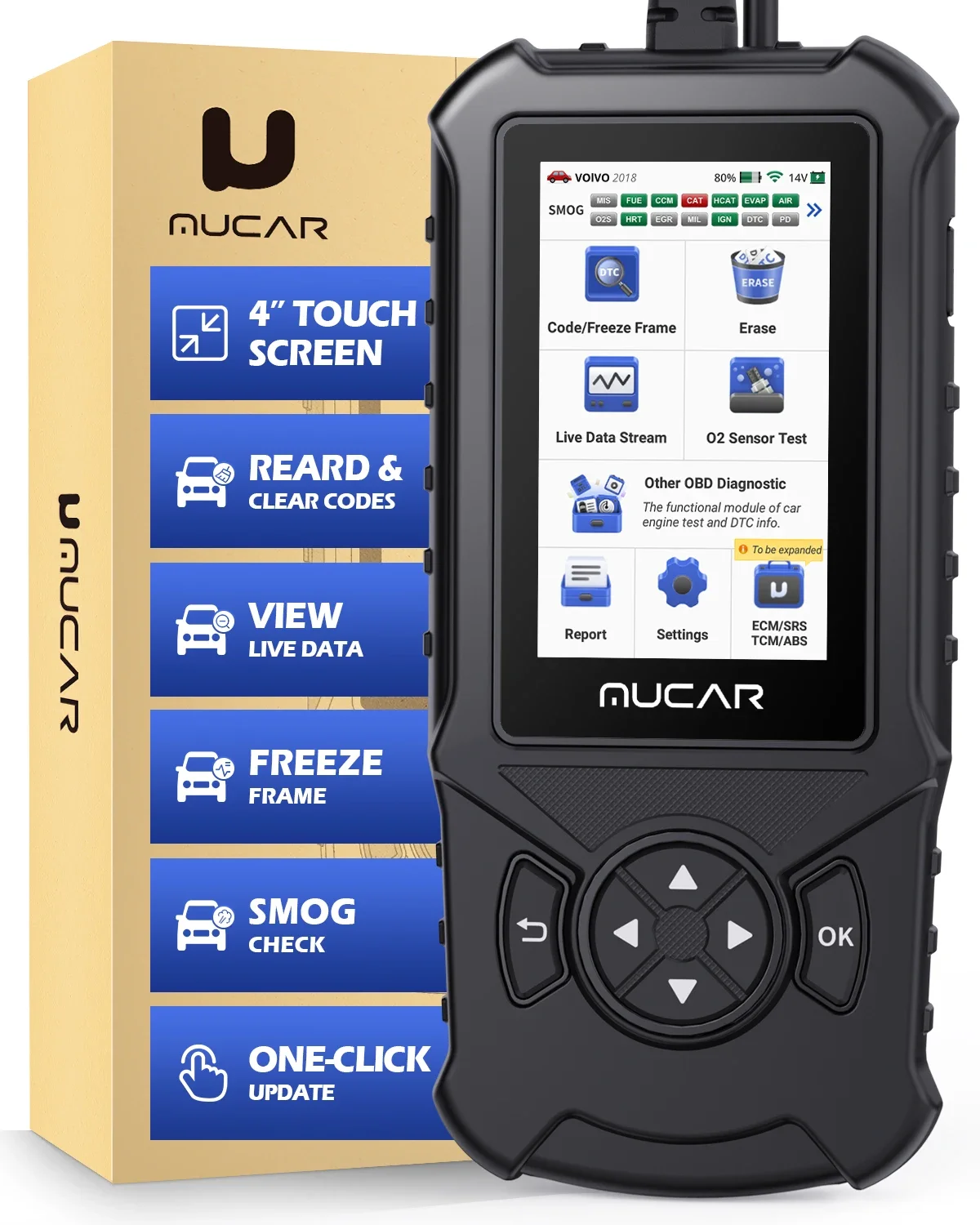

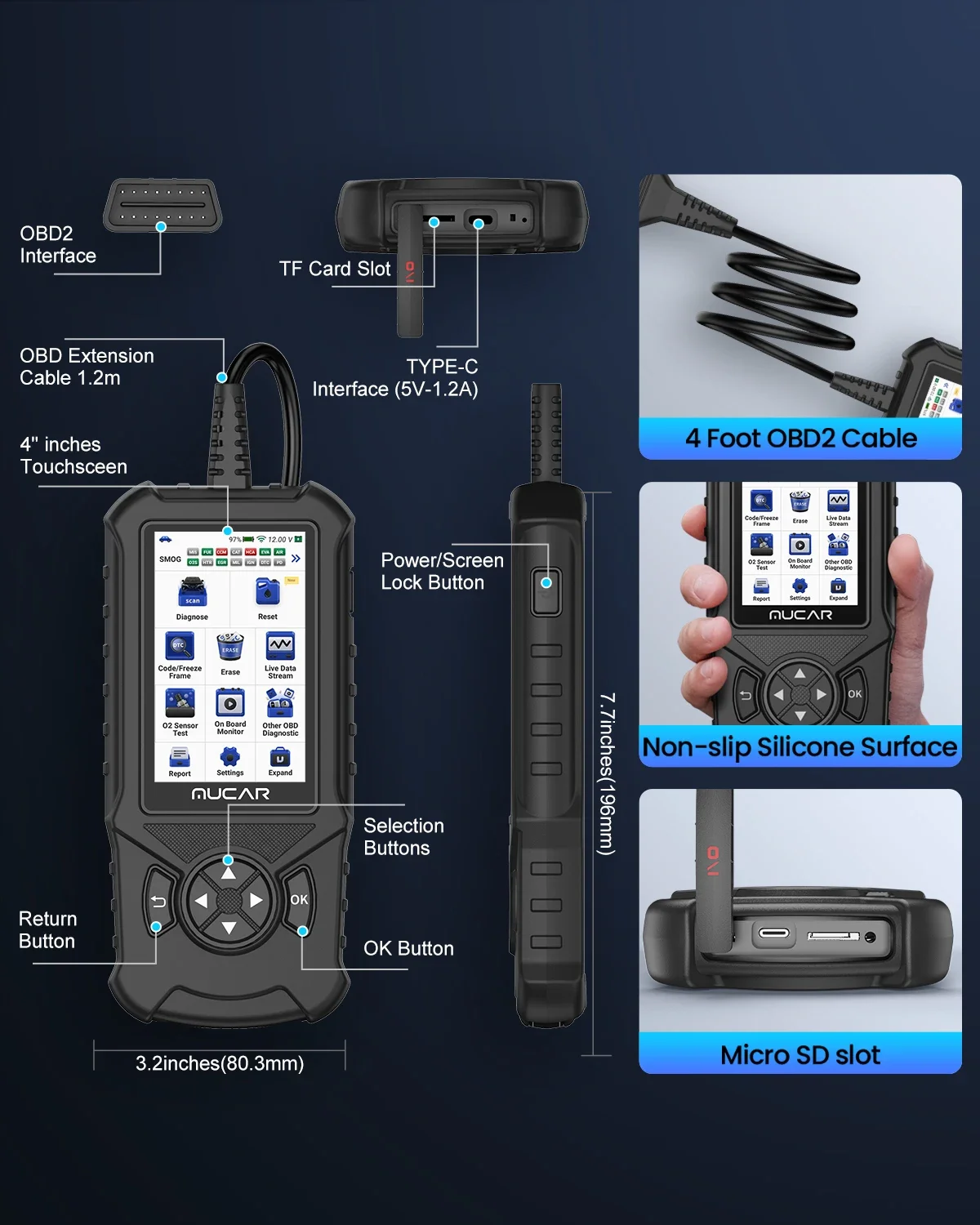

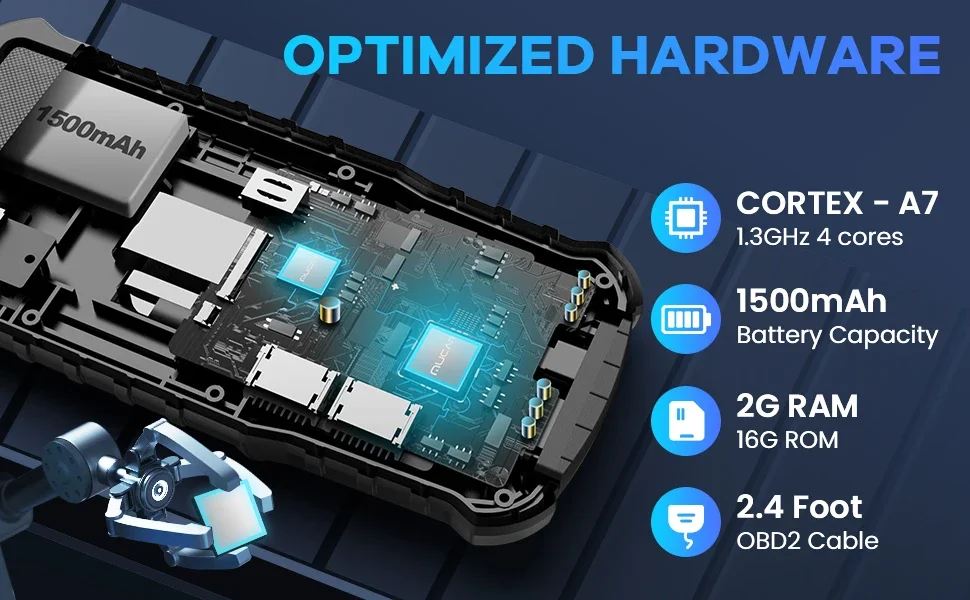

MUCAR CDE900 Check Engine Code Reader provides ➤ Full OBDII/EOBD Diagnostic ➤ 94 Vehicle Makes Software ➤ 4"TouchScreen ➤Android 6.0, 16GB+256GB(EXTENDABLE ) Storage ➤ 1500mAh Battery ➤ Lifetime Update via WiFi ➤ I/M Readiness ➤ AutoVIN ➤ 4 in 1 Live Data Graph (Up to 120 Data Streams) ➤One-click Diagnostic Report & Print ➤ DTC Library ➤ Smog Check Helper ➤ScreenShots & Record & Playback ➤ Google Search DTCs online.

1.Free Function:Full OBD2 functions lifetime Free

2.Expansion Software:

$40 for 4 systems diagnose (Engine,Brake,Airbag,Transmission) lifetime free

$15.95 for 1 reset functions lifetime free, $79.95 for 28 reset functions lifetime free

What OBD-II protocols are supported?

OBD II and EOBD protocols. ISO 14230-4 (KWP2000), ISO 15765-4 (CAN), ISO 9141-2 (ISO), ISO 14229 (UDS), SAEJ 1850 (VPW&PWM). Note: CAN FD and DoIP protocols cannot be supported now.

Opel, Hyundai, Ford, Saab, Kia, GM, Toyota,Volvo,

Chrysler, Honda, Benz, Nissan, Rover,

BMW, Isuzu, Citroen, VW, Mazda, Daewoo,

Porsche, Subaru, Daihatsu, Jaguar, Suzuki, Fiat, Mitsubishi, Land_Rover
Read Codes—Knows what and where the problem is according to the DTC and its definition.

Clear Codes—Clear the DTCs and turn off the warning lights after code reading and certain repairs.

Live Data---Request current powertrain diagnostic data. 4 data streams can be merged in 1 graph for easier comparison.

Freeze Frame—Request freeze frame information. Find the data at the time of the car failure.

O2 Sensor Test—Request oxygen sensor monitoring test results.

On-Board Monitor Test—Request on-board monitoring test results for specific monitored systems.

I/M Readiness—Request emission-related diagnostic trouble codes detected during current or last completed driving cycle

EVAP Test—Start the leak test of the vehicle's EVAP system (This tool does not perform the leak test, but sends a signal to the vehicle's on-board computer to start the test.)

Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

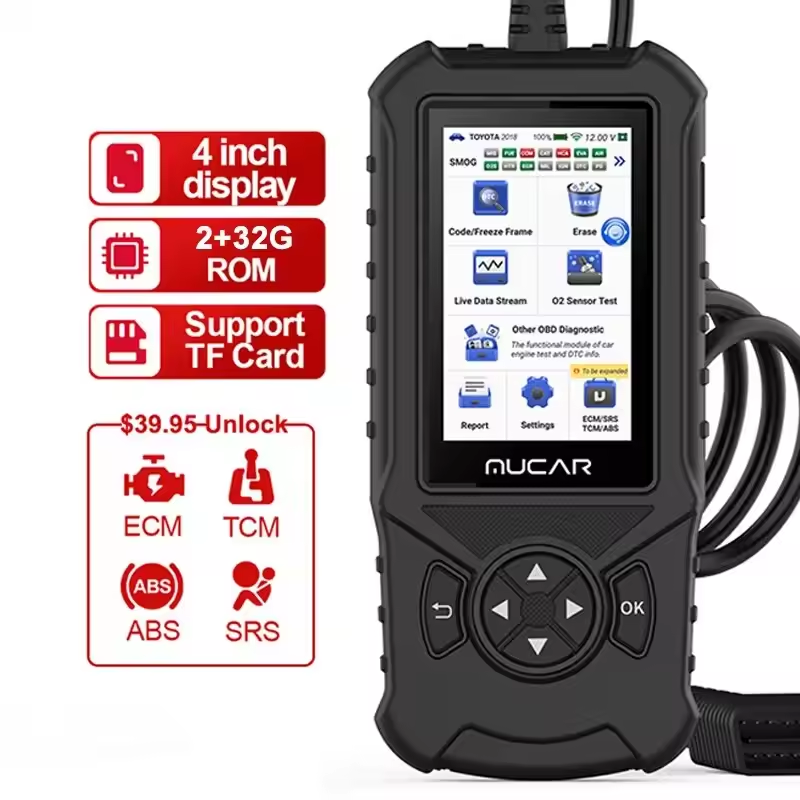

Check engine, transmission, ABS, SRS 4 systems. Disposable purchase(39.95 USD), No Annual Fee

The CDE900 obd2 scan tool provides optional paid upgrades to check more systems. It allows you to access and check Engine, Transmission, ABS, and SRS 4 systems, quick to figure out the problem as this auto tool digs into the ABS, SRS, Engine System(ECM), and Transmission System info. Very useful and professional scanner for cars for all drivers, DIYers, and repair shops. Disposable purchase(39.95 USD), No Annual Fee.

ECM (Engine System) Diagnose
Many car owners are always confused with the flashing check engine light, which will appear because of various problems, for example, the engine injector should be cleared or engine combustion is not good. If the problem is not solved in time, it will affect the quality of vehicle exhaust and pollute the environment. This check engine light code reader with a reset diagnostic tool will do you a favor to locate the cause and turn off the check engine light with the problem resolved.

ABS (Anti-lock Braking System) Diagnose
Anti-lock Brake System (ABS) is one of the most important systems from chassis control modules, the indicator warning light of which will remind you that there is something wrong with the ABS system. This obd2 scanner with abs diagnoses can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing. After performing a comprehensive diagnosis of your vehicle. The abs warning light will stay on after you fix the issue. Then you will need abs brake bleeding scan tool to help you turn it off.

SRS (Airbag) Diagnose
Airbag/SRS system is located at the body control module, which plays an important role in driving safety. There are many possibilities if the airbag warning light stays on, including the trouble of airbag, air spring, collision sensor, airbag plug loosening, line open circuit and etc. Therefore, ThinkScan SRS scanner allows you to have a deep analysis and detection for your vehicle via reading fault codes. But sometimes the permanent fault codes in this system will still appear and the warning light flashes after the airbag replacement. Then you will need this auto scanner with airbag code reader again to turn the light off.

TCM (Transmission System) Diagnose
The automatic transmission system is one of the powertrain control modules,but some issues like unworking electronic accessories and broken transmission computer will keep your transmission light flashing. It's hard to locate the accurate error within limited time. Fortunately, this car error code reader transmission scanner will assist you to have a fast scanning of your vehicle and read the fault code easily, shutting down the waring light within minutes when you finish the repair.

$15.95 for 1 reset functions lifetime free, $79.95 for 28 reset functions lifetime free

1. Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Elec.Throttle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

3.Steering Angle Reset
To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.

4. Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

5. ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity

6.Break-pad Reset
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.

7.DPF Regeneration
DPF regeneration is used to clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8.Gear Learning
After the engine ECu, crankshaft position sensor,or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed.

9. IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10. Injector Coding
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.11.TPMS Reset
Note:Cooperate with wireless tire pressure diagnosis tool to realize TPMS activation, programming and learning functions

12. Suspension Matching
This function can adjust the height of the body. When replacing the body height sensor in the air sus pension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13. AFS Reset
This feature is used to initialize the adaptive headlamp system.

14.A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality.

15.Sunroof Initialization
This function can set the sunroof lock off, closed when it rains,sliding /tilting sunroof memory function,temperature threshold outside the car etc.

16. EGR Adaption
This function is used to learn the EGR valve after it is cleaned or replaced.

17. ODO Meter Check:Only supports reading the current mileage of the car, does not support modifying the mileage

18. Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

19. Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

20. A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

21. Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

22. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

23. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

24.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

25.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

26.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

27.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

28. Language Change
This function is used to change the systems language of the vehicle central control panel.

*Not all vehicles support all reset functions. For example, ODO reset can only be used for some models. Please send vehicle model and year to customer service for inquiry.

94+ Vehicle Brands Software to Keep Growing

CDE900 obd code scanner works on most OBD-II compliant vehicles after 1996 and upgrade new make up to 2023 models, including most 12v cars, SUV, pickup, light duty truck, minivans, hybrids.

Abarth, Acura, Alfa Romeo, Astion Martin, Audi, Baic Senova,Baic Weiwang, Baic, Bentley, Brilliance, Bugatti, Buick, Cadillac, Chery, Chevrolet, Chrysler, Chsuzuki, Citroen, Dacia, Daewoo, Daihatsu, Dodge,

Euro Ford, Ferrari, Fiat, Ford, Gaz, GM, Gonow, GWM, Hafei,Haima,
Honda, Hyundai, IKCO, Infiniti, ISUZU, IVECO, IZH, JAC, Jaguar, Jeep, Jinlong, JMC, Joylong,

Kia, Lamborghini, Lancia, Land Rover, Lincoln, Luxgen, Lynkco, Mahindra, Maserati, Maxus, Mazda, , Mitsubishi,Mvm, Nissan, Nissan GTR, Opel, Paz, Perodua, Peugeot, Polarsun, Porsche, Proton, ,

Renault Samsung, Renault, Rover, SAAB, Saipa, Seat, Seaz, SGM, Skoda, Smart, Spark, Sprinter, Subaru, Suzuki, Tata, Toyota, UAZ, Vauxhall, VAZ, Venucia, Volkswagen, Volvo, VW_CV, YQMazda, ZAZ,

MG (Saic)
Opel (South Africa)
GM (Brazil),Fiat (Brazil),
Holden (Australia) , Ford (Australia)
Proton (Malaysia), Perodua (Malaysia)
Mahindra (India), Maruti,Maruti (India),Tata(India)

For Chinese Cars
CHBuick(China Buick), CHCadillac(China Cadillac), CHChevrolet (China Chevrolet), Toyota(China),
Faw (Tianjin), NJFiat(Nanjing), Honda (Dongfeng), DFFG(Dongfeng FG), DFNissan(Dongfeng Nissan), DFSK(Dongfeng SK), DFCitroen(Dongfeng Citroen),DFPeugeot(Dongfeng Peugeot), Honda (Gac), Mitsubishi(Gac), Changan, ChanganFord, BYD, Changhe,

Note: ECUAID(Other Chinese brands choose 'ECUAID' to enter diagnosis)

Support 20 languages

English, French, German, Italian, Spanish Portuguese, Japanese, Russian, Dutch, Hungarian, Slovak, Greek, Romanian, Slovak, Croatian, Polish, Traditional Chinese, Arabic, Korean, Turkish language

What else does the CDE900 car diagnostic tool do?

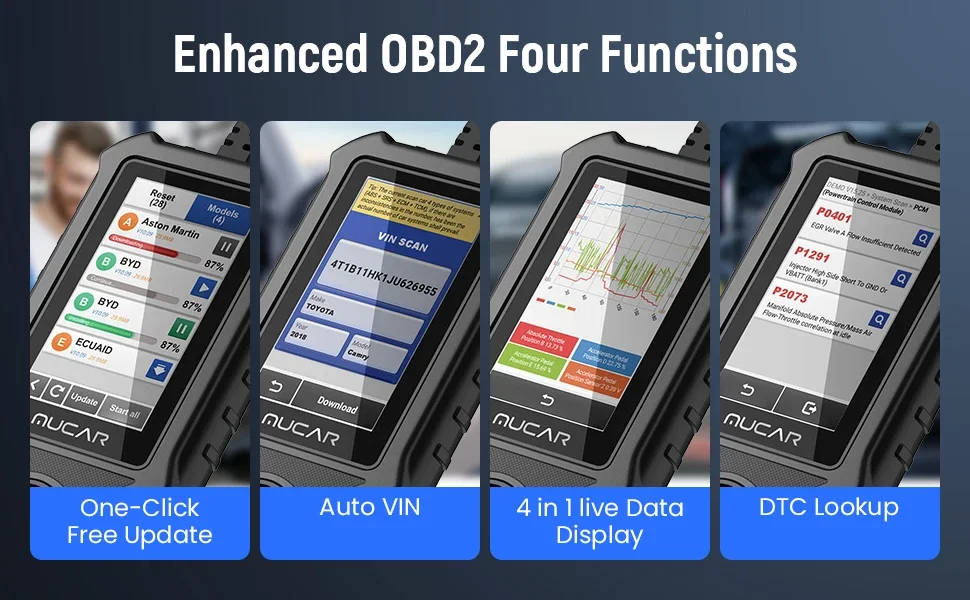

One-Click Update Software Via Wi-Fi (OTA Function)

One-Click Clear Fault Codes ( Erase)

Vehicle Compatibility Check Online (Car Coverage)

Demo Software ---Helps you understand the functionality of the product without connecting the vehicle's OBD II connector.

Google Search DTCs Online

Report Generate and Share --- With MUCAR CDE900 obd2 diagnostic tool, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

View History--- Once a vehicle diagnosis is performed, MUCAR CDE900 obd2 diagnostic scan tool will record every detail of the diagnostic process. you can record/review/playback live data anytime. The History function provides quick access to the tested vehicles and users can resume the last operation, without the necessity of starting from scratch.
