Xhorse VVDI MLB TOOL Key Programmer Plus XDMQBAGL MQB MQB48 Adapter And Solder-free Adapter XDMLBPGL Kit

Bundle Package: Xhorse VVDI MLB TOOL Key Programmer  + XHORSE XDMQBAGL MQB Adapter  + XHORSE MLB Tool Solderfree Adapter Kit

Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB Works with VVDI Key Tool Plus VVDI2,No points required when using VVDI MLB specialized key.
XHORSE XDMLBPGL MLB Tool Solderfree Adapter Kit Support Add Keys for MLB Models.
XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.

Xhorse VVDI MLB TOOL Functions:

1. Work with VVDI2 / Key Tool Plus Pad for MLB immobilizer key learning, Support VVDI MLB special submachine, Support original key
VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated
2.Excel in key Adding for MLB Models
Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models
3. No Need to Remove the Chip
Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.
4. Wireless Key Generation for Ultimate Convenience
Generate original dealership keys and Xhorse specialized keys wirelessly.
5. Immo Detection Made Easy
Built-in Immo detection module supports wireless key recognition
6. Compatibility with Original Keys and Xhorse Specialized Keys
Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.
7. Rewrite Uninitialized Key IDs
Support rewriting uninitialized original key IDs.
8. No Need for On-Vehicle Data Collection
Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.

XHORSE MLB Tool Solderfree Adapter Kit XDMLBPGL

Add Keys for MLB Models with Ease

Work with Enhanced Safety
(Need to remove two capacitors)

Type 1 Supported Models: Audi Lamborghini
Type 2 Supported Models: Audi Lamborghini
Type 3 Supported Models: Audi Bentley
Type 4 Supported Models: Porsche
Type 5 Supported Models: Volkswagen Touareg

XHORSE XDMQBAGL MQB Adapter No Need to Disassemble the Instrument Work with MLB Tool

XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.

Product Features:

1. Supports most MQB48 keys
2. Low-risk & simple operation – No need to disassemble the instrument
3. Works with MLB equipment for seamless key addition

MLB+MQB adapter instructions

VVDI2 device

1. Use MLB device + MQB adapter to read IMMO data from MQB48 key.
2. Use VVDI2 to load the IMMO data read in the first step: generate key, learn key (VVDI2 needs to enable MQB function, does not need MQB48 NEC35XX locking function)


KEY TOOL PLUS / KEY TOOL MIDI device

1. The tablet device is directly connected to MLB device + MQB adapter, and IMMO data can be read from MQB48 key.
2. The tablet device loads the IMMO data read in the first step: generate key, learn key (the tablet device needs to have fourth-generation authorization, does not need MQB48 NEC35XX locking function)

Warm notice: It is strongly recommended that customers collect data on a computer instead of using a tablet.

Wiring & Connection Guide:

VVDI MLB Tool MQB48 Wiring Diagram:

Remove one capacitor (near the IC position) on the original key, as shown in the diagram.
Solder the socket cables to the original key according to the specified colors in the wiring diagram.

Connection:

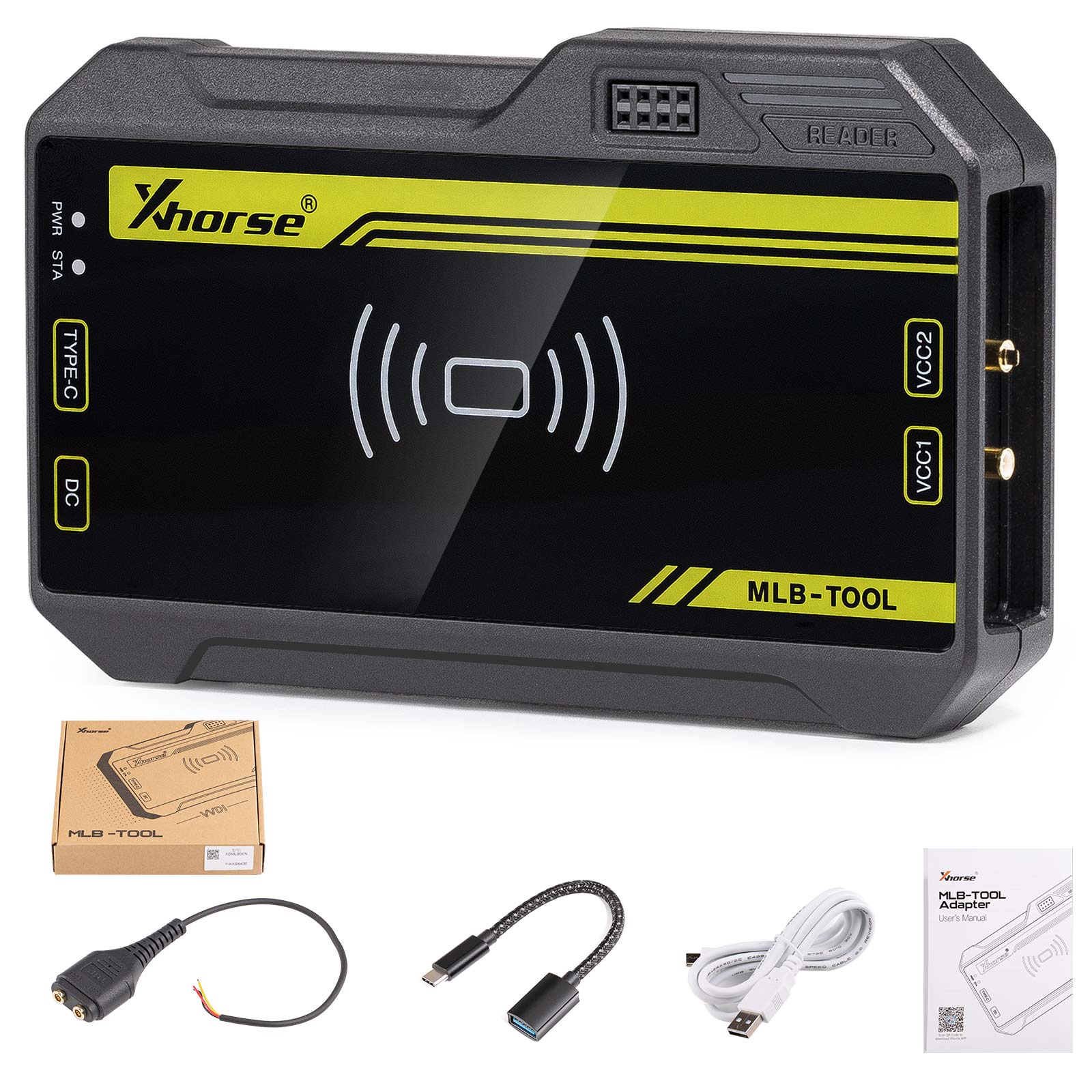

Package Includes:

1pc x MLB Tool
1pc x MLB Cable
1pc x USB Type C Cable
1pc x OTG Adapter
1pc x User Manual
1pc x MLB Tool Solder-free Adapter Kit XDMLBPGL
1pc x XHORSE XDMQBAGL MQB Adapter
