Description:

Read the chip data, read & write ECU data, read transmission data etc with high speed.

With New DiaLink J2534 with stable function and transfer fast.

Please Notice of Installation:

Please better disconnect internet when run software,or it will lock device.

Please only use our CD software only .

Only use Software Version 1.95. Do not use other higher version,otherwise USB dongle will locked and can not flash any more .Please MUST know this.

CD included Software and instructions and many test video as reference.

KTMFLASH supports ECU,it can read  Infixxxx's ecu and gearbox [transmission] ecu.

When reading encrypted Infixxxx or ecu, Firstly read the password file. Please See our video operation. If the software prompts " turn off the power for 2 seconds", you must turn off the power for 2 seconds. When you are not turn off the power for 2 seconds, it may prompt again. Then you turns the power off for 2 seconds and operating the software.

About switching, must watch our video and instructions.

DSG Gearbox Reading and Writing:

This function is mainly for DSG and CVT gearboxes. It can be used for "OBD" (for power upgrade) also used for BOOT mode (repair) .It can read and write the main control chip and external EEPROM.

BOOT mode is directly connected to the gearbox computer Pins ,no need to open the computer.

The OBD read gearbox computer supports the UDS protocol.

Read BOOT mode according to the chip model(infine**)

TC1762/TC1766 MICRO (1504KB)

TC1762/TC1766 EEPROM (32KB)

TC1792/TC1796 MICRO (2048KB)

TC1796 MICRO+EXT (4096KB/6144KB)

TC1796 EXT (2048KB/4096KB)

TC1796 EEPROM (128KB)

TC1792 EEPROM (64KB)

TC1738/TC1767 MICRO (2048KB)

TC1738/TC1767 EEPROM (64KB)

TC1797 MICRO (4096KB)

TC1797 MICRO+EXT (6144KB/8192KB)

TC1797 EXT (2048KB/4096KB)

TC1797 EEPROM (64KB)

TC1724/TC1728 MICRO (1536KB)

TC1724/TC1728 EEPROM (64KB)

TC1782/TC1784 MICRO (2560KB)

TC1782/TC1784 EEPROM (128KB)

TC1793/TC1798 MICRO (4096KB)

TC1793/TC1798 MICRO+EXT (6144KB/8192KB)

TC1793/TC1798 EXT (2048KB/4096KB)

TC1793/TC1798 EEPROM (192KB)

Read the encrypted ECU password (Read the password of encrypted ECU first, then read data)



For Bosch: Support Chinese car ME17 TC1728/1767 data reading & writing and password reading

For Bosch: for BMW/for MB/for VAG GPT

For Bosch: for Ford/for Opel/for Volvo GPT

For Bosch: for BMW TPROT8+

For Bosch: for VAG TPROT8+

For Bosch: for Kia/for Hyundai/for Honda TPROT8+

For Bosch: for Chrysler/for Jeep/for Dodge/for Fiat TPROT8+ [Test]

For Bosch: for VAZ/for UAZ ME17.9.71

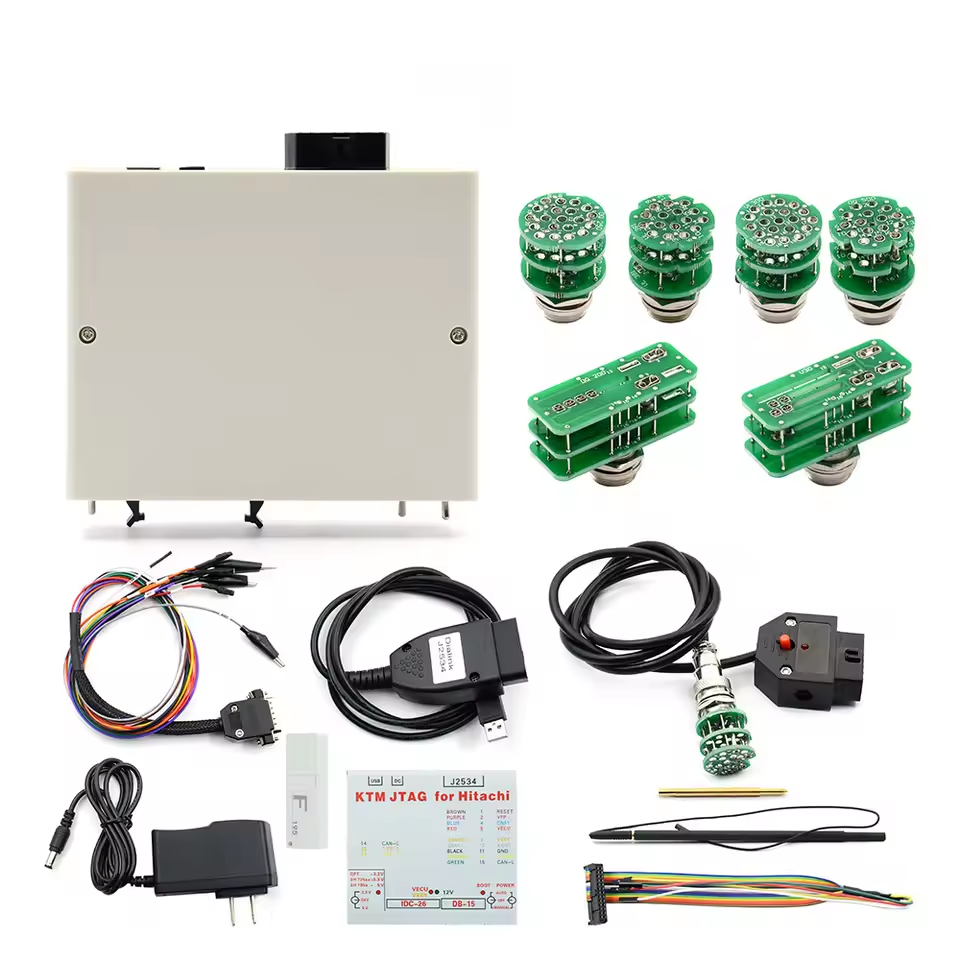

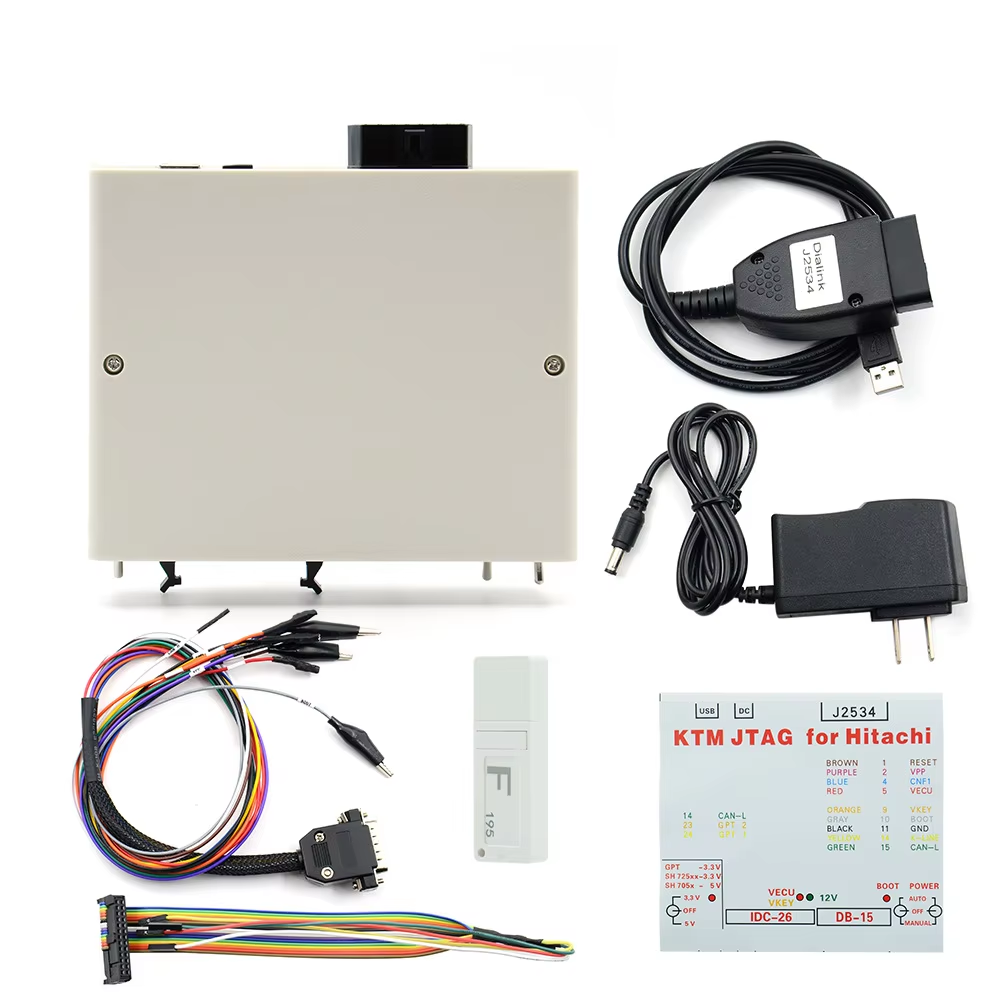

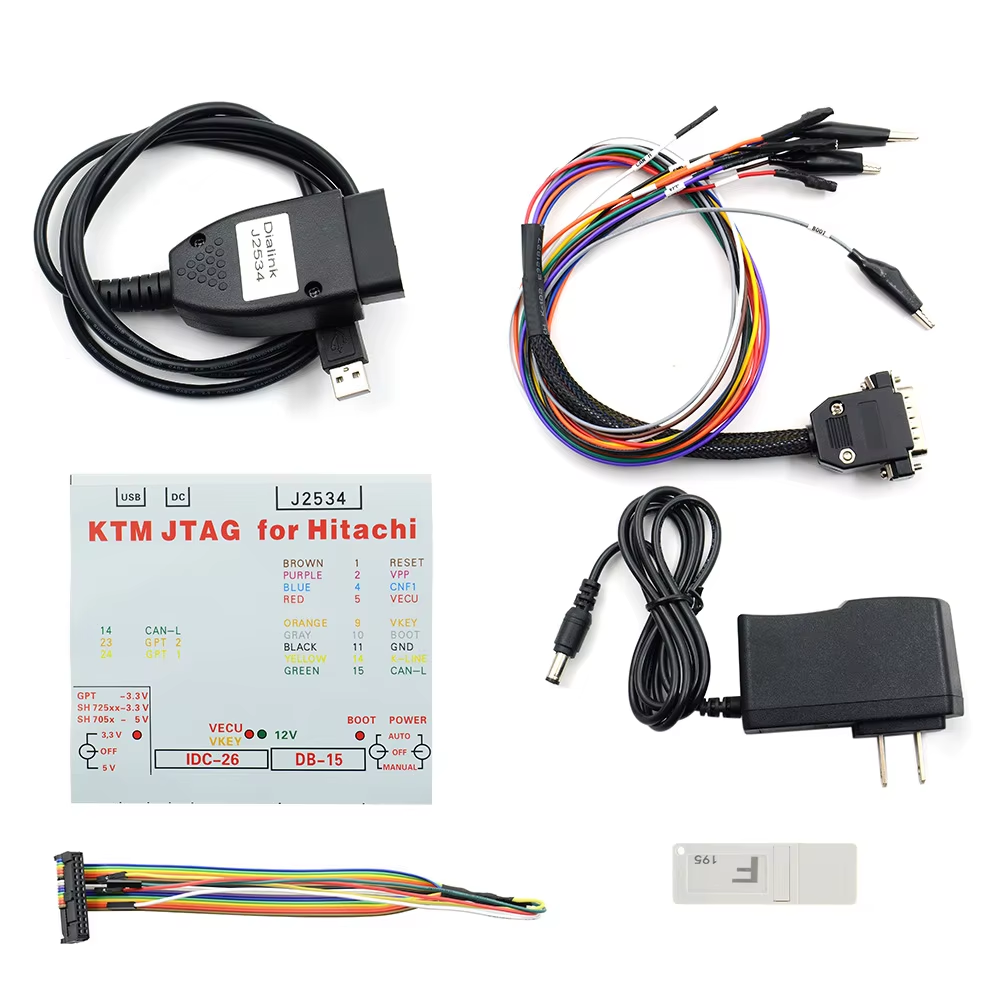

Package List:

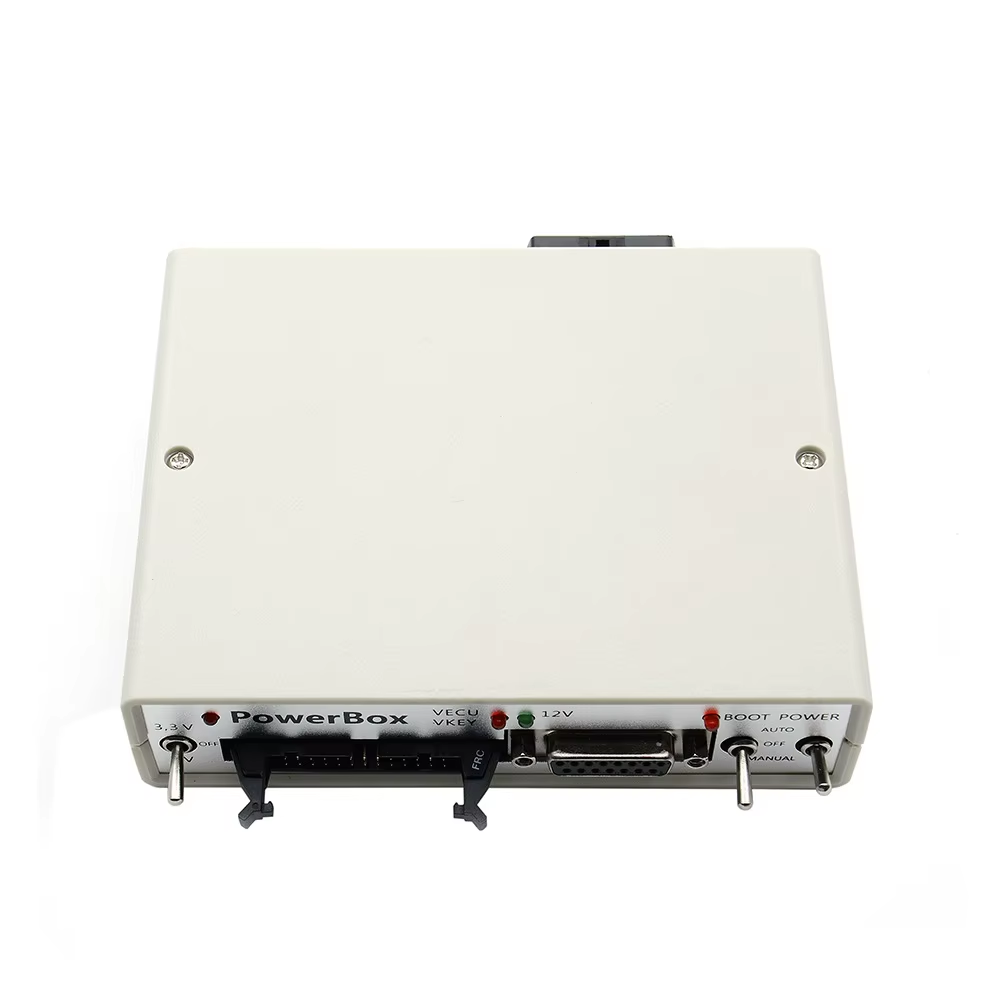

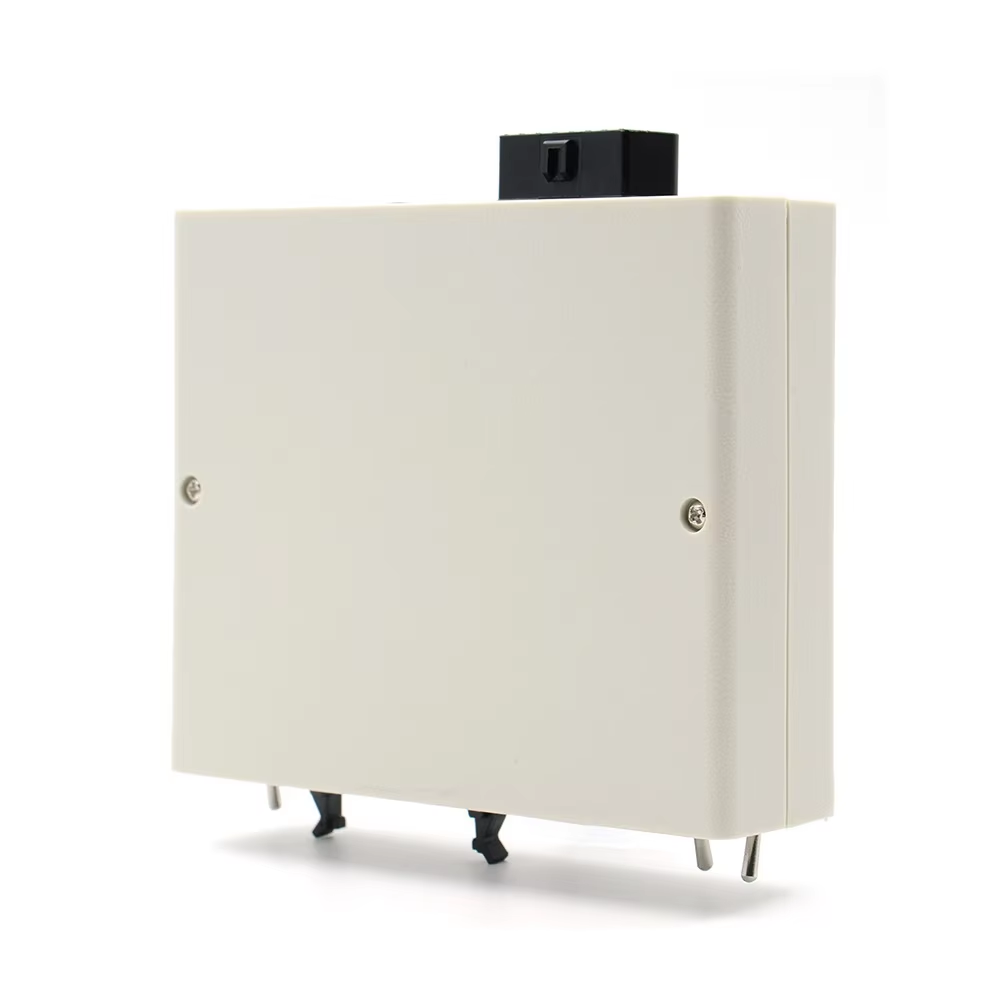

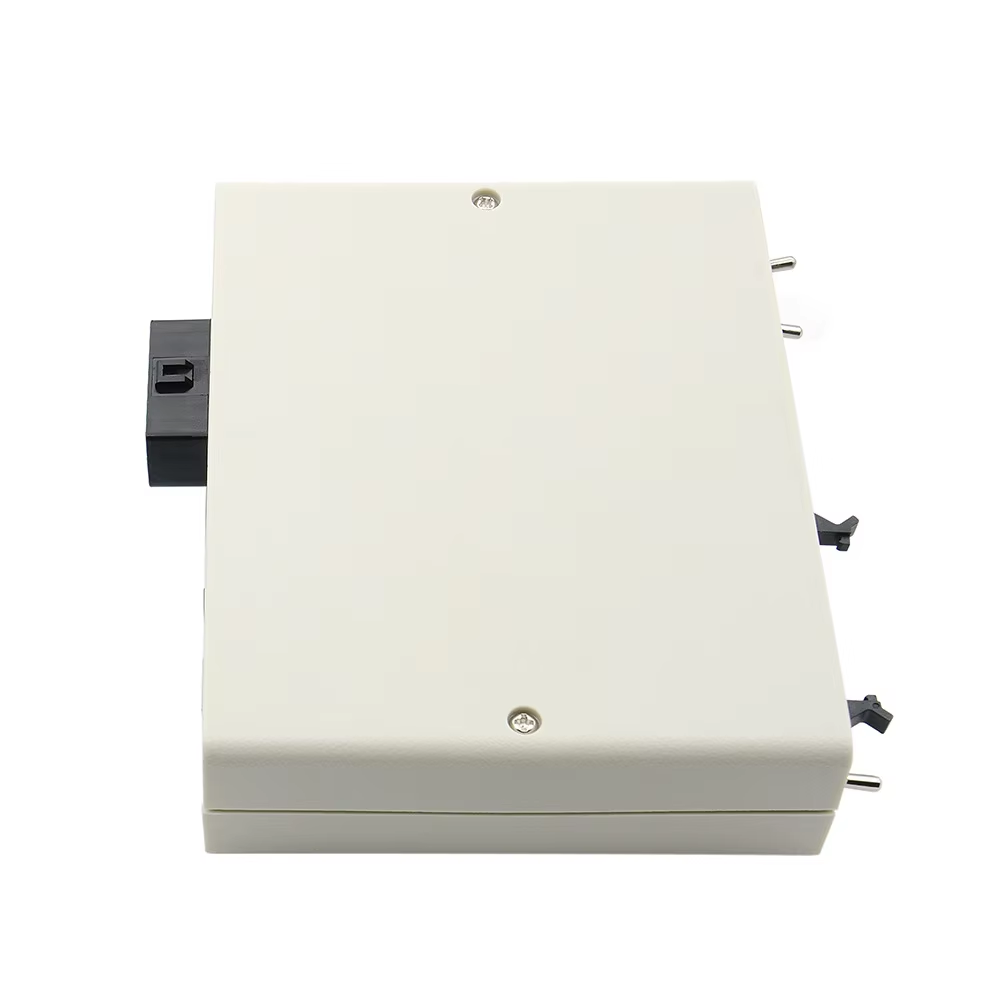

1 x KTM JTAG Box

1 x Openport 2.0+ECUFLASH  Cable

1 x Color Wire Diagram

1 x GPT Color Cable

1 x Charger Plug

1 x KTMFLASH USB Dongle

1 x CD Software&Instriction&Video

1 x Green Adapter

1pc x DL501 to OBD2 Cable

1pc x DQ250 Adapter

1pc x DQ500 Adapter

1pc x DQ200 Adapter

1pc x V30 Adapter

1pc x VL381  Adapter

1pc x VL300 Adapter

1pc x  Pin Adapter
