VDIAGTOO V500 PRO

2024 VDIAGTOOL V500PRO is a 2-in-1 automotive intelligent circuit probe kit. Mode 1 is equivalent to the function of V500, and mode 2 is equivalent to the function of V210. It can provide customers with a one-stop solution for automotive circuit diagnosis,covering all circuit tests. : ✔Smart test✔Multimeter mode (voltage, resistance, diode and short circuit, current, frequency) ✔Relay test ✔Oscilloscope mode ✔Injector test ✔0-5V power supply ✔Component activation ✔Positive and negative detection ✔Diode test ✔Short circuit/open circuit test ✔Wire tracking. Unlike most circuit testers on the market, the V500PRO smart circuit diagnostic tools can be easily switched between Mode 1 and Mode 2, covering all circuit problems, greatly helping customers save time and money!

Multimeter Mode(Voltage, Resistance, Diode& Short, Current, Frequency):

VDIAGTOOL V500PRO supports multimeter mode, which are mainly used to measure voltage, current and resistance etc in auto smart power circuit probe tester. These measurement data can be used to evaluate the performance of the automotive electrical system, identify the source of faults, ensure the normal operation of batteries, generators, sensors and other electrical components, and thus improve the overall reliability and safety of the vehicle.

Smart Test:

The role of 2 IN 1 Automotive Power Circuit Probe Kit Breaker Finder Tester in circuit detection is mainly to improve testing efficiency and accuracy. It can automatically identify circuit status and fault types, and provide real-time data analysis to reduce manual operation errors. For customers, this brings faster fault location, less repair time and higher reliability, making maintenance work more convenient and efficient.

Oscilloscope Mode:

The oscilloscope function is used in circuit detectors to monitor and analyze the waveform of electrical signals in real time. It can help customers observe signal changes, judge the frequency, amplitude and shape of the signal, thereby quickly identifying problems in the circuit. Such convenience enables customers to diagnose faults more accurately, optimize circuit design, and improve work efficiency.

Relay Test:

VDIAGTOOL V500PRO supports relay testing, which can ensure that the relay works normally under different voltage and load conditions to avoid potential failures. V500PRO relay testing provides customers with the convenience of improving equipment safety and stability, reducing system downtime and maintenance costs caused by relay failures.

0-5V Power Supply:

VDIAGTOOL V500PRO car smart electrical system diagnostic tools support 0-5V power supply. Its greatest use is to provide stable low-voltage power supply for circuits and is suitable for driving various electronic components and modules. Specifically, it often powers low-power devices such as sensors, microcontrollers, LED lights, Bluetooth and Wi-Fi modules.

Component Activation & Fuel Injector Test:

Injector test and component activation provide efficient and direct diagnostic methods to directly test the working status of key components without disassembly, provide real-time feedback, quickly locate faults, and verify the reliability of the control system. In addition, these two functions also support preventive maintenance, help optimize the overall performance of the system, and avoid greater problems caused by component failures.

Wide Compatibility:

VDIAGTOOL V500PRO Car Smart Electrical System Diagnostic Tool has wide compatibility and supports power circuit diagnosis of cars, trucks, motorcycles and even ships; at the same time, it supports the measurement of 9V - 30V DC operating voltage, 0.1V -100V voltage, 0KR - 200KR resistors.

Support 9 Languages:

VDIAGTOOL V500PRO 2 IN 1 Automotive Power Circuit Probe Kit Breaker Finder Tester supports 9 languages, such as English, Chinese, French, Spanish, German, Russian, Italian, Portuguese, Polish, etc., to avoid operational difficulties or misunderstandings due to language barriers and reduce The time it takes for customers to find information or translate documents allows users to understand the functions of the equipment faster and focus on circuit diagnosis tasks.

Online Update & 2 Year Warranty & 24/7 Tech Support:

VDIAGTOOL V500PRO power circuit probe analyzer supports online update, 2-year quality guarantee and 24-hour professional technical guarantee to protect your after-sales service.

Comparison Between VDIAGTOOL V200, V200 PRO, V210, V500 and V500 PRO

VDIAGTOOL V500 PRO MODE 1 Smart Test & Multimeter Mode:

🚩Practical design:

👉90° rotating screen: The main screen of VDIAGTOO V500 PRO circuit diagnostic tool can be rotated 90°. No matter from which angle, you can observe the circuit data on the screen 360° without blind spots, so that you can focus on analyzing circuit faults;

👉Built-in flashlight: V500 PRO has a built-in flashlight, which is convenient for you to perform circuit diagnosis in dark environments;

➤Smart Test: Different from traditional power circuit testers, the 2024 VDIAGTOOL V500PRO 2 IN 1 Automotive Power Circuit Probe Kit Breaker Finder Tester can automatically identify the signals under test, such as voltage, current, resistance and other parameters in the circuit, and save switching time between different test modes , allowing customers to focus on repairing circuit faults. In addition, V500PRO supports 90-degree screen rotation, allowing customers to observe data parameters on the screen at any angle; the built-in flashlight design allows customers to work normally in dark environments.

➤Multimeter mode:Multimeter: The multimeter in the VDIAGTOOL V500PRO intelligent circuit probe detector is mainly used to measure basic parameters such as voltage, current, resistance, etc. in the circuit, and has a wide measurement range:

👉Voltage Test:0.1-100V;
👉Resistance Test: 0KR-200KR;
👉Current Test:2mA-25A;
👉Frequency Test: 10Hz-1MHZ;
👉Oscilloscope:10Hz-100KHZ.

VDIAGTOOL V500 PRO MODE 1 RELAY TEST:

➤Relay testing is the process of checking the function and performance of a relay to ensure that it works properly in the circuit. By testing the relay's coil voltage, resistance, contact status, etc., it is possible to diagnose whether the relay is damaged or failed, which is crucial to maintaining the reliability and safety of the electrical system.Common relay tests include:
👉 Voltage test;
👉 Coil resistance test;
👉Relay action test;
👉Relay delay and retention test.

VDIAGTOOL V500 PRO MODE 1 Oscilloscope Function:

➤Parameter range:
👉Frequency Measurement Range: 10Hz-1000Khz
👉Waveform display: 10Hz-100Khz

➤Oscilloscope Function:
✔️Visual fault diagnosis: The oscilloscope mode visualizes the signal and intuitively displays the change of the signal shape, which makes it convenient for customers to quickly identify abnormal behavior in the circuit, such as waveform distortion, signal attenuation and other problems;

✔️Detect transient problems: Transient problems in the circuit (such as instantaneous voltage spikes, pulse interference, etc.) are sometimes not captured by static measurement tools (such as multimeters). The oscilloscope can display these transient signals in real time, which helps to find transient faults, such as power supply fluctuations or unstable signals;

✔️ Frequency analysis: The oscilloscope can not only display the waveform of voltage or current, but also help users measure the frequency, period and other characteristics of the signal. This is very useful for debugging and optimizing oscillation circuits, clock circuits or wireless communication circuits, helping customers accurately diagnose the frequency characteristics of the circuit;

✔️Capture repetitive faults: For periodic faults, the oscilloscope can find the problem by capturing and analyzing the periodic changes of the signal. For example, users can see if there is repeated noise interference or signal interruption, which helps to accurately locate the cause of the fault.

VDIAGTOOL V500 PRO MODE 1 0-5V POWER SUPPLY:

➤0-5V Power Supply provides a stable and adjustable low-voltage power supply for customers' circuit diagnosis. It can simulate input voltage, debug sensors, test circuit behavior, and calibrate systems. Customers can use it to quickly locate circuit faults, avoid component damage caused by misoperation, and simplify the process of circuit debugging and optimization. It is especially suitable for debugging and diagnosis of low-power electronic devices and sensor systems. 0-5V Power Supply is commonly used to detect the following low-power electronic devices and sensor systems:

✔️Sensors: oxygen sensors, temperature sensors, pressure sensors, etc.;
✔️Motor drive modules: electric windows, electric seats, etc.;
✔️On-board communication modules: CAN bus interface and other low-power communication modules;
✔️Relays and switches: lights, fans and audio systems;
✔️LED indicators: engine fault lights, oil pressure warning lights, etc;

➤In circuit diagnosis, 0-5V Power Supply can bring the following conveniences to customers:

✔️Stable power output: Provides stable and adjustable 0-5V voltage to ensure that low-voltage circuits and equipment can work normally within the design range, avoiding component damage or functional abnormalities caused by voltage fluctuations;
✔️ Convenient debugging and testing: As an analog signal source, users can easily adjust the output voltage for various circuit tests and debugging, quickly verify the impact of different voltage inputs on the circuit, and improve the efficiency of troubleshooting;
✔️High safety: Compared with high-voltage power supplies, 0-5V power supplies are suitable for sensitive electronic components, reducing the risk during the test process, avoiding accidental application of excessive voltage and damage to the equipment, and improving the safety of use.

VDIAGTOOL V500 PRO MODE 1 Component Activation & Injector Test:

➤Component Activation:Component activation is mainly used in circuit testers to confirm and test the function and status of each component in the circuit. By activating different components, users can quickly identify faults and ensure the normal operation of the circuit. This provides customers with practical conveniences such as saving time, improving maintenance efficiency, and reducing unnecessary replacement costs.

➤Injector Test:Injector testing is often used to detect the performance and working status of automotive injectors. Through testing, the injection frequency, injection volume, and injection pattern of the injector can be evaluated to ensure that it can accurately supply fuel when the engine is running. There are 4 modes for injector testing:

👉Mode 1: One 250 millisecond positive electrode
👉 Mode 2: Cycle positive for 7 milliseconds, negative for 20 milliseconds in 1.4 seconds
👉 Mode 3: Cycle the positive electrode for 4 milliseconds and the negative electrode for 10 milliseconds in 1.4 seconds
👉Mode 4: Continuous output of positive pole for 7 milliseconds and negative pole for 20 milliseconds

➤Through injector testing, customers can bring the following conveniences:

✔️Fault diagnosis: quickly identify injector problems, such as injector blockage, uneven injection amount, injector leakage, etc., to reduce troubleshooting time;
✔️Performance optimization: ensure the normal operation of the injector, improve engine efficiency and power output;
✔️Cost savings: avoid unnecessary injector replacement and reduce repair and maintenance costs.

VDIAGTOOL V500 PRO MODE 2 Breaker Finder:

When VDIAGTOOL V500PRO 2 IN 1 Car Power Circuit Probe Kit Breaker Finder Tester switches to mode 2, it is equivalent to V210, with 3 test methods:

✔️Locate Open Circuits:
Open Wire Detector instantly detects and alerts you to open circuits. Easily locate short circuits, broken wires, open connections, current leaks, and trace wires. Transmitter and receiver LEDs indicate open or short circuit conditions;

✔️Wire Tracing:
Easy to use by just simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot;

✔️Check Short Circuits:
Automotive Short Circuit Finder allows you to identify intermittent circuit problems by flexing wires or connectors and listening for changes in the receiver tone. This automotive circuit finder with 6.7-inch flexible probe, It can helps reach wires in congested places.

V500 PRO Wide Compatibility:

➤ Supports Car models:

✔️ Support cars and SUVs;
✔️Support trucks
✔️ Support motorcycles
✔️ Support ships;
✔️Bus;
..............

➤ Wide measurement range:

👉Operating Voltage: 9V - 30V DC
👉Voltage Measurement Range: 2mV-100V
👉Resistance Measurement Range: 0-10MΩ
👉Current Measurement Range: 2mA-25A
👉Frequency Measurement Range: 10Hz-1000Khz
👉Waveform display: 10Hz-100Khz
👉 Operating Temp: 0℃-50℃/32°F-122°F
👉 Working Environment Temp: 0℃-50°C/-32°F-122°F
👉 Storage Temp: - 20°℃-70°C/-4°F-158°F

➤ Supports 9 languages:

👍English;
👍Chinese;
👍French;
👍Spanish;
👍 German;
👍Russian;
👍 Italian;
👍 Portuguese;
👍Polish.

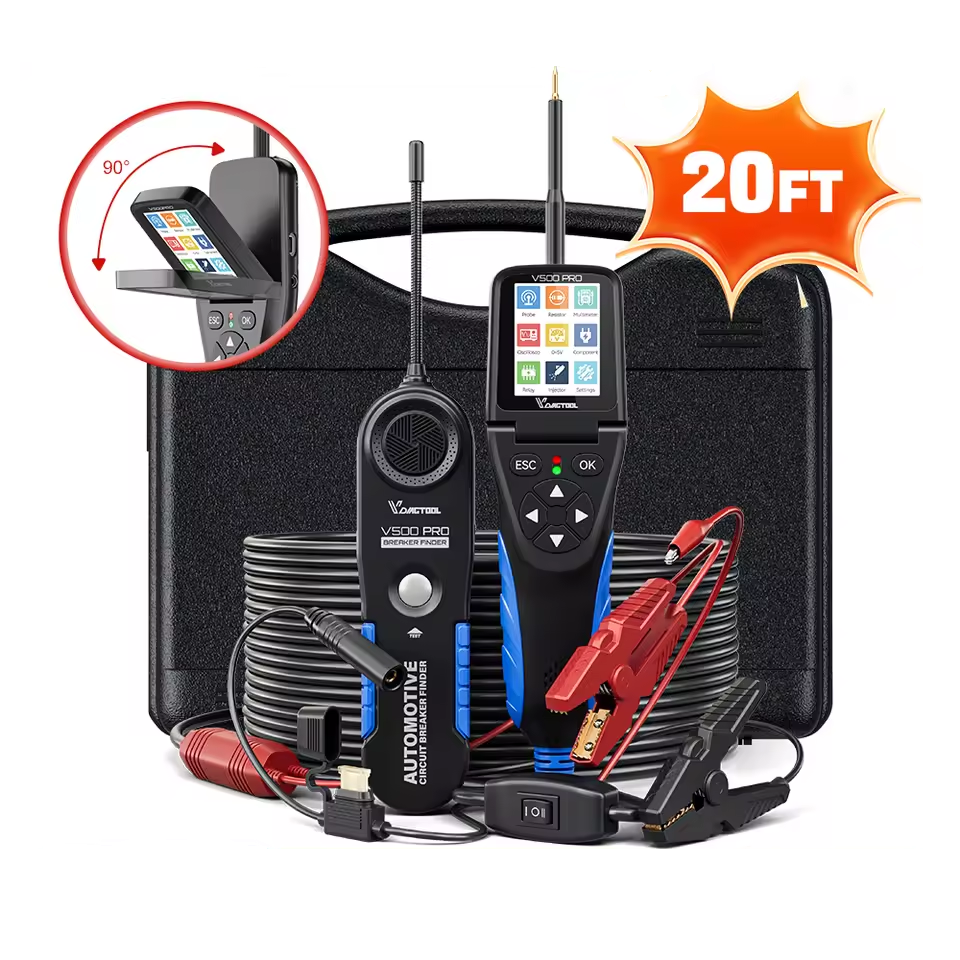

Packing List:

✔️V500× 1
✔️Breaker Finder× 1
✔️Relay Test Cable x 1
✔️Probe Tip × 1
✔️Alligator Battery Clip × 1
✔️Fine Probe Tip × 1
✔️Type-C Data Cable x 1
✔️Probe Tip Extension Cable x 1
✔️User's Manual x 1
✔️Wire Piercing Probe x 2
✔️Banana to Banana Plug Test Lead × 2
✔️Fuse x 3
