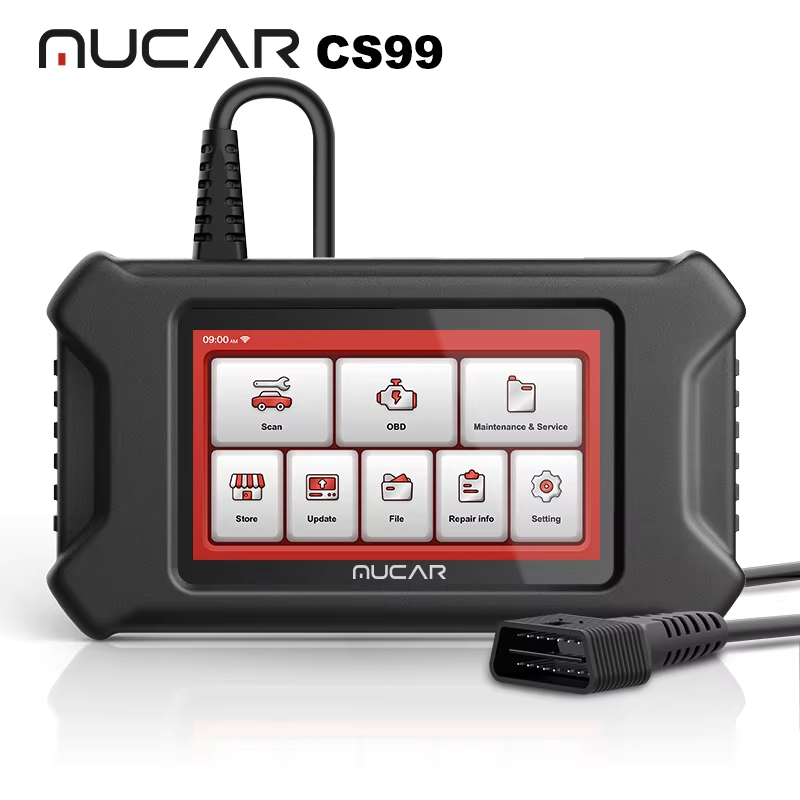

THINKCAR MUCAR CS99 OBD2 Scanner OilBrakeSASETSDPF RESET Code Reader Professional Scan Tools Full System Car Diagnostic Tool

What is MUCAR CS99?

MUCAR CS4 products are a new generation of mid-to-high end DIY products based on Android system launched by THINKCAR, which can realize online upgrade of diagnostic software. Its main functions include not only OBD/EOBD standard protocol diagnosis, but more importantly, it has professional vehicle diagnostic software and maintenance software, which can perform a comprehensive diagnosis of all vehicle electronic control systems. Different series support different systems and functions.

Differences of MUCAR CS2/CS4/CS6/CS99/CS90

MUCAR CS2:
Support to 2 Systems(ABS/SRS) and 2 Reset services (Oil/EPB) lifetime free.126 car brands are free for life.

MUCAR CS4:
Support to 4 Systems(ABS/SRS/ECM/TCM) and 4 Reset services (Oil/EPB/SAS/TPMS) lifetime free.126 car brands are free for life.

MUCAR CS6:
Support to 6 Systems(ABS/SRS/ECM/TCM/BCM/TPMS) and 6 Reset services (Oil/EPB/SAS/TPMS/TBA/ABS) lifetime free.126 car brands are free for life.

MUCAR CS99:
Support to All Systems and 5 Reset services (Oil/Brake/SAS/ETS/DPF) lifetime free.Select 1 car brands are free for life.

MUCAR CS90:
Support to Full OBD2 Functions and 28 Reset services lifetime free.126 car brands are free for life.

Why You Need MUCAR CS99?

Are you troubled by the renewal of model software and functions? MUCAR CS99 Support to All Systems and 5 Reset services (Oil/Brake/SAS/ETS/DPF) lifetime free.

1.MUCAR CS99 Support to diagnostic All system errors, and delete the errors.
2.MUCAR CS99 supports to do Full obd 2 function,including Read/Clear codes,data stream,I/M readiness,O2 sensor,DTC look up and more....
3. MUCAR CS99 can do 5 reset devices functions(Oil/Brake/SAS/ETS/DPF)
4.You can do screen shortcuts via I/M key with MUCAR CS99 devices, easy and fast
5.MUCAR CS99 Support to printe Diagnostic Report data, checking errors
6.MUCAR CS99 software update free lifetime.

Support All System Diagnostic:

This car obd2 scanner is capable of reading and clearing trouble codes of All Systems

Free Full System Diagnosis:

With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.

* Examinate your car like a professional mechanical technician
*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;
*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;
*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;
*The active test used to access vehicle-specific subsystem and component tests.

Support 28 Reset Services(Oil/Brake/SAS/ETS/DPF Resets Lifetime Free for 1 Car Brands)

MUCAR CS99 currently supports 28 maintenance software, The maintenance software is completely free to use and free to upgrade.Oil/Brake/SAS/ETS/DPF Resets lifetime free 1 Car Brands cars.

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset

a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODO reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability

One-Click WIFI Free Update Lifetime

1. Turn on the scanner
2. Connect to WIFI
3. Click the upgrade button on the home page to achieve one-click upgrade

Generate a diagnostic report & Print vehicles diagnostic report

MUCAR CS99 support do a OBD vehicles diagnostic report, and print the vehicles report from PC it help you to understand car's problem.and make you know how to repair car.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

FAQ:

Here we list some common questions and answers related to this tool.

Q: Why does it have no responses when connected to a car computer?
A: Check whether the connection with the vehicle diagnostic socket is normal, whether the ignition switch is on, and whether the tool supports the car.

Q: Why does the system stop while reading the data stream?
A: This may be caused by loose diagnostic dongles. Please unplug the dongle and reconnect it firmly.

Q:Communication error with vehicle ECU?
A: Please confirm:
1.Whether diagnostic dongle is correctly connected.
2.Whether ignition switch is ON.
3. If all checks are normal, send vehicle year, make, model and VIN number to us using
Feedback feature.

Q: Why does the host screen flash when the engine ignition starts?
A: It is normal and caused by electromagnetic interference.

Q: How to upgrade the system software?
A: 1. Start the tool and ensure a stable Internet connection.
2.Go to "Set up" -> "App Update", click "OTA" and then click "check version" to enter the system upgrade interface.
3. Complete the process by following the instructions on the screen step by step. It
may take a few minutes depending on the internet speed. please be patient. After successfully completing the upgrade, the tool will automatically restart and enter the main interface.

Q: Please explain the account and points.
A: To use MUCAR CS6, you need to register an account. Each account has the opportunity to earn points by recommending others to buy products and participating in official events. 1 point can be deducted for 1 dollar when purchasing products or services

Q: How to capture the screenshot?
A: A"Screenshot" icon is always floating on the screen. Tap it to capture the current screen and the screenshot is saved in the File module.

Support 9 Languages

English, French, German, Spanish, Italian, Portuguese, Japanese, Russian,Polish.

Support 126+ Car Brands and 10000+ Vehicles

USA:
BXGM,CHRYSLER, AUSTFORD, GM,USAFORD

EUROPE:
ASTONMARTIN,AUDI,BENZ,BMW,BXFIAT,CITROEN,FERRARI,FIAT,GAZ,LANDROVER,MASE,RATI,OPEL,PAZ,PEUGEOT,PORSCHE...

Austrillia:
AUSTFORD,AUSTHOLDEN

Asia:
BAIC,CHANGAN,CHANGCHENG,CHANGHE,DAEWOO,DAIHATSU,DFXK,FLYER,FUTIAN,HAFEL HMAZDA,HONDA,HUACHEN,HYUNDAI,IKCO,INDIANMARUTI,INDIANTATA,ISUZU,IVECO.IZH,JACTY JIAO,JINLONG,JOYLONG,JPISUZU,KIA,LIFAN, LIUWEITY ,LUXGEN,MAHINDRA,MALAYSIA PERODUA,MALAYSIA PROTON,MARUT,MAXUS,MAZDA,MITSUBISHI...

For people:

1.Car service technician
2.Small and medium repair shop
3.Individual owners who like deep DIY vehicles.

Application scenario:

1.For maintenance technicians, the MUCAR CS4, which is convenient to carry, is the best choice for road rescue or door-to-door service.
2.For small repair shops, there is no need to purchase expensive diagnostic equipment, Thinkscan Plus can also meet the fault diagnosis of different brands of vehicles.
3.In-depth DIY car owners, car owners with certain maintenance skills and strong hands-on ability, can always keep this comprehensive and powerful, yet economical diagnostic equipment.

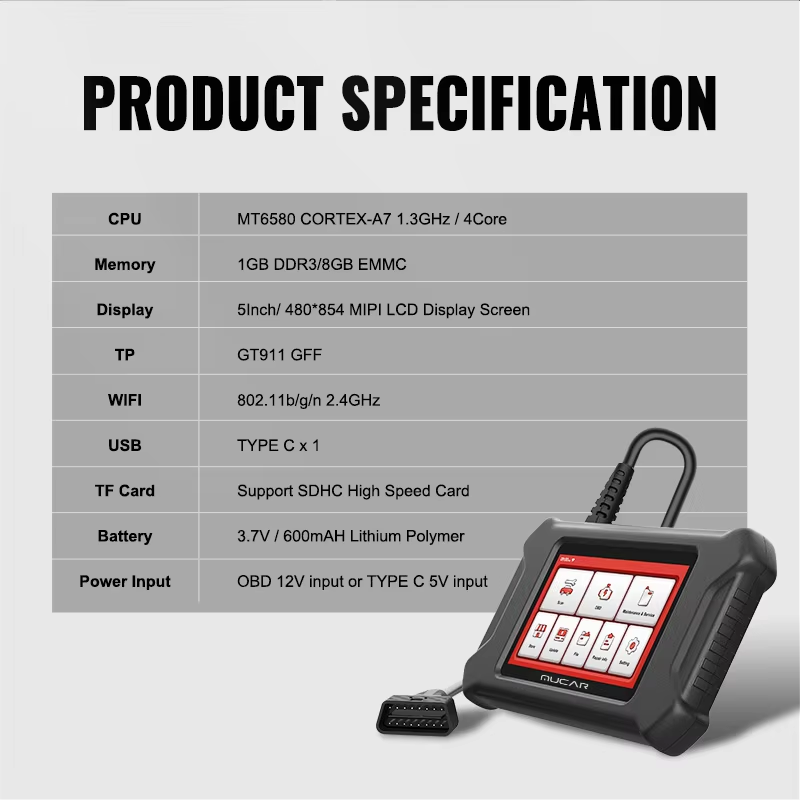

Product Parameters:

CPU:MT6580 CORTEX-A7 1.3GHz/4Core
Memory:1GB DDR3/8GB EMMC
Display:5 Inch/ 480*854 MIPI LCD Display Screen
TP:GT911 GFF
WIFI:802.11b/g/n 2.4GHz
USB:TYPE C*1
TF Card:Support SDHC High Speed Card
Battery:3.7V / 600mAH Lithium Polymer
Power Input:OBD 12V input or TYPE C 5V input

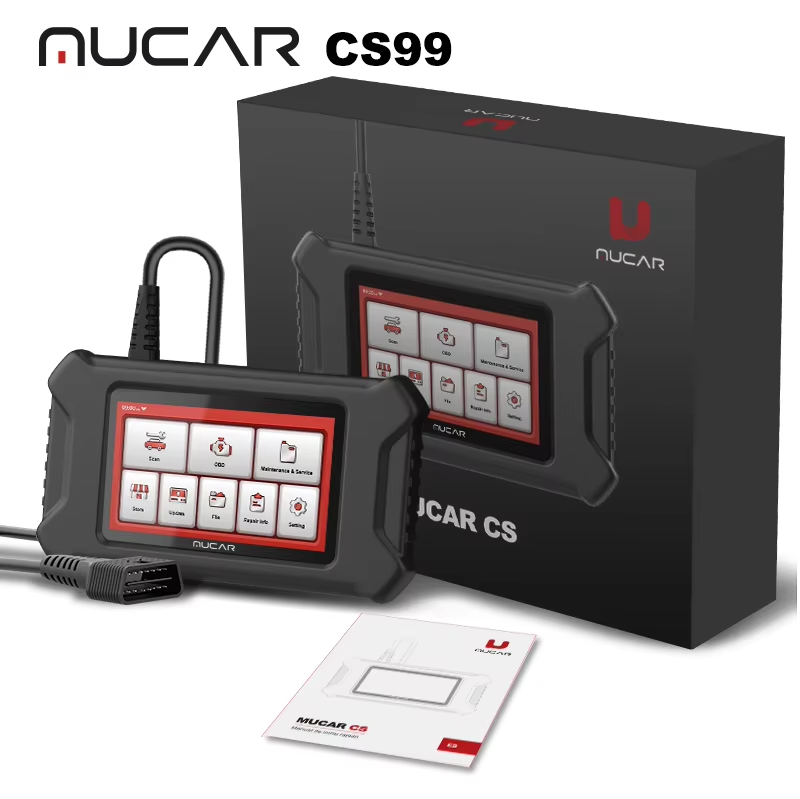

Packing List:

1*MUCAR CS99 Host
1*Manual
1*Charging cable
