Feature of ANCEL HD120

1.BT Diesel Diagnostic Tool & OBD2 Scanner

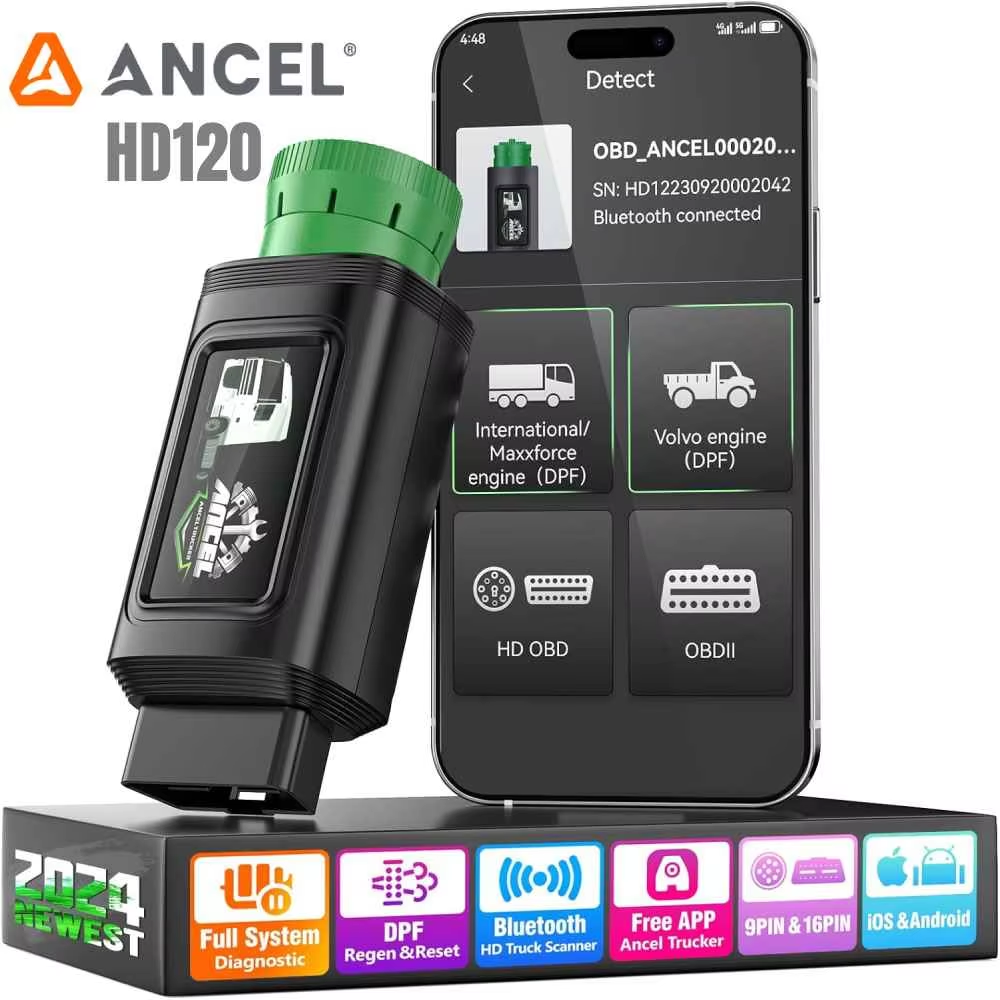

ANCEL HD120 is an unique wireless OBD scanner for diesel trucks and gasoline vehicles. It provides all system diagnostics for all semi, light and heavy equipment that comply with the HDOBD sprotocols. With its precise and fast fault detection capabilities, it eliminates the need for guesswork when troubleshooting truck issues. It can also function as a complete OBD2 scanner for cars and pickups , allows you to check and clear engine faults.

2.Easy to install & Use,Lifetime Software Update
Simply download the Ancel Trucker app from the App Store or Google Play and follow the guided steps to log in. The user-friendly interface allows you to easily access and view readings on your iOS or Android smartphone, providing you with accurate and reliable diagnostic information at an OEM level. Note:for accurate Bluetooth pairing, it is recommended to enable location services on your phone. (Without any hidden fees.)

3.Powerful D-P-F Regeneration & Reset for International & Volvo
Supports exclusive OEM-level regeneration and reset functions for International and Volvo trucks, helping you achieve better MPG, throttle response, understand the level of filter blockage and total usage time, longer unit life, shorter downtime, and more frequent regeneration (passive), and save inspection records. Saves you hundreds or even thousands of dollars in repair costs.

4.All System Diagnostics for Trucks
ANCEL HD120 diesel scan tool supports full system diagnostics for truck engines, transmissions, ABS, chassis, etc. It works for Freightliner, International, Kenworth, Mack, Mercedes Truck, Peterbilt, Sterling, Western Star, Volvo, BobCat, Case, Caterpillar, John Deere, Komatsu, Terex and also compatible with engines and transmissions from Cummins, Caterpillar, Detroit, Paccar, Allison, Bendix, Eaton, Wabco, ZF and more.

5.Compact & Easy to Carry or Store
With its compact design weighing only 8 ounces, the HD120 is equipped with commonly used 16-pin and 9-pin interfaces. You won't need to worry about additional screens or heavy cables, and it allows you to carry it with you or store it in your toolbox, always ready to be used whenever you need it.

6.With 9 Pin Port Locking Function & Wifi Connection
This feature ensures a more stable interface connection and the HD120 truck scanner also added WiFi connectivity (Bluetooth as default connection) to enhance the software interface and functionality. It will continue to grow through regular upgrades, with lifetime free updates and a 3-year warranty.

ANCEL HD120 Diesel HD Truck Systems Coverage

1.Engine system
2.Body control system
3.SRS system Airbag
4.ABS-anti-lock brake system
5.Instrument System
6.Transmission system
7.Brake control system
8.Unit pump system
9.Common Rail System
10.Electronical control system
11.Natural gas system
12.Tail gas after-treatment system
13.Air-conditioning system
14.ATA-Anti-theft alarm system
15.AHA-Auxiliary heating system air-to-air
16.AUS-Audio system
17.BMS-Brake Management System
18.Bosch DENOX AdBlue System
19.Break control system
20.BWS-Preparation system
21.CCS-Climate control system
22.Comfort/assistance/safety systems
23.Compressed Air Reserve system
24.CSS-Collision safety system
25.CTS-Clock and Time System
26.EBS-Electronically Controlled Brake System
27.EHLA-Electrohydraulic steering system
28.EMS-Engine Management System
29.Fuel system
30.Exhaust Pressure Adjustment systems
31.ECM-Engine Control Module
32.Speed control systems
33.Turbo Control systems
etc.

D.P.F Regeneration ( Fit for Volvo & International )

D.P.F Regeneration is used to clear PM (Particulate Matter) from the D.P.F filter through continuous combustion oxidation mode (such us high temperature heating conbustion, fuel additive or catalyst reduce PM ignition conbustion) to stabilize the filter perfornance. An unmaintained D.P.F runs your vehicles unnecessarily hard and less efficient. With regular D.P.F maintenance, you can save lots of dollars and time by getting your D.P.F cleaned, restore your D.P.F to nearly new! Increased Fuel Economy up to 5%. Avoid costly replacement of the filters. Lower Overall Maintenance Costs.

D.P.F regeneration may be performed in the following cases:

(a) The exhaust back pressure sensor is replaced.

(b) The PM trap is removed or replaced.

(c) The fuel additive nozzle is removed or replaced.

(d) The cataytic oxidizer is removed or replaced.

(e) The D.P.F regeneration MIL is on and maintenance is performed.

(f) The D.P.F regeneration control module is replaced.

With 9 PIN and 16PIN interface

For easy portability and space-saving, the ANCEL HD120 truck code reader features a diagnostic head and device all-in-one design, making it convenient for you to use the green 9-pin interface to connect to your truck or diagnose your vehicle with the 16-pin interface without the need for additional accessories taking up space. You can even put it in your pocket and carry it anywhere.

Coverages (OBDII )

Car (Domestic): Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, GMC, Lincoln, Jaguar, Jeep, Pontiac, Saturn

Car (Europe): Audi, Bentley, BMW, Fiat, Jaguar, Land Rover, Mercedes Benz, Mini, Porsche, SAAB, Smart, Sprinter, Volvo, VW

Car (Asia): Acura, Daewood, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota;

Pickup (or Van): Silverado, Coronado, Ford (F150-750), Ford E-series, Dodge RM 1500-5500, GMC, Nissan Frontier, Toyota

Other Features

One-click Feedback
This diagnostic tool supports one-click feedback. You can give us your feedback via this function if you have diagnostic problems, ANCEL's professional technical team will provide you with excellent solutions.

One-click Upgrade(Liftime Free Update)
No need to update on computer. By connecting wifi, it will automatically search for the latest update programe, just click update, you will get the latest version (more car models, bug fix) of this scanner. You will enjoy lifetime update through one-key function.

Battery Voltage Display

Support Print & Share Report
HD100 scanner supports the printing function, which can print diagnostic report data such as vehicle information, fault codes, and data streams, and can also print software interface. You can share the health report of your car with others via email, and you can also send it to yourself. which is very convenient.

HOW TO USE ANCE HD120 QUCKILY?

Step1 : Download The App "Ancel Truck' On Play Or App Store
Step2 : Register And Login to An Account Wlthin The App
Step3: Plug The ANCEL HD120 into Diagnosis Port
Step4 : Connect Devices Using Bluetooth Or WIFI
Step5: Start To Use The Device

Please Note: ANCEL HDI 20 only supports IOS system 12.0 and Android system 5.0 or above, and does not support computers, ipad, laptops, etc

Connection Modes

Please enter the menu "OBD-II" if you want to diagnostic 12V cars. Please kindly note that you should enter menu "Diesel OBD" if you want to
diagnose heavy duty trucks.

The following is an operation description of these two connection modes:

1) Connection of standard OBD-II interface - The vehicle only needs to use the integrated main test line OBD connector, and no other connectors are needed.

2) Connection of Diesel OBD interface - Vehicles need to connect the main test line with the corresponding special connector.

HD120 Package List

1pc x HD120
1pc x Packing box
1pc x User Manual
