Comparison Between AD310, AD410 and AD530

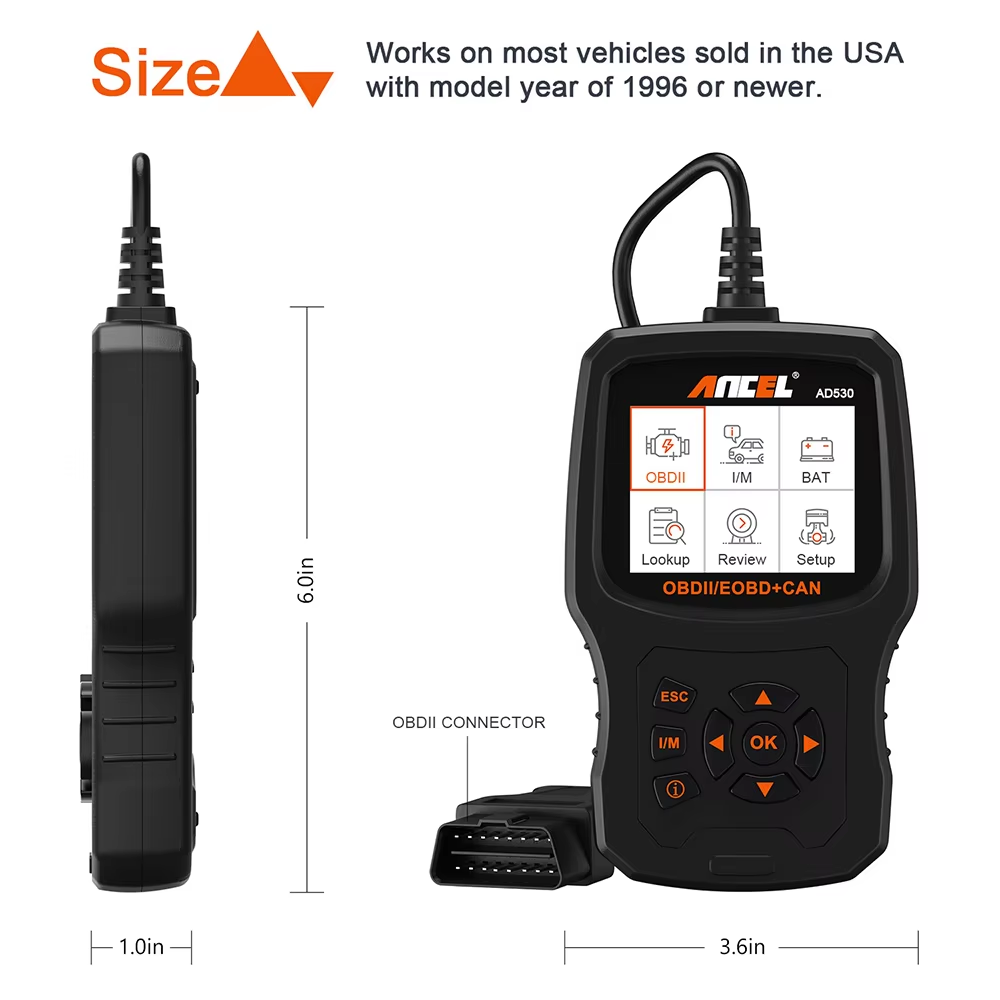

Ancel AD530 OBD2 Automotive Scanner [10 Full OBD2 Functions]

ANCEL AD530 code reader Supports turns off Malfunction Indicator Lamp (MIL), reads/clears fault codes and resets monitor, graphs live data stream, displays freeze frame data, tests O2 sensor, EVAP System Test, I/M readiness status (emissions), tests advanced on-board monitoring, and retrieves vehicle information (VIN). In addition, this car code reader is equipped with the latest industrial chip, which makes the scanning speed 2X faster than other vehicle code readers.

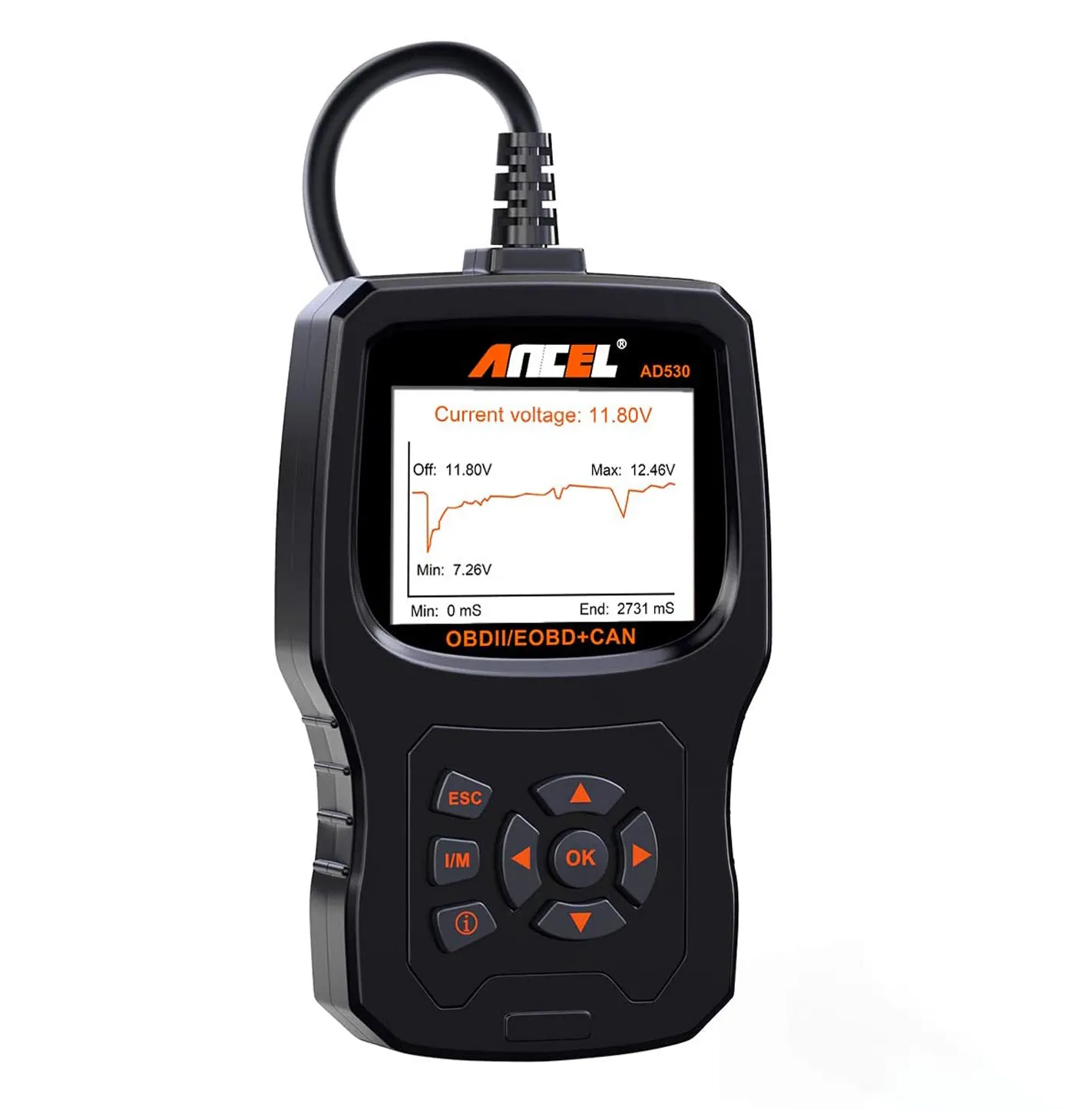

Upgraded Graphing Battery Test Function

Detect real-time data from 12V batteries and display battery graphs with fluctuations ranging from 8V to 18V. The discharge voltage of a normal battery is about 12V, the starting voltage is generally 7.5V-9.5V, and the charging voltage is about 14V. Our technical team recommends that you monitor your battery and replace it if the battery is not in good condition.

Live Data Stream and Freeze Frame Data

Live data stream can show certain vehicle elements in real-time to monitor your vehicle status, such as engine RPM, speed, coolant temperature, voltage and so on. Freeze frame data can be either a single record of a certain set of operating conditions. It's a snapshot of whatever is wrong with your vehicle to help you fix your vehicle in time.

Features

EVAP Test

The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. The OBD2 diagnostic tool does not perform the leak test, but signals to the vehicle's onboard computer to initiate the test. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

On-boarding Monitoring and O2 Sensor

Monitor the condition of the vehicle and check the status of the oxygen sensor in time. When O2 Sensor is Bad: Drastically worse gas mileage and performance; Rough running that doesn't improve after changing spark plugs and plug wires; Fouled spark plugs and an engine that runs rich (black smoke, carbon around the tailpipe).

I/M Readiness

Designed with I/M readiness hot key, provides quick access to emissions readiness status, helps the engine run as efficiently as possible and also to produce as few emissions as possible.
DTC-Lookup and "i" - button

Not only explain the fault code, but also analyze the possible causes of the vehicle.

User - friendly "i" button lets you directly understand the meaning of the code without any hassle. Pressing the "i" button will give you accurate repair advice instead of a bunch of technical terms you don't understand. Our fault code base and software versions are permanently and continuously updated for free.

Compare with other regular code readers:

The improved battery detection function allows monitoring your vehicle battery automatically with reliable real-time graph data form instead of a direct result on the screen that an ordinary code reader does

Specifications:
