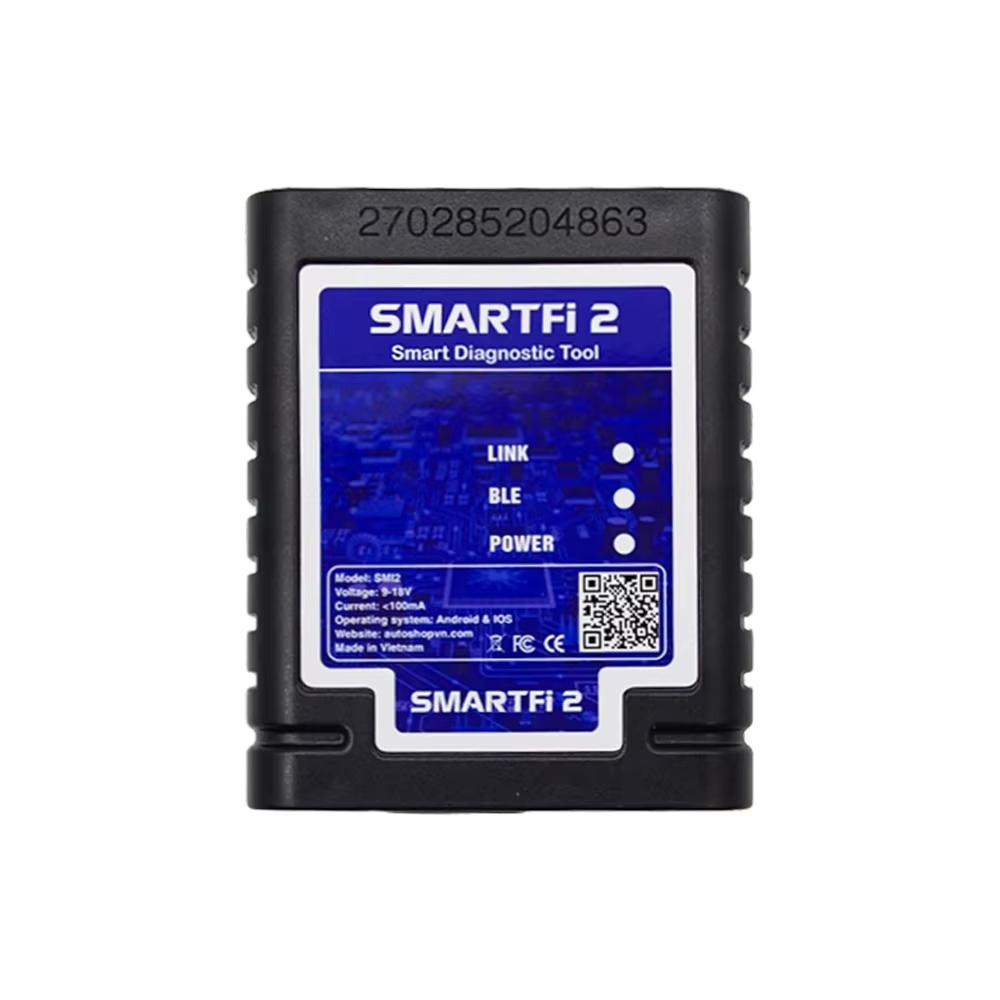

Motorcycles Scanner Buletooth SMARTFi2 SMARTFi 2Diagnostic Smart Key Odo Remap Functions All In One Bluetooth Version Support Pad Phones

SMARTFi 2 is a multifunctional diagnostic device for motorcycles and motorbikes that utilizes Bluetooth 5.0 technology.



SMARTFi 2 integrates all functions into one device, supporting deep diagnostic and checking of all electronically controlled systems of PGM Fi fuel-injected motorcycles.

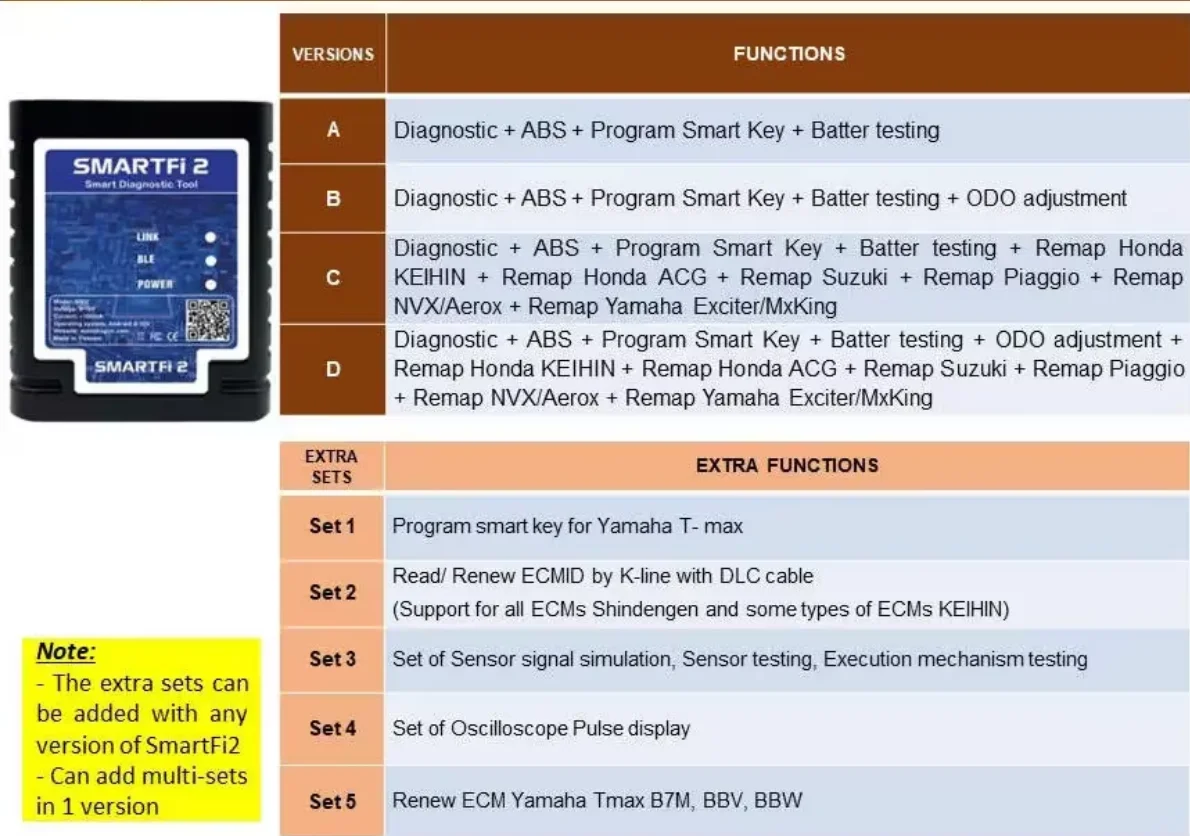

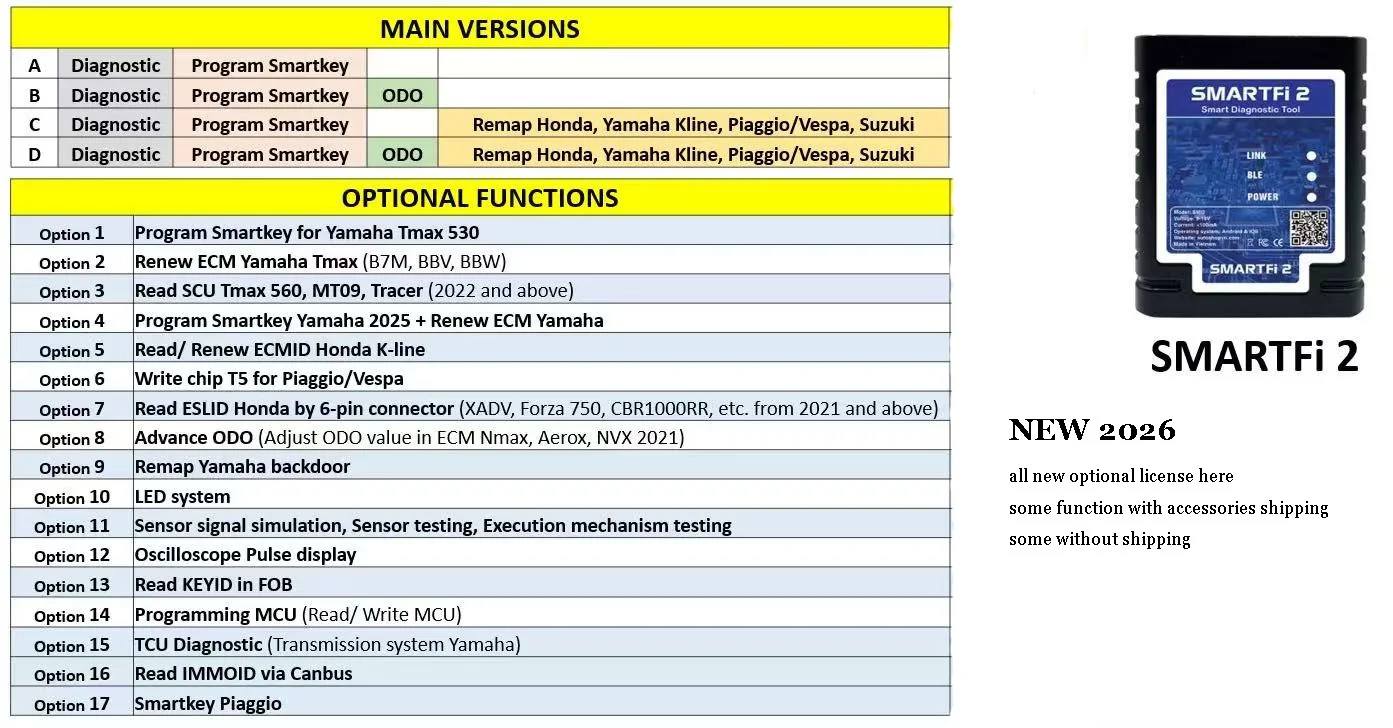

SMARTFi 2 offers various function packages for customers to buy. The device comes with a 12-month warranty and free updates.



Attention: Please before you place order check here which functions in the package



In the link only With Device  ( Iphone or Pad not in the package ) Please be attention .dont mix them . thanks



The device is integrated with 12 special and in-depth functions, including:



1.Engine andABS diagnostic system

Supporting motorcycles' diagnosis and error analysis via OBD standards such as Kline or Can bus protocols, supporting the latest motorcycles until 2023.



2. Smart key system

Programming and setting up the smart key system when the key is lost, adding keys, and synchronizing when replacing parts.



3. Immobilizer security system

 Reading, writing, and resetting security codes in the ECU, programming when the keys are lost, or adding new keys.



4. ODO system

Reading, writing, resetting, and storing data, ODO values saved in the EEPROM memory of the dashboard.



5. LED technology system

Checking the operation and activating the LED light system.



6. ECU Remap and Tuning

Optimizing the power and operation of ECM, adjusting fuel injection timing, ignition timing, on/off error codes, and enforcement mechanisms in the ECM.

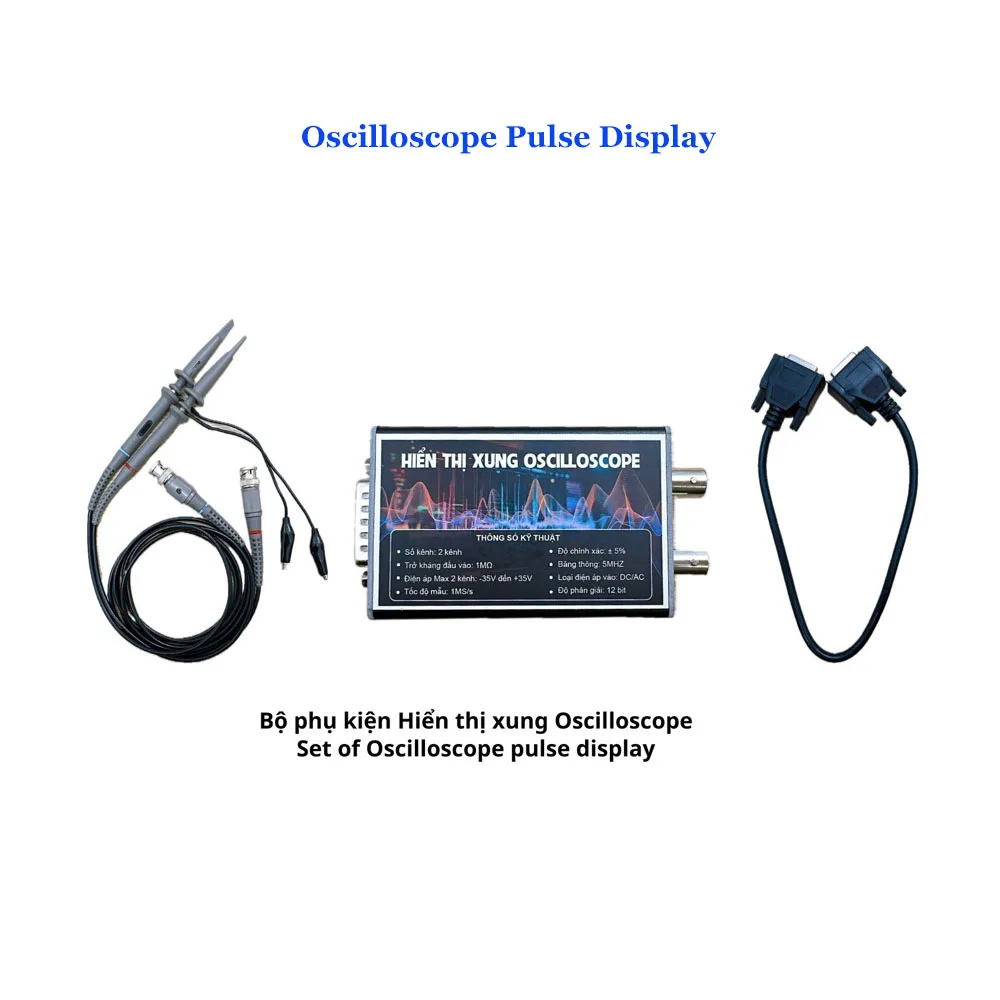

7. Oscilloscope pulse display

 Displaying the ECM input and output signal on the motorcycles for analysis and testing.

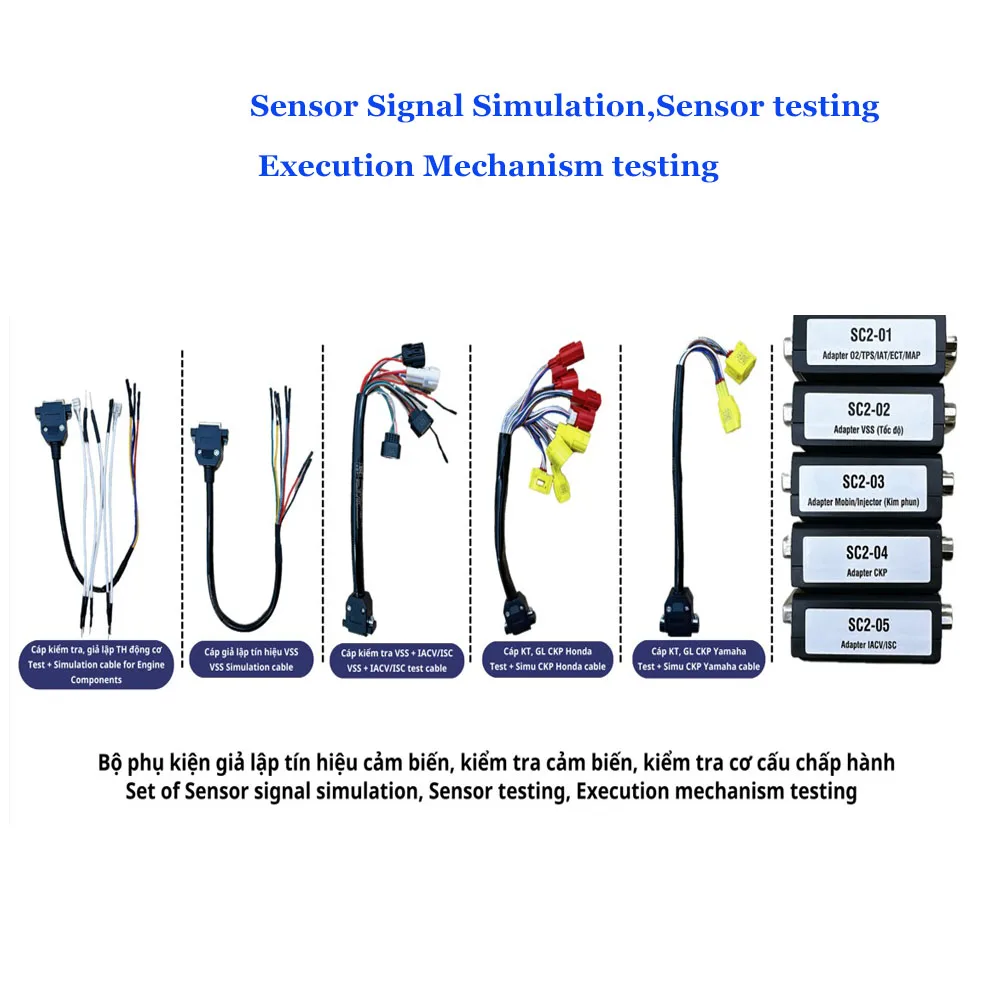

8. Sensor signal simulation

Simulating and replacing various sensor signal types such as CKP, VSS, MAP, TW, TPS, IAT, and O2...



9. Sensor testing

Measuring, and checking operations and values of sensors such as CKP, VSS, MAP, ECT, TPS, IAT, and O2 to determine sensor status.



10. Active test component

Measuring, and simulating ECM control signals such as injectors, Mobin, ISCI/IACV with basic sensor signals such as CKP, VSS, MAP, TW, TPS, IAT, O2, injectors, and Mobin.



11. Battery testing

Testing the capacity, quality of the battery, and the operation of the generator system.



12. Voice control

In upcoming versions, the device supports diagnostics through voice at the basic and advanced levels.

A. Details of functions

1. Engine and ABS

Automatic diagnosis, search for motorcycle information and connection

Automatically analyze engine data to check sensors and actuators

Activate actuator check

Reset ECU (initialize ECU to default settings)

Set the default value for the TPS throttle position sensor

Analyze exhaust emissions (air/fuel ratio)

Adjust, and optimize the A/F ratio

Environmental factor / Altitude setting

Reset IACV/ISC

Upgrade, and update ECU software

Save/view engine data parameters

Support for all motorcycle brands: HONDA, YAMAHA, PIAGGIO/VESPA, SUZUKI, SYM, and KYMCO

2. Smart key system

Read/ Erase KEYID

Read/ Reset ECMID from SCU and ECM

Save/ Restore data in SCU and ECM

Register new keys in all-keys lost case

Checking the synchronization between SCU and FOB

Reuse FOB

Use one key for many motorcycles

Support for all motorcycle brands: HONDA, YAMAHA, SUZUKI, and PIAGGIO/VESPA

List of motors:

*HONDA: AIRBLADE (2018-2023), CLICK 125i (2018-2023), LEAD 125 (2018-2023), PCX (2016-2023), SH 125/150/300(2016-2023), SH MODE (2016-2023), VISION (2018 - 2023), VARIO 125/150 (2018-2023), X-ADV 750, FORZA 300 (2018-2020), SCOOPY (2016- 2023), PCX160, FORZA750, CBR 1000RR

• YAMAHA: AEROX (2018-2023), GRANDE (2019-2023), FREE GO (2020-2023), LATTE (2020-2023), JANUS (2017-2023), NVX (2017-2023), QBIX, XMAX, NMAX, T-MAX 530i, T- MAX DX, T- MAX SX SPORT, T-MAX IRON MAX.

• SUZUKI: RAIDER FI (2017-2020), GSX FI (2017-2020)

• Supported part number: K12, K44, K59, K66, K01, K02, K77, K78, K29, K36, K96, K97, K1F, K1R, K1N, K1Z, K1Y, K0R, K0S, K2C, K1B, K1W, MKHD0, MKTD0.

3. ODO adjustment

Ÿ Read/Save/Write/Reset the dashboard

Ÿ Automatically read and save bin files

Ÿ Display ODO data on the dashboard

4. ECU Remap, tuning

• Adjusting the Air/Fuel ratio (A / F)

• Remap, tune, and open the rpm limit by DLC cable

• Tuning/remap for all ECU Honda ACG (From 2013 to 2023)

• Handling some car fuel consumption cases with high injection time, fuel saving, low Garanti

• Remap, and adjust at the right time and right range

• Improve capacity without wasting fuel

• Remapping helps optimize engine power and optimize the A/F ratio

• MAP OFF smart key, OFF 88 error code - Error in EVAP valve control circuit

• All of the MAP files were run in real configuration, tested HP, tried by Dyno, optimized with AFR (optimize air-to-fuel ratio A/F)

List:

* REMAP ECM HONDA SHINDENGEN

• HONDA LEAD_125 2019 (K12K-V11-V01), HONDA LEAD 125 2019 (K12K-V01-V01)

• HONDA LEAD 125 2019 (K12M-V91-V01), HONDA LEAD 125 2017 (K12H-931-V01)

• HONDA SH MODE 125 2019 (K29K-961-V01), HONDA SH MODE 125 2019 (K29M-V81-V01)

• HONDA VISION 110 – SMK 2019 (K44P-V91-V01), HONDA VISION 110 2019 (K44P-V81-V01)

• HONDA VISION 110 2017 (K44F-V01-V01), HONDA AIR BLADE 125 2018 (K66A-V01-VN01)

• HONDA AIR BLADE 125 2018 (K66G-VE1-V01), HONDA AIR BLADE 125 – SMK 2019 (K66G-VG1-V01)

• HONDA VARIO 150 2019 (K59F-A01-IN01), HONDA VARIO 150 2019 (K59J-A71-IN01)

• HONDA VARIO 150 2019 (K59K-T01-TH01), HONDA VARIO 150 2018 (K60F-T01-TH01)

• HONDA VARIO 150 2018 (K60K-B31-IN01), HONDA VARIO 150 2018 (K60R-B61-IN01)

• HONDA VARIO 150 2020 (K60R-B71-IN01), HONDA CLICK 2018 (K59R-C01)

• HONDA CLICK 125 – LED 2018 (K60S-T71-TH01), HONDA SH 125i_2018 (K77A-V01-V11)

• HONDA SH 125i_2018 (K77A-V11-V01), HONDA SH 150i_2018 (K78A-V01-V01)

• HONDA SH 150i_2018 (K78A-V11-V01), HONDA AIR BLADE 125cc_2020 (K1F-V01-V01)

• HONDA AIR BLADE 150cc_2020 (K1G-V01-V01), HONDA SH 125i _2016 (K01J-611-V01)

• HONDA SH 150i_2016 (K02K-701-V01), HONDA LEAD 125 (2013-2015) (K12A-901/903)

• HONDA AIR BLADE 125 (2013-2015) (K27A-V01), HONDA AIR BLADE 125 (2013-2015) (K27G-V51-V01)

• HONDA SH MODE (2013-2015) (K29A-901/903), HONDA VARIO 150 2018 (K60A-B01-IN01)

• HONDA PCX 125 – KOREA_2018 (K35K-K21-K01), HONDA PCX 125 – THAI 2018 (K36S-T31-TH01)

• HONDA PCX 150_2019 (K96A-V01-V01), HONDA PCX 150 _2019 (K97A-V01-V01)

• HONDA PCX 150_2019 (K96A-T01-TU01), HONDA PCX 125 _2016 (K35A-V01-V01)

• HONDA SH MODE 2021 (K1NA-V01-V11), HONDA SH 125i _2020 (K0RA-V12-V01)

• HONDA SH 125i _2020 (K0RA-V03-V21), HONDA SH 150i _2020 (K0SA-V12-V01)

• HONDA BEAT STREET (2017-2019) (K81A-N02-IN01), HONDA BEAT STREET 2017-2019 (K81A-N12-IN01)

• HONDA BEAT STREET 2017-2019 (K81H-N52-IN01), HONDA BEAT STREET 2017-2019 (K81H-N62-IN01)

• HONDA BEAT 110 (2017-2019) (K25G-611-IN01), HONDA BEAT 2019 (K61-N01-IN01)

• HONDA PCX 150_2019 (K97G-N31-IN01), HONDA PCX 150_2019 (K97G-N01-IN01)

• HONDA PCX 150_2017 (K36J-N11-IN01), HONDA PCX 150_2019 (K97A-U01-TH01)

• HONDA PCX THAI 2017 (K35A-T01-ED01), HONDA PCX THAI 2015 (K50A-T02-TH01)

• HONDA ADV 150_2020 (K0WA-N01), HONDA VARIO 150_2018 (K59-M01)

• HONDA PCX 150 THAILAND (SMARTKEY) 2019 (K97F-T01-TH01)

• HONDA BEAT NEW 2020 (K1AA-N02/N03-IN01), HONDA BEAT NEW 2020 (K1AA-N13-IN01)

• HONDA PCX 150 _2019 (K97A-V01-V11), HONDA VARIO 125_2019 (K60A-N11-IN01)

• HONDA VARIO 125_2019 (K60K-B21-IN01), HONDA VARIO 125_ 2019 (K59A-A11-IN01)

• HONDA VISION 2021 (K2CA-V01-V01), HONDA VISION 2021 (K2CA-V11-V01)

• HONDA VISION 2021 (K2CA-V31-V01), HONDA LEAD 125_2019 (K12K-V01-V01)

• HONDA LEAD 125 (SMARTKEY) 2019 (K12M-V81-V01)

• HONDA BEAT NEW 2021 (K1AA-N12-IN02), HONDA SH VN - 150i CBS 2020 (K0SA-V01)

• HONDA AIR BLADE 2022 (K2ZA-V01-V11), HONDA SH MODE 2021 (K1NA-V01-V01)

• HONDA ADV 2020 (K0WG-B01-BR11), HONDA ADV THAILAND 2020 (K0WF-T01)

• HONDA ADV 160_2022 (30400-K0WL-NB1), HONDA PCX 160_2021 (K1ZG-N21-IN01)

• HONDA PCX 160_2021 (K1ZG-N31-IN01), HONDA PCX 160_2021 (K1ZF-T01-TH01)

• HONDA LEAD 125_2022 (K2TA-V02-V01), HONDA LEAD 125_2022 (K2TA_V11_V11)

• HONDA AIR BLADE 2022 (K3AA-V01-V11), HONDA VARIO 160_2022 (K2SA-N02)

*  REMAP HONDA KEIHIN

• HONDA FUTURE 125_LED 2020 (38770-K73-V81), HONDA FUTURE 125 (2019 – 2020) (38770-K73-V42)

• HONDA FUTURE 125 (2016 – 2018) (38770-K73-V02), HONDA FUTURE 125_2014 (38770-KYZ-G01)

• HONDA FUTURE/ WAVE RSX 110 (2012 – 2013) (38770-KYZ-T03), HONDA FUTURE/ WAVE RSX 110 (2014 – 2015) (38770-KYZ-V71)

• HONDA FUTURE/ WAVE RSX 110 2012 – 2013 (38770-KYZ-V21), HONDA WAVE RSX 110 Fi (2019 – 2020) (38770-G90-V02)

• HONDA WAVE RSX 110 Fi (2019 – 2020) (38770-K90-V02), HONDA WAVE RSX 110 Fi (2020-2021) (38770-K90-V03)

• HONDA WAVE Fi 125 (2019 – 2020) (38770-K90-VC1), HONDA WAVE 110 (2014 – 2015) (38770-K03-M01)

• HONDA WAVE 110 (2014 – 2015) (38770-K03-H01), HONDA WAVE 125 Fi Thai Land (2019 – 2020) (38770-K73-TC1)

• HONDA WAVE 125 Fi Thai Land 2019 (38770-K73-T32), HONDA WAVE RSX 110 Fi Thai Land 2014- 2015 (38770-K58-T81)

• HONDA WAVE RSX 110 Fi Thai Land 2014- 2015 (38770-K58-TC2), HONDA WINNER 150 V1 2017- 2018 (38770-K56-V01)

• HONDA WINNER X 150 2019 – 2020 (38770-K56-V51), HONDA SONIC 150 (2019 – 2020) (38770-K56-N01)

  HONDA GTR-150 V2 2020/ WINNER X 2020 (38770-K56-NJ1), HONDA GTR 150 V1 2017 – 2018 (38770-K56-N11)

  HONDA GROM / MSX 125_2020 (38770 K26-B42), HONDA GROM / MSX 125 (2016 – 2019) (38770-K26-B13)

• HONDA GROM / MSX 125 (2016 – 2019) (38770-K26-B02), HONDA MSX 125 (2016 – 2019) (38770-K26-C31)

• HONDA MSX 125 (2014 – 2016) (38770-K26-901), HONDA MSX 125 (2014 – 2016) (38770-K26-911)

• HONDA MSX 125 (2013 – 2015) (38770-K26-931), HONDA SCR 110 (2010 – 2012) (38770-GFM-902)

• HONDA SCR 110 (2010 – 2012) (38770-GFM-961), HONDA LEAD 110 (2010 – 2011) (38770-GGE-901)

• HONDA LEAD 110 (2011 – 2012) (38770-GGE-941), HONDA AIR BLADE 110 (2008 – 2010) (38770-KVG-V21)

• HONDA AIR BLADE 110 THAI LAND (2008 – 2010) (38770-KVG-A31), HONDA SH Y 150/ PS 150 (2007 – 2008) (16400-KTG-641)

• HONDA SH ITALY 150 (2009 – 2010) (16400-KTG-921), HONDA SH ITALY 150 (2009 – 2010) (16400-KTG-922)

• HONDA SH ITALY 150 (2010 – 2011) (16400-KTG-982), HONDA SH 125 (2007 – 2008) (16400 KTF-641)

• HONDA SH 125 (2010 – 2011) (16400 KTF-982), HONDA SH 300i 2008-2010 (38770-KTW-903)

• HONDA SH 300i 2007-2012 (38770-KTW-B02), HONDA SH 300i VN (2008-2010) (38770-KTW-901)

• HONDA AIR BLADE 110 (2010 – 2012) (38770-KVG-V42), HONDA AIR BLADE 110 (2010 – 2012) (38770-KVG-V41)

• HONDA CLICK 110i (2013-2015) (38770-KVB - T03), HONDA VISION 110_2012 (38770-KZL-E71)

• HONDA VISION 110_2011 (38770-KZL-E13), HONDA VISION 110_2011 (38770-KZL-E12)

• HONDA SCOOPY 110 INDO (2018-2020) (30400-K93-N01), HONDA SCOOPY 110 THAI LAND (2018-2020) (30400-K93-T21)

• HONDA SCOOPY 110 THAI LAND (2021-2022) (K2F-T21), HONDA SCOOPY 110 INDO (2021-2022) (K2F-N11)

• HONDA SCOOPY 110 INDO (2021-2022) (K2F-N01), HONDA BEAT 110 (2015-2017) (K61-N01/601)

• HONDA VARIO 110 (2015-2017) (K46-N21), HONDA VARIO 110 (2015-2017) (K46-N31)

• HONDA VARIO 110 (2018-2019) (K46-NA1), HONDA GENIO 110 (2018-2020) (K0J-N01)

• HONDA GENIO 110 (2018-2020) (K0J-N11), HONDA CUB 50 (2019-2020) (38770-GBJ-M52)

• HONDA CUB 50 (2020-2021) (38770-GBJ-M53), HONDA PS VIET NAM (2008-2010) (16400-KVA-G01)

• HONDA WINNER X SMARTKEY_2022 (38770-K2P-V61 VN)

*LIST OF REMAP PIAGGIO/VESPA

ECM 26M3G1HW with part number

• CM088103

• CM088109

• CM088111

• CM088112

• CM088113

• CM088116

• CM088117

ECM 28M3G1HW with part number

• CM084901

• CM084902

• CM084915

LIST OF REMAP YAMAHA

• YAMAHA NVX 125 SMARTKEY_2017 (B64-H594A-01)

• YAMAHA NVX 155 ABS SMARTKEY (2017-2019) (B63-H594A-11)

• YAMAHA NVX 155 ABS SMARTKEY (2017-2019) (B63-H594A-30)

• YAMAHA AEROX SMARTKEY (2017-2019) (BF6-H594A-11)

• YAMAHA EXCITER 150 (2015-2018) (2ND0), YAMAHA EXCITER 150 (2019-2020) (2ND2)

• YAMAHA MX KING 150 (2015-2018) (2PV0), YAMAHA MX KING 150 (2019-2020) (2PV1)

• YAMAHA EXCITER 155 VVA KHÓA CHÌA (2021-2022) (B5V1), YAMAHA EXCITER 155 VVA SMARTKEY (2021-2022) (B5V0)

LIST OF REMAP SUZUKI

• SUZUKI SATRIA 150 (2017-2020) (32920 - 12K00)

• SUZUKI RAIDER 150 (2017-2020) (32920 - 12K00)

B. Multi-languages

• English, Vietnamese, Thai, Indonesian, Chinese, Korean, and French.

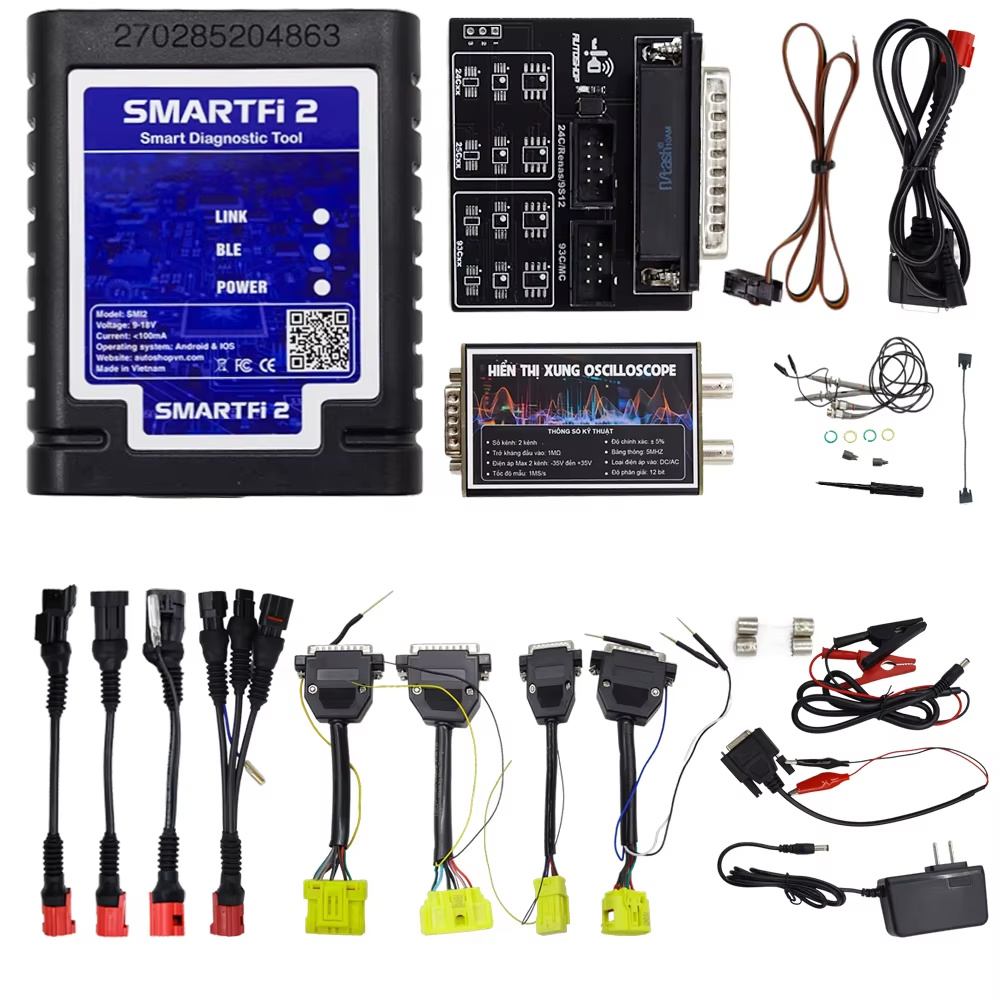

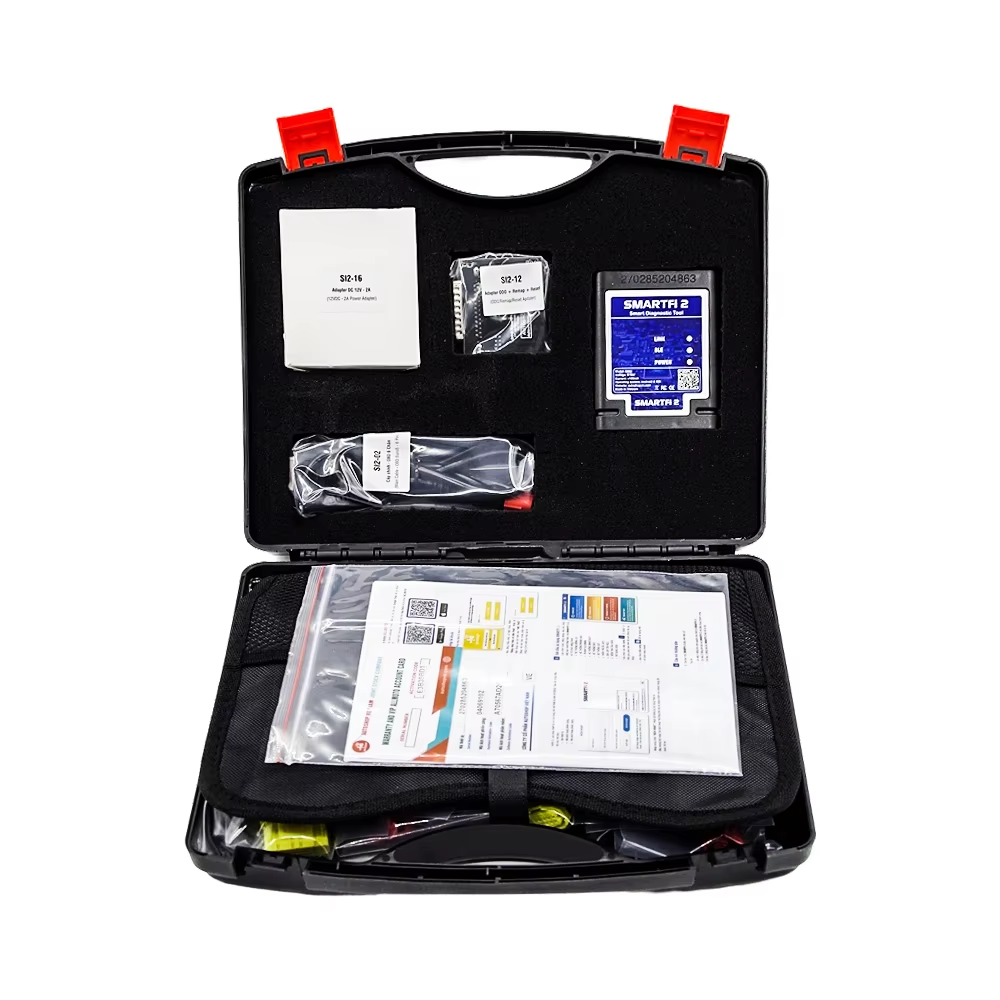

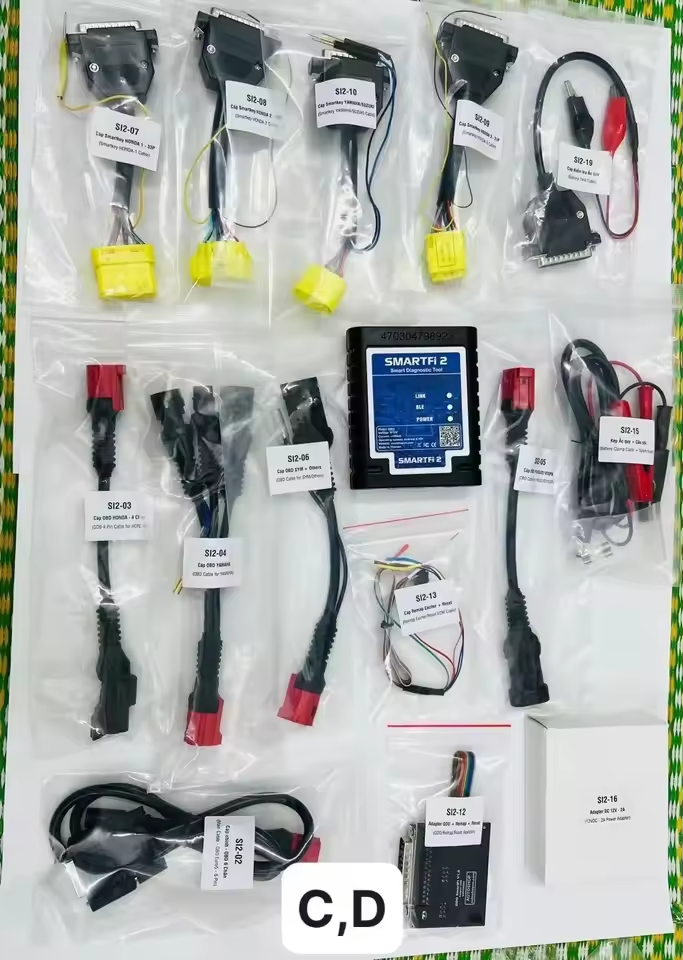

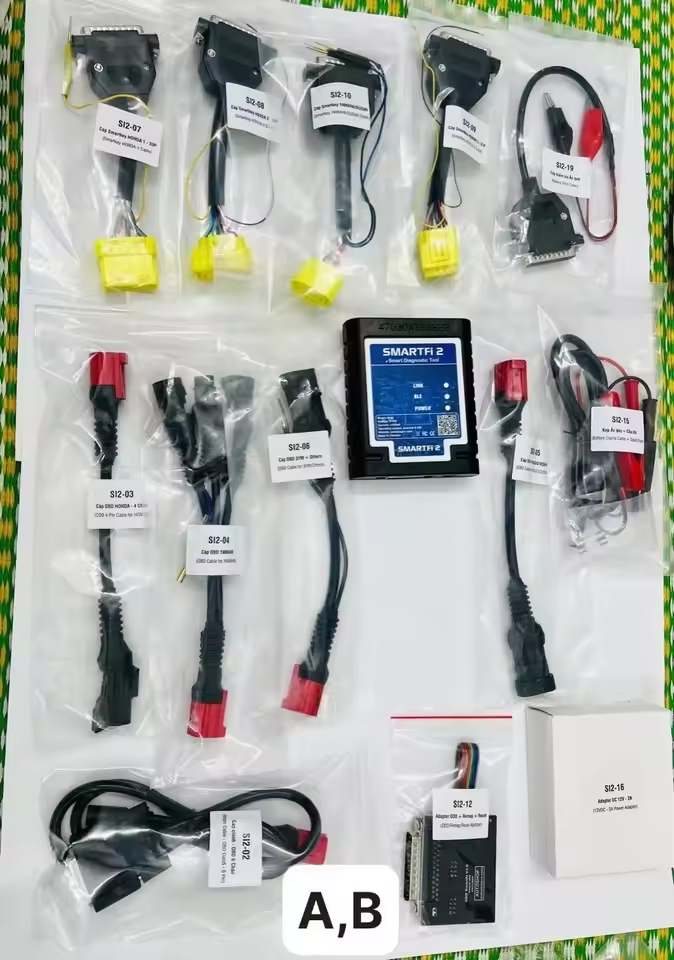

D. Accessories List
