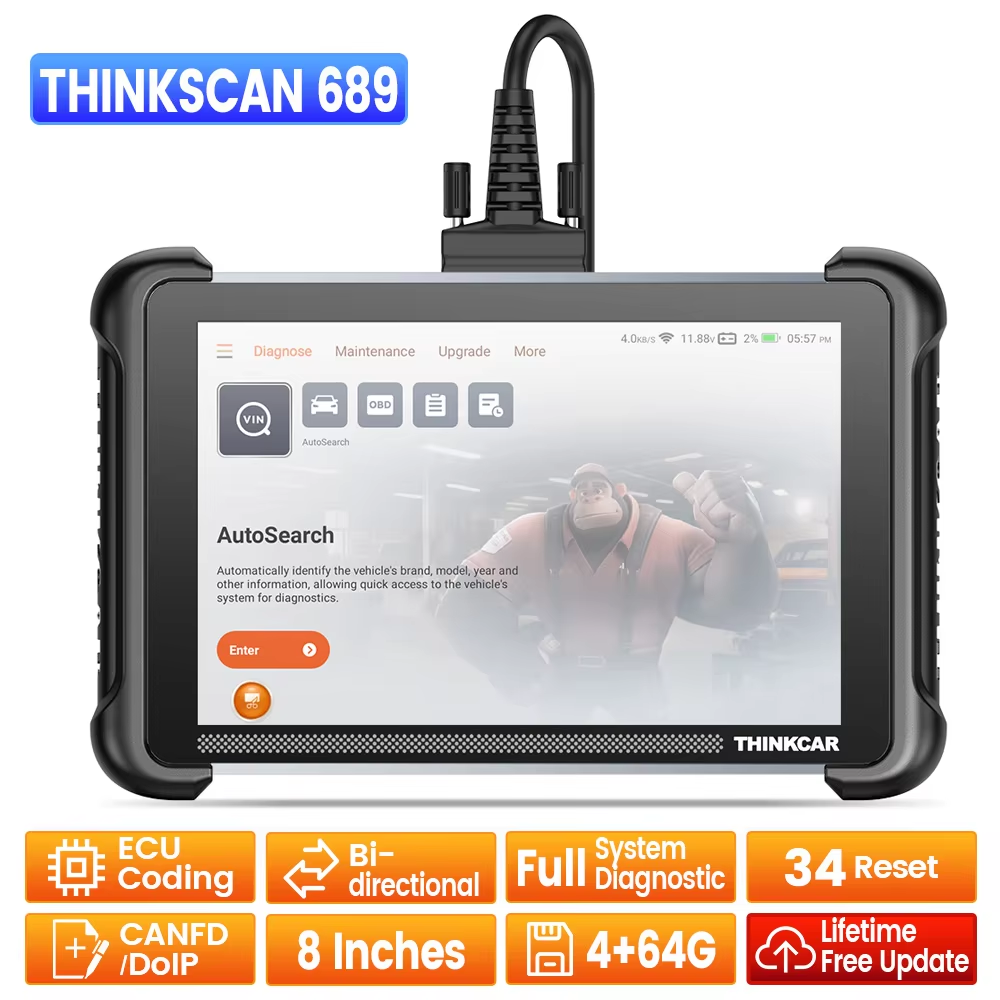

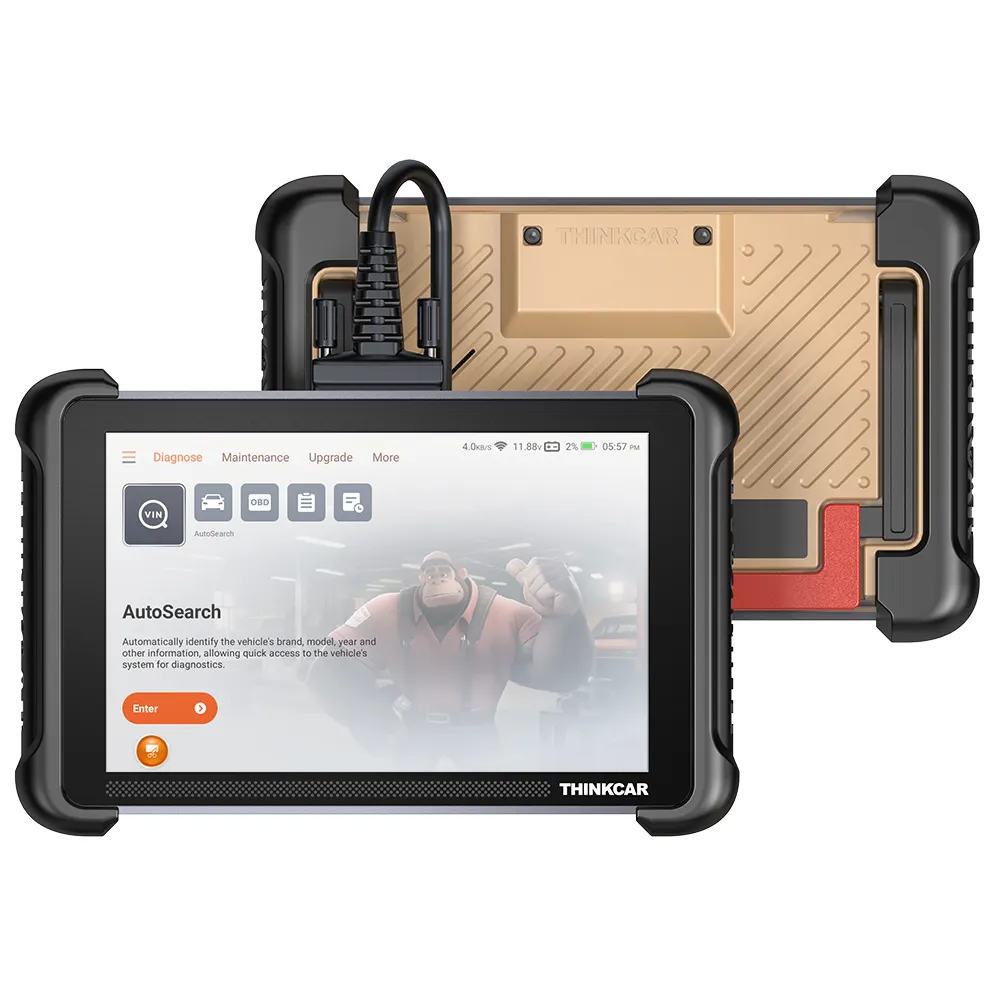

THINKCAR THINKSCAN 689 OBD2 Scanner CAN FD/DOIP ECU Coding Bi-directional 34 Service Full System Diagnostic Tools Lifetime Free

Why You Need 2024 NEW THINKCAR THINKScan 689 OBD2 Diagnostci Tool?

All Functions Below Lifetime Free Use & Update, no Annual fee, Compeletely Free!!!

1.OE-Level All System Diagnosis + 34 More Reset Functions
2. ECU Coding + Active Test (Bidirectional control) + Guide Function
3. Support CANFD + DOIP
4. Support FCA AutoAuth Access
5. Auto VIN Scan + Remote Diagnosis + Diagnostic Feedback
6. 3 Years Warranty for any Quality Problems and Lifetime Free Tech Support.
7.OE-Level car coverage. 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
8.Support 28 Languages

High-End Configuaration

Tablet size: 8 inches, 1280 * 800
System version: Android 10
CPU version: 2.0GHz 4-core

Running memory: 4GB
Storage memory: 64GB
Battery capacity: 4150mAH
WiFi network: 2.4GHz/5GHz dual band

Application Scenario

1. Maintenance technicians: convenient to carry during road rescue or door-to-door service.

2. Small repair shops: no need to buy expensive diagnostic instruments, it can meet the fault diagnosis of vehicles of different brands.

3. Deep DIY car owners: Car owners with certain maintenance skills and strong hands-on ability can always have this powerful and economical diagnostic equipment.

All Cars Lifetime Free Full System Diagnostic

Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions.

Displays live data in text, graph for easy data review and analysis, record and playbacks live data to pinpoint troubles of sensors and components.

The following is a list of modern vehicle systems that this scan tool can get access to:

-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems

-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System

-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft /

Add CAN FD / DOIP new protocols

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

DoIP
With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP919E save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

What's FCA US SGW?

FCA vehicles (Fiat Chrysler Automobiles) have been protected with an SGW security module (Secure since 2017 Gateway) to prevent unauthorized diagnostics and security attacks.

This module limits diagnostic capabilities without authorized diagnostic tools. This limits functions ranging from Bi-directional testing to DTC clearing. The vehicle’s SGW will need to be "unlocked" by the authenticated tester, and the Diagnostic tools.

Now FCA US is using the Automatic Authentication Authority (AutoAuth) to manage user accounts for access to SGW vehicles.

Active Test&Bi-directional Control Lifetime Free

requests a module to perform a specific test and function.(Turn on and off actuators to determine whether there are problems with sensors and actuators)

Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable,Fuel Injector Tests, Injecor Buzz Test, Injector Kill Tests, Injector Cut Out Test,A/C Compressor Clutch Relay On/Off

EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test

Turn Off ACC Lane Keeping Assist System (LKAS),Turn ON/OFF Front and Rear side ACM Solenoid,

Turning the fuel pump on and off,Oil Pressure Control Test

Inlet and Outlet Valve tests,High beam test,Interior lighting test

Advanced ECU Coding Lifetime Free

used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use our x431 v pro to stimulate all the possibilities of the vehicles

After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.

Recode Changed Modules/Optimize Vehicle Performance/Re-Flash/Hidden Functions/Renew ECUs Coordination/Reprogram/Adaptive Data/Improve Fuel Efficiency/Reduce Power Loss/Improve the Durability of Mechanical Parts

34 Maintenance Function Lifetim free, send car VIN to check compatibility

1. Oil Reset: reset the oil life system and turn off the oil light after oil or oil filter replacements.
2. EPB: reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
3. TPMS: reset the tire pressure and turn off the tire pressure fault indicator.
4. BMS: reset the monitoring unit of the car battery after replacing the battery or battery monitoring sensors.
5. DPF Regeneration: clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
6. IMMO Keys: disable the lost vehicle keys and program the replacement key fob. ONLY For some Asian and American cars with low-grade IMMO.
7. Injector Coding: write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.
8. SAS Calibration: calibrate the steering angle after replacing steering-related parts.
9. Suspension Level Calibration: adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
10. Throttle Adaption: Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
11. Sunroof Initialization: initialize the sunroof data to set the sunroof to lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
12. Seats Calibration: specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.
13. ABS Bleeding: Help exhaust the air.

14. Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality.

15. Gear Learning: Monitors certain camshaft position sensors signals.

16. Tire Reset: Set the size parameters of the modified or replaced tire.

17. A/F Reset: Set or learn Air/Fuel ratio parameters.

18. Adblue Reset(Diesel Engine Exhaust Gas Filter): Reset urea after the diesel exhaust treatment fluid is replaced or filled up.

19. Coolant Bleeding: Activate the electronic water pump.

20. Nox Sensor Reset: Reset catalytic converter learned value stored in ECU.

21. ODO Reset: Copy, write or rewrite the kilometer value, only few cars compatible, check with seller compatibility.

22. SRS(Airbag Reset): Resets the airbag data to clear the airbag collision fault indicator.

23. Transport Mode: Deactivate the transport mode.

24. Windows Calibration: Perform door window matching to recover ECU initial memory.

25. Language Change: Change vehicle system language.

26. EGR Adaption: Learn the Exhaust Gas Recirculation valve after being cleaned.

27. Stop/Start Reset: Set up the automatic start-stop function in ECU.

28. AFS Headlamp Reset: Initialize the adaptive headlamp system.

29. Motor Angular Position Sensor Calibration.

30. Engine Power Balance.

31. High Voltage Battery Health Check.

32. Smart Cruise Control Calibration.

33. GPF Regeneration.

34. Automatic Air Conditioning Initialization.

Global Version!!! Support 99% Vehicle, 1000+ Vehicles

-American Cars
For Buick; For Cadillac; For Chevrolet; For Chrysler; For Dodge;For Ford; For GM; For Hummer; For Jeep; For Lincoln; (BRAZIL) For BX-Fiat; For BX-GM


-European Cars:
For Abarth; For Alfa Romeo; For Audi; For Bentley; For Benz; For BMW; For Bugatti; For Citroen; For Dacia; For EU-Ford; For Ferrari; For Fiat; For Jaguar; For Lamborghini; For Lancia; For LandRover; For Maserati; For Maybach; For Mini; For Opel; For Peugeot; For Porsche; For Renault; For Rolls-Royce; For Rover; For Saab; For Seat; For Skoda; For Smart; For Sprinter; For Vauxhall; For Volvo; For VW; For (UKRAINE) ZAZ; For (RUSSIA) GAZ; For VAZ


-Asian Cars
For (JAPAN) Acura;For Daihatsu; For Honda; For Infiniti;For Isuzu; For Jpisuzu; For Lexus; For Mazda; For Mitsubishi; For Nissan; For Nissan GTR; For Scion; For Subaru; For Subaru; For Suzuki; For Tlisuzu; For Toyota; For (KOREA) Daewoo; For Hyundai; For KIA; For Samsung; For Ssangyong; For (CHINA) Baic; For Beijing; For Changan; For Changan-Ford; For Changcheng; For Changhe; For Chsuzuki; For DF Peugeot; For DF Honda; For DF Nissan; For DF XK; For Flyer,For BYD; For Fukang; For Futian,For Foton; For Geely; For Gonow; For GZ Honda; For Hafei; For Haoqing; For HC BMW; For Hmada; For Huachen; For Isuzu,For JMC; For Jacty; For Jianghuai; For Jiao; For Jinlong;For Joylong;For Lifan; For Liuwel-TY; For Luxgen; For NJ Fiat; For Qirul-TY,For chery; For Qoros; For Saicmg; For Spark-TY; For TJ Toyota; For Trumpchi For GAC; For Weili; For Xiaokang For Dongfeng; For Xili,For Faw Tianjin; For Xinkai; For YQ Mazda; For Zhongshun; For Zhongtai,For Zotye; For Zhongxing; For (INDIA) Mahindra;For Maruti; For Tata; For (MALAYSIA) Perodua; For Proton; For (IRAN) MVM


-Australian Cars
For Au-Ford; For Holden
More car models, please contact us for details.

Support 28 Languages

English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional...

More Functions

Auto VIN Scan

One Click Update

4-in-1 Data Stream

Diagnostic report Print&Share

Data Record&Play Back

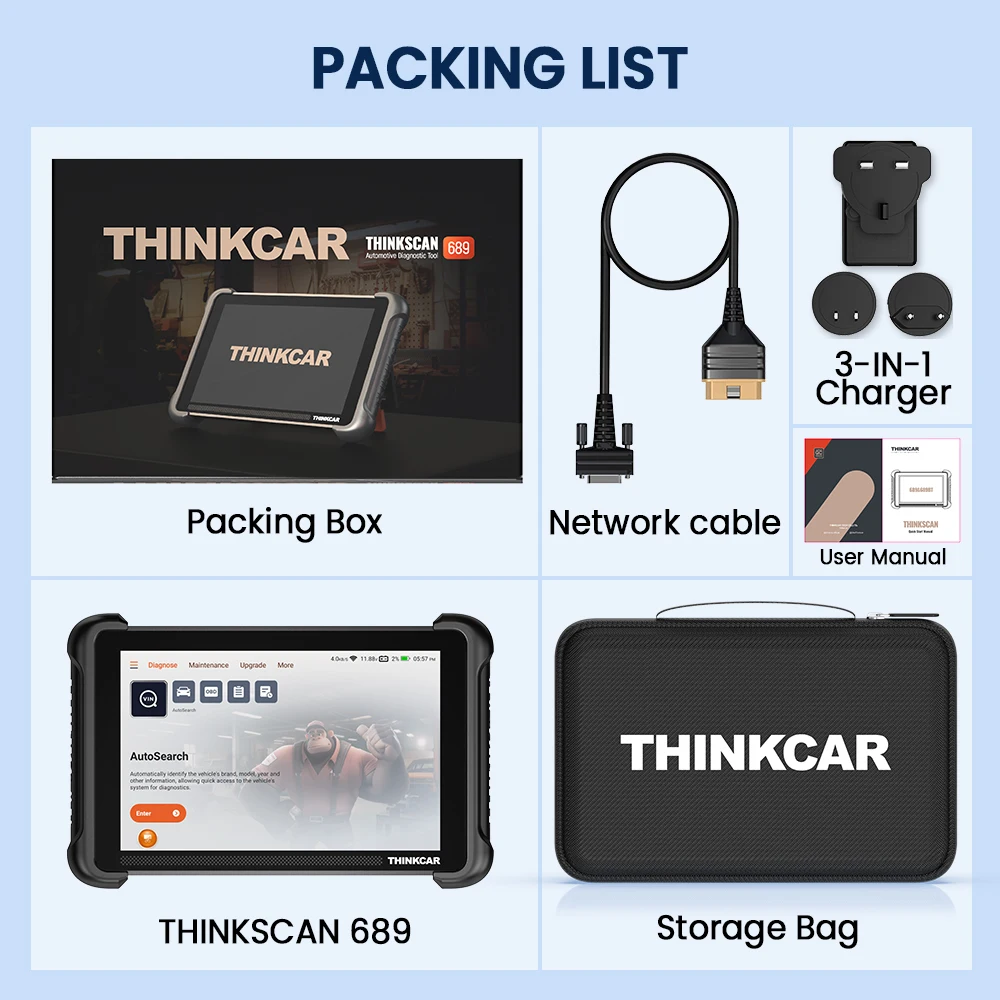

Package contents

1*THINKSCAN 689
1*DB15 diagnostic cable
1*3 in 1 charger
1*User manual
1* Storage bag
