KT200 Plus ECU Programmer Read Write Clone ECU By Bench Mode/ OBD Support DTC off Immo off Map

KT200 Plus ECU Programmer adds more protocols for KT200 and KT200ll, Supports read & write & clone protocols by OBD and Bench Mode.

KT200 Plus Full ECU Support List

What is KT200 Plus?
1.KT200 plus is a plug-in module ecu tool,add more read and write and clone protocols for KT200 and KT200ll.  lts appearance is mainly to make up for the shortcomings of previous equipment and to provide continuous function updates for future equipment.
2.Support OBD and Bench model.  And Boot mode will be update in the near future.  Also Denso will be update soon.
3.Built-in DTC off and map modification function

KT200 Plus Features:

1.Read/write/clone ECU
2.Built-in DTC shutdown and mapping modification functions
3.Online update
4.Work independently
5.Automatic checksum

KT200 II vs K200 Plus

KT200 II
Standalone Operation: Yes
Available Versions: Auto version, full version, and offline workstation
Read / Write ECU & TCU: yes
Clone ECU: Tricore Clone ECU MEDC17
ECU Services: No
Operating Modes: Works in both online and offline modes
Checksum Calculation: Yes

KT200 Plus:
Standalone Operation: Yes
Read / Write ECU & TCU: yes
Add more ECU clone: yes
ECU Service: File modification, DTC off, IMMO off, TPROT etc
Checksum Calculation: Yes
Software: KT200 Plus work independently, the software = KTflash dongle + the full license
Online update, 1 year for free.

KT200 Plus ECU Support List:
KT200 Plus support DCM6.2AP series, DCM7.1AP Serial, EXX series, MG1US, UA008 Series, MXX Series, SXX Series, HITACHI 71XX, INFINEON Series, MEDC17 Series, Clone MEDC17 Series, Clone SIMOS Series, CRD2XX Series, CRD3XX Series, 6XX Series, MTXX Series, and more protocols will be updated soon.

KT200 Plus Full ECU Support List

KT200 Plus Support Online Update

Original from ECUHELP with free online updates for 1 year, subscription at 120 USD/year.

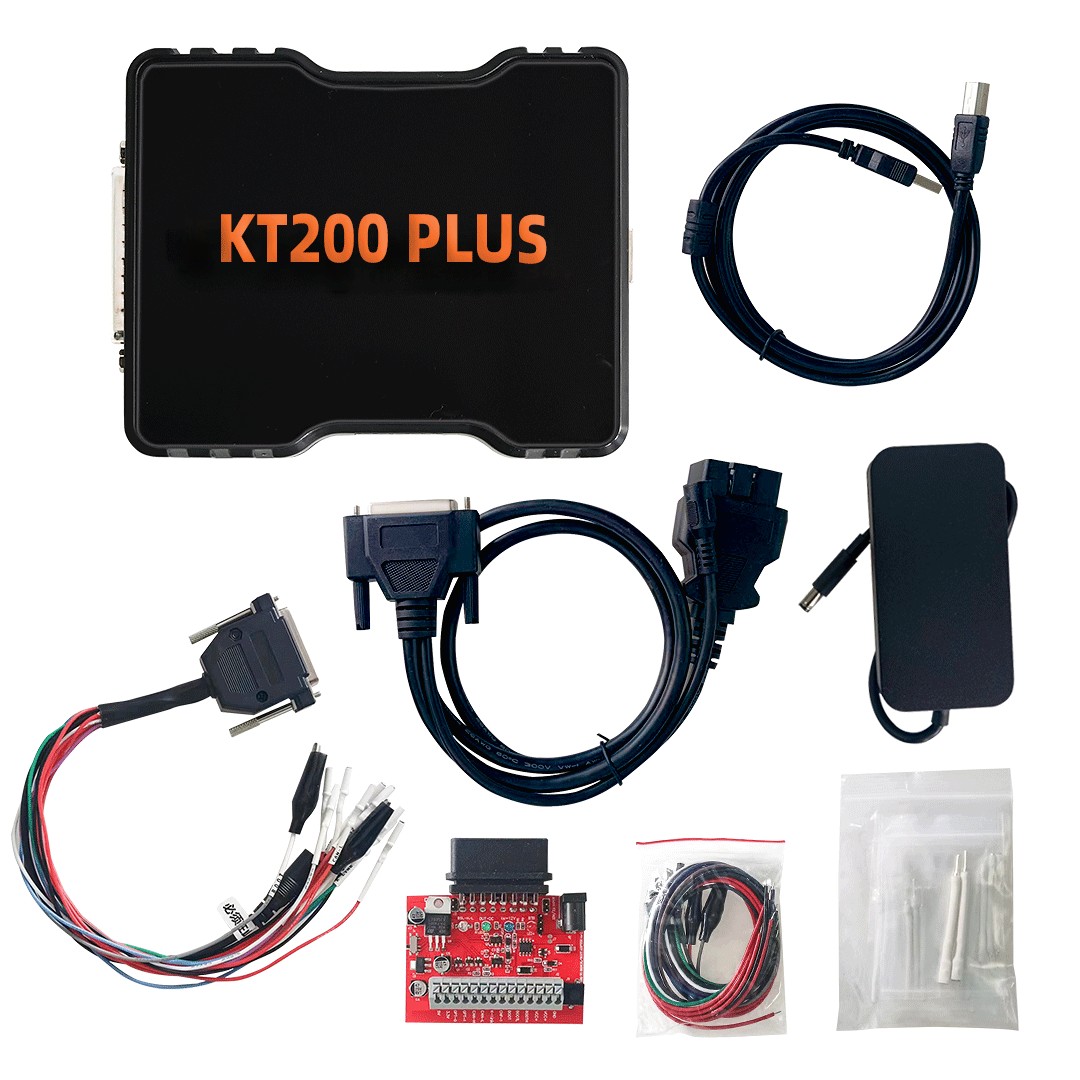

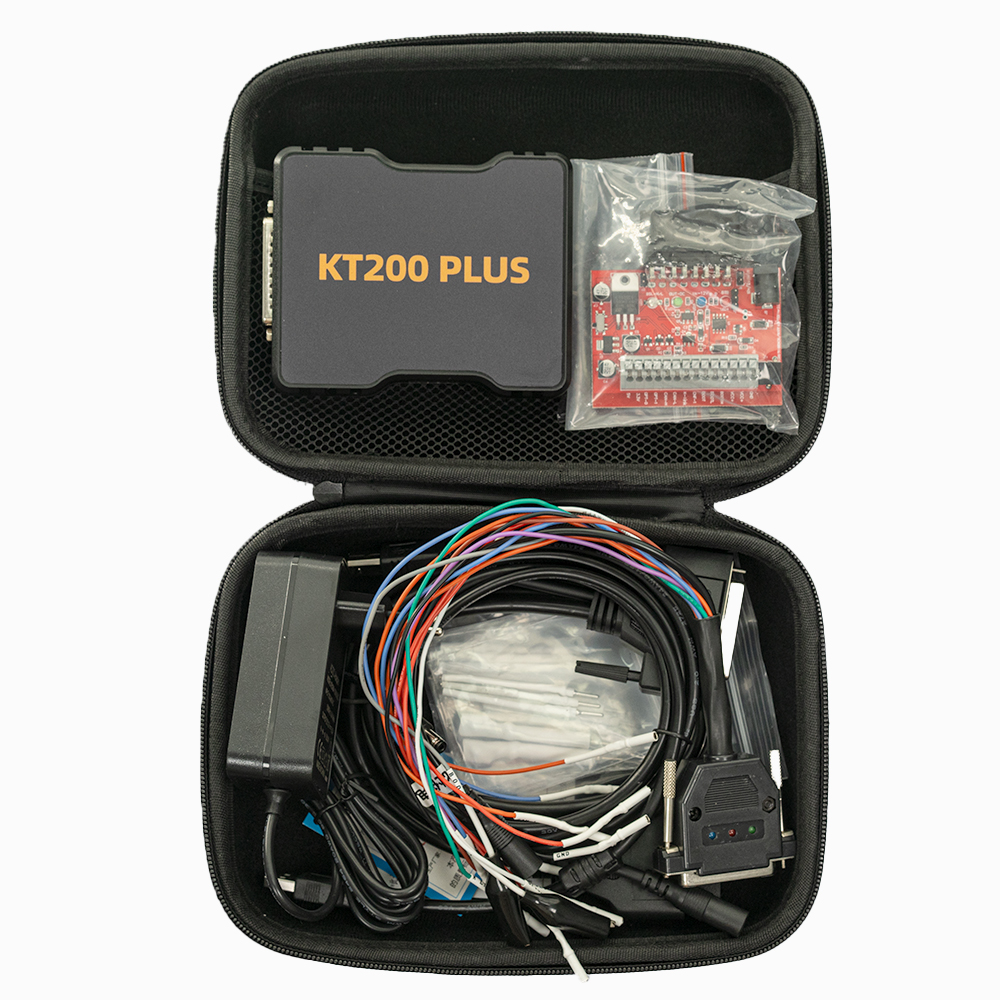

KT200 Plus Package List:
Carrying Case
KT200 Plus adapter
OBD cable
USB cable
OTB 2.0
Multifunctional cable
Power Plug
OTB2.0 inside the cable

KT200 Plus Update ((2024.9.13)
Added Delphi DCM6.2V bench reading and writing (world's first), along with fault code management and immobilizer management functions.
Expanded coverage for Delphi MT62.1, MT92, MT95, and other models.
Increased coverage for MEDC17 models.
Added support for cloning Volkswagen Siemens SDI6, SDI7, SDI8, and IMMO OFF for the SIMOS series.
Added functions for diagnostic fault code reading and clearing.
Added support for the Italian language.

KT200 Plus Update (2024.8.17)
EDC17 XX series /MEXX series
Read /Write/Clone/DTC off,Obd and Bench mode

2024.8.16
Add: EDC16/ME9 series

2024.7.26

Add: Clone Medc17 series,Clone Simes/Contient series

2024.7.5

Add: Medc17 series

2024.5.24
Add: MT XX series

What specific ECUs does the KT200 Plus read and write? Please refer to the following images.
