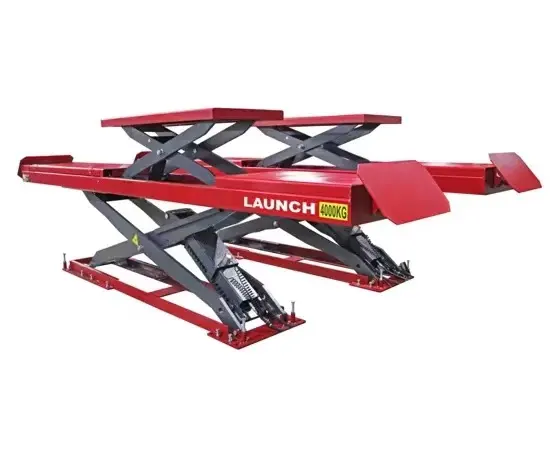

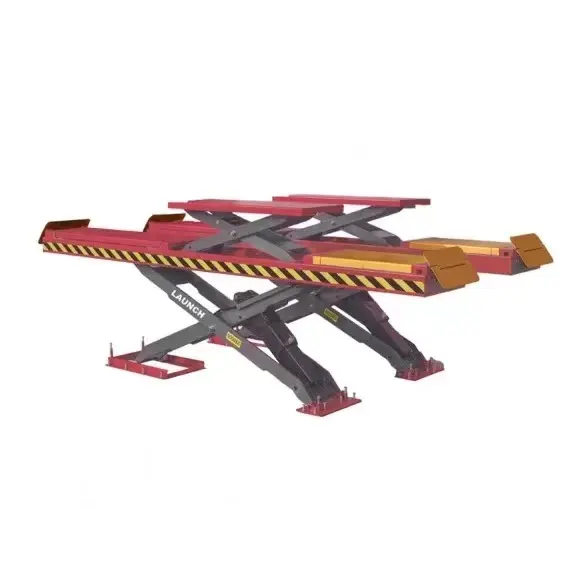

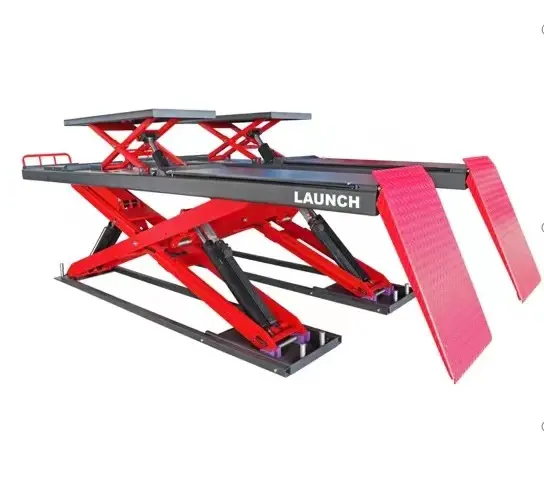

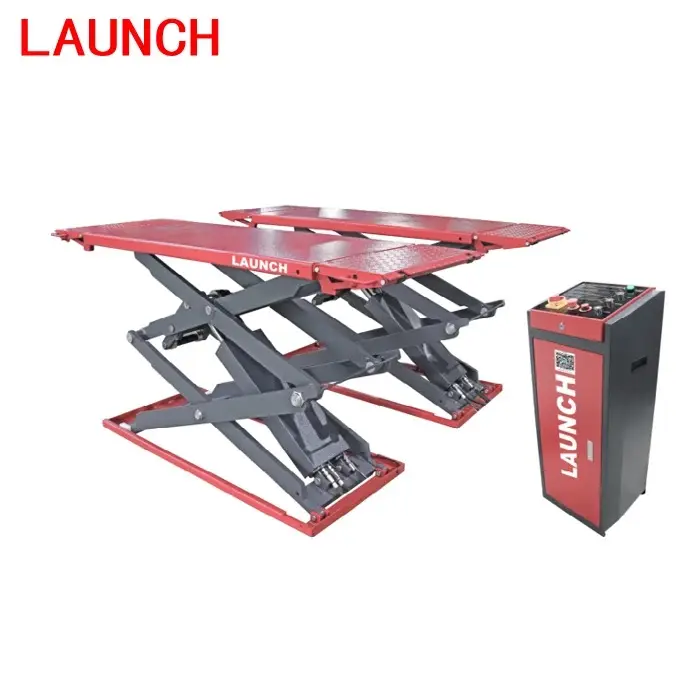

Launch TLT840WA 4 Tons Double Scissor Lift Suitable For Small Passenger Cars and Light Trucks
The TLT840WA Big Scissor Lift takes space-saving style to save most workspace for diagnostic business. The rated load reaches 4000kg. Many physical installations and settings ensure effective and efficient operations to be safe and reliable. It has very good horizontal adjustment ability for precisely adjusting horizontal accuracy, super fittable for the four-wheel alignment detection.
TLT-840WA Features:
*Hidden scissor structure and the rated load reaches 4000kg.
*Space-saving style to maximize the workspace for diagnostic business.
*Separate control box in a low voltage controlling way is safer and better for operation.
*Hydraulic volume keeps the pace with the cylinder and the platform runs synchronously and smoothly.
*Double security design with the hydraulic lock and the mechanical double teeth safety claw keeps safe and reliable.
*Automatic lowering design and the safety claw achieve reverse positioning by the locking operation.
*Protection mechanism device for hydraulic failure, overload safety valve protection and pipe explosion-proof protection; the equipment will not fall quickly when the oil pipe bursts.
*The sliding block is oil-free and in super wear-resistant material.
*Italy, Germany, Japan and other high-quality hydraulic components and electrical components are our standard configurations.
*Strong horizontal adjustment ability for precisely adjusting horizontal accuracy, super fittable for the four-wheel alignment detection.
*Manual lowering device is equipped for power outage siturations.
Specification for LAUNCH TLT840WA:
Rated Load | 4000kg |
Lifting Height | 1850mm |
Initial Height | 330mm |
Runway Length | 4300mm |
Runway Width | 605mm |
Lifting Time | ≤50s |
Lowering Time | ≤60s |
Motor Power | 2.2KW |
Motor Voltage | AC 400V or 230V ±5% 50Hz |
Drive Method | Electro-hydraulic |
Hydraulic Oil Type | 18L (self-purchase) #32 in winter; #46 in summer |
Air Pressure | 6~8kg/cm² |
Working Temperature | 5~40℃ |
Net Weight | 2000kg |
