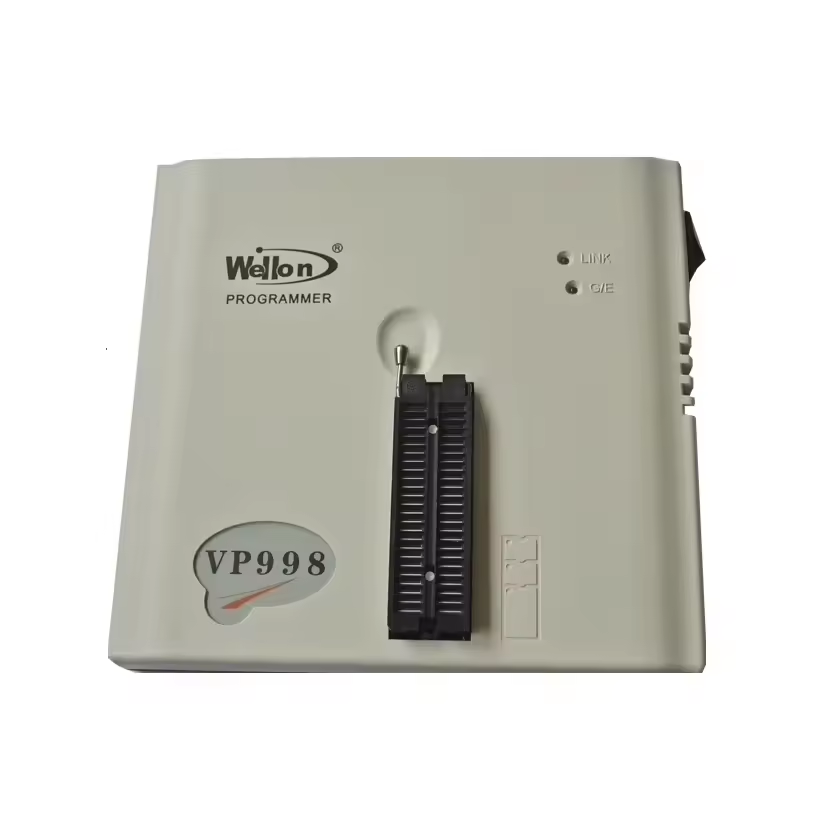

Original Wellon VP-998 VP998 Universal Programmer

FEATURES:

Dimension:168*180*32mm,weight:1500g.
Electrical spec of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W

48 Pin ZIF socket with universal pin-drivers.

Interface with LAPTOP, PC or compatibles through USB port

Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record

Manages 16 and 32-bit word split (Set Programming)

Features Test Vector capability and multiarray fuse map editor

Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices

Optimum programming for each individual device

Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC

Device insertion and poor-pin-contact check

Support 1.5v Low voltage devices

Not need exterior adapter for mostly devices.

Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters

Auto-run mode starts programming automatically upon detection of chip insertion

Supports WindowsXP/Vista/ Windows 7/8/10

Supports eight languages,such as

Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese,Dutch, Turkish and Hungary.

PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more

Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC TEST:
TTL (74 series), CMOS (40/45 series) Logic IC
SRAM (2114, 6116 …) memory device

DEVICE UPDATES:

WEILEI updates software and device algorithm regularly. You can get the latest software free of charge through internet

ORDERING INFORMATION:

rogrammer,cable, manual, software included

WARRANTY & TECHNICAL SUPPORT:

Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.
