Xhorse MINI PROG - The Most Powerful Chip Programmer AND 15PCS MINI PROG ADAPTERS

Xhorse MINI PROG Highlights:

1. Language: English, French, Spanish, Portugues, Chinese
For the rest language besides those 5, only xhorse local dealer can activate related language
For example: If you need the Russian language, only the xhorse Russia dealer can activate it for customers.
2. Portable and Easy to use: Professional smart programming device, that provides a portable chip programming solution
Handheld and independent device for reading and writing data.
The 3 different pin headers can be easily switched to read and write different chips and satisfy different demands
3. Store data without relying on a PC. For most 8-pin ICs, you can use a pressure contact to read and write data.
4. No need to remove the chip
No need to remove the chip / solder / cut the wire / lift the pin
Various special models will also be equipped with the corresponding adapter, such as the BMW CAS adapter
5. No need for soldering
Porsche BCM adapter without soldering, Land Rover adapter, etc. . . . .
(These adapter boards are also expected to work with VVDI PROG and VVDI Key Tool Plus).
6. No need to cut the wire
7. No need to lift the pin
8. Connected to your smartphone to intelligently complete the chip programming works via Bluetooth and WiFi.
9. Fast Speed Working: The smart screen on the top of the MINI PROG clearly shows the real-time working status.
10. Built-in battery and wireless data transmission, no need for external power supply and U disk to transfer data.

MINI PROG Main Functions

1. Directly read & write data without soldering
2. Support reading & writing EEPROM data
3. Support reading & writing ECU data
4. Accurately identify the pin connection status
5. Support repair of multiple modules
6. Connect to the APP via WiFi or Bluetooth; Connect to your smartphone (Android, IOS)
7. Support data local & cloud storage
8. Battery-powered device; Easy to use
More functions coming soon

A Legend Is Born

• MINI PROG, Solder-free Programmer

• New Era of Programming

• Driven by Technology, MINI PROG Is Ready When You Are.

Solder-free Programming

• EEPROM Reading & Writing

• Dashboard Data Reading & Writing

• Data Editing

• Press Header

• PIN Status Detection

• APP Control

• Cloud Backup

Leads a New Trend of Solder-free Programming

Designed to offer a Simple and Secure Programming Experience

• Need to solder wire, complicated and time-consuming

• Need to remove the chip and cut the wire which may lead to a car breakdown or data loss if you are not good at soldering

• Data loss may be easily caused by solder skips

Highlights of MINI PROG:

• No need to remove the chip / solder / cut the wire / lift the pin

• No need to dismantle or cut the wire with no risk of damaging the PCB

• Easy to use for green hands

Multi-module Reading & Writing

• Convenience at hand with Connection Diagram

IMMO data reading & writing

• BMW: BDC / CAS3 / CAS3+ / CAS4 / CAS4+ / FEM

• BENZ: EIS / EIZ

• PORSCHE: BCM

• LANDROVER: RFA

• VOLVO: CEM / KVM

EEPROM reading & writing

Support reading and writing 24C× × , 93C× × , 95× × × , 25× × × etc. EEPROM data
Covering 95% of common EEPROM in market

ECU data reading & writing

Support reading & writing DFLASH and PFLASH of BMW, AUDI, VW

Dashboard data reading & writing

Support Honda, Kia, Hyundai, etc.
The support list above is displayed only partially and you can refer to the latest version of MINI PROG for the complete list.

Pin Header Reading Chip Directly, Pioneer in Industry

The ultra-simple operation that adapts to you.

There is no need to remove the chip when reading.

All you need is to press the pin header at the appropriate chip and then you can read and write data on Xhorse APP.

Pin Header 1 supports reading the DIP8 chip

Pin Header 2 supports reading SOP8 wide-type package chip

Pin Header 3 supports reading SOP8 standard package chip

Smart Detection

Detect Pin Connection Status with Great Accuracy
Your work is more secure.

MINI PROG supports pin status detection and will give notice when poor contact arises, which makes it easy to operate and avoid data loss and damage.

Multiple Solder-free Adapters Available(Optional)

BMW Adapters

BMW CAS3 / CAS3 + , CAS4 / CAS4 + , FRM, DB15-DB25 adapter(for EWS4 adapter only), D80 / 35080, ECU interface board kit

PORSCHE IMMO Adapter
Porsche BCM

LANDROVER IMMO Adapter
LANDROVER KVM

VOLVO IMMO Adapters
VOLVO KVM, VOLVO CEM-1, VOLVO CEM-2

MB91F Dashboard Adapter

• Honda FIT-H

• Honda FIT-L

• Hyundai SONATA

• KIA K3

• KIA K5

• ECU Adapter

• Remote Renew Adapter

• 9S12XE cable

• MCU cable

• DB9 cable

• 12V + 5V power adapter

• Pin Header 4

All adapters and cables above are optional and are not included in the standard configuration.
You can contact the dealer for purchase if you need them.

High-tech made simple

APP Control With No Need to Use Computer Anymore

Download Xhorse APP and connect to your MINI PROG via Bluetooth or WiFi.

MINI PROG allows you to finish works like data reading, writing, and editing directly on your smartphone, providing greater convenience when working outside.

Cloud Storage, Safer Than Ever

Data can be stored in Local Files as well as Cloud to ensure the safety of data, avoiding data loss caused by misconduct.

Professional Online Customer Service Available

More Functions Coming Soon

MINI PROG delivers firmware and database updating and functions adding from time to time. Stay tuned!

Log in to Xhorse APP and you can find related videos and technical articles that will help you transform from a green hand to an old hand.

Xhorse provides professional after-sale service and you can contact the technical support team on Xhorse APP to solve your problems.


Artfully Crafted

• Sleek Design, Best-in-class Experience

• Incredibly Light

• Extremely Portable

• Extraordinarily Convenient

• MINI PROG weighs no more than 0.21kg and it' s easy to operate and carry.

• It offers the perfect blend of form and function, fitting into any work environment.

IMPORTANCE

We hereby state that the trademarks or trade names mentioned in this document are the exclusive property of authorized manufacutures.

Said trademarks or trade names are nominated only for information so that our users can rapidly identify product information.

This document is reserved exclusively for professional locksmiths who use Xhorse products.

Xhorse Mini Prog Device Overview:

Mini Prog VS Other Programming Devices

Xhorse Mini Prog Test Head and Cable / Adapter package:

• 1pc x DB15 Cable

• 1pc x EEPROM Adapter

• 3pc x Pin Headers

• Pin Header 1 supports reading the DIP8 chip

• Pin Header 2 supports reading SOP8 wide-type package chip

• Pin Header 3 supports reading SOP8 standard package chip

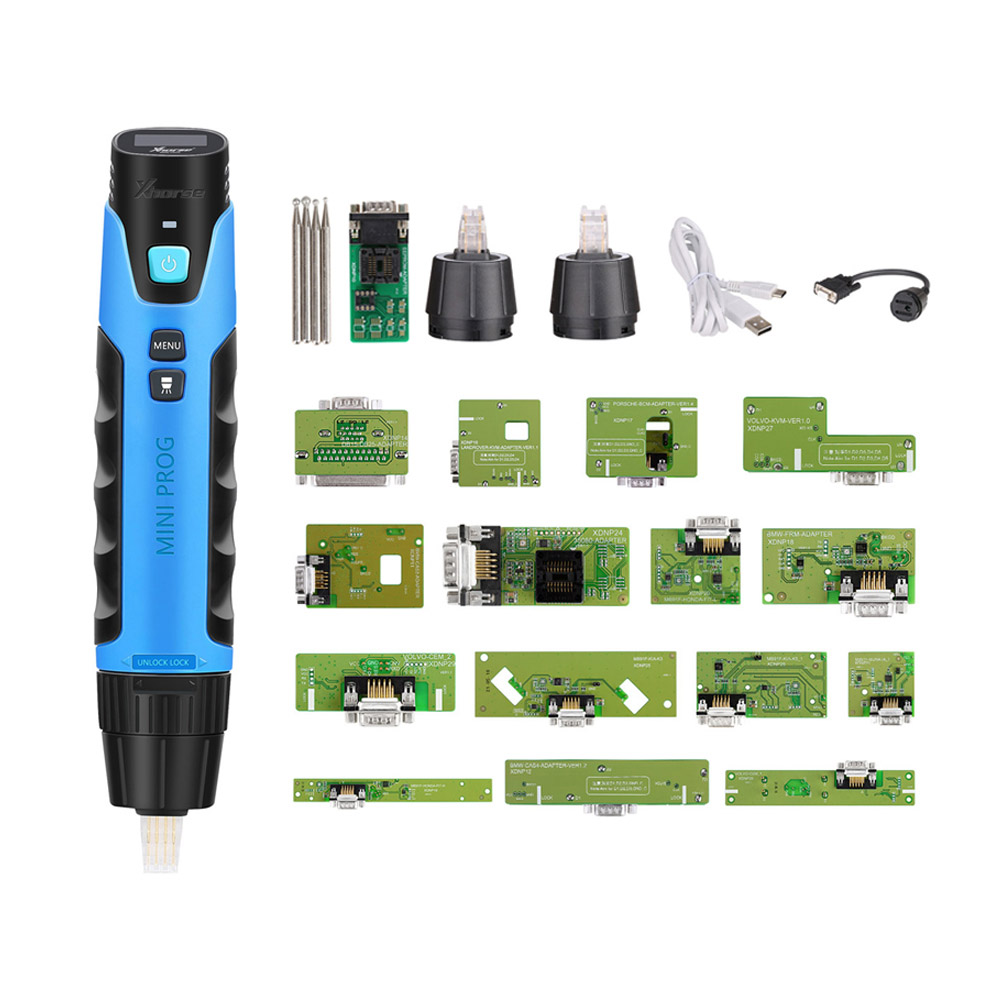

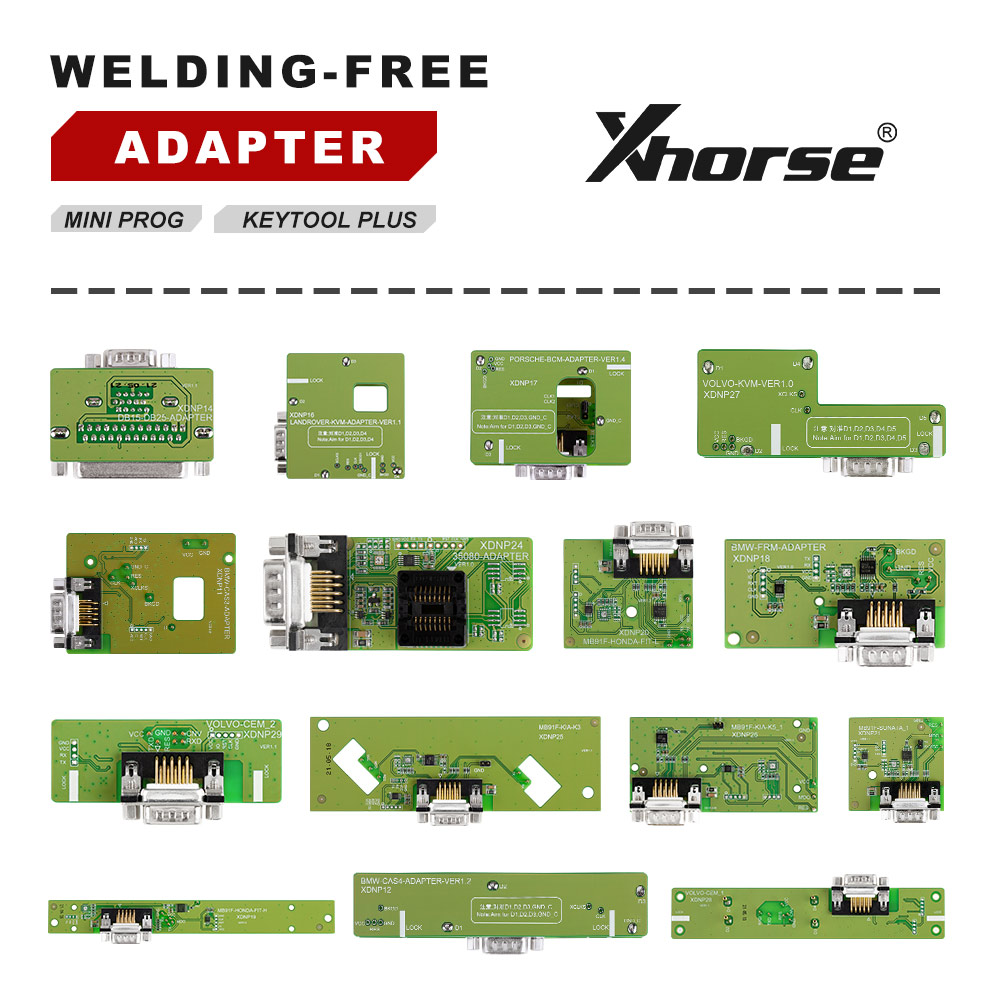

MINI PROG Solder-free Adapters 16pcs for MINI PROG and KEY TOOL PLUS

All adapters and cables are optional and are not included in the standard configuration


MINI PROG Solder-free Adapters 16pcs:

• XDNPP1CH---5PCS for BMW

• XDNPP2CH---3PCS for Volvo

• XDNPP3CH---6PCS for Honda Toyota Hyundai

• XDNP16CH---1PCS KVM for Land Rover

• XDNP17CH--1PCS BCM for Porsche
